Locking Assembly K Series Power Locks

K Series Locking Assembly

K Series Locking Assembly Features

• Medium torque
• Self-centering
• Self-locking
• Suited for thin-walled hubs
• No axial movement during clamping

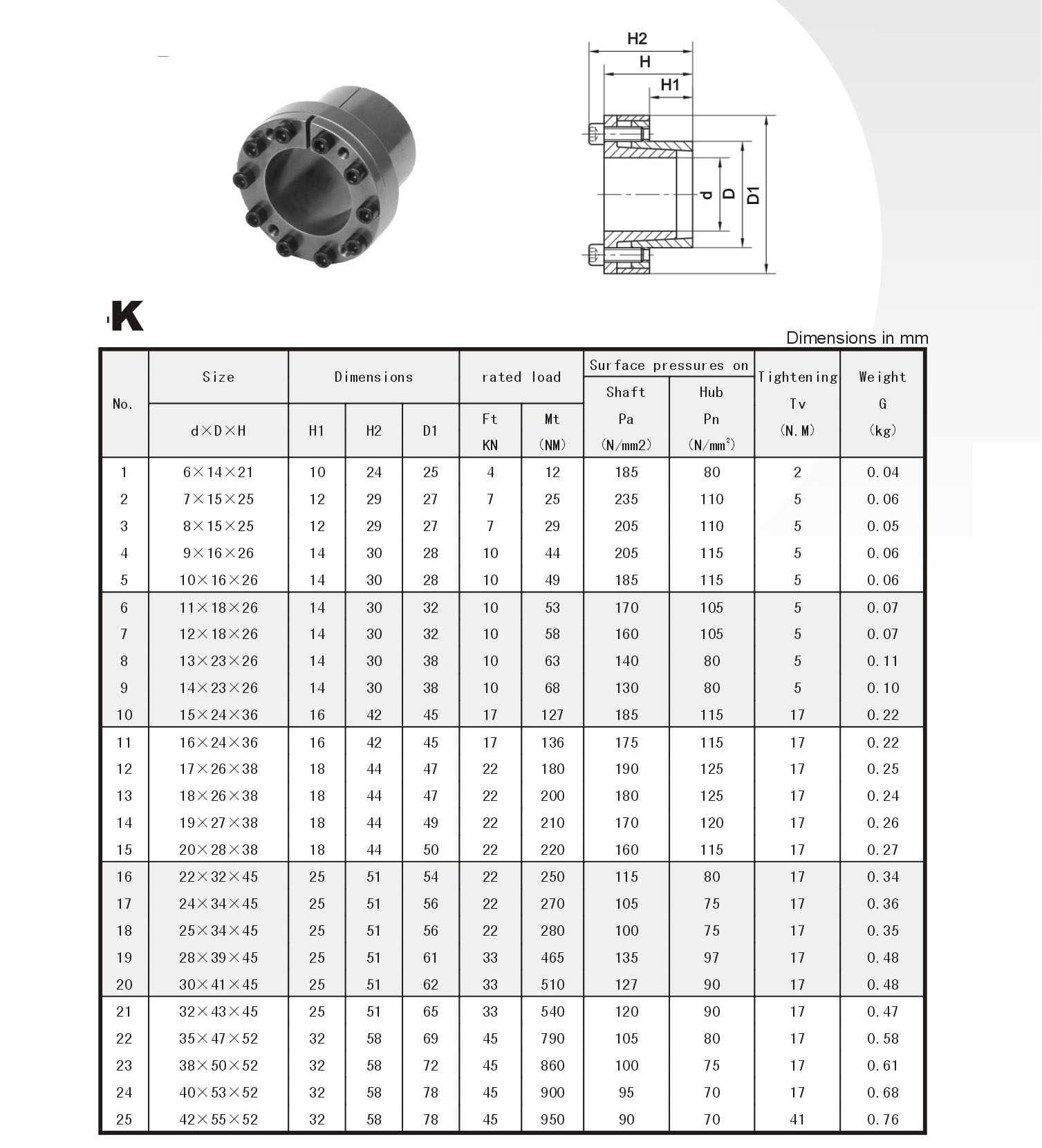

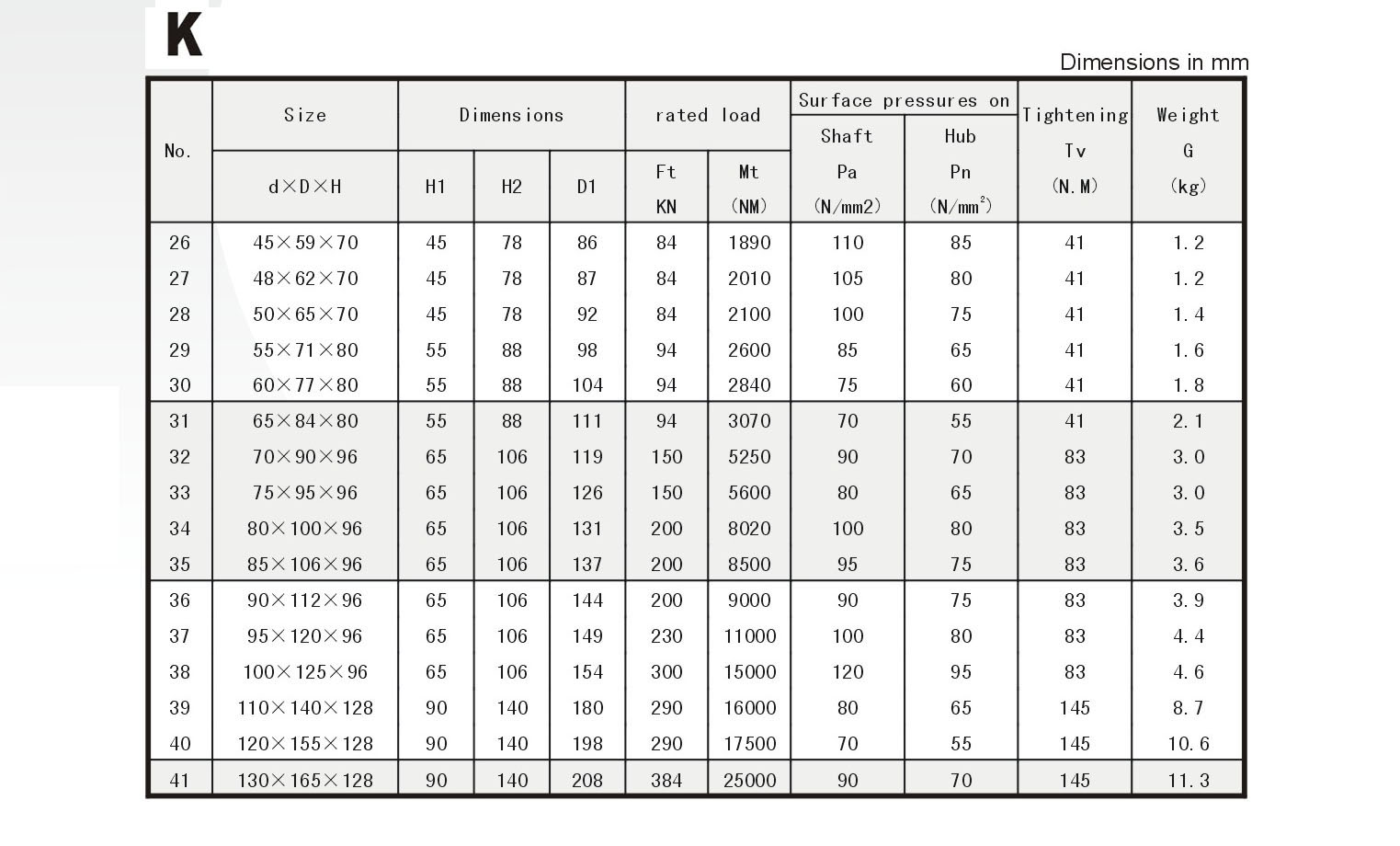

K Series Locking Assembly Specifications

K Series Locking Assembly Technical Qualification

Advantages of Keyless Shaft Locking Assemblies

• Simple assembly and manufacturing. The shaft and hole used for mounting the locking assembly don't require precision manufacturing tolerances, such as interference fit. Moreover, there is no requirement to cool, heat or utilize pressurized equipment to set up the locking device. All you have to do is tighten the screw to the torque specified.
• Easy interchangeability and simple removal. When disassembling, loosen up the compression screw and then make use of the ejector screw to remove the load; then, you can move the linkage state up as well as the locking assembly. The linkage assembly is separated.
• The coupling that locks this device is able to withstand the weight of the rigors of heavy loads. The structure of the coupling can be modified into different styles to suit. In order to meet the load, A locking assembly isn't enough, but it is also several tandem combos.
• This locking system is a precise gapless, keyless connection. The reliable elimination of the transmission of keys due to the stress concentration roll key as well as other disadvantages. It features easy and rapid installation, a long lifespan, as well as is not difficult to corrode. It is not prone to sliding around in the working, and won't be damaged.
• The locking assembly is easily adjusted with no fixation axial within the axial installation to the desired axial size as well as the relative location of the components.
• As the application, different types of mechanical couplings could be replaced by this locking system. Make the transmission structure simpler or make it an integral component of mechanical components, like the elastic diaphragm couplings that are clearance-free.
• The locking assembly operates in a temperature range of -30oC up to 200oC and is constructed from various materials according to the environment in which it is used and various media.
