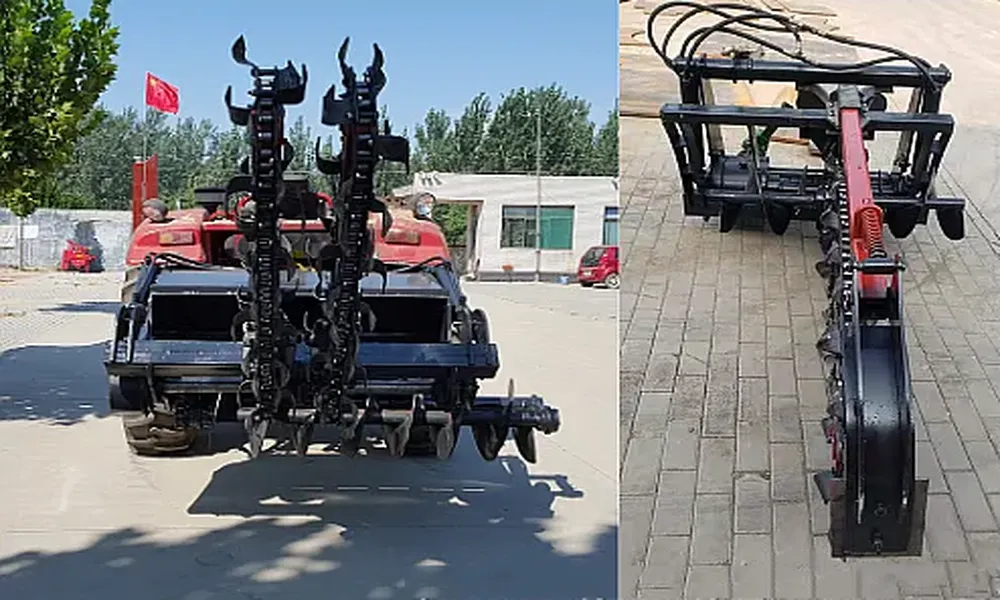

Made in China Trencher for Agricultural Ditching

Introducing the made in China trencher for agricultural ditching, a high-quality, reliable, and efficient farming equipment designed for optimal performance in agricultural trenching operations. This single chain trencher comes with a 1-year warranty on core components and is perfect for farms and agricultural industries. Weighing approximately 800 kg, it's robust yet maneuverable enough to handle all your trenching needs.

Key Advantages of the Chain Trencher

The agricultural trencher offers several standout features and advantages:

• High Productivity: With a trenching width of 15-20 cm and a depth of 1.5 m, this trencher delivers high productivity, making your trenching tasks easier and more efficient.
• Durable and Reliable: The trencher is built with a gearbox as its core component, guaranteeing durability and reliability in various farming conditions.
• Versatile: With its three-pointed mounted linkage system, the trencher can be easily attached to a variety of tractors with a power range of 50-80 hp.
• Quality Assurance: Every trencher undergoes a rigorous outgoing-inspection and has a machinery test report for quality assurance.
• High-Quality Blades: The trencher uses a 65Mn Spring steel or carbide blade, known for their hardness and durability, ensuring a long service life and consistent performance.
• New Product 2024: As a new product offering in 2024, this trencher comes with the latest innovations and advancements in trenching technology.

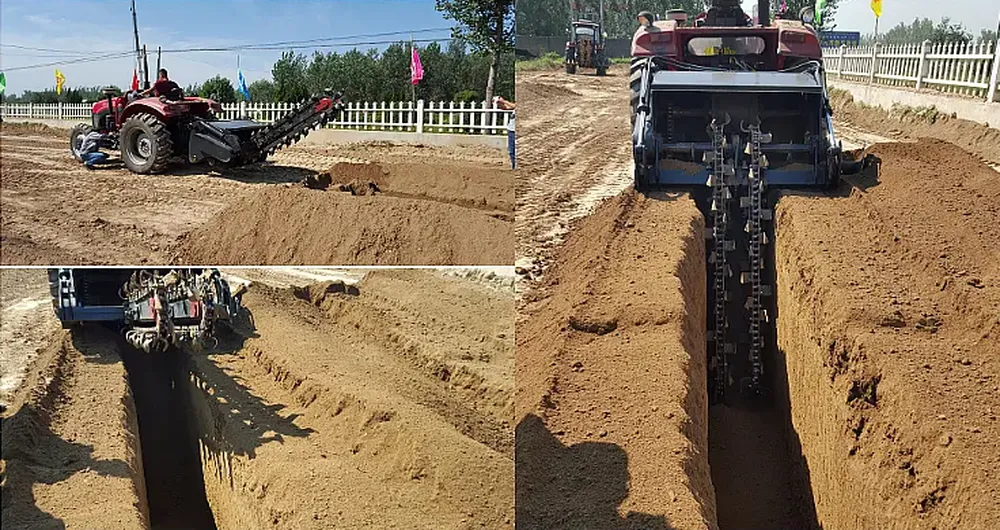

Applications of the Chain Trencher

The chain trencher is not only efficient but also versatile in its applications:

• Soil Trenching: Perfect for creating trenches in soft soil or normal land for laying irrigation systems, drainage, or other underground utilities.
• Agricultural Irrigation: With its depth and width capabilities, it can dig trenches for agricultural irrigation systems, enhancing the productivity of your farms.
• Landscaping: It can be used in landscaping projects, such as creating drainage trenches or laying underground utilities.
• Construction: Ideal for construction sites where trenches are needed for laying cables or pipes.
• Pipe Laying: Can be used in residential, commercial, or industrial projects where trenches are required for pipe laying.
• Telecommunication: It's perfect for digging trenches for laying telecommunication cables.

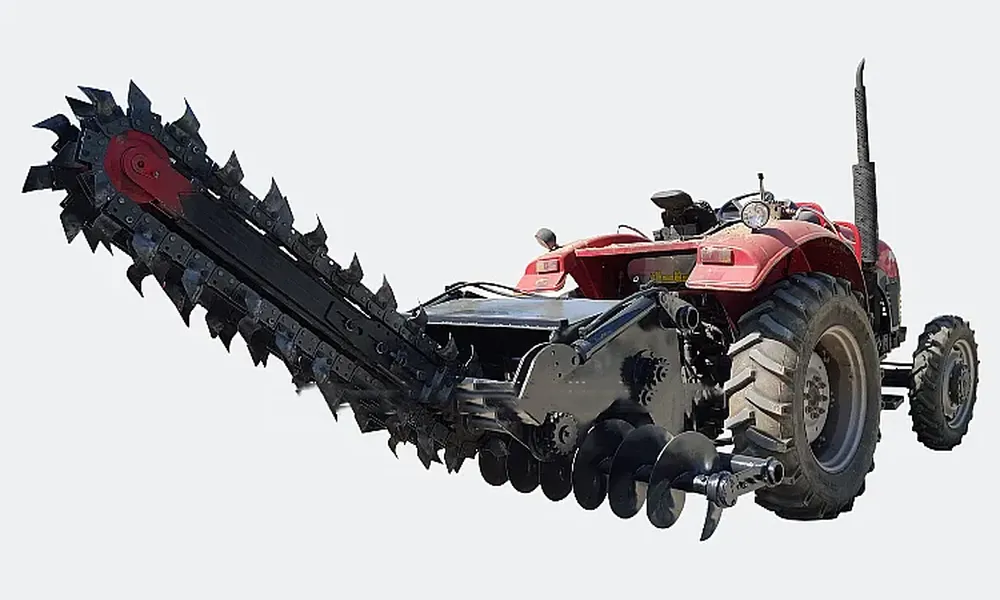

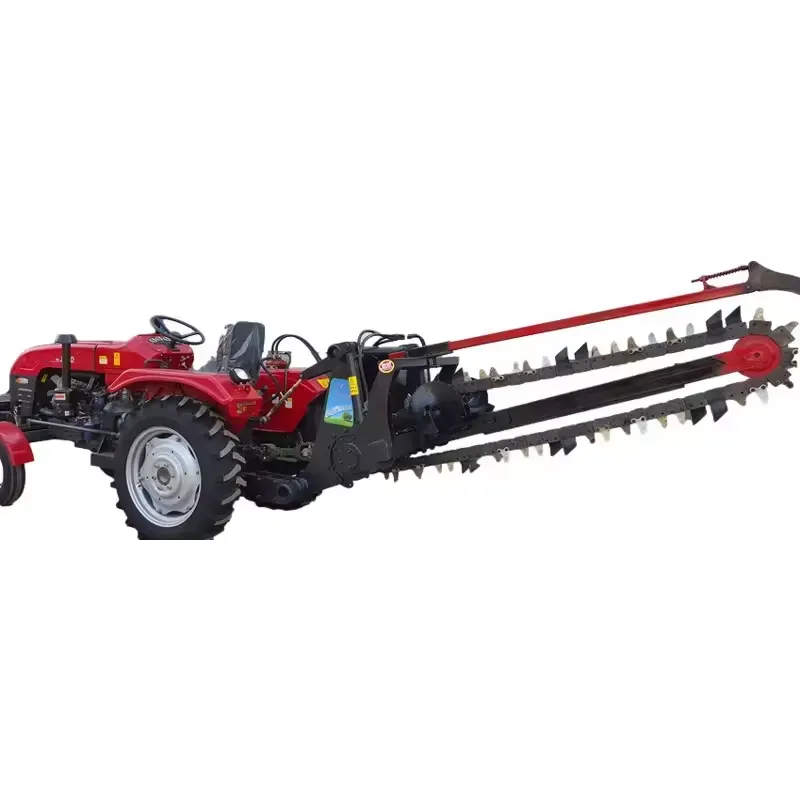

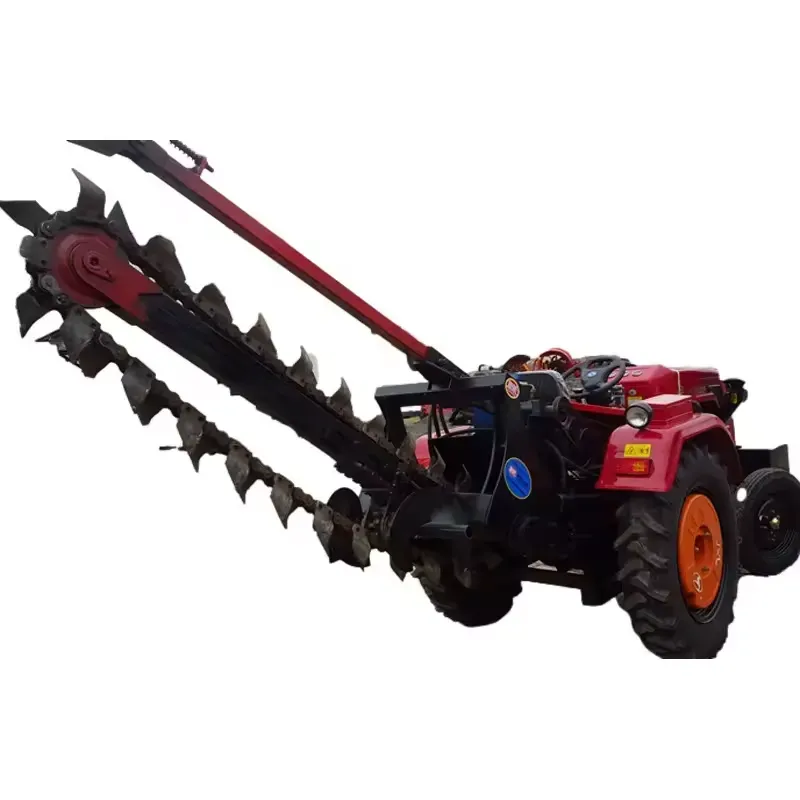

Key Components of the Tractor 3 Point Mounted Chain Trencher

• • Three-Point Hitch: This enables the trencher to be attached to the tractor. It's a standard type of linkage system used on tractors to attach implements flexibly.
  • Power Take-Off (PTO) Shaft: Transfers mechanical power from the tractor to the trencher. It's crucial for driving the trencher's chain mechanism and is equipped with a protective shield for safety.

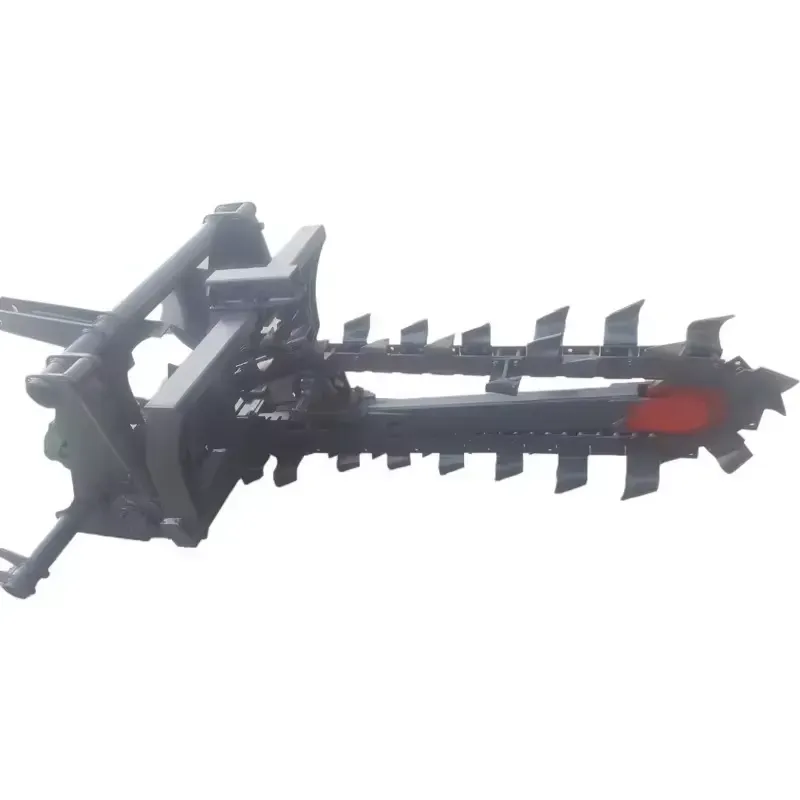

  • Chain with Digging Teeth: This is the primary digging component. The chain, equipped with teeth, rotates around a metal frame or boom, cutting through the soil.
  • Boom: Supports the chain and determines the trench's depth. The boom length can often be adjusted to change the trench depth, and some trenchers allow for boom angle adjustments.
  • Drive System: Includes a gearbox and possibly a hydraulic motor, depending on the trencher model. It ensures efficient power transfer and controls the speed of the chain rotation.
  • Soil Ejection System: This removes excavated soil from the trench path. It often consists of a conveyor or auger mechanism, although simpler models may rely on the design of the chain and teeth to throw soil to the side.

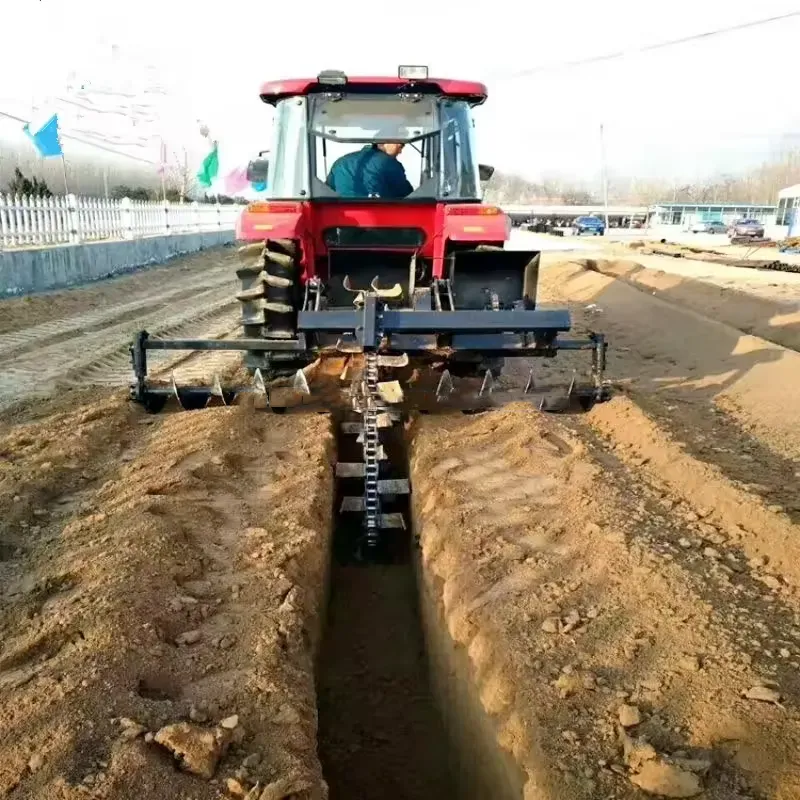

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher works through the combination of tractor power and specialized trenching equipment design. Here??s a step-by-step breakdown of its operation:

• Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch. Once the PTO is mounted, the trencher is powered by the tractor??s PTO shaft.
• Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism. The chain, equipped with cutting teeth, rotates around the boom, cutting into the soil, breaking it up, and removing it from the trench path.
• Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher. This can be set manually or through a hydraulic system, depending on the trencher model.
• Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil. The speed of the tractor??s movement and the PTO rotation speed can affect the quality and uniformity of the trench.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps:

• Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher. Familiarize yourself with any specific mounting instructions and safety precautions.
• Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points.
• Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets. Attach the lower arms of the three-point hitch to the corresponding mounts on the trencher. Secure them with the locking pins provided.
• Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor. Slide the PTO shaft onto the tractor's PTO stub.
• Final Checks: Walk around the tractor and trencher to make a final inspection. Ensure everything is correctly attached and secure. Before starting your trenching work, test the attachment in a safe, clear area to ensure it operates as expected.

Common Troubleshooting Tips

Here are some common troubleshooting tips for dealing with typical trencher problems:

• • Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher.
  • Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM.
  • Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth. Replace them as needed to maintain effective trenching.
  • Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth, which can cause imbalance.

• Excessive Wear on Chain or Teeth: Consider using teeth and chains designed for specific soil types. Adjust your speed based on soil conditions; moving too quickly in tough conditions can increase wear.
