Manufacturing Mini Baler Press Machine for Agricultural Use

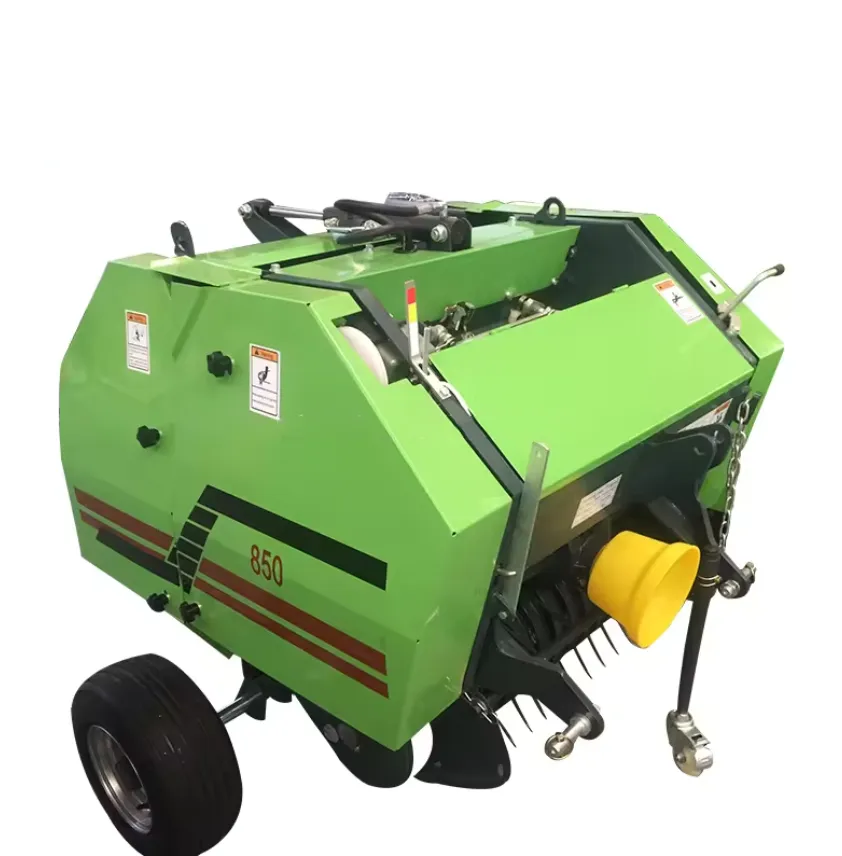

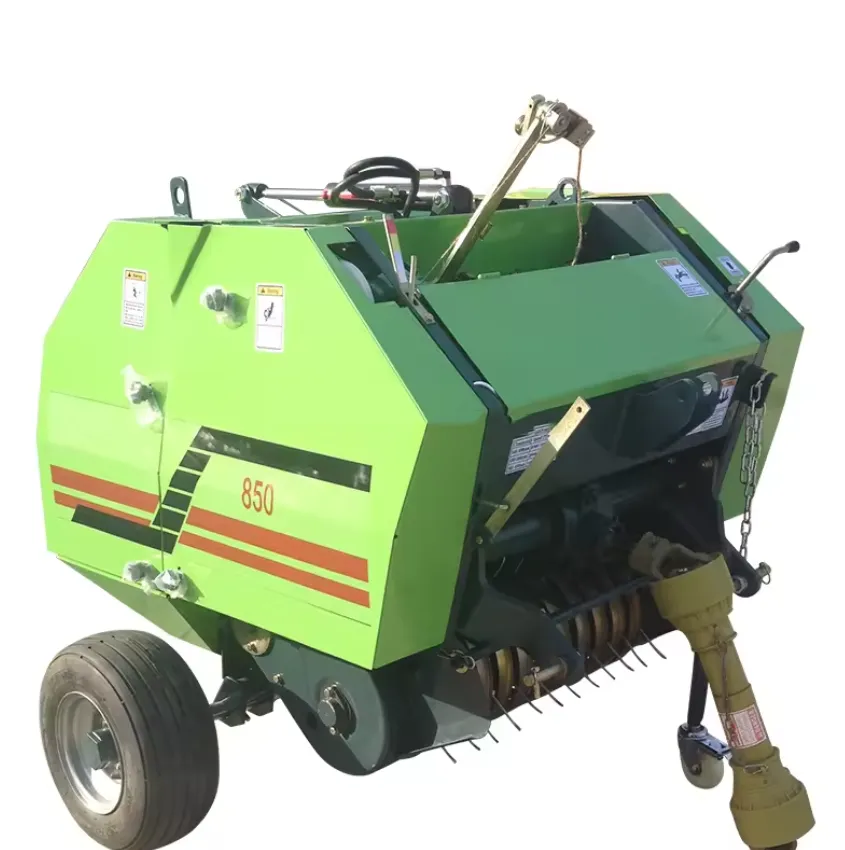

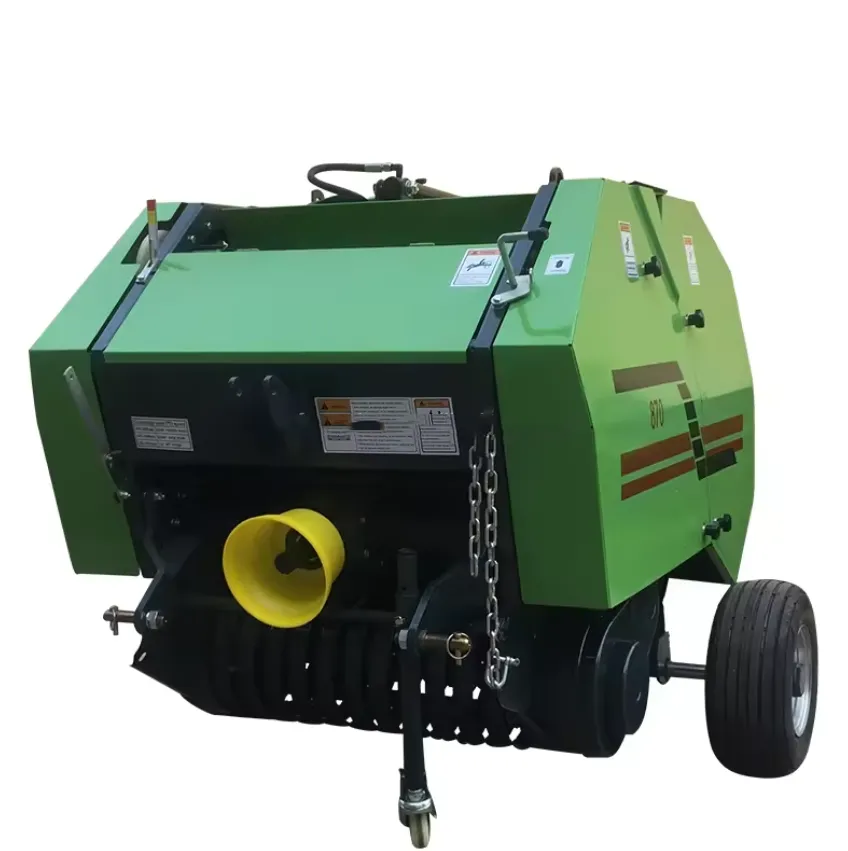

At Raydafon, we manufacture advanced mini baler press machines designed specifically for agricultural use. Our key models, RXYK0850 and RXYK0870, are round balers that operate at speeds of 2-5km/h. These machines are new, featuring a compact dimension of 1300x1300x1350mm and weighing just 390kg. The balers are suitable for a variety of applications including hay, cornstalk, wheat, and rice straw baling. They boast a working efficiency of 80-120 bales per hour, making them a reliable choice for your farming needs.

Advantages of Raydafon's Mini Baler Press Machines

Our mini baler press machines offer a host of advantages to users. Here are some key points:

1. Compact and Durable Design: Our machines are compact, making them easy to handle and manoeuvre in various field conditions. Despite their compact size, these machines are made from robust materials, ensuring their durability and longevity.
2. High Efficiency: Our balers deliver high working efficiency of 80-120 bales per hour. This means you can complete your baling tasks more quickly and efficiently.
3. Versatility: These machines can handle a variety of materials, including hay, cornstalk, wheat, and rice straw. This makes them a versatile choice for different types of farms and crops.
4. Easy Operation: The balers are designed for easy operation. They feature a user-friendly interface that allows farmers to easily set and adjust the baling parameters.
5. Low Power Requirement: The balers require a tractor power of just 18-50HP, making them a cost-effective solution for smaller farms or those with limited resources.
6. Excellent After-sales Service: We provide comprehensive after-sales service, including overseas engineer support, ensuring that our customers receive prompt and effective assistance when they need it.

Applications of Raydafon's Mini Baler Press Machines

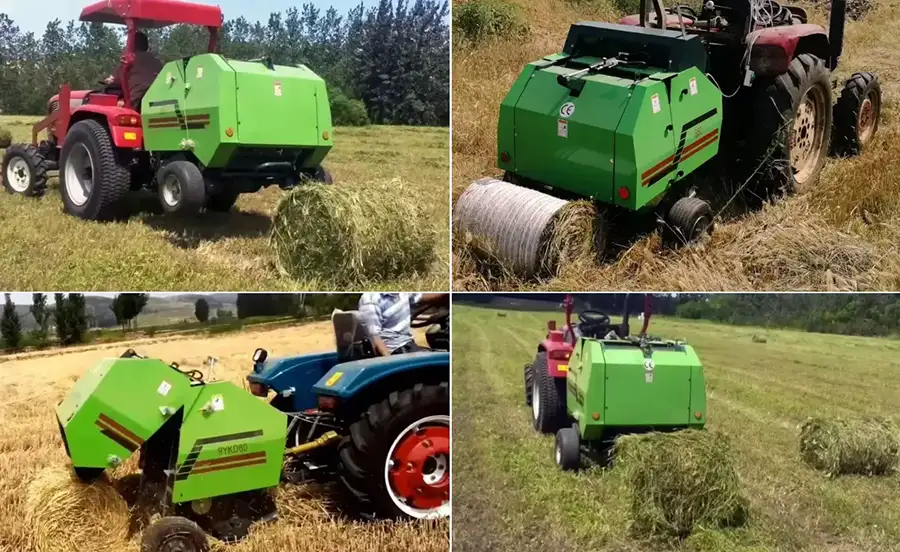

The mini baler press machines that we manufacture find usage in a wide range of applications. Here are six main ones:

1. Hay Baling: Our machines are perfect for baling hay, which can then be easily stored and transported.
2. Cornstalk Baling: Cornstalks can be effectively and efficiently baled using our machines.
3. Wheat Straw Baling: Wheat straw, a by-product of wheat harvest, can be conveniently baled for easy handling and disposal.
4. Rice Straw Baling: Similarly, rice straw can be baled using our machines, making it easier to manage post-harvest.
5. Application in Small Farms: Owing to their compact size and low power requirement, our balers are an excellent choice for small farms.
6. Use in Large Farms: Despite their small size, our balers can deliver high efficiency, making them suitable for use in large farms as well.

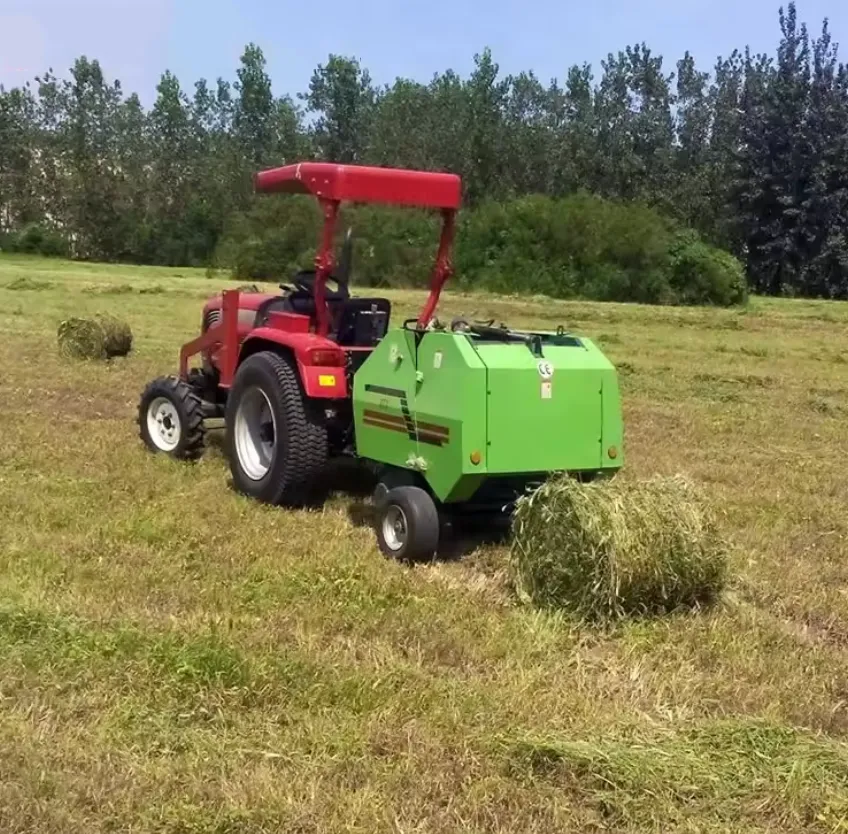

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to a Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the Mini Baler Press Machines

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

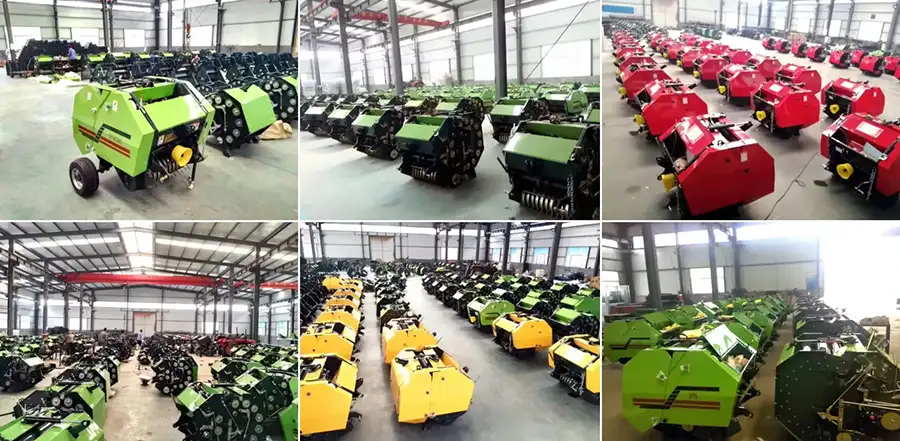

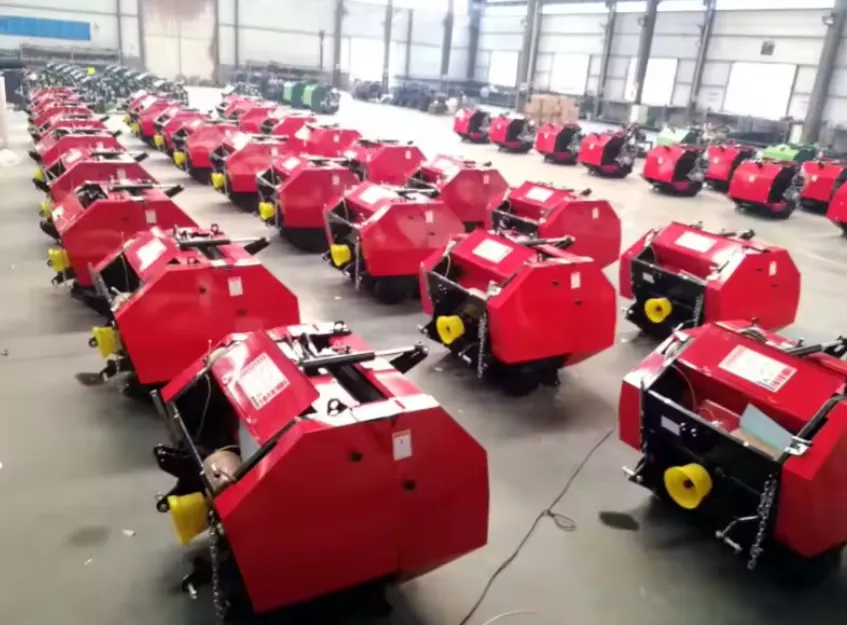

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for many years. We have a team of over 100 dedicated employees, including 20 technical staff and five senior R&D personnel. Our company is equipped with state-of-the-art casting, forging, machining, heat treatment, and lacquering production lines. We use the CAD computer-aided design system, ensuring that our production technology is strong and our equipment is advanced.

Our products, including farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, are set up by the main tractor manufacturers in China. We offer a diverse range of products, including PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers.

All our products are of high quality, complete in specifications, excellent in performance, and reliable. We are ISO certified and adhere to international standards in all our operations. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Customer satisfaction is our priority, and we offer comprehensive after-sales service, including overseas engineer support. We also provide customized services to meet the specific needs of our customers. Choose Raydafon for all your agricultural machinery needs and experience the difference.

Author: Yjx
