Middle Pin Type Metallurgical Hydraulic Cylinder

Middle Pin Type Metallurgical Hydraulic Cylinder

The middle pin type metallurgical hydraulic cylinder is a cutting-edge hydraulic component designed to meet the rigorous demands of metallurgical applications. With its superior performance, robust construction, and innovative design, this hydraulic cylinder offers precise control, durability, and efficiency in demanding industrial environments. Whether used in steel mills, foundries, or other metallurgical processes, the middle pin type cylinder delivers outstanding results.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

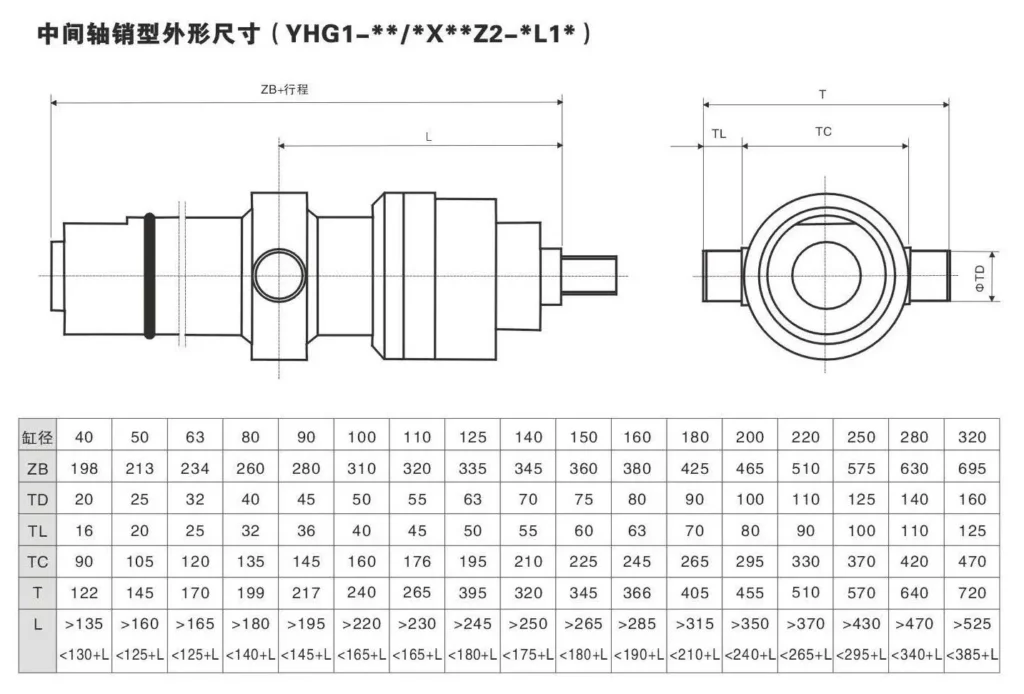

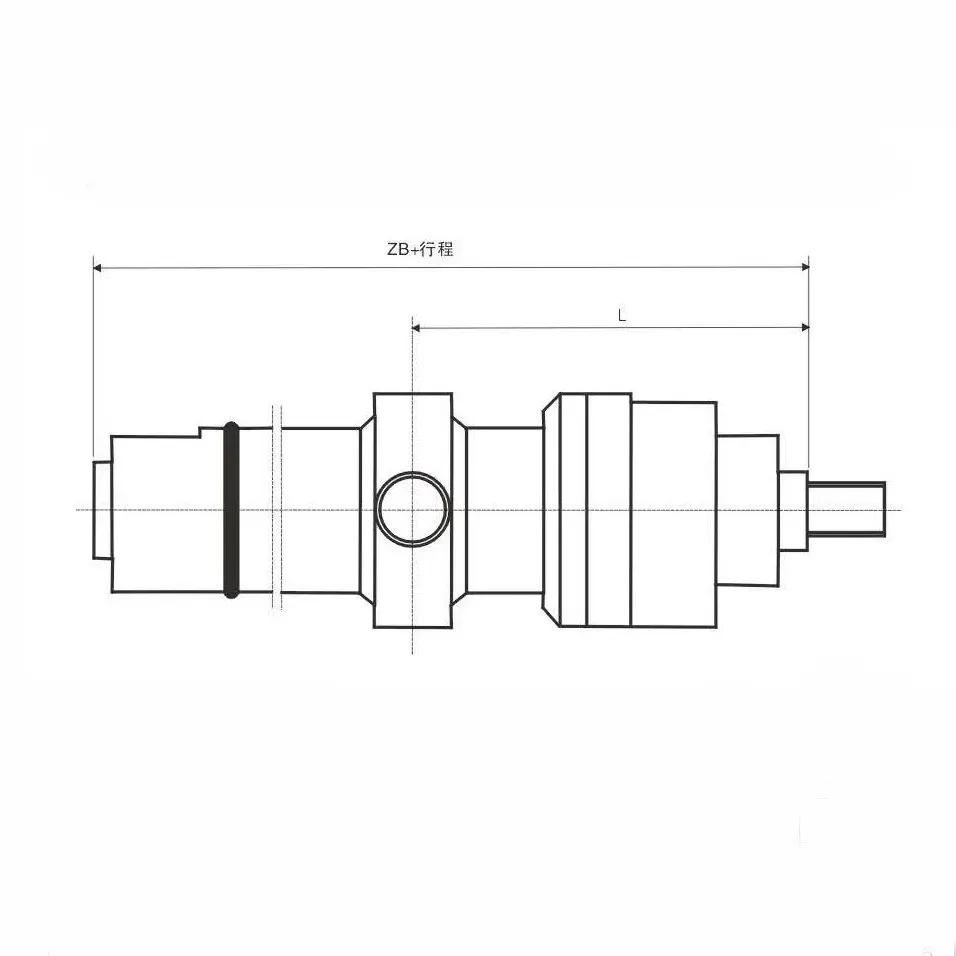

Middle Pin Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Middle Pin Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure that the mounting surface is clean, level, and capable of supporting the weight and load of the cylinder.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and ensure optimal performance.
3. System Integration and Calibration:
   • Integrate the hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve the desired operation parameters and ensure smooth functionality.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to precisely control the extension, retraction, and positioning of the cylinder for efficient metallurgical operations.

Characteristics Of Middle Pin Type Metallurgical Hydraulic Cylinder:

• Middle Pin Design: The unique middle pin design provides enhanced stability, precise alignment, and improved load distribution during operation, ensuring optimal performance in metallurgical processes.
• Metallurgical Application Focus: This hydraulic cylinder is specifically engineered to meet the rigorous demands of metallurgical applications, offering reliability and durability in extreme conditions.
• Superior Performance: The cylinder delivers exceptional performance, enabling accurate positioning, smooth operation, and enhanced productivity in metallurgical operations.
• Robust Construction: Constructed from high-quality materials and designed to withstand heavy loads and harsh operating conditions, this hydraulic cylinder ensures long-term durability and reliable performance.
• Safety Features: The design incorporates safety features such as overload protection and emergency stop mechanisms, prioritizing operator safety during metallurgical processes.

How To Bleed Hydraulic Cylinder?

Bleeding a hydraulic cylinder is a process that removes air or gas trapped within the cylinder and ensures proper operation and performance. Here's a step-by-step guide on how to bleed a hydraulic cylinder:

1. Preparation:
   • Ensure the hydraulic system is powered off and any pressure sources are locked out or depressurized.
   • Use appropriate personal protective equipment, such as gloves and safety glasses, to protect against potential hazards.
2. Locate Bleed Valve:
   • Identify the bleed valve on the hydraulic cylinder. It is typically located near the top or conveniently for accessing and bleeding air.
3. Position Cylinder:
   • Position the hydraulic cylinder to allow the air or gas to rise and escape through the bleed valve.
   • If necessary, adjust the cylinder's position, for example, by extending or retracting it partially to facilitate air release.
4. Open Bleed Valve:
   • Carefully open the bleed valve using an appropriate wrench or tool by turning it counterclockwise.
   • Be cautious not to loosen or remove the valve to prevent hydraulic fluid leakage.
5. Bleed Air:
   • Slowly operate the hydraulic system to pressurize the cylinder, such as activating the pump or actuating the controls.
   • As the system operates, air or gas trapped within the cylinder will begin to escape through the open bleed valve.
   • Allow the air to bleed entirely until only hydraulic fluid flows from the valve.
   • Monitor the hydraulic fluid level in the reservoir and refill if necessary to maintain proper fluid levels.
6. Close Bleed Valve:
   • Once all the air has been bled, carefully close the bleed valve clockwise until it is snug.
   • Ensure the valve is securely closed, but avoid over-tightening to prevent damage.
7. Check Cylinder Operation:
   • Restore power to the hydraulic system and test the operation of the cylinder.
   • Verify that the cylinder extends and retracts smoothly without abnormal noises or vibrations.
   • Observe the cylinder's performance and ensure it operates as expected.
8. Regular Maintenance:
   • To prevent future air accumulation, implement routine maintenance practices, such as checking for leaks, maintaining proper fluid levels, and addressing any issues promptly.
   • Regularly inspect the hydraulic system and cylinders, including seals, connections, and hoses, to identify and resolve potential problems.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of metallurgical hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle metallurgical hydraulic cylinders, Aerial work vehicle metallurgical hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The metallurgical hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
