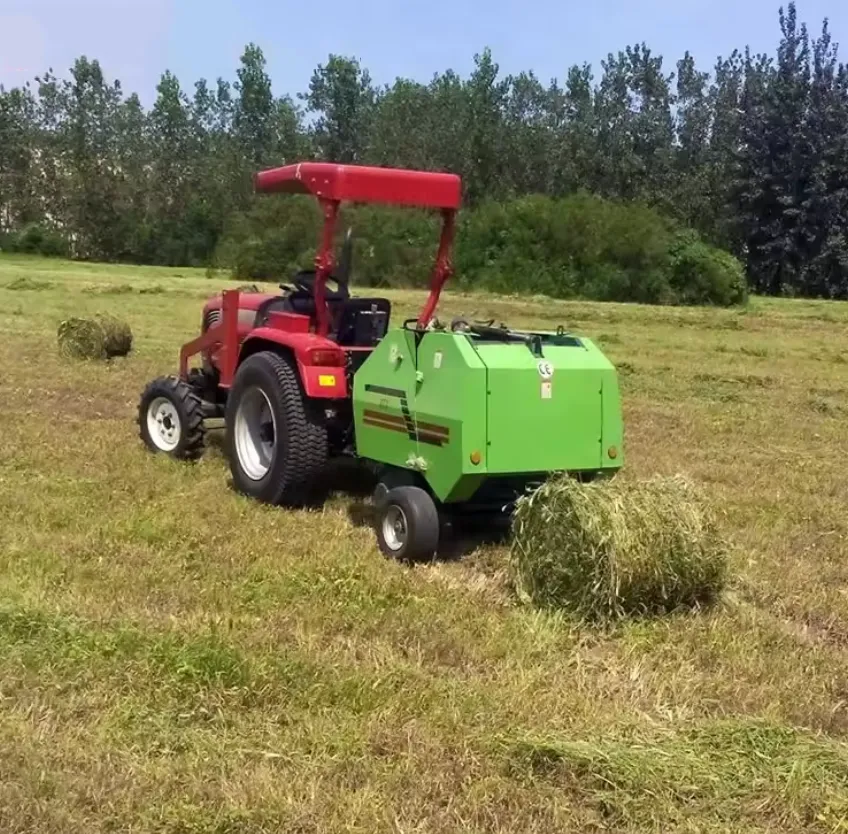

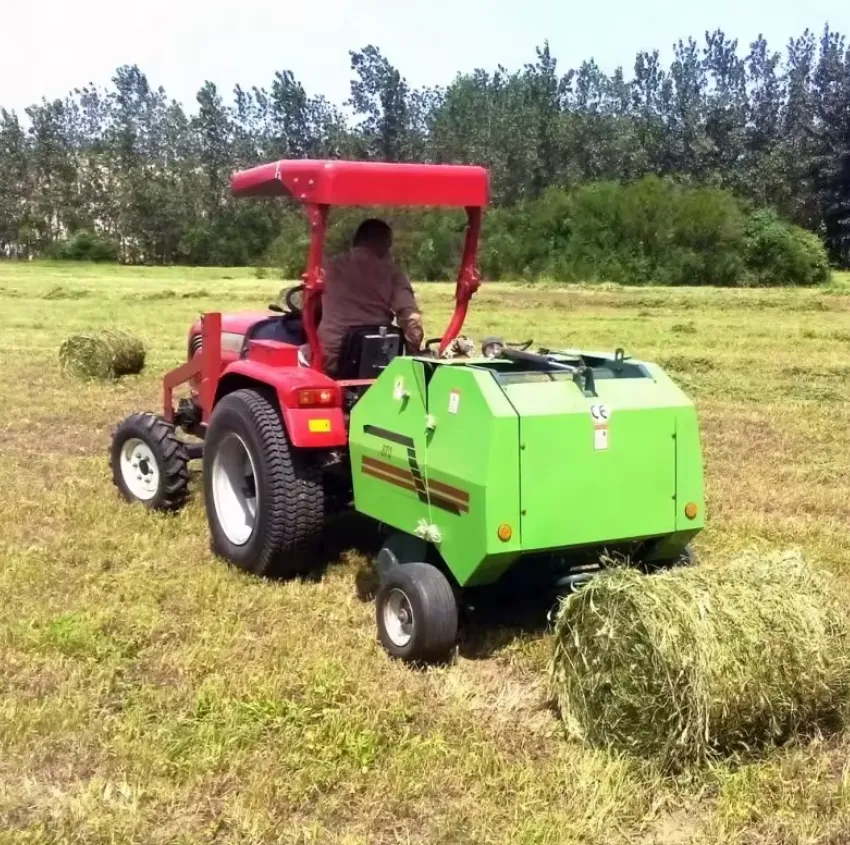

Mini Hay Bale Maker for Small to Medium-Sized Farms

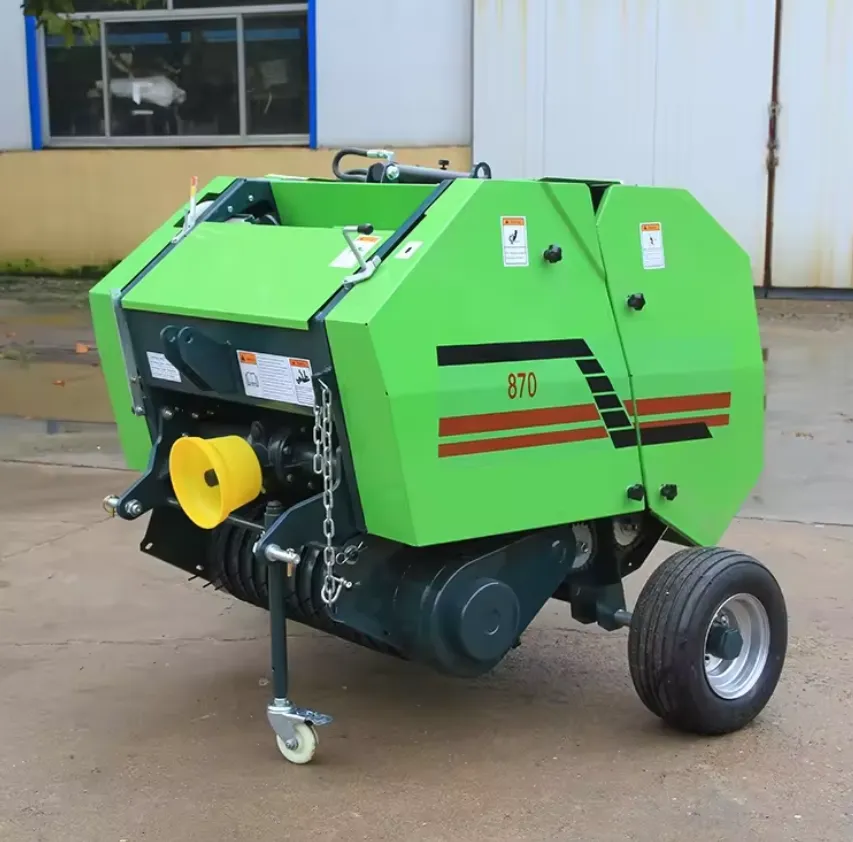

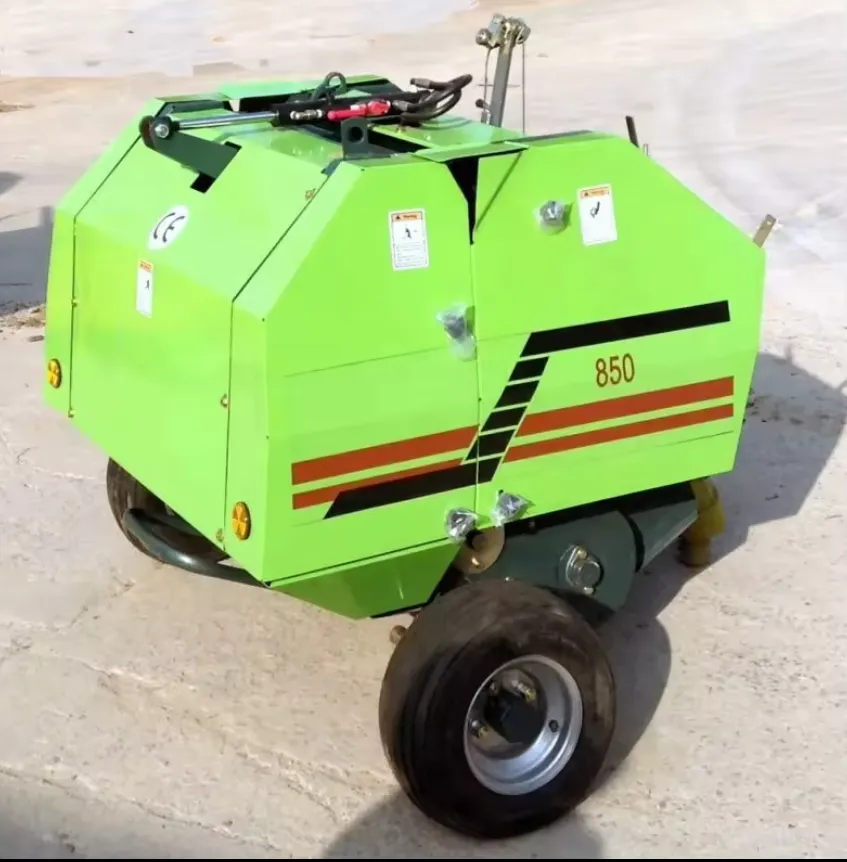

The mini hay bale maker is a type of round baler that is designed to operate at speeds ranging from 3-10km/h. It is a new model with the numbers RXYK0850 | RXYK0870. This machine is intended for pickup and baling of various types of crops such as grass, alfalfa, wheat, and rice straw among others. With a dimension of 1300x1300x1350mm and a weight of 425 kg, it is compact and light enough for various operations.

Advantages of the Mini Hay Bale Maker

There are considerable advantages to opting for a mini hay bale maker. These include:

1. Compact Design: The mini hay bale maker is compact and lightweight, making it easy to handle and maneuver in small to medium-sized farms.
2. Efficient Operation: With an operating speed of 3-10km/h, it ensures efficient and quick baling of hay.
3. Versatile Application: It can be used for pickup and baling of various crops such as grass, alfalfa, wheat, and rice straw.
4. High Capacity: Despite its compact size, the mini hay bale maker has a significant capacity, capable of handling large volumes of crops.
5. Quality Assurance: With ISO and CE certifications, you are assured of a high-quality and reliable product.
6. Excellent Warranty: The product comes with a 2-year warranty, offering peace of mind and protection for your investment.

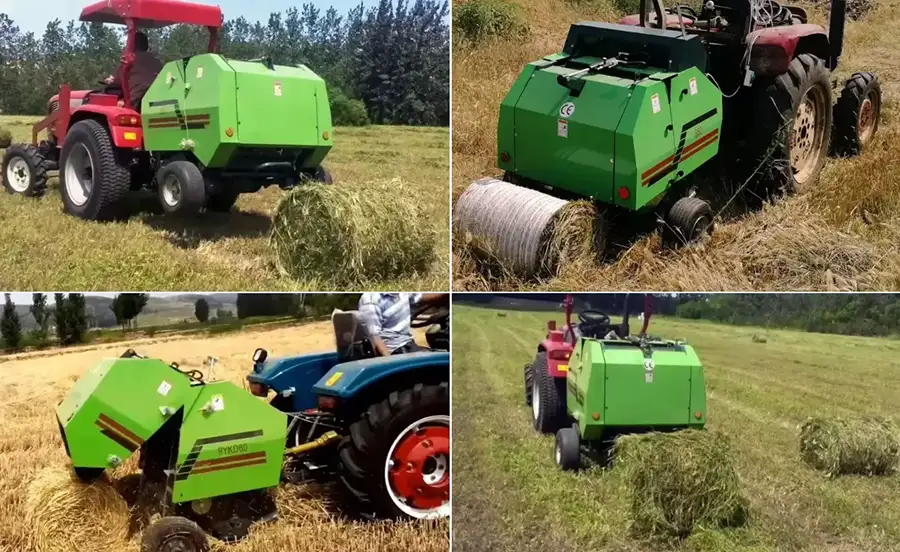

Applications of the Mini Hay Bale Maker

The mini hay bale maker is a versatile machine with a wide range of applications.

1. Hay Baling: It is perfect for baling grass, alfalfa, and other similar crops.
2. Straw Baling: It can be used for baling wheat and rice straw, making it a great tool for grain farmers.
3. Small to Medium Farms: Due to its compact size and efficient operation, it is ideal for small to medium-sized farms.
4. Pineyards and Orchards: It works well in pineyards and orchards, where space may be limited.
5. Tractor Compatibility: The mini hay bale maker can be easily attached to tractors with a power range of 20-50HP.

6. Storage and Transport: The compact size and light weight of the bales produced makes them easy to store and transport.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted.

Maintaining the Mini Hay Round Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure.

Why Choose Raydafon's Mini Hay Round Baler for Agriculture?

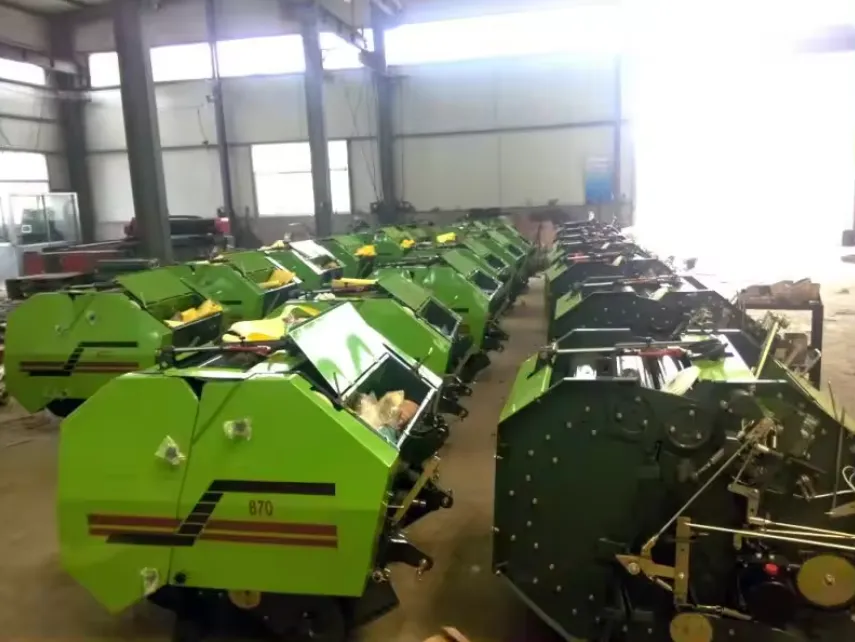

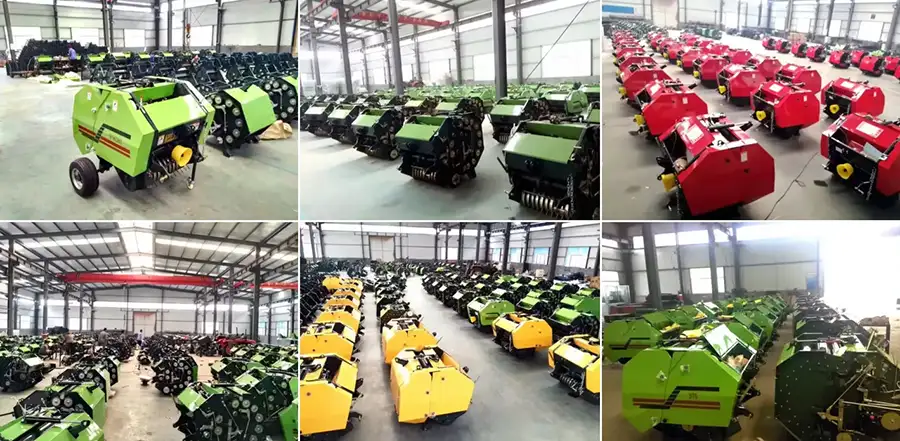

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding.

We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

As a leading manufacturer of agricultural machinery, we hold various international certifications, affirming our commitment to quality and safety. We are able to provide customized services to meet the unique needs of our customers. Our well-equipped production facilities ensure that we can deliver high-quality products on time. In addition, we offer excellent after-sales services, further enhancing the value we bring to our customers.

Learn More with Our Video

Watch the following video to learn more about our mini hay round baler:

Author: Yjx
