Mining Dump Truck Rear Suspension Cylinder

Mining Dump Truck Rear Suspension Cylinder

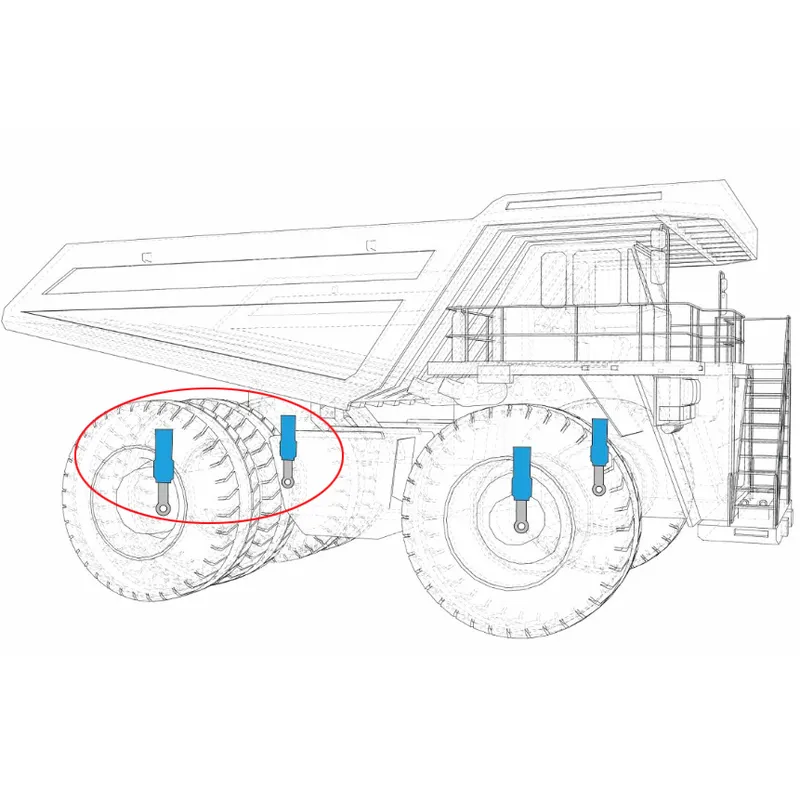

A mining dump truck rear suspension cylinder is a hydraulic cylinder that helps to absorb the shock and vibration of the truck as it travels over rough terrain. It is located at the rear of the truck, between the frame and the axle. The cylinder is made of a steel barrel and piston, and it is filled with hydraulic fluid. When the truck hits a bump, the piston moves up, compressing the hydraulic fluid. This absorbs the shock and prevents the truck from bouncing. The cylinder then returns to its original position as the fluid is pumped back into the barrel.

The mining dump truck rear suspension cylinder is an important safety feature that helps to protect the truck and its occupants from damage. It also helps to improve the ride quality for the driver and passengers.

Mining Dump Truck Rear Suspension Cylinder Size:

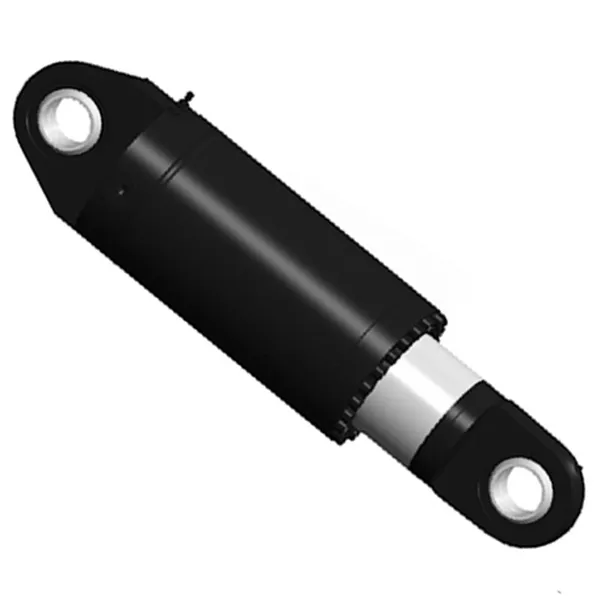

Product Name	Mining Dump Truck Rear Suspension Cylinder
Features:	Support weight, absorb, and eliminate vibration
Bore diameter:	150mm～450mm
Rod diameter:	120mm～400mmStroke≤400mm
Thrust force:	Maximum38MPa
Rear Suspension Cylinder Applications:	Mining Dump Truck

Mining Dump Truck Rear Suspension Cylinder Functions:

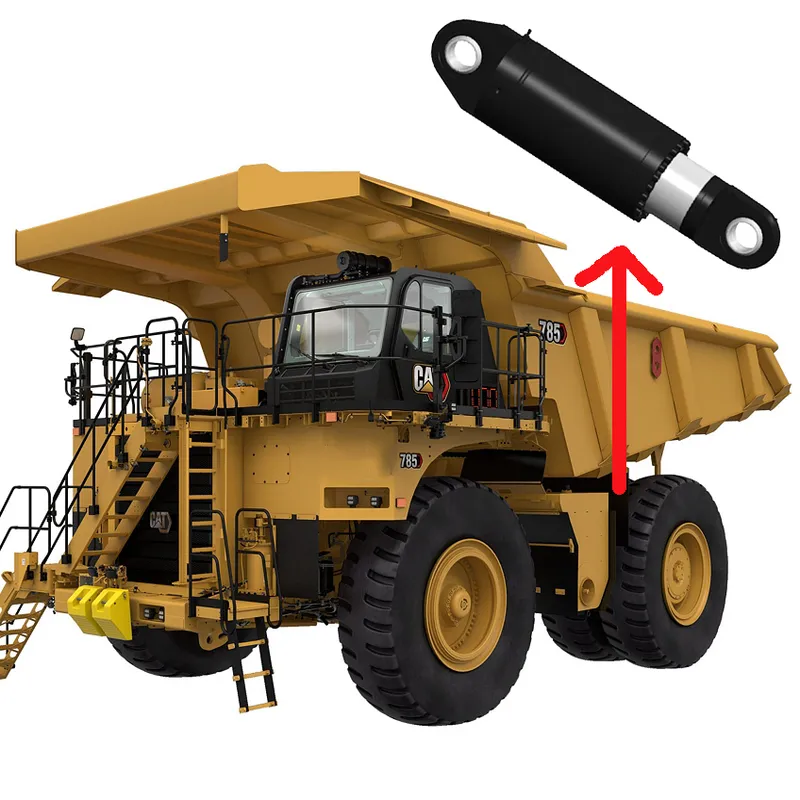

The rear suspension cylinder is a hydraulic actuator designed to support the weight of the truck's rear chassis and bed while providing the necessary flexibility to absorb shocks and vibrations during operation. It is typically mounted between the truck's rear axle and the chassis frame. Here are some key features and functions of mining dump truck rear suspension cylinders:1. Load-bearing capacity: These cylinders are engineered to handle substantial loads, as mining trucks often carry enormous amounts of material. The cylinders must be able to sustain heavy weights and endure constant stress and pressure.2. Hydraulic operation: Rear suspension cylinders utilize hydraulic systems to provide controlled movement and adjust the suspension based on the load and terrain conditions. Hydraulic fluid is pressurized to extend or retract the cylinder, allowing for height adjustments and maintaining stability.3. Shock absorption: The rugged nature of mining operations exposes dump trucks to uneven terrain, bumps, and shocks. The rear suspension cylinder acts as a shock absorber, dampening the impact and reducing vibrations, which enhances the vehicle's stability and operator comfort.4. Adjustable suspension: Mining dump trucks often operate in diverse environments with varying load capacities. Rear suspension cylinders can be adjusted to accommodate different loads and maintain the appropriate ride height. This adjustability ensures optimal handling, traction, and safety.5. Durability and reliability: Mining environments are harsh and demanding, subjecting equipment to extreme conditions, such as dust, debris, and temperature fluctuations. Rear suspension cylinders are built to withstand these challenges, with robust construction and high-quality materials to ensure longevity and minimize maintenance requirements.6. Safety features: Dump truck rear suspension cylinders incorporate safety mechanisms to prevent sudden drops or failures, such as locking valves or cushions that control the cylinder's movement and maintain stability even in case of hydraulic system failure.

Mining Dump Truck Rear Suspension Cylinder Uses:

The rear suspension cylinder on a mining dump truck is used to absorb the shock of the truck's weight when it goes over bumps or uneven terrain. This helps to protect the truck's components and improve the ride quality for the driver and passengers.

The rear suspension cylinder is also used to control the truck's sway. When the truck goes around a corner, the cylinder helps to keep the truck from tipping over.

The rear suspension hydraulic cylinder is a critical component of the mining dump truck's suspension system. It helps to keep the truck safe and comfortable to operate.

Here are some of the specific uses of the mining dump truck rear suspension cylinder:

(1) Absorbing shock: The cylinder absorbs the shock of the truck's weight when it goes over bumps or uneven terrain. This helps to protect the truck's components, such as the axles and wheels, from damage.(2) Controlling sway: The cylinder helps to control the truck's sway when it goes around a corner. This helps to prevent the truck from tipping over.(3) Maintaining ride quality: The cylinder helps to maintain the ride quality for the driver and passengers. This is important for long-distance travel and for preventing fatigue.(4) Increasing stability: The cylinder helps to increase the stability of the truck. This is important for preventing rollovers and for maintaining control in difficult terrain.

The mining dump truck rear suspension cylinder is a complex and important component. It is essential for the safe and efficient operation of the truck.
