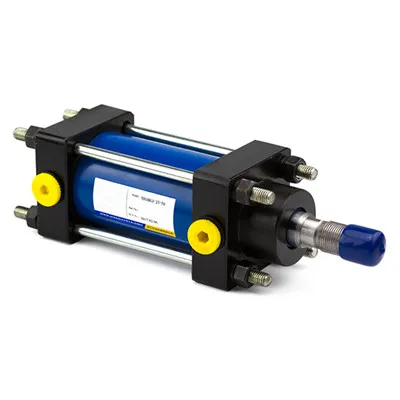

MOB light rod hydraulic cylinder is a low-cost cylinder of the same specification because the pressure is small, the composition of the cylinder thickness is thin, the piston rod is relatively small, the front and back covers are cast, and the low-pressure seals are relatively low price. MOB light pull rod hydraulic cylinder adopts a pull rod structure; the cylinder and the front and back cover are connected together by 4 screw rods, and then tightened with lock nuts. Easy maintenance, Just loosen the lock nut, and you can take out the front cover, and replace the seal or other accessories.MOB light rod hydraulic cylinder installation and connection methods are varied, including flange, single ear, double ear, foot seat, hinge shaft, and connection accessories on the piston rod, such as fisheye joints, and type I joints. This series of pull rod hydraulic cylinders can be made of double rod cylinders, that is, MOD series, and can be customized:1) High-temperature conditions, using high-temperature seals2) Plus stroke switch3) can be made of a magnetic induction cylinder (cylinder with stainless steel, piston with copper material, plus magnetic induction switch)4) can be bufferedWhen To Use MOB Light Rod Hydraulic Cylinder:1) Use instead of cylinder. The original system used pneumatic, but due to various reasons (such as hydraulic control, the pursuit of more stable action, such as the strength of the pneumatic is not enough)2) The system pressure is very small, considering the economy, using MOB standard cylinder.

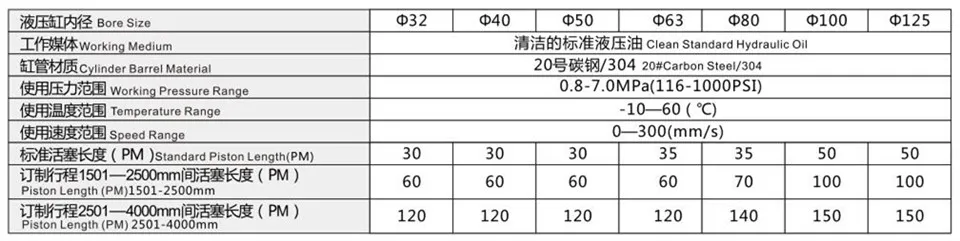

MOB Type Light Rod Hydraulic Cylinder Parameter:

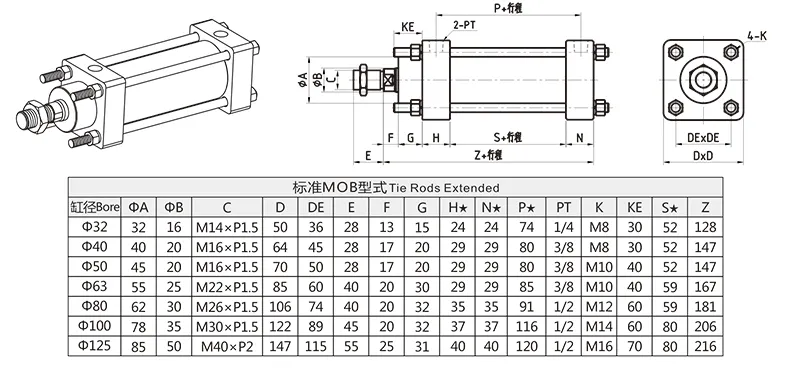

(1) Standard MOB Light Rod Hydraulic Cylinder

(2) FA Front Flange Type Light Rod Hydraulic Cylinder

(3) FB Rear Flange Type Light Rod Hydraulic Cylinder

(4) LB Footstand Type Light Rod Hydraulic Cylinder

(5) TC Middle Trunnion Type Light Rod Hydraulic Cylinder

(6) CA Monoaural Type Light Rod Hydraulic Cylinder

(7) CA Monoaural Type Y Connector Light Rod Hydraulic Cylinder

(8) CA Monoaural Type PHS Fisheye Connector Light Rod Hydraulic Cylinder

(8) CB Binaural Type Light Rod Hydraulic Cylinder

(9) CB With Pin Light Rod Hydraulic Cylinder

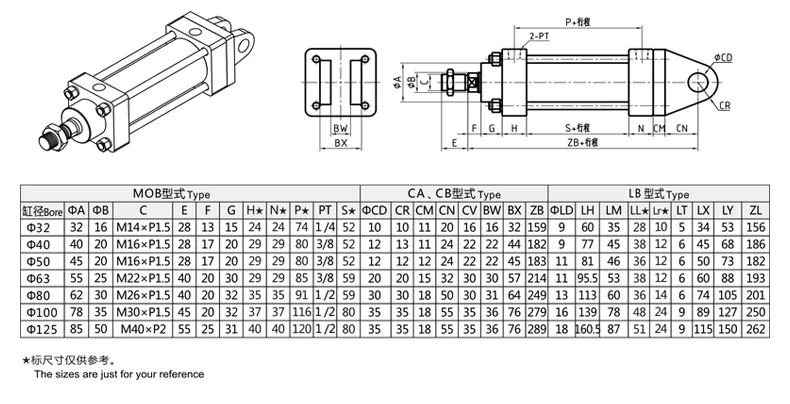

Bolt Outline Installation Dimension Drawing:

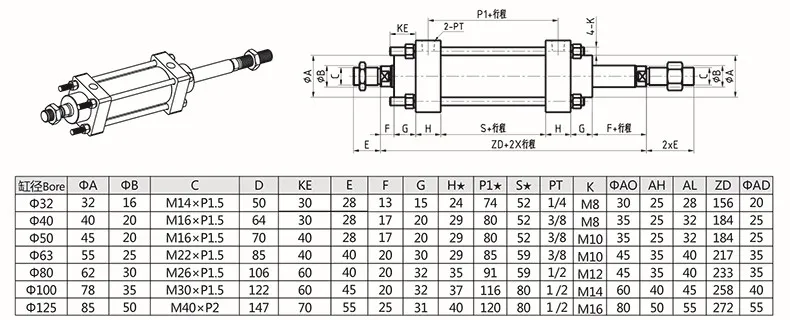

(10) Standard Biaxial Type Light Rod Hydraulic Cylinder

(11) Standard With Adjustable Cap Type Light Rod Hydraulic Cylinder

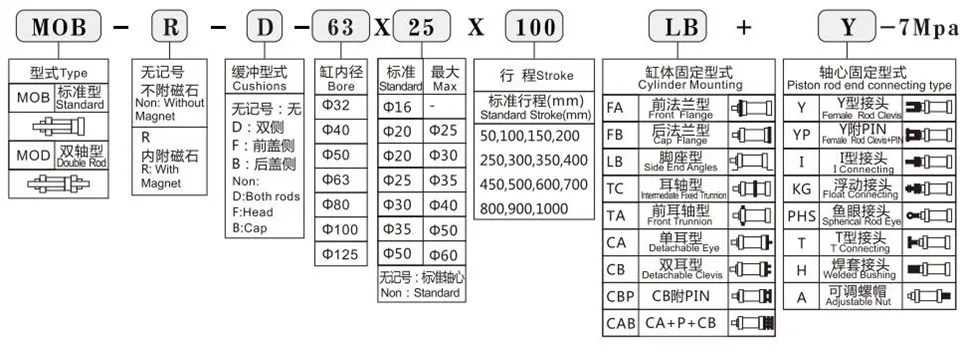

MOB Type Light Rod Hydraulic Cylinder Model Name:

MOB Type Light Rod Hydraulic Cylinder Characteristics:

How Does a Hydraulic Cylinder Work?

A hydraulic cylinder is a mechanical device that converts hydraulic energy into linear force and motion. It operates based on the principles of Pascal's law, which states that when pressure is applied to a fluid in an enclosed system, the pressure is transmitted equally in all directions.Here's a simplified explanation of how a hydraulic cylinder works:

1. Basic Components: A hydraulic cylinder consists of a cylindrical barrel, a piston, a piston rod, and various seals. The barrel is typically sealed at one end and open on the other.
2. Fluid and Pressure: Hydraulic cylinders utilize a hydraulic fluid, usually oil, which is stored in a reservoir. The fluid is pressurized by a hydraulic pump, creating a flow of pressurized fluid in the hydraulic system.
3. Fluid Introduction: Pressurized hydraulic fluid is directed into the cylinder through a control valve. The control valve allows the operator to regulate the flow of fluid into and out of the cylinder, controlling the direction and speed of the cylinder's movement.
4. Piston and Piston Rod: Inside the cylinder, the piston is located. The piston divides the cylinder into two chambers: the rod side and the cap side. The piston rod extends from the piston and protrudes through a seal in the closed end of the cylinder.
5. Force and Motion Generation: When pressurized fluid is introduced into one chamber, it exerts force on the piston, causing it to move in the cylinder. As the piston moves, the piston rod connected to it also extends or retracts, depending on the direction of fluid flow.
6. Sealing: Seals located on the piston and cylinder prevent fluid from leaking between the chambers, ensuring that the pressure is applied effectively to generate force and motion.
7. Control and Direction: By manipulating the control valve, the operator can control the flow of hydraulic fluid into the cylinder, determining the direction and speed of the piston's movement. Reversing the flow of fluid will cause the piston to move in the opposite direction.
8. Load Handling: The hydraulic cylinder's linear motion and force can be used to move or exert force on external loads. For example, hydraulic cylinders are commonly employed in various applications such as construction equipment, industrial machinery, hydraulic presses, and automotive systems.
