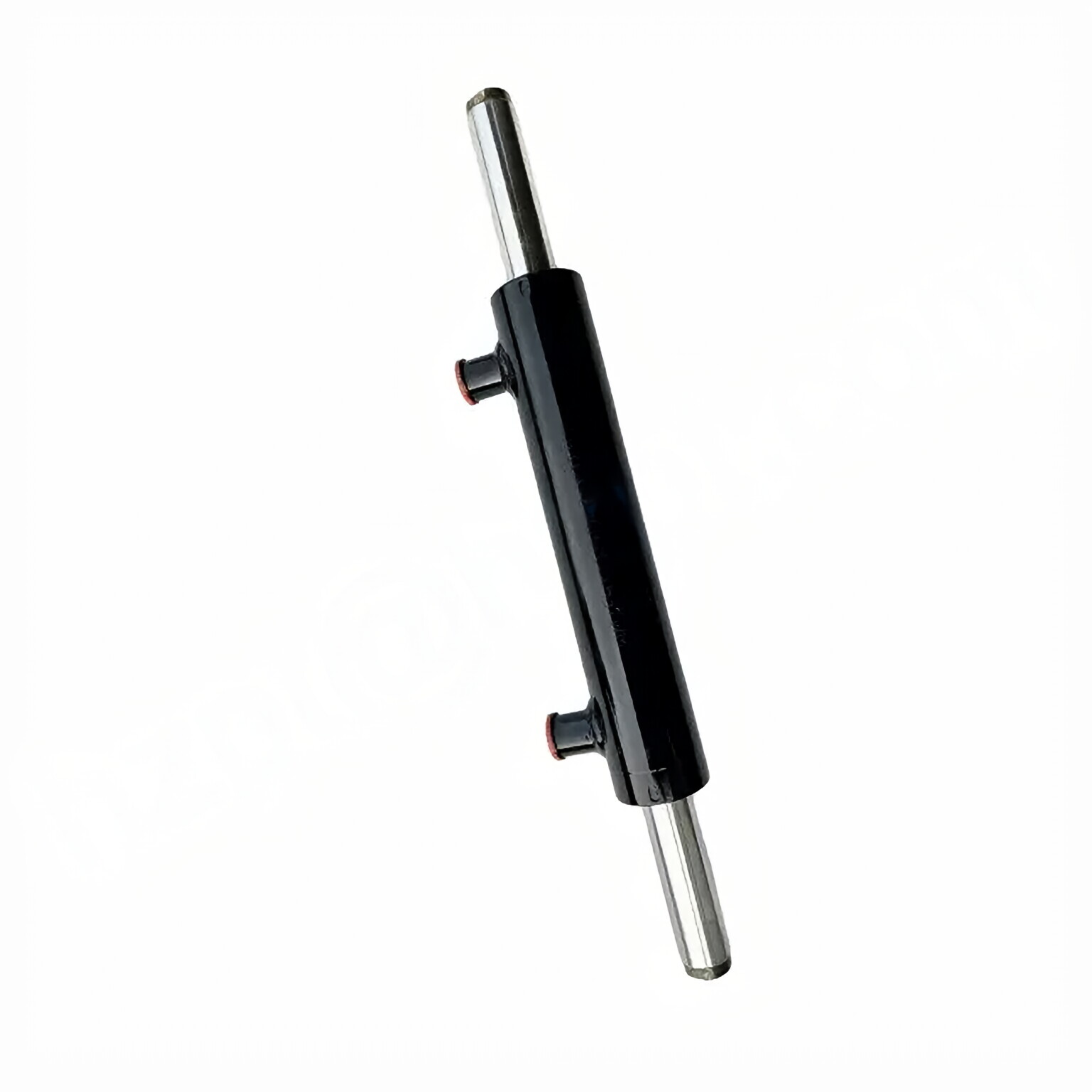

NWTEHX-2101043 Steering Cylinder

NWTEHX-2101043 Steering Cylinder

The NWTEHX-2101043 Steering Cylinder plays a crucial role in converting hydraulic pressure into mechanical force, enabling operators to steer vehicles with precision and ease. Designed for exceptional durability and efficiency, this cylinder withstands the rigors of heavy-duty operations, ensuring safe and reliable performance. Its advanced design makes it suitable for a wide range of industrial applications, from tractors to excavators.What sets the NWTEHX-2101043 apart is its reliability and efficiency in hydraulic steering systems. Its robust construction, precise control, and straightforward maintenance make it an ideal choice for diverse industrial uses. By familiarizing themselves with its features, operational methods, and maintenance needs, operators can maximize performance and prolong the lifespan of this vital hydraulic cylinder.Investing in the NWTEHX-2101043 guarantees a dependable solution for effective steering control, enhancing the overall productivity and functionality of any machinery in operation.

NWTEHX-2101043 Steering Cylinder Parameter:

Cylinder Diameter: 40mmRod Diameter: 27mmTravel: 200mmInstallation Distance: 460mm

Key Features of NWTEHX-2101043 Steering Cylinder:

• Exceptional Durability: Crafted from high-quality materials, the NWTEHX-2101043 is engineered to endure the most demanding operating conditions. Its robust construction ensures it can withstand impacts, vibrations, and extreme temperatures, providing operators with long-lasting reliability and reduced downtime.
• Precision Steering: This cylinder boasts excellent responsiveness, enabling operators to make precise steering adjustments even under heavy loads. This feature is essential for maintaining control in challenging environments, allowing for smooth navigation and enhanced safety when maneuvering equipment.
• Compact Design: The NWTEHX-2101043 features a space-efficient design that allows for easy installation in a variety of machinery setups. This compactness optimizes available space and enhances the overall design flexibility of the equipment, making it easier to adapt to different operational needs.
• Corrosion Resistance: With a specialized protective coating, this steering cylinder effectively resists rust and wear, which is crucial for maintaining performance in harsh environments. This corrosion resistance extends the lifespan of the cylinder, ensuring that it continues to function optimally over time, even in wet or corrosive conditions.
• Standardized Dimensions: The cylinder is designed to fit standard machinery specifications, making it straightforward to replace and ensuring compatibility with a wide range of existing systems. This standardization reduces installation time and simplifies inventory management, making it easier for operators to maintain their equipment.

NWTEHX-2101043 Steering Cylinder Application:

How Does A Hydraulic Steering Cylinder Work?

Basic Components

1. Cylinder Barrel: The main body that houses the hydraulic fluid and piston.
2. Piston: A movable component inside the cylinder that divides the interior into two chambers.
3. Ports: Openings that allow hydraulic fluid to enter and exit the cylinder.
4. Hydraulic Fluid: The fluid used to transmit pressure within the system.

Operating Principle

1. Hydraulic Pressure Application:
   • When the operator turns the steering wheel, hydraulic fluid is pumped through the ports into one side of the cylinder.
   • This action increases pressure in that chamber, pushing the piston in the opposite direction.
2. Piston Movement:
   • As the piston moves, it translates the hydraulic pressure into linear motion, which moves the attached steering linkage.
   • The movement of the piston controls the angle of the vehicle's wheels, allowing for steering adjustments.
3. Fluid Return:
   • Once the desired steering position is reached, the hydraulic fluid is released from the pressurized chamber and returned to the reservoir through the other port.
   • This return allows the piston to return to its original position, ready for the following steering input.
