Oil/Gas Drilling Platform Lifting Cylinder

Oil/Gas Drilling Platform Lifting Cylinder

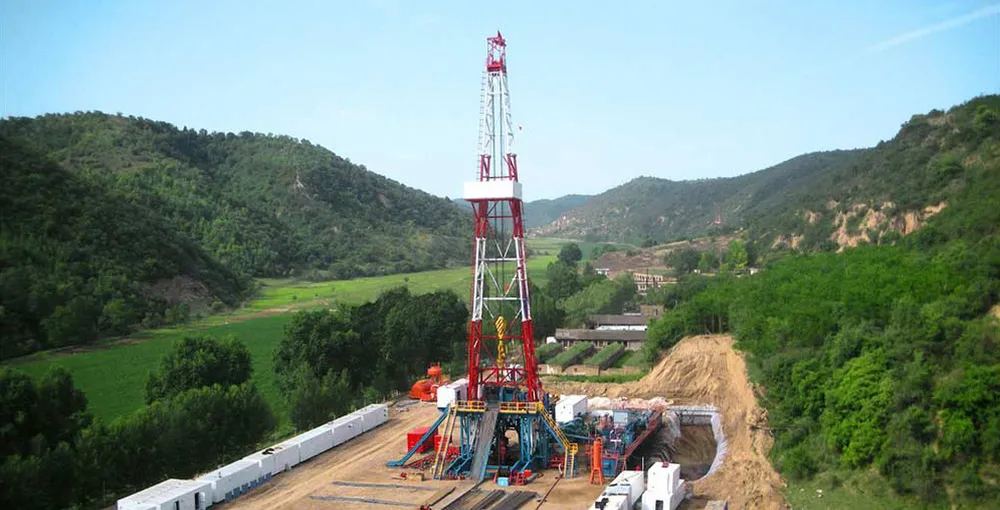

Oil/gas drilling platform lifting cylinders are hydraulic cylinders that are used to lift and lower various components on oil and gas drilling platforms. They are typically used to lift heavy equipment, such as the drilling rig mast and drawworks, as well as to raise and lower platforms and walkways.

Lifting cylinders is essential for the safe and efficient operation of drilling platforms. They must be able to withstand the harsh offshore environment and the heavy loads that they are subjected to. Lifting cylinders are also typically required to have a long service life and be low-maintenance.

There are many different types of lifting cylinders used on drilling platforms. Some of the most common types include:

• Mast raising cylinders: These cylinders are used to raise and lower the drilling rig mast. Mast raising cylinders are typically very large and powerful, as they must be able to lift the weight of the entire mast and its associated equipment.
• Drawworks cylinders: These cylinders are used to raise and lower the drawworks, which is the main winch on a drilling rig. Drawworks cylinders are also typically very large and powerful.
• Platform lifting cylinders: These cylinders are used to raise and lower platforms and walkways on drilling rigs. Platform lifting cylinders are typically smaller than mast raising and drawworks cylinders, but they must still be able to withstand heavy loads.
• Other lifting cylinders: There are many other types of lifting cylinders used on drilling platforms, such as cylinders for lifting the blowout preventer (BOP) and the top drive.

Oil/gas drilling platform lifting cylinders are typically made of high-strength steel and are plated with a protective coating to resist corrosion. They are also typically equipped with seals and gaskets to prevent hydraulic fluid from leaking. Lifting cylinders are a critical component of oil and gas drilling platforms. They play a vital role in the safe and efficient operation of these platforms.

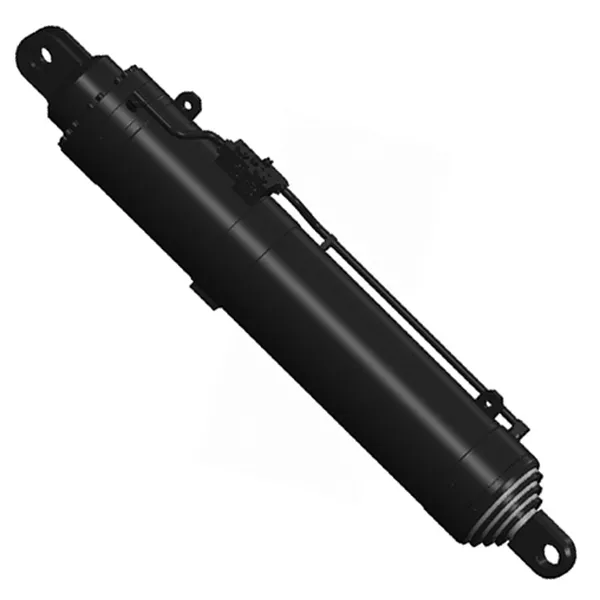

Oil/Gas Drilling Platform Lifting Cylinder Specifications:

Product Name	Oil/Gas Drilling Platform Lifting Cylinder
Features:	Realize the lifting and lowering actions of the drilling platform.
Bore diameter:	530mm
Rod diameter:	490mmStroke≤9000mm
Pressure：	Maximum 20.7MPa
Applications:	Oil/Gas Drilling Platform

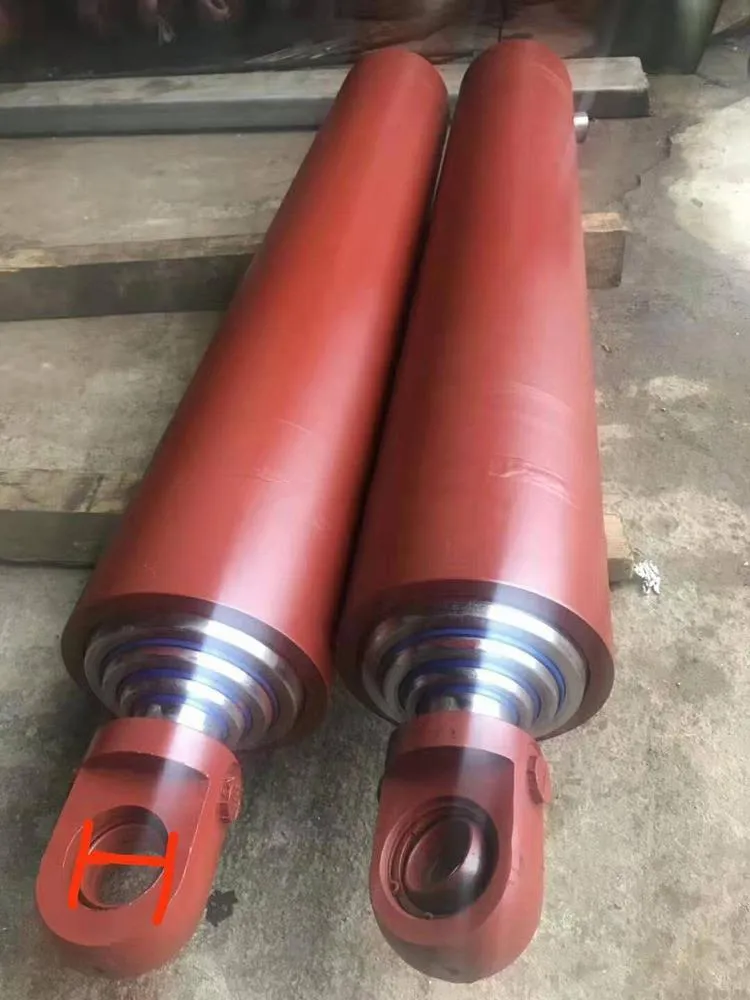

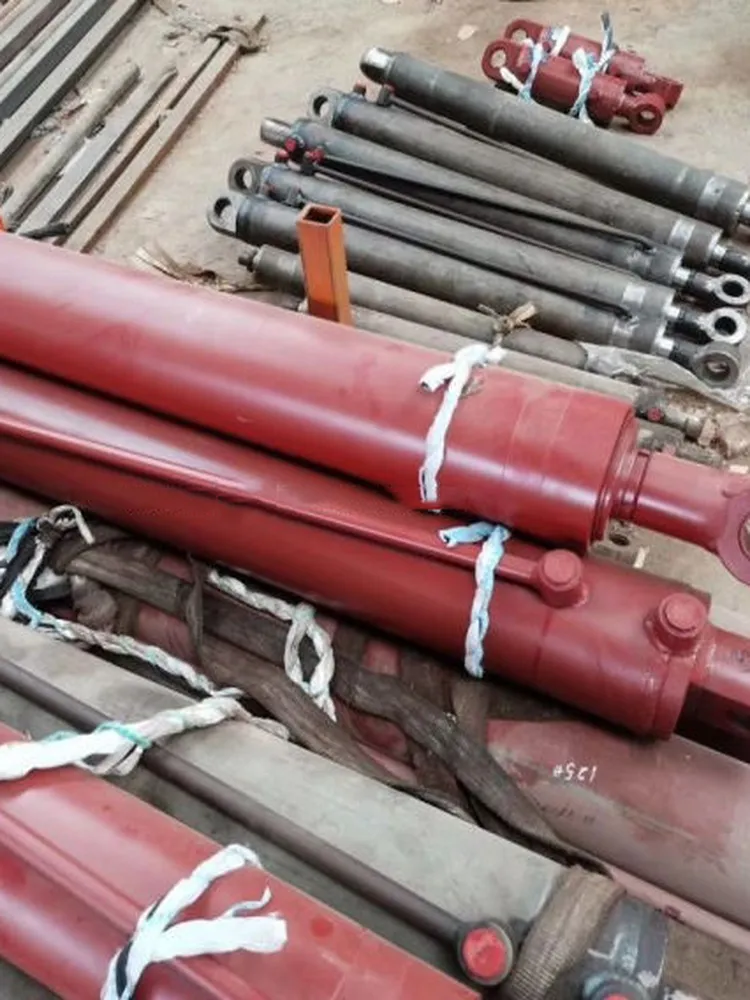

Advantages of Lifting Cylinder for Oil/Gas Drilling Platform:

Oil/gas drilling platform lifting cylinders are hydraulic cylinders that are specifically designed for use in the harsh and demanding environment of an oil/gas drilling platform. They are used to lift and move heavy loads, such as drill rigs, casings, and other equipment.

Oil/gas drilling platform lifting cylinders offer a number of advantages over other types of lifting cylinders, including:

1. Durability: Oil/gas drilling platform lifting cylinders are built to withstand the harsh conditions of an oil/gas drilling platform, including seawater, corrosive elements, extreme temperatures, and heavy loads.2. Reliability: Oil/gas drilling platform lifting cylinders are designed to be highly reliable and to operate with minimal downtime. This is critical in the oil/gas industry, where downtime can be very costly.3. Safety: Oil/gas drilling platform lifting cylinders are designed with safety in mind. They incorporate a number of safety features, such as pressure relief valves and overstroke protection, to prevent accidents.4. Performance: Oil/gas drilling platform lifting cylinders are designed to provide high performance and to lift heavy loads with ease. They are also designed to operate smoothly and precisely.

In addition to these advantages, oil/gas drilling platform lifting cylinders are also relatively easy to maintain and repair.

How Does Oil/Gas Drilling Platform Lifting Cylinder Work?

Oil and gas drilling platform lifting cylinders are used to lift and lower heavy equipment, such as the drill string, blowout preventer (BOP), and other machinery. They are typically large, double-acting cylinders that are powered by hydraulic fluid.

To lift equipment, the hydraulic fluid is pumped into one side of the cylinder, which forces the piston to move outward. This raises the rod, which is connected to the equipment being lifted. To lower the equipment, the hydraulic fluid is released from the cylinder, and the rod is retracted by gravity.

Lifting cylinders on oil and gas drilling platforms must be extremely reliable and durable, as they operate in harsh environments and are subject to heavy loads. They are also typically required to operate in a wide range of temperatures and pressures.

Here is a more detailed explanation of how an oil/gas drilling platform lifting cylinder works:

1. The cylinder consists of a metal tube with a piston inside. The piston has a rod attached to it, which extends out of the cylinder.
2. The cylinder is filled with hydraulic fluid.
3. When hydraulic fluid is pumped into the cylinder, it pushes against the piston.
4. The piston forces the rod to move outward.
5. The rod is connected to the equipment being lifted, so the equipment is lifted as the rod moves outward.
6. To lower the equipment, the hydraulic fluid is released from the cylinder.
7. The rod is retracted by gravity.

Lifting cylinders on oil and gas drilling platforms are used in a variety of applications, including:

• Lifting the drill string
• Lifting the blowout preventer (BOP)
• Lifting other heavy machinery, such as pumps and compressors
• Raising and lowering the mast
• Positioning the draw works
• Operating the rotary table

Lifting cylinders is essential for the safe and efficient operation of oil and gas drilling platforms. They must be reliable and durable, and they must be able to operate in harsh environments.

Hydraulic Cylinders for Oil/Gas Drilling Platform:

In order to explore and extract the oil and natural gas buried deep in the strata, people must use a variety of drilling equipment and tools to penetrate the hard and complex strata. Such high-intensity work and harsh environments are also a huge test for drilling equipment. Each hydraulic cylinder that we tailor-made for the equipment adopts highly professional computer management and simulation design to avoid possible problems in the application in advance and ensure better performance. Special coating treatment and strengthened sealing structure give hydraulic cylinders higher wear resistance, corrosion resistance, and durability. We can also provide a complete set of hydraulic systems, which not only ensure the power and accuracy required to complete the work but also fully meet the actual needs of customers.In one of our projects, the customer chose our drilling derrick lifting system. The power unit composed of a diesel engine drive and constant pressure variable pump provides a continuous source of reliable power for the supporting lifting cylinder. The use of the main control valve can realize the independent or synchronous control of the two lifting hydraulic cylinders, and the control of the displacement is more accurate. Relying on the mastery of energy technology requirements, we can provide solutions to the various performance requirements of the equipment and also bring additional advantages to improve drilling equipment and its production.Moreover, we go beyond oil/gas drilling cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
