Open Tunnel Boring Machine Thrust Cylinder (Main Drive Cylinder)

Open Tunnel Boring Machine Thrust Cylinder (Main Drive Cylinder)

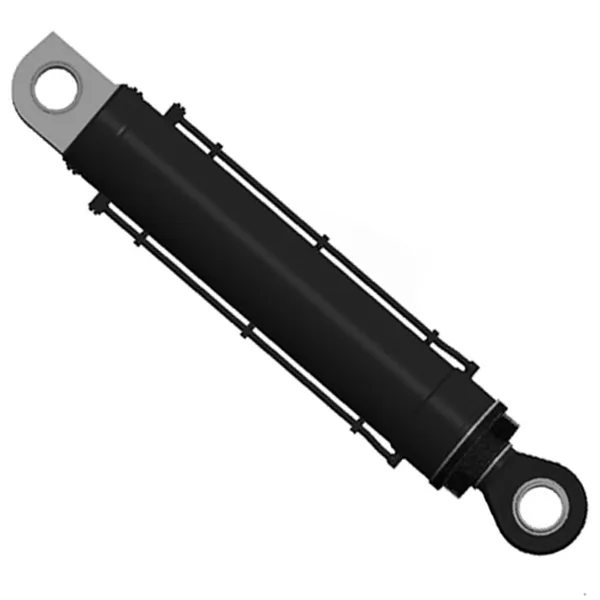

An open tunnel boring machine (TBM) thrust cylinder is a hydraulic cylinder that is used to push the tunnel boring machine forward through the ground. It is one of the most important components of a tunnel boring machine, and it must be able to generate a tremendous amount of force in order to overcome the resistance of the ground.

Open TBM thrust cylinders are typically located at the rear of the tunnel boring machine, and they are connected to the main bearing by means of thrust jacks. The thrust jacks are used to transfer the force of the thrust cylinders to the main bearing, which then pushes the tunnel boring machine forward.

Open tunnel boring machine thrust cylinders are typically made of high-strength steel, and they are designed to withstand the harsh conditions of underground tunneling. They are also typically equipped with a variety of safety features, such as pressure relief valves and overstroke protection.

Open tunnel boring machine thrust cylinders are available in a variety of sizes and configurations, depending on the specific needs of the tunnel boring machine. The size of the thrust cylinder is determined by the diameter of the tunnel being bored, the type of ground being bored through, and the length of the tunnel boring machine.

Here are some of the key features of open TBM thrust cylinders:

• High strength and durability to withstand the harsh conditions of underground tunneling
• Large thrust capacity to push the tunnel boring machine forward through even the most difficult ground conditions
• Compact design to minimize the overall size and weight of the tunnel boring machine
• Low maintenance requirements for reduced downtime and operating costs
• Easy to service and repair

Open Tunnel Boring Machine Thrust Cylinder Specifications:

Product Name	Open Tunnel Boring Machine Thrust Cylinder
Features:	Provide the thrust of tunnel boring machine forward tunneling
Bore diameter:	300mm～600mm
Rod diameter:	200mm～400mmStroke1100mm～2050mm
Pressure:	up to 35MPa
Applications:	Open Tunnel Boring Machine

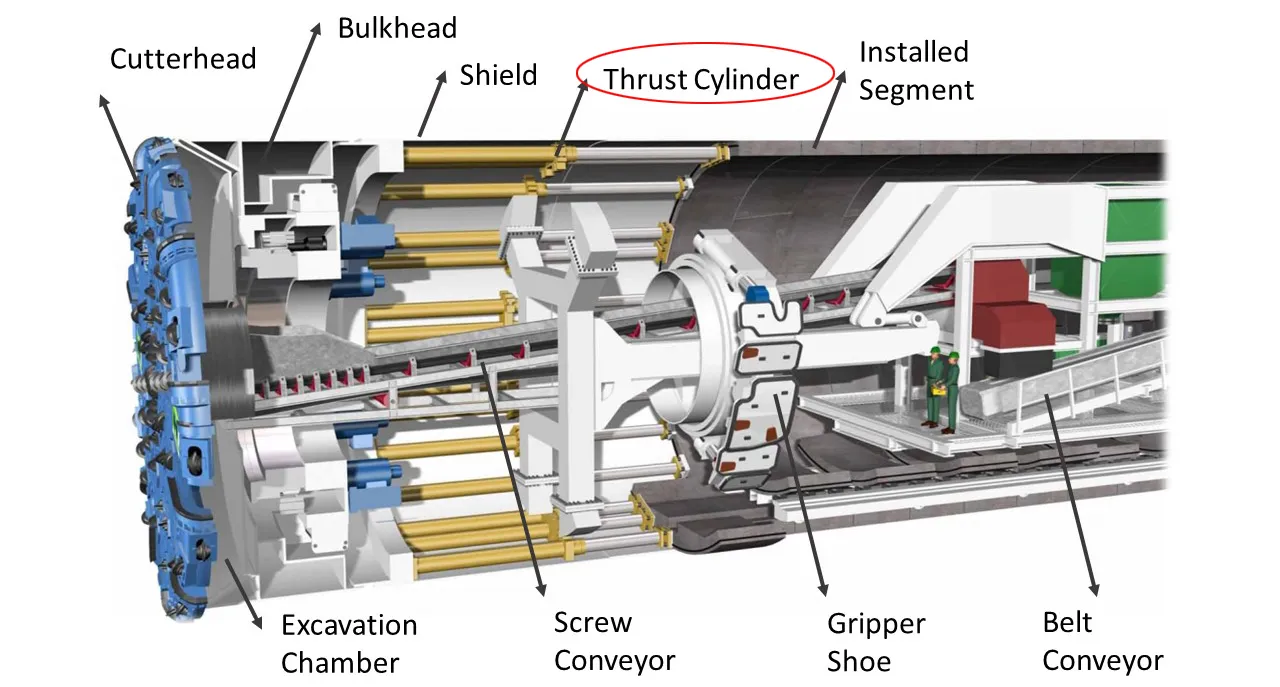

Benefits of Open Tunnel Boring Machine Thrust Cylinder:

The open tunnel boring machine (TBM) thrust cylinder, also known as the main drive cylinder, is a critical component of an open tunnel boring machine used in tunnel construction. It provides the necessary force to propel the open tunnel boring machine forward and excavate the tunnel. Here are some benefits of using the open TBM thrust cylinder:1. Efficient tunnel excavation: The thrust cylinder enables efficient excavation by exerting a significant amount of force to push the open tunnel boring machine forward. This force allows the open tunnel boring machine to cut through various types of soil or rock, reducing the time and effort required for tunnel construction.2. Increased productivity: The use of an open TBM thrust cylinder enhances productivity by automating the excavation process. As the cylinder pushes the open tunnel boring machine forward, it eliminates the need for manual, labor-intensive methods, such as drilling and blasting. This leads to faster progress and higher production rates in tunnel construction projects.3. Enhanced safety: The open tunnel boring machine thrust cylinder improves safety by minimizing the risks associated with traditional excavation methods. With controlled and predictable movement, it reduces the chances of accidental collapses, cave-ins, or ground disturbances, thereby providing a safer working environment for the construction crew.4. Improved accuracy and precision: The thrust cylinder allows for precise control over the tunnel boring machine's forward movement. It ensures accurate alignment and positioning of the tunnel, resulting in a well-constructed tunnel with the desired dimensions and alignment. This level of precision is crucial, especially in projects where tunnels need to be aligned with existing infrastructure or geological features.5. Reduced environmental impact: Compared to conventional tunneling methods, the use of an open tunnel boring machine with a thrust cylinder can help minimize the environmental impact. By efficiently excavating the tunnel, it reduces the disturbance to the surrounding soil and minimizes the release of dust, noise, and vibrations. This makes it a more environmentally friendly option for tunnel construction.

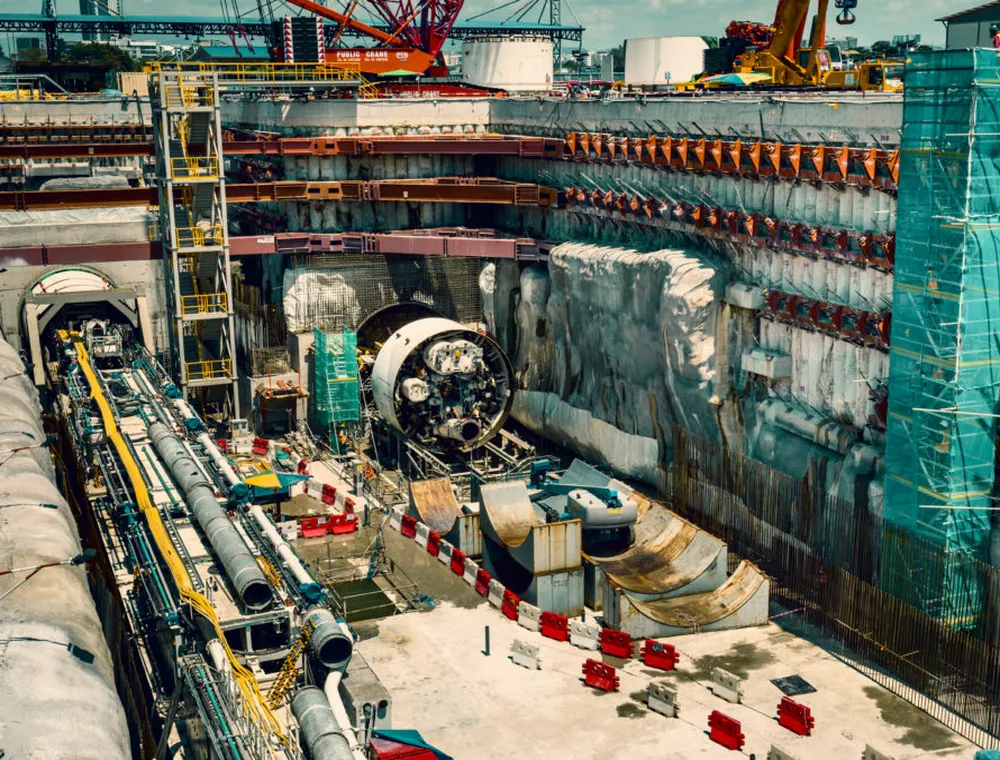

Applications of Open Tunnel Boring Machine Thrust Cylinder:

The open tunnel boring machine (TBM) thrust cylinder is a critical component used in tunneling projects. It plays a crucial role in the excavation process by providing the necessary force to push the tunnel boring machine forward and create the tunnel. Here are some applications of the open TBM thrust cylinder:(1) Tunnel Excavation: The primary application of the tunnel boring machine thrust cylinder is in tunnel excavation. The hydraulic cylinder generates the thrust required to advance the tunnel boring machine through the ground, cutting through soil, rocks, or other geological formations. It applies a pushing force to the tunnel boring machine's cutting head, enabling it to excavate and create the tunnel.(2) Soft Ground Tunnels: Tunnel boring machines equipped with thrust cylinders are particularly useful in excavating tunnels through soft ground conditions, such as clay or loose soil. The hydraulic cylinder helps to stabilize the tunnel boring machine and prevent sinking or getting stuck. It applies pressure to the tunnel face, supporting the excavation and maintaining stability.(3) Hard Rock Tunnels: In hard rock formations, the thrust hydraulic cylinder assists in breaking and fracturing the rock. The tunnel boring machine's cutting head, driven by the cylinder's force, rotates and grinds the rock, allowing for efficient excavation. The cylinder's thrust enables the tunnel boring machine to overcome the resistance of the hard rock and advance through the tunnel.(4) Urban Tunneling: Thrust cylinders for tunnel boring machines are commonly used in urban tunneling projects, such as subway or metro systems. These machines are designed to minimize surface disruption and noise pollution during construction. The thrust cylinder plays a vital role in pushing the tunnel boring machine forward, reducing the need for extensive excavation and minimizing disturbance to the surrounding urban environment.(5) Large-Scale Infrastructure Projects: The tunnel boring machine thrust cylinder finds applications in major infrastructure projects such as road tunnels, railway tunnels, water tunnels, and sewer tunnels. These projects often require long tunnels to be excavated efficiently, and the hydraulic cylinder's force helps in achieving the desired progress rates.

Tunnel Boring Machine Hydraulic Cylinder Manufacturers

Raydafon has been developing and producing tunnel boring machine cylinders since 2005, has successfully exported them all over the world, and has a leading global market share. For example, in the Bertha tunnel boring machine in Seattle, the entire set of high-pressure hydraulic cylinders is from Raydafon. Even though the equipment was constructed underground for two years, Raydafon's hydraulic cylinders did not suffer from corrosion and seal aging. We customized solutions for customers to fully meet the needs of complex working conditions such as high frequency, high load, vibration, and pollution during underground construction. Raydafon uses its strength to build a comprehensive service brand for hydraulic transmission and control systems in the field of tunnel boring equipment.In addition, we not only provide shield machine cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
