Widely used in clip bottle and lift transportation.Material ( base roller chain ):stainless steel SUS304 or carbon steel,The longest distance: 24M,Max. speed: lubricant 90M/min,dryness 60M/min,Packing: 10 feet = 3.048 M/box 26pcs/M.

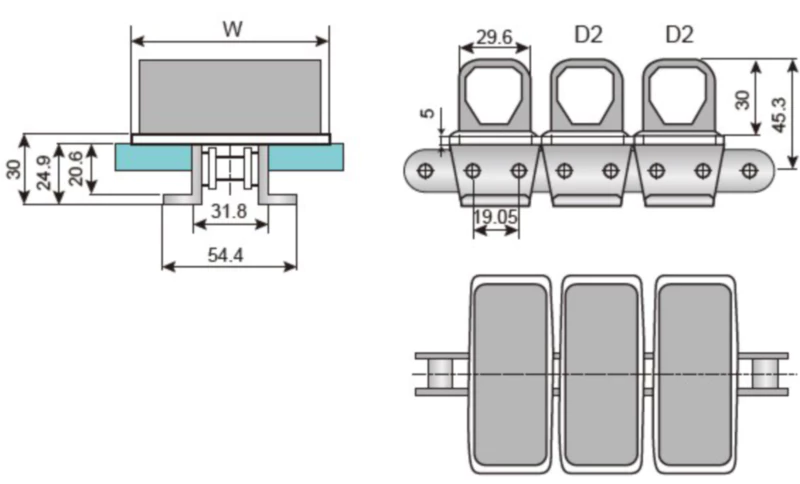

Plastic Conveyor Chains Sideflexing With Snap On Gripper, which is made of natural rubber, is a specially designed plastic conveyor chain. The snap on gripper part of this chain is made of natural rubber material. This chain has side flexing capability and is equipped with a snap on gripper, which can be used in various conveyor systems. Please refer to the below image for the dimension of this chain:
This chain is suitable for conveying and packaging processes in the food and beverage industry. They can be used to convey food, bottles, cans, packaging boxes and other materials, ensuring stable delivery of materials along the curved path.
This chain is also suitable for automated packaging lines in the packaging industry. They can transport materials such as packaging boxes, bags, and cartons from one workstation to another, realizing efficient packaging processes.
In the pharmaceutical industry, this chain can be used for conveying materials such as drug containers, medicine bottles, and medicine boxes. They ensure the safe and accurate delivery of drugs during transportation.
In the logistics and warehousing industry, this chain is suitable for cargo transport and sorting systems. They can move goods from one location to another, such as from the storage area to the storage area of the warehouse or from one area of the warehouse to another.
In the automotive manufacturing industry, this chain can be used to transport auto parts from one workstation to another. They provide reliable material transfer throughout the entire automotive production line.
We offer customization options for this chain to meet specific requirements, including different sizes, shapes, and accessory options. We emphasize the flexibility of this chain in adapting to various conveyor systems.
Before installation, please make sure you have the appropriate safety measures and tools. Read the installation instructions and operation manual provided by the supplier and make sure you understand the specifications and size requirements of the chain.
Prepare the conveyor structure according to your application requirements and layout design. Ensure that the support structure is smooth and stable and meets the installation requirements of the chain.
Install the sprockets correctly on the drive shaft of the conveyor. Ensure that the sprockets match the tooth shape of the chain and correctly position and fix them according to the specifications of the chain and the supplier's guidelines.
Lay the chain along the path of the conveyor and ensure that the direction of the chain is correct. Use connectors to connect the chains as required. Ensure that the connectors are firm and reliable and follow the installation guidelines provided by the supplier.
According to the tension requirements of the chain, adjust the tension of the chain appropriately. Ensure that the chain has proper tension during operation to ensure normal operation and material transfer.
After installation, test and debug. Check the operation of the chain, ensure that the chain runs smoothly during transportation, and check the gripping effect of the snap on gripper.
The sprockets are an essential part of this chain. They transfer power from the drive source to the chain and ensure the correct movement of the chain. We provide sprockets that are compatible with this chain, ensuring smooth and reliable operation of the conveyor system. Please refer to the below images for the types of sprockets we offer:
In addition to Plastic Conveyor Chains Sideflexing With Snap On Gripper, we also offer other chain products such as Plastic Chain, Stainless Steel Chain, Agricultural Chains, and Leaf Chains. Please contact us for more information.
Raydafon was established in 2003 and specializes in power transmission products. We have multiple advanced production and inspection equipment, such as CNC Gear grinding machine, gear measuring machine, CNC gear shaper, machine center, CMMS, and Torque test system. We provide professional services and custom solutions to meet customers' specific requirements. Our products are certified by international organizations. We are committed to providing the highest quality products and services to our customers. Please contact us for inquiries and orders.
The base roller chain of Plastic Conveyor Chains Sideflexing With Snap On Gripper is made of stainless steel SUS304 or carbon steel.
The maximum speed of Plastic Conveyor Chains Sideflexing With Snap On Gripper is 90M/min with lubricant and 60M/min under dryness.
The packing specification of Plastic Conveyor Chains Sideflexing With Snap On Gripper is 10 feet = 3.048 M/box and 26pcs/M.
Plastic Conveyor Chains Sideflexing With Snap On Gripper can be used in various industries, such as food and beverage, packaging, pharmaceutical, logistics and warehousing, and automotive manufacturing industries.
Natural rubber has high wear resistance, which can maintain its grip performance and service life during long-term use.
