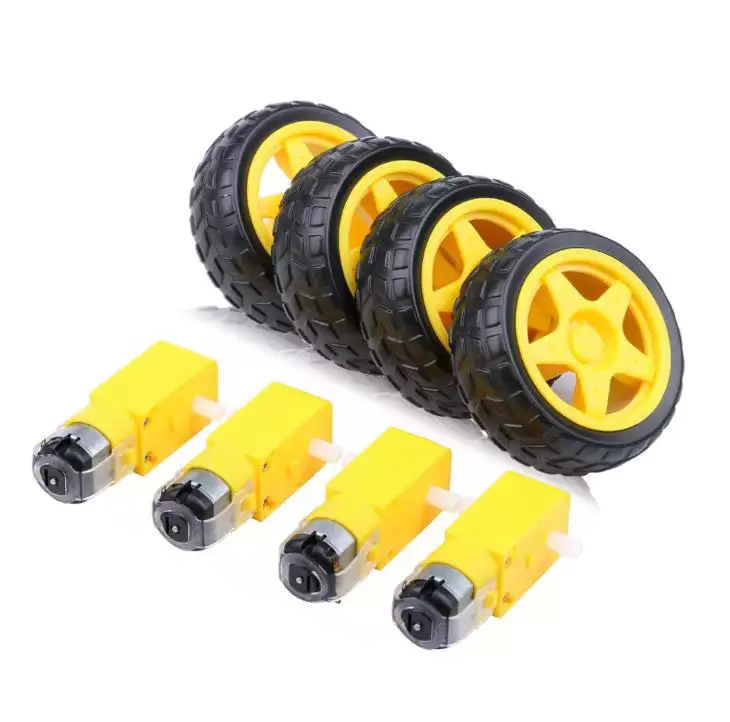

Plastic Gearbox Motor TGP02D-A130 For Toy Robot Remote Control Toy Cars

Plastic Gearbox Motor TGP02D-A130 For Toy Robot Remote Control Toy Cars

Description of Plastic Gearbox Motor

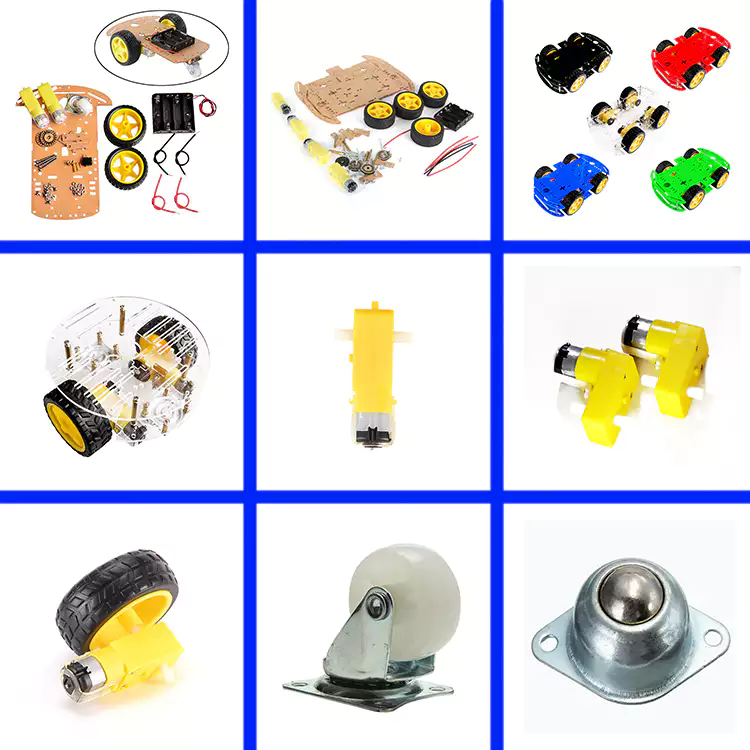

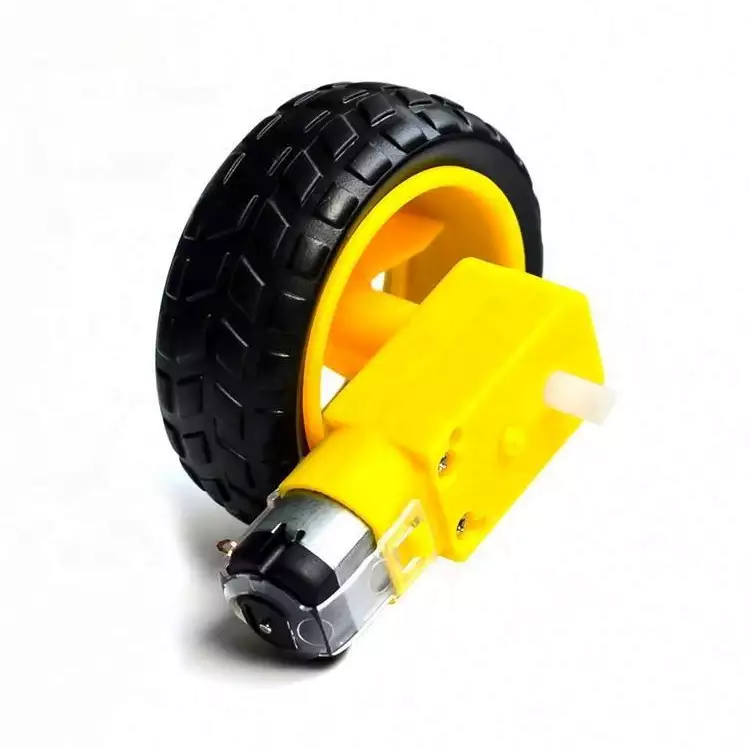

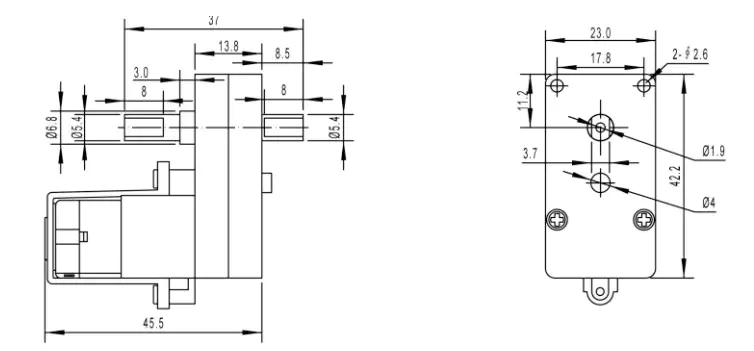

Apply to robots, Toys, Remote Control Toy cars, etc.These are standard DC hobby geared motors. They come with a wider operating range than most toy motors: from 3V to 9VDC. They'll fit in most electronic toys that are driven by batteries with high torque output.This single shaft plastic geared motor gives good torque and rpm at lower operating voltages, which is the biggest advantage of these motors. A small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight make it suitable for in-circuit placement. This motor is a perfect choice for lightweight robots.Characters:1. Double shaft.Small size 42.2mm*45.5mm*23mm2. DC plastic gear motor with low speed and big torque3. Suitable for small diameter, low noise, and big toque application4. Reduction Ratio: 48、120、180、220、288

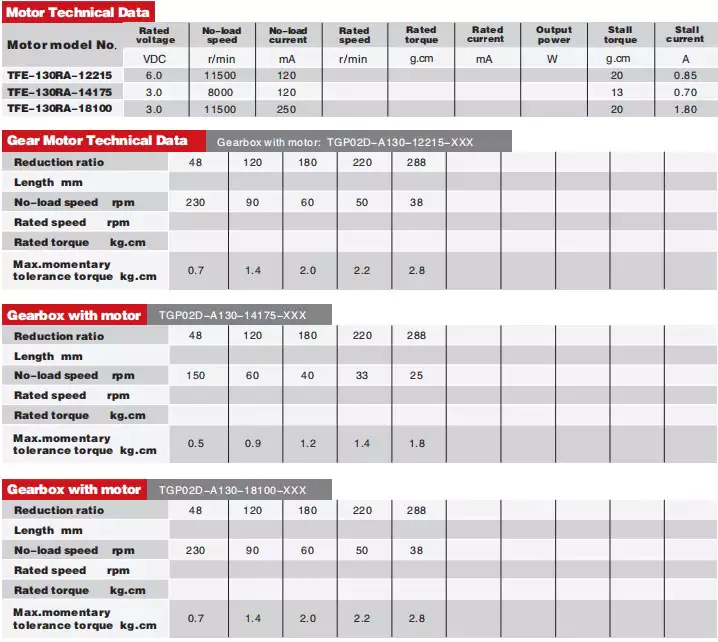

MODEL		REDUCTION RATIO	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
			OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
				V	rpm	A	rpm	A	kg.cm	W	kg.cm	A
T130-02-06500		48/1	3.0~7.0	6.0	500	0.21	416	1.04	0.4	1.71	2.4	5.2
T130-02-06200		120/1	3.0~7.0	6.0	200	0.21	415	1.06	1.0	4.26	5.9	5.2
T130-02-09175		48/1	3.0~10.0	9.0	175	0.09	133	0.17	0.3	0.41	1.3	0.55
T130-02-0938		220/1	3.0~10.0	9.0	38	0.09	31	0.14	1.0	0.32	5.8	0.55
T130-02-1260		220/1	3.0~13.0	12.0	60	0.05	48	0.2	1.5	0.74	5.8	0.85

Application：

Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:	Video, Cameras, Projectors.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.



Other Plastic gearbox DC motor

TGP01D-A130	TGP01S-A130
TGP02D-A130	TGP02S-A130

Why Choose our Plastic Gearbox Motor？

•  Q: Can I get some samples first? How soon can I get the samples?
•  A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 USD/pc). And the sample-making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additionally, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.

• Q: Are these motor parameters from the above list can be modified?
• A: Yes, the motor's parameter can be customized. We can modify the motor's working voltage, rated speed, torque, etc, and the motor's shaft dimension can be modified too. We are pleased to make that modification, the more details you provide, the more fluent our cooperation will be.

• Q: What parameter should I provide before the sample making?
• A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter, and Length. If there is another special requirment, please let us know in advance, such as working current limits, EMC limits, noise limits, expected lifetime, and shaft process(D-shape, multi-knurls, mounting holes, etc).

• Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model?
• A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for? And what does the working condition look like (duty cycles and load status)?  And how long the motor's expected lifetime ? etc. Then we can make a full assessment according to that.

• Q: Is there any Testing Report or Motor Specification when I get the sample?
• A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be available 3-5days later after the sample is ready.
