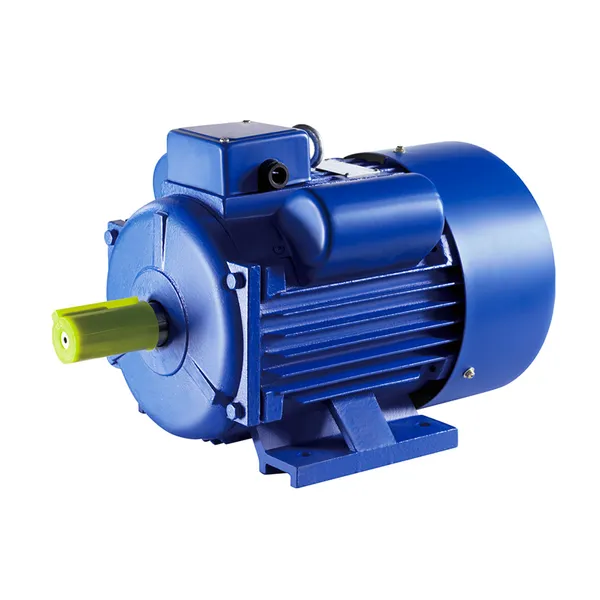

YC Series Heavy-Duty Capacitors Start Single Phase Induction Motor

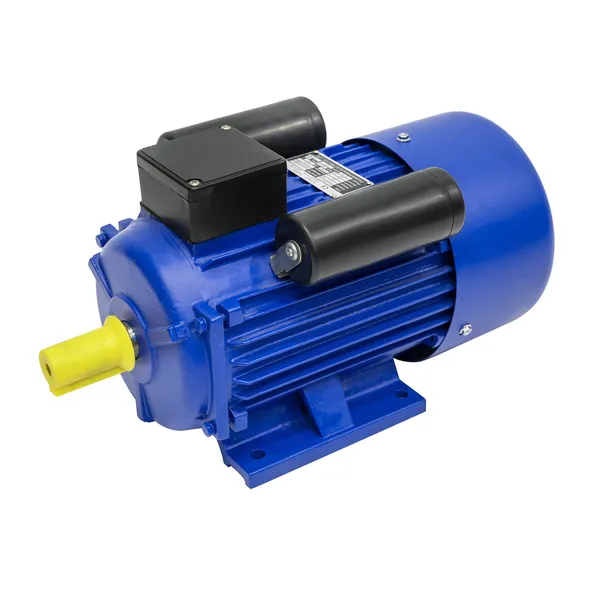

YC series single phase induction motors are totally enclosed fan-cooled (TEFC)heavy-duty single-phase induction motors. The mounting dimension fully conforms to IEC standards. When the rated output is 4HP or above with capacitor start and run, YC series single phase induction motors are integrated with up-to-date design, best quality materials construction, and possess the features of pleasant-looking appearance, outstanding performance, and easy maintenance. They also concentrate on the advantages of high starting torque, smooth turning, low-temperature rise, low noise, and great overload performance.YC series single phase induction motors are suitable for powering small-type drilling machines and water pumps, especially for family workshops where only a single-phase current supply is available. |  |

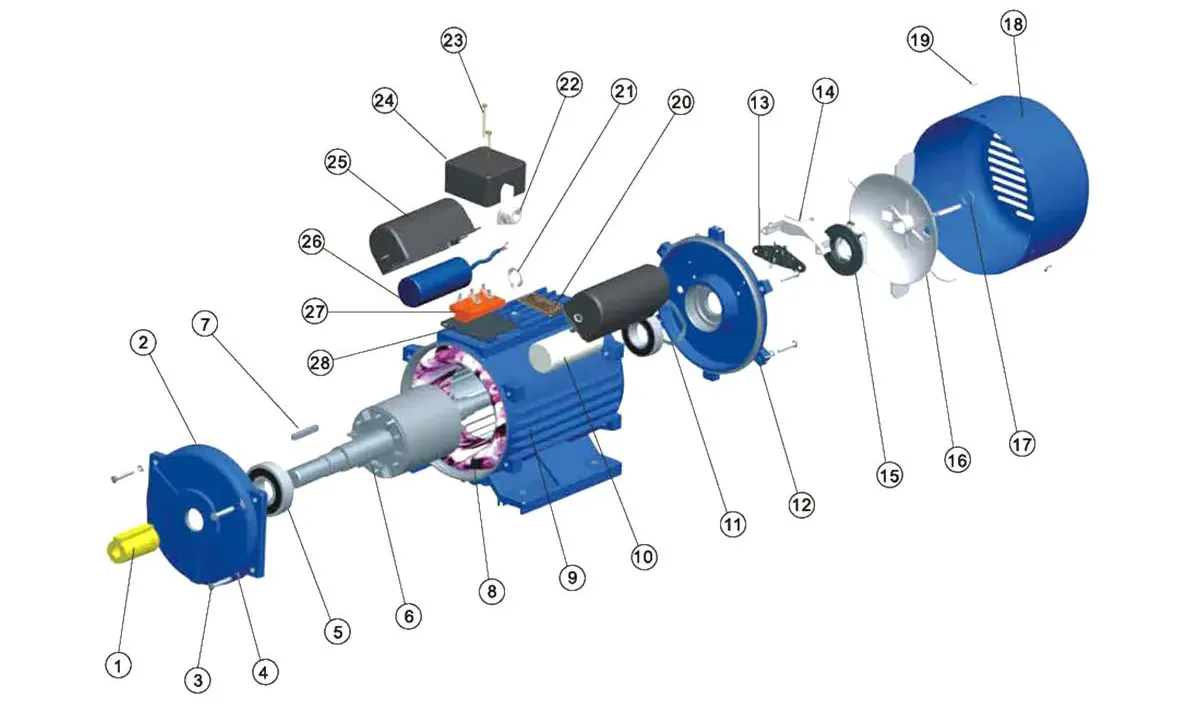

| 1. Shaft cover | 2. Front endshield | 3. Bolt |
| 4. Spring washer | 5. Bearing | 6. Rotor |
| 7. Key | 8. Stator | 9. Frame |
| 10. Capacitor CD60 | 11. Wave form | 12. Rear endshield |
| 13. Backup lane | 14. Shield | 15. Centrifugal switch |
| 16. Fan | 17. Fan clamp | 18. Fan cowl |
| 19. Fan cowl Screw | 20. Nameplate | 21. Eyebolt |
| 22. Jacket | 23. Screw | 24. Terminal box |
| 25. Capacitor box lid | 26. Capacitor CBB60 | 27. Terminal board |
| 28. Leather washer |
| YC Series Heavy Duty Single Phase Induction Motor | ||||||||||||||
| Type | Rated Power | Rated Current (A) | Rated Speed | Efficiency | Power Factor | Rated Torque | Ist/In | Tst/Tn | Tmax/Tn | Noise | Weight | |||
| (kW) | (HP) | 110V | 220V | 240V | (r/min) | (η%) | (cosφ) | (N.m) | (times) | (times) | (times) | dB(A) | (kg) | |
| Synchronous Speed 3000 r/min = 2-poles (50Hz) | ||||||||||||||
| YC711-2 | 0.18KW | 0.25HP | 3.71 | 1.86 | 1.70 | 2800 | 63.0 | 0.70 | 0.6 | 6.5 | 3.0 | 1.8 | 70 | 8 |
| YC712-2 | 0.25KW | 0.34HP | 4.86 | 2.43 | 2.23 | 2800 | 65.0 | 0.72 | 0.9 | 6.5 | 3.0 | 1.8 | 70 | 8.5 |
| YC80A-2 | 0.37KW | 0.5HP | 6.89 | 3.44 | 3.16 | 2840 | 66.0 | 0.74 | 1.2 | 6.5 | 3.0 | 1.8 | 75 | 11 |
| YC80B-2 | 0.55KW | 0.75HP | 10.1 | 5.04 | 4.62 | 2850 | 67.0 | 0.74 | 1.8 | 6.5 | 3.0 | 1.8 | 75 | 12 |
| YC80C-2 | 0.75KW | 1HP | 13.4 | 6.68 | 6.13 | 2850 | 68.0 | 0.75 | 2.5 | 6.5 | 3.0 | 1.8 | 75 | 12.5 |
| YC90S-2 | 1.1KW | 1.5HP | 17.9 | 8.93 | 8.18 | 2850 | 70.0 | 0.80 | 3.7 | 7.0 | 2.5 | 1.8 | 78 | 16 |
| YC90L-2 | 1.5KW | 2HP | 22.8 | 11.4 | 10.4 | 2870 | 73.0 | 0.82 | 5.0 | 7.0 | 2.5 | 1.8 | 78 | 24 |
| YC100L-2 | 2.2KW | 3HP | 33.0 | 16.5 | 15.1 | 2900 | 74.0 | 0.82 | 7.2 | 7.0 | 2.5 | 1.8 | 83 | 34 |
| YC112M1-2 | 3KW | 4HP | 42.7 | 21.4 | 19.6 | 2900 | 76.0 | 0.84 | 9.9 | 7.0 | 2.2 | 1.8 | 87 | 43 |
| YC112M2-2 | 3.75KW | 5HP | 50.2 | 25.1 | 23.0 | 2900 | 79.0 | 0.86 | 12 | 7.0 | 2.2 | 1.8 | 87 | 45 |
| Synchronous Speed 1500 r/min = 4-poles (50Hz) | ||||||||||||||
| YC711-4 | 0.12KW | 0.16HP | 3.92 | 1.96 | 1.80 | 1450 | 48.0 | 0.58 | 0.8 | 6.0 | 3.0 | 1.8 | 65 | 8.5 |
| YC712-4 | 0.18KW | 0.25HP | 5.45 | 2.73 | 2.50 | 1450 | 50.0 | 0.60 | 1.2 | 6.0 | 3.0 | 1.8 | 65 | 9 |
| YC80A-4 | 0.25KW | 0.34HP | 7.05 | 3.52 | 3.23 | 1450 | 52.0 | 0.62 | 1.6 | 6.0 | 3.0 | 1.8 | 70 | 12 |
| YC80B-4 | 0.37KW | 0.5HP | 9.39 | 4.69 | 4.30 | 1450 | 56.0 | 0.64 | 2.4 | 6.0 | 3.0 | 1.8 | 70 | 13 |
| YC80C-4 | 0.55KW | 0.75HP | 12.8 | 6.41 | 5.88 | 1450 | 60.0 | 0.65 | 3.6 | 6.0 | 3.0 | 1.8 | 70 | 15 |
| YC90S-4 | 0.75KW | 1HP | 15.0 | 7.52 | 6.89 | 1450 | 63.0 | 0.72 | 4.9 | 6.5 | 2.5 | 1.8 | 70 | 20 |
| YC90L-4 | 1.1KW | 1.5HP | 20.7 | 10.4 | 9.50 | 1450 | 67.0 | 0.72 | 7.2 | 6.5 | 2.5 | 1.8 | 70 | 24 |
| YC100L-4 | 1.5KW | 2HP | 25.9 | 13.0 | 11.9 | 1450 | 72.0 | 0.73 | 9.9 | 6.5 | 2.5 | 1.8 | 73 | 33 |
| YC112M-4 | 2.2KW | 3HP | 37.0 | 18.5 | 17.0 | 1450 | 73.0 | 0.74 | 14 | 6.5 | 2.5 | 1.8 | 78 | 45 |
| YC132SA-4 | 3KW | 4HP | 44.9 | 22.4 | 20.6 | 1450 | 76.0 | 0.80 | 20 | 6.5 | 2.2 | 1.8 | 87 | 63 |
| YC132SB-4 | 3.7KW | 5HP | 51.9 | 26.0 | 23.8 | 1450 | 79.0 | 0.82 | 24 | 6.5 | 2.2 | 1.8 | 87 | 65 |
| YC132M1-4 | 5.5KW | 7.5HP | 65.4 | 32.7 | 30.0 | 1450 | 85.0 | 0.90 | 36 | 6.5 | 2.0 | 1.8 | 87 | 67 |
| YC132M2-4 | 7.5KW | 10HP | 89.1 | 44.6 | 40.8 | 1450 | 85.0 | 0.90 | 49 | 6.5 | 2.0 | 1.8 | 87 | 70 |
| Synchronous Speed 3600 r/min = 2-poles (60Hz) | ||||||||||||||
| YC711-2 | 0.18KW | 0.25HP | 3.71 | 1.86 | 1.70 | 3360 | 63.0 | 0.70 | 0.5 | 6.5 | 3.0 | 1.8 | 70 | 8 |
| YC712-2 | 0.25KW | 0.34HP | 4.86 | 2.43 | 2.23 | 3360 | 65.0 | 0.72 | 0.7 | 6.5 | 3.0 | 1.8 | 70 | 9 |
| YC80A-2 | 0.37KW | 0.5HP | 6.89 | 3.44 | 3.16 | 3408 | 66.0 | 0.74 | 1.0 | 6.5 | 3.0 | 1.8 | 75 | 11 |
| YC80B-2 | 0.55KW | 0.75HP | 10.1 | 5.04 | 4.62 | 3420 | 67.0 | 0.74 | 1.5 | 6.5 | 3.0 | 1.8 | 75 | 12 |
| YC80C-2 | 0.75KW | Hot Tags: YC Series Capacitors Start Motor, Heavy-Duty Capacitors Start Motor, Single Phase Induction Motor Manufacturer | ||||||||||||
