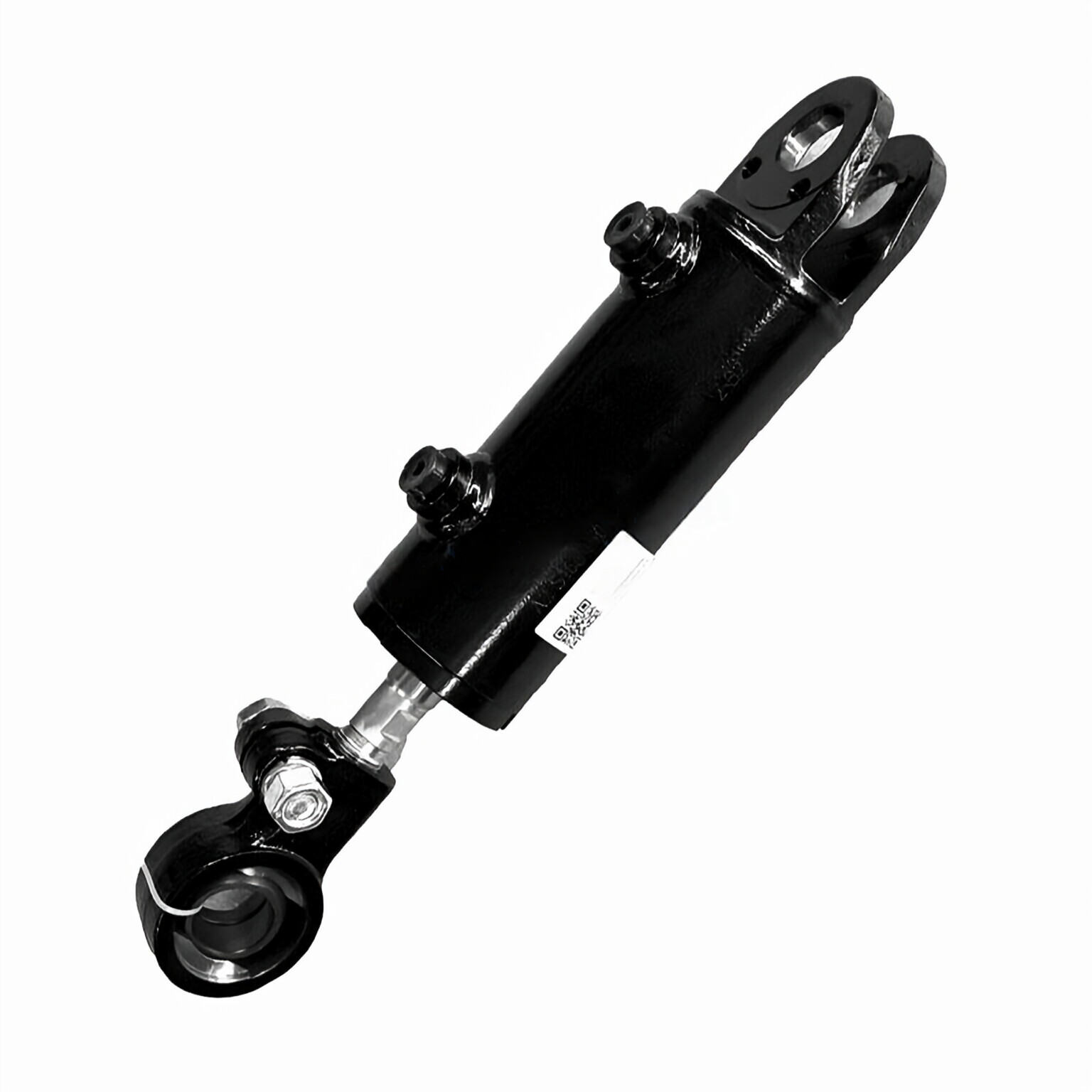

A forklift hydraulic tilt cylinder is an essential component of a forklift's lifting mechanism. It is responsible for controlling the tilting motion of the forklift's mast or carriage, allowing the operator to adjust the angle of the forks or attachments.The hydraulic tilt cylinder is typically a double-acting hydraulic cylinder, meaning it can generate force in both directions. It consists of a cylindrical barrel, a piston, and a piston rod. The cylinder barrel is connected to the forklift's frame or mast, while the piston rod is attached to the moving part of the mast or carriage.The hydraulic tilt cylinder operates using hydraulic fluid, which is pressurized by a hydraulic pump. When the operator activates the hydraulic controls, the pump sends pressurized fluid to one side of the cylinder, causing the piston to move in one direction. This movement, in turn, adjusts the tilt angle of the forklift's mast or carriage.The forklift hydraulic tilt cylinder plays a crucial role in forklift operations, as it enables the operator to position the forks or attachments at the desired angle for lifting, carrying, and stacking loads. By adjusting the tilt angle, the forklift can effectively handle different types of cargo, maintain stability on uneven surfaces, and optimize load distribution.Regular maintenance and inspection are important for the proper functioning of the hydraulic tilt cylinder. This includes checking for leaks, ensuring proper fluid levels, and monitoring the condition of seals and components. Any signs of wear or damage should be addressed promptly to prevent breakdowns and ensure safe operation.

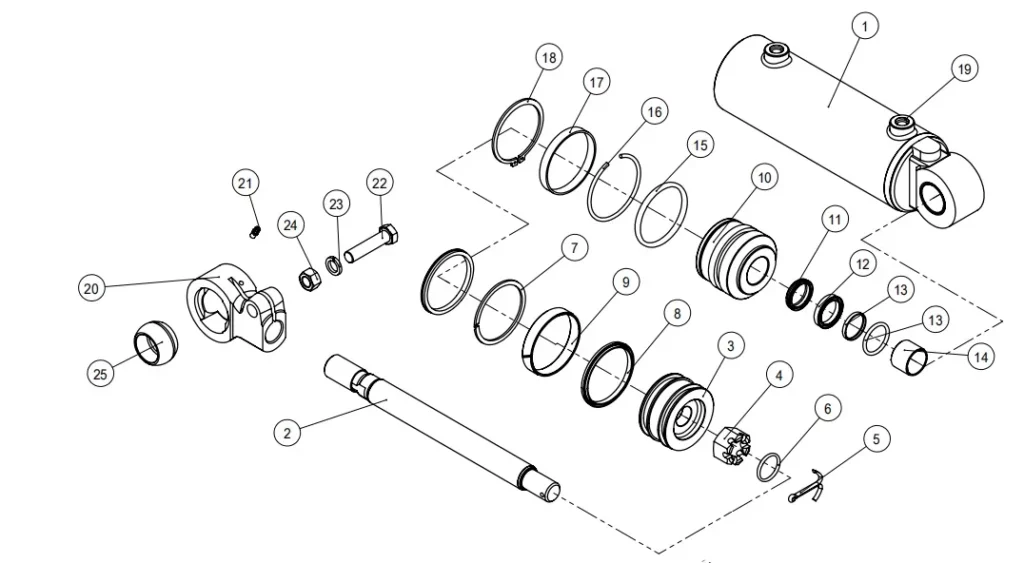

Forklift Hydraulic Tilt Cylinder Part Structure:

The forklift hydraulic tilt cylinder consists of several key parts that work together to enable the tilting motion. These parts include:Cylinder Barrel: The cylinder barrel is a cylindrical housing that contains the hydraulic fluid and provides a sealed chamber for the piston and piston rod to move within. It is typically made of durable steel or other high-strength materials to withstand hydraulic pressure.Piston: The piston is a cylindrical component that fits inside the cylinder barrel. It divides the cylinder into two chambers and is responsible for generating the force to move the hydraulic fluid. The piston is usually sealed with piston seals to prevent leakage of hydraulic fluid between the chambers.Piston Rod: The piston rod is a sturdy rod that extends from the piston and protrudes from the cylinder barrel. It is connected to the moving part of the forklift's mast or carriage and transmits the force generated by the piston to adjust the tilt angle.Hydraulic Ports: The hydraulic ports are openings in the cylinder barrel that allow the hydraulic fluid to enter and exit the cylinder. These ports are connected to the hydraulic system of the forklift, enabling the flow of pressurized fluid to control the movement of the cylinder.Seals: Seals play a crucial role in preventing hydraulic fluid leakage and maintaining the proper functioning of the hydraulic tilt cylinder. Various types of seals, such as piston seals, rod seals, and wiper seals, are used to create a tight seal between the piston, piston rod, and cylinder barrel.

1	Cylinder Housing assy	10	Guide Bush	18	Circlips For Shaft
2	Piston Rod	11	Dust Wiper	19	Plug
3	Piston	12	U-Ring	20	Clevis
4	Hex Nut	13	Rod Seal	21	Grease Nipple
5	Cotter Pins	14	Du Bush	22	Bolt
6	O-Ring	15	O-Ring	23	Spring Washers
7	Back-Ring	16	Round Wire	24	Nut
8	Hole Seal	17	Key Ring	25	Spherical Bearing
9	Wear-Ring

Forklift Hydraulic Tilt Cylinder Key Attributes:

Condition:	New	Product name:	Forklift Hydraulic Tilt Cylinder
Warranty:	1 Year	Application:	Industrial vehicle/forklift tilt
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Construction works, Energy & Mining	Color:	Customer Requirement
Weight (KG):	15	Material:	20#/45# Steel
Video outgoing inspection:	Provided	Acting type:	Double Acting Single Acting
Machinery Test Report:	Provided	Seals:	Hallite, Parker, NOK,Shamban
Marketing Type:	Ordinary Product	Certificate:	ISO9001:2015
Warranty of core components:	1 Year	Keyword:	Steering lift tilt extension
Core Components:	Piston rod, Piston	MOQ:	1pcs
Standard or Nonstandard:	Nonstandard	Brand:	EPT
Structure:	Piston Cylinder	Packaging Details:	Crate, pallet, or based on customer's requirement
Power:	Hydraulic	Supply Ability	100,000 Piece/Pieces per Month
Body Material:	Steel	Port:	Shanghai/Ningbo

Forklift Hydraulic Tilt Cylinder Parameter:

Item	Description
Product Name	Custom-made hydraulic Cylinder for industrial vehicle, forklift tilt
Certificate:	ISO9001, ISO4001, ISO 45003
Production Capacity:	1200,000 pcs per year
Sample Time	Based actual type
Brand	EPT or customer's logo
Service	OEM & ODM
Seal brand	Parker,NOK, BUSAK SHAMBAN
Delivery Time	Based on order quantity.
Business Type	Manufacturer & Exporter

Forklift Hydraulic Tilt Cylinder Applications:

The forklift hydraulic tilt cylinder finds applications in various industries and environments where forklifts are utilized for material handling. Some of the common applications include:(1) Warehousing and Distribution Centers: Forklift hydraulic tilt cylinders are extensively used in warehouses and distribution centers to handle palletized goods. The hydraulic tilt cylinder allows operators to adjust the tilt angle of the forks, enabling efficient loading and unloading of pallets, stacking of goods, and navigating narrow aisles.(2) Manufacturing Facilities: In manufacturing plants, forklift hydraulic tilt cylinders are used to transport and position raw materials, components, and finished products. The ability to adjust the tilt angle of the forks ensures safe and secure handling of various types of loads, such as crates, bins, and machinery parts.(3) Construction Sites: Forklift hydraulic tilt cylinders are employed in construction sites to lift and transport heavy materials, such as lumber, steel beams, concrete blocks, and construction equipment. The hydraulic tilt cylinder allows operators to adjust the tilt angle of the forks or attachments, facilitating precise positioning of the materials at different heights and angles.(4) Retail and Wholesale Operations: Forklift hydraulic tilt cylinders are commonly utilized in retail and wholesale operations, such as supermarkets, big-box stores, and wholesale warehouses. They are used for stocking shelves, moving bulk items, and loading/unloading goods from delivery trucks. The hydraulic tilt cylinder enables operators to adjust the fork angle according to the specific requirements of the task.(5) Ports and Freight Terminals: In port and freight terminal operations, forklift hydraulic tilt cylinders play a critical role in loading and unloading cargo from shipping containers and trailers. The hydraulic tilt cylinder allows for precise control of the forks, facilitating the efficient movement of containers, pallets, and other types of freight.(6) Agricultural and Farming Applications: Forklift hydraulic tilt cylinders find applications in the agricultural and farming sector for handling and transporting agricultural products, such as hay bales, grain sacks, and livestock feed. The hydraulic tilt cylinder enables operators to adjust the fork angle to accommodate different types of loads and navigate uneven terrain.[embed]https://www.youtube.com/embedxSiFNT4QMf4[/embed]

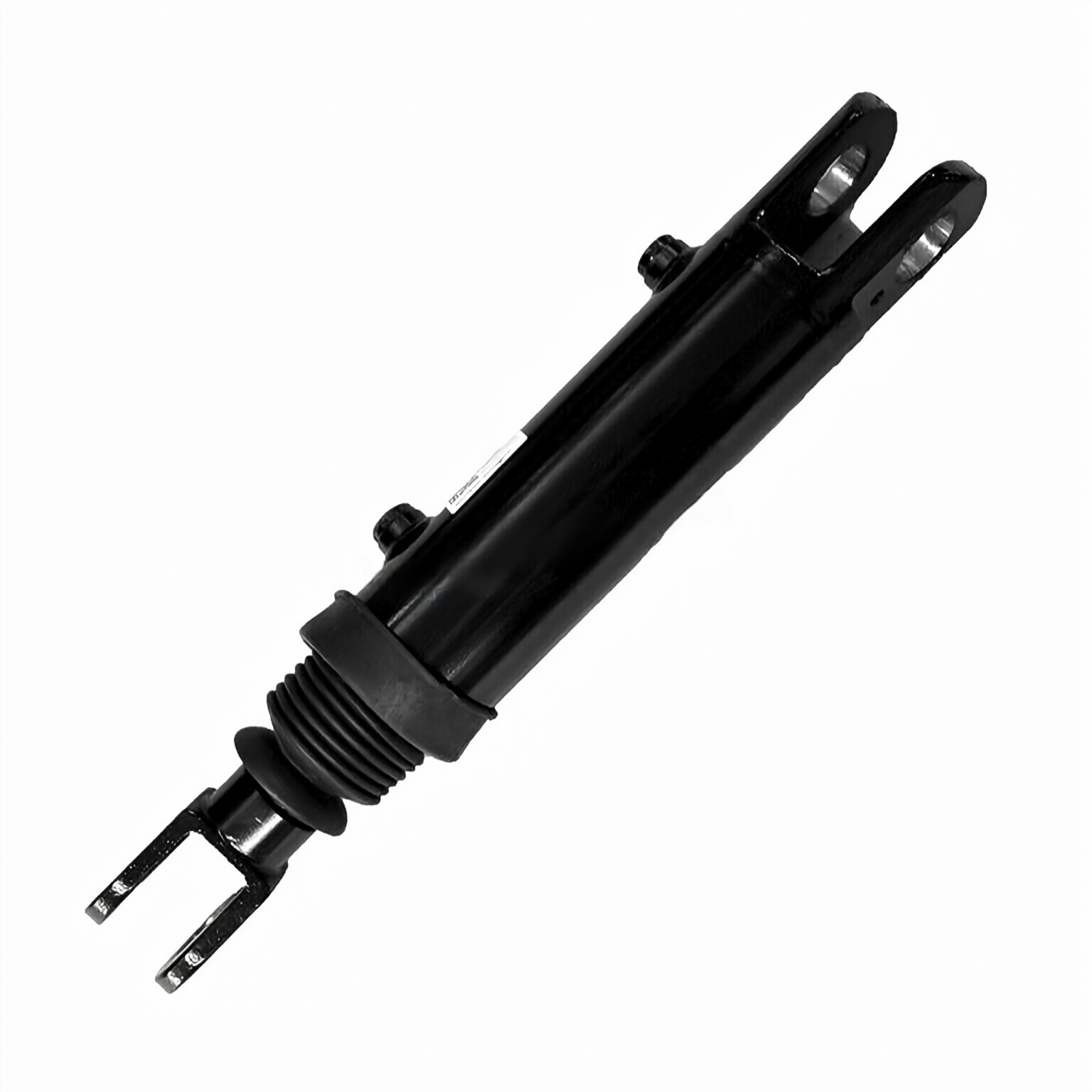

Forklift Hydraulic Tilt Cylinder Design Features:

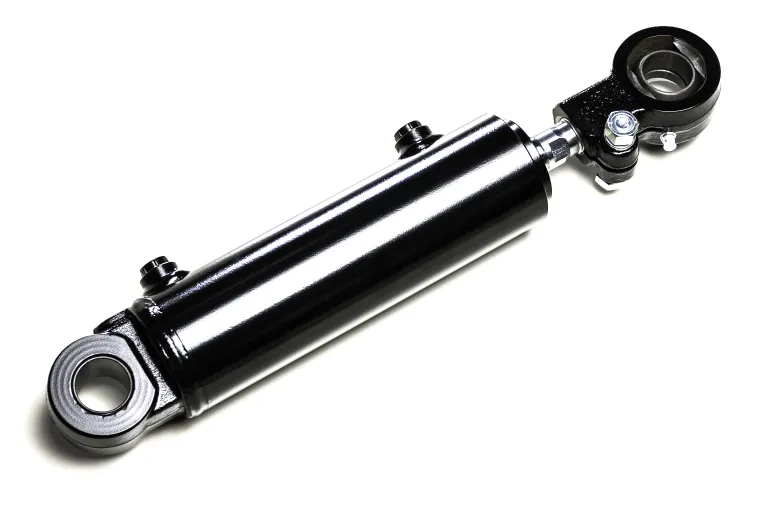

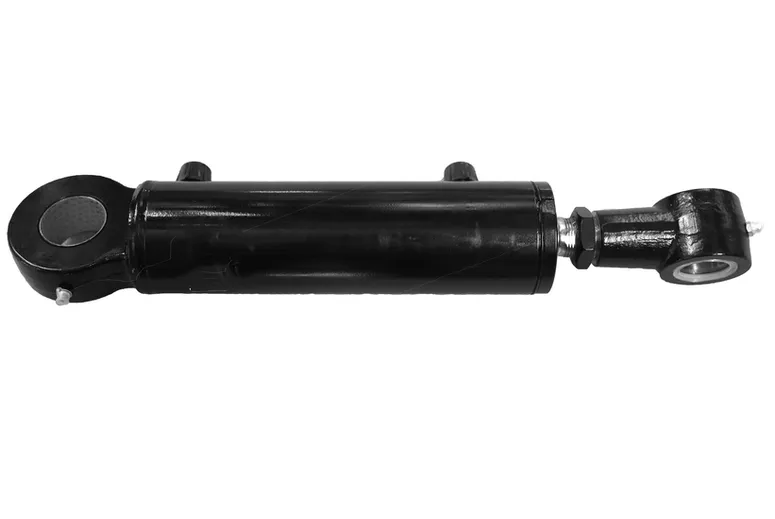

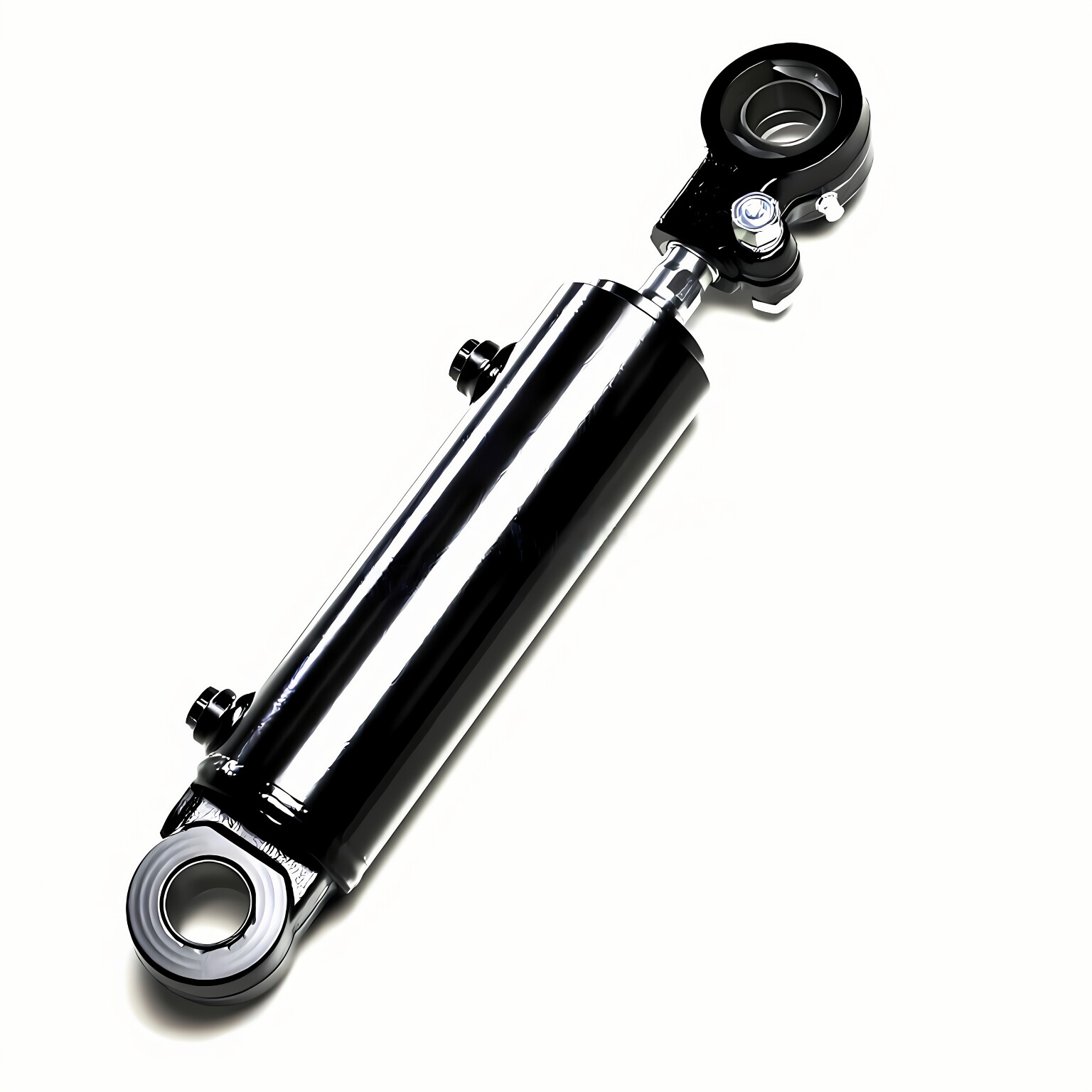

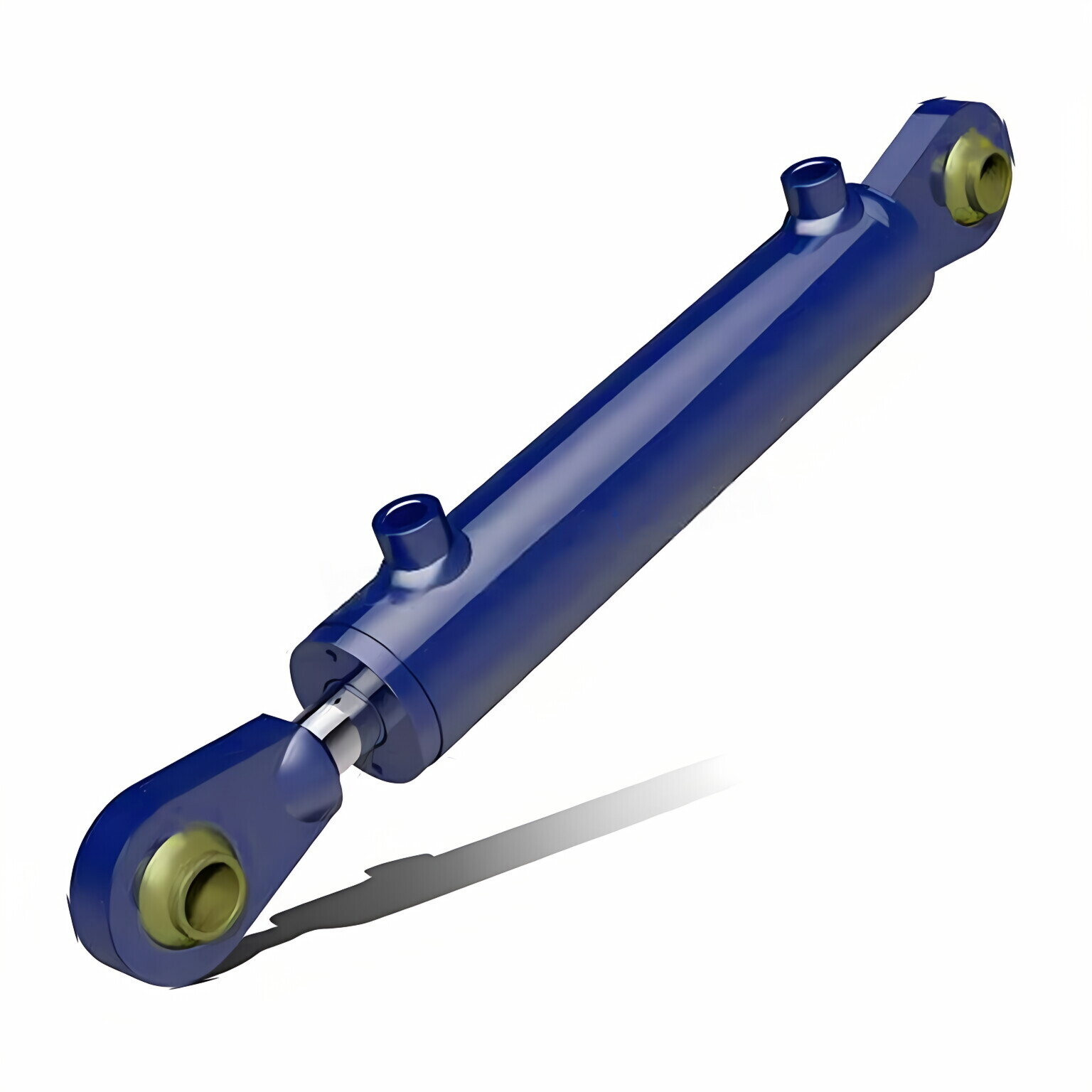

Hydraulic Cylinders For All Industries. We can build, supply new, and repair cylinders for Moving, Marine, Press, Crane, Telescopic, Shear, Excavator, and Chip Dump applications. We also have the capabilities, experience, and technical knowledge to manufacture new cylinders and custom-build cylinders. We can handle any hydraulic cylinder needs, from smaller application cylinders to very large cylinders (for example, cylinders on large mining equipment). Contact us for pricing and availability or if you need a custom hydraulic cylinder. Hydraulic cylinder Features---3000PSI Rated pressure, 6000PSI testing pressure.---Imported world famous brands and Chinese top brands sealing system.--- High-quality Drawn steel tube, with good rigidity.---CNC Rolled tube inner surface, with a roughness of 0.2~0.4um.---Superior strength chrome-plated rod, anticorrosion for a long life.--- High-grade Ductile Iron bar directly machined Gland and Piston, with high strength.--- Heavy-duty welded construction, automatic welding for good quality.---Twin-lip piston seals for maximum efficiency.---100% factory tested under at least 1.5 times of the rated pressure.

China Hydraulic Cylinder Manufacturers

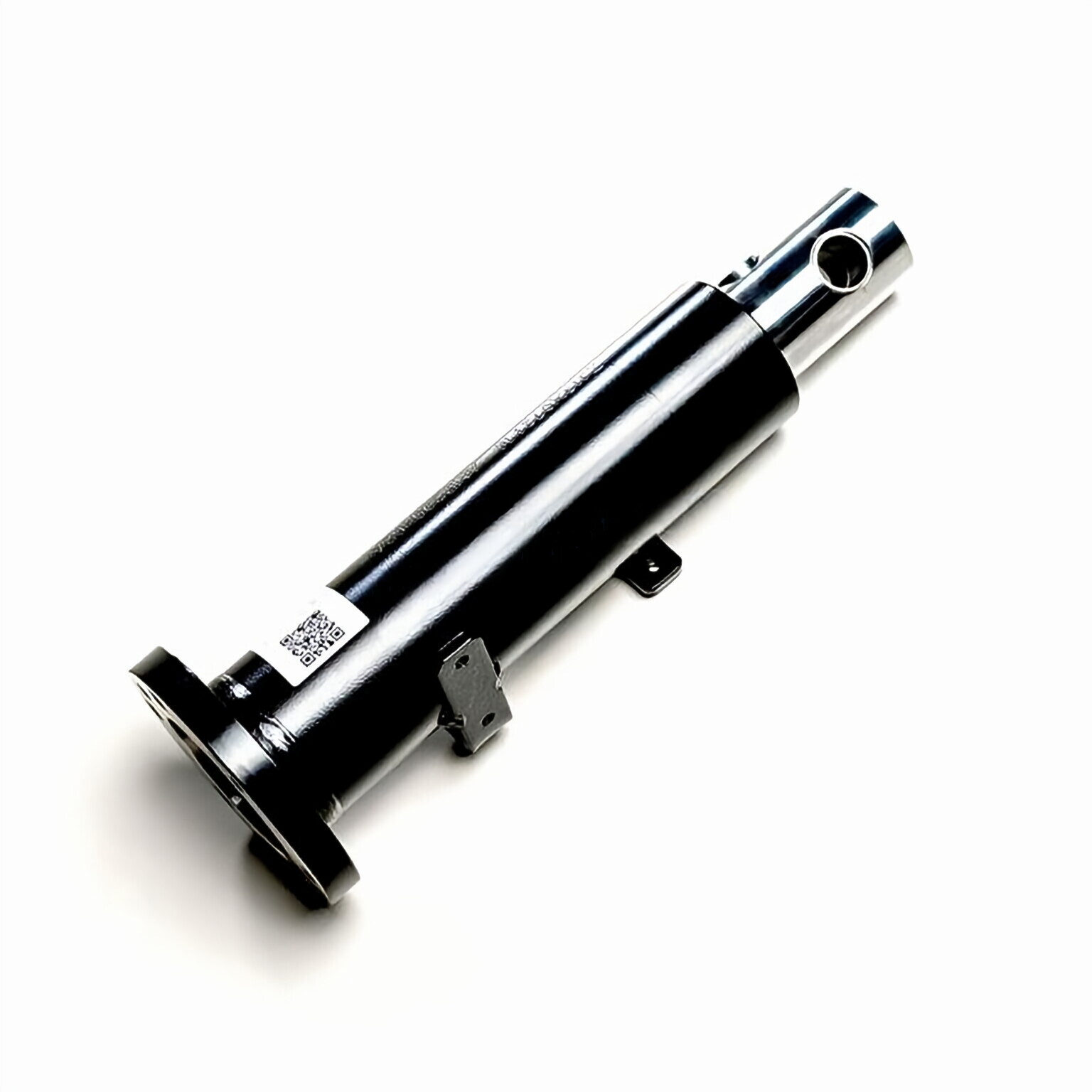

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Forklift hydraulic cylinders, Agricultural Machinery hydraulic cylinders, Construction machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders. Hydraulic cylinder is a non-standard product and all products are independently developed by ourselves.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:
