The rear pin type metallurgical hydraulic cylinder is a high-performance hydraulic component designed specifically for metallurgical applications. With its robust construction, precise control, and reliable operation, this hydraulic cylinder is engineered to meet the demanding requirements of the metallurgical industry. Whether used in steel mills, foundries, or other metallurgical processes, the rear pin type cylinder delivers exceptional performance and efficiency.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

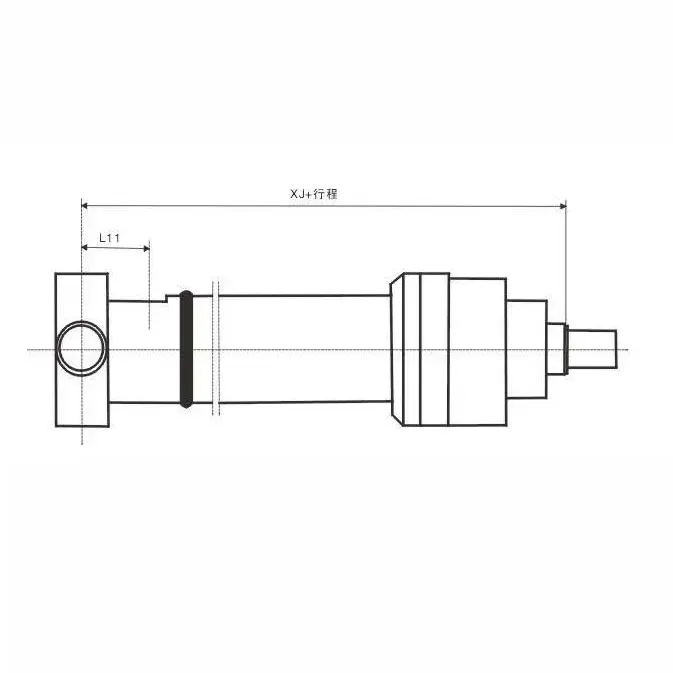

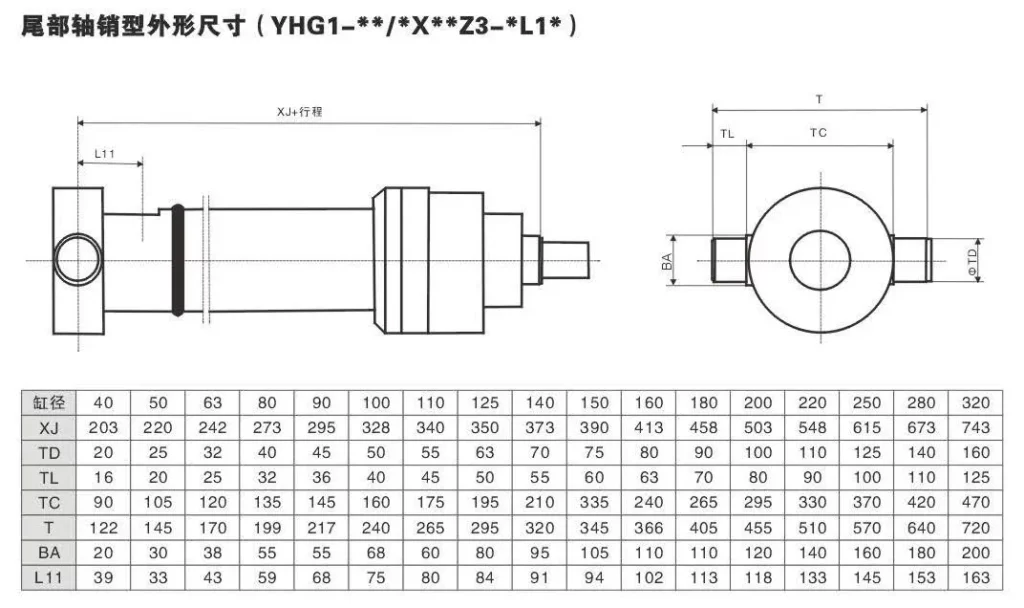

Rear Pin Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Rear Pin Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and guarantee optimal performance.
3. System Integration and Calibration:
   • Integrate the hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve the desired operation parameters and ensure smooth functionality.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to precisely control the extension, retraction, and positioning of the cylinder for efficient metallurgical operations.

Characteristics Of Rear Pin Type Metallurgical Hydraulic Cylinder:

• Rear Pin Type Design: The rear pin type design provides secure and reliable connection points, ensuring stability and precise alignment during operation in metallurgical processes.
• Metallurgical Application Focus: This hydraulic cylinder is specifically engineered to meet the rigorous demands of metallurgical applications, offering durability and high-performance in extreme conditions.
• Precision Control: The cylinder allows for precise control and positioning, enabling operators to achieve accurate and efficient metallurgical operations.
• Robust Construction: Constructed from high-quality materials, the hydraulic cylinder is designed to withstand heavy loads, extreme temperatures, and harsh operating conditions.
• Efficient Energy Conversion: The cylinder utilizes advanced hydraulic technology to convert hydraulic energy into mechanical force with high efficiency, optimizing productivity in metallurgical processes.

How Does A Hydraulic Cylinder Work?

A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear force and motion. It plays a crucial role in various industries and applications requiring heavy lifting, pushing, or pulling. Here's a simplified explanation of how a hydraulic cylinder works:

1. Basic Components:
   • Cylinder Barrel: A cylindrical tube houses the piston and allows for fluid movement.
   • Piston: A solid, cylindrical component that divides the cylinder into two chambers and can move back and forth.
   • Piston Rod: A rod attached to the piston, extending through a seal on one end of the cylinder to transmit the force generated by the piston.
   • Seals prevent fluid leakage and maintain the separation between the two chambers.
2. Hydraulic Fluid:
   • The hydraulic cylinder operates using an incompressible fluid, typically hydraulic oil or fluid.
   • The fluid is stored in a hydraulic reservoir and pumped into the cylinder through hydraulic lines or hoses.
3. Double-Acting Cylinder Operation:
   • In a double-acting hydraulic cylinder, fluid is supplied to both sides of the piston alternately to produce both extension and retraction movements.
   • Extension: Pressurized fluid is directed into the chamber behind the piston, pushing the piston and piston rod forward, extending the cylinder.
   • Retraction: The fluid is redirected to the chamber on the opposite side of the piston, applying pressure and causing the piston to move in the opposite direction, retracting the cylinder.
4. Single-Acting Cylinder Operation:
   • In a single-acting hydraulic cylinder, fluid is supplied to only one side of the piston, while the other side is vented or equipped with a spring to facilitate the return stroke.
   • Extension: Pressurized fluid is directed into the chamber behind the piston, causing the piston to extend.
   • Retraction: The fluid is released or vented from the chamber, allowing the spring or external force to push the piston back to its original position.
5. Control and Valves:
   • Various valves, such as directional control valves, flow control valves, and pressure control valves control the flow of hydraulic fluid into and out of the hydraulic cylinder.
   • These valves enable precise control over the hydraulic cylinder's speed, direction, and force.
6. Force and Motion:
   • As the hydraulic fluid enters one side of the cylinder, it applies pressure against the piston, generating force.
   • This force is transmitted through the piston rod to the load or the desired application, causing linear motion, such as lifting, pushing, or pulling.
7. Maintenance and Safety:
   • Regular maintenance, including inspections, lubrication, and seal replacement, is essential to ensure optimal performance and prevent leaks.
   • Safety measures, such as pressure relief valves and safety mechanisms, are incorporated to protect against overloading or sudden failures.
