Rear Single Earring Type Metallurgical Hydraulic Cylinder

Rear Single Earring Type Metallurgical Hydraulic Cylinder

The rear single-earring type metallurgical hydraulic cylinder is a cutting-edge hydraulic component designed to meet the demanding requirements of metallurgical applications. With its advanced features, precise control, and robust construction, this hydraulic cylinder offers exceptional performance, durability, and reliability in the rigorous environments of steel mills, foundries, and other metallurgical processes. The rear single-earring type cylinder sets new standards in hydraulic technology, making it the ideal choice for the metallurgical industry.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

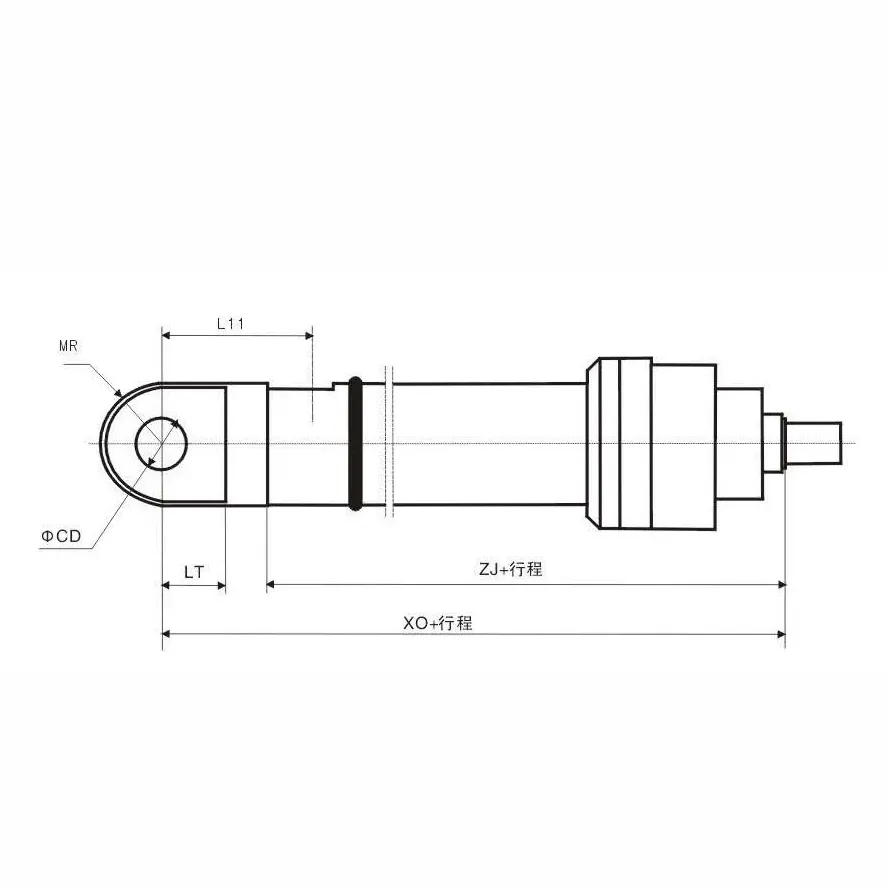

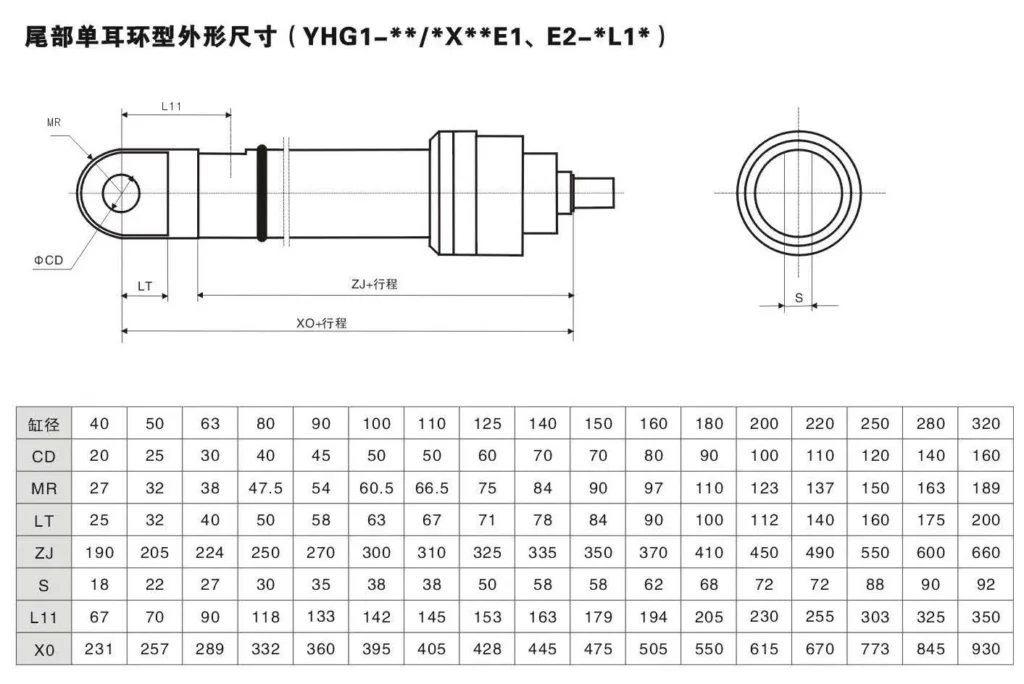

Rear Single Earring Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Rear Single Earring Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and guarantee optimal performance.
3. System Integration and Calibration:
   • Integrate the metallurgical hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve the desired operating parameters and ensure smooth functionality.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to precisely control the extension, retraction, and positioning of the cylinder for efficient metallurgical operations.

Characteristics Of Rear Single Earring Type Metallurgical Hydraulic Cylinder:

• Rear Single Earring Design: The rear single earring design provides a secure and reliable connection point, ensuring stability and precise alignment during metallurgical operations.
• Metallurgical Application Focus: This hydraulic cylinder is specifically engineered to meet the rigorous demands of metallurgical applications, offering durability and high-performance in extreme conditions.
• Precise Control: The cylinder allows for precise control and positioning, enabling operators to achieve accurate and efficient metallurgical operations.
• Robust Construction: Constructed from high-quality materials, the hydraulic cylinder is designed to withstand heavy loads, extreme temperatures, and harsh operating conditions.
• Efficient Energy Conversion: The cylinder utilizes advanced hydraulic technology to convert hydraulic energy into mechanical force with high efficiency, optimizing productivity in metallurgical processes.

How To Bleed A Hydraulic Cylinder Without Bleeder Valve?

Bleeding a hydraulic cylinder without a bleeder valve can be more challenging, but it is still possible. Here's a step-by-step guide on how to bleed a hydraulic cylinder without a bleeder valve:

1. Prepare the Necessary Tools:
   • You will need a wrench or pliers to loosen and tighten hydraulic fittings.
   • Have a container ready to catch any hydraulic fluid that may come out during the bleeding process.
   • Keep rags or absorbent materials nearby to clean up any spills.
2. Locate the Highest Point:
   • Identify the highest point on the hydraulic cylinder where air bubbles might get trapped.
   • This is typically near the cylinder's end or at the piston's top.
3. Loosen the Fitting:
   • Carefully loosen the hydraulic fitting at the highest point using a wrench or pliers.
   • Loosen it enough to allow air and fluid to escape but not so much that it completely disconnects.
4. Apply Pressure:
   • Activate the hydraulic system to apply pressure to the cylinder.
   • This can be done by operating the hydraulic pump or using any controls available.
5. Watch for Air Bubbles:
   • Monitor the hydraulic fitting you loosened for the presence of air bubbles.
   • As the pressure builds, any trapped air will escape through the fitting.
6. Fluid Release:
   • Retighten the fitting once you observe a steady flow of hydraulic fluid without any air bubbles.
   • Be cautious not to overtighten and damage the fitting or hydraulic lines.
7. Repeat the Process:
   • If there are other high points on the cylinder where air bubbles might accumulate, repeat steps 3 to 6 for each location.
   • Start with the highest point and work your way down to ensure all air is released.
8. Check for Proper Operation:
   • Once you have bled the cylinder, check for proper operation by activating the hydraulic system.
   • Verify that the cylinder extends and retracts smoothly without unusual noises or vibrations.
9. Clean Up:
   • Use rags or absorbent materials to clean up hydraulic fluid spills or drips.
   • Dispose of the used hydraulic fluid properly according to local regulations.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of metallurgical hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle metallurgical hydraulic cylinders, Aerial work vehicle metallurgical hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The metallurgical hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
