n the high-stakes world of mining, conveyor chains are the lifeblood of operations. Their reliability is critical, and a single point of failure can lead to expensive downtime and lost productivity. While the Cincinnati Mine Machinery Co. DA-550 conveyor chain is a well-known name, we offer a superior, high-performance alternative designed to not only meet but also exceed the demands of modern mining applications. Our products guarantee an extended service life, reduced maintenance, and enhanced operational efficiency.We are a global leader in the manufacturing of heavy-duty mining chains, specializing in providing robust conveyor solutions for both surface and underground operations. With decades of industry experience and a relentless commitment to excellence, we can offer a product that isn't just a simple replacement for the Cincinnati DA-550—it's a significant upgrade.

Direct Replacement for the Cincinnati DA-550: A Technical Comparison

The Cincinnati DA-550 conveyor chain is widely used in coal, potash, rock, limestone, and gypsum mining. It is known for its design that allows it to run on a 5-tooth sprocket for quieter performance. While it is a robust product, our DA series offers an advanced alternative that is fully compatible and provides superior longevity.The DA-550 series has several models with varying widths, and our DA series provides a precise match for each.As this table demonstrates, our DA Series offers a comprehensive range of products that are perfectly aligned to replace all common models of the Cincinnati DA-550 chain. Our chains are designed to be mechanically interchangeable, ensuring a seamless fit and hassle-free installation. We have specific models that match the scraper widths and are optimized for the same rigorous mining applications.

DA642 CONVEYOR CHAIN SELECTION CHART
DA642A	Chain Unit Length is 11 Inch (279.5mm)(one Flight Section and one outer link)				WIDTH: 27 1/2 INCH（698.5mm）
Secondary Component
DA642A01Flight Section		DA642A02Outer Link
Tertiary Component
DA642A002Outer Plate	DA642A003Irregular Hole Inner Link	DA642A004Scraper	DA642A005Pin	DA642A006Scraper Pin	DA622B007T-pin
Note : DA chain products are suitable for continuous miners, borer miners, road headers (mining/tunnelling). DA chains pitch range is from 2 5/8 inches to 3 1/4inches, product data sheet other than those listed are available upon request.

DA711 & DA719 CONVEYOR CHAIN SELECTION CHART
DA711A	Chain Unit Length is 13 Inch (330.2mm) (one Flight Section and one outer link)				WIDTH: 28 INCH （711mm）
DA719A					WIDTH: 36.28 INCH （921.5mm）
Secondary Component
DA711A02/ DA719A02Flight Section		DA711A03Outer Link			DA 711A01Cross-shaped Link
Tertiary Component
DA711A001Single Lug ForkEnd	DA711A002Slotted TongueEnd	DA711A003Cross Pin	DA711A004Outer Plate	DA711A005 DA719A005Scraper	DA711A007Pin	DA711A008Scraper Pin	DA711A009cross pinjoint
Note : DA chain products are suitable for continuous miners, borer miners, road headers (mining/tunnelling). DA chains pitch range is from 2 5/8 inches to 3 1/4inches, product data sheet other than those listed are available upon request.

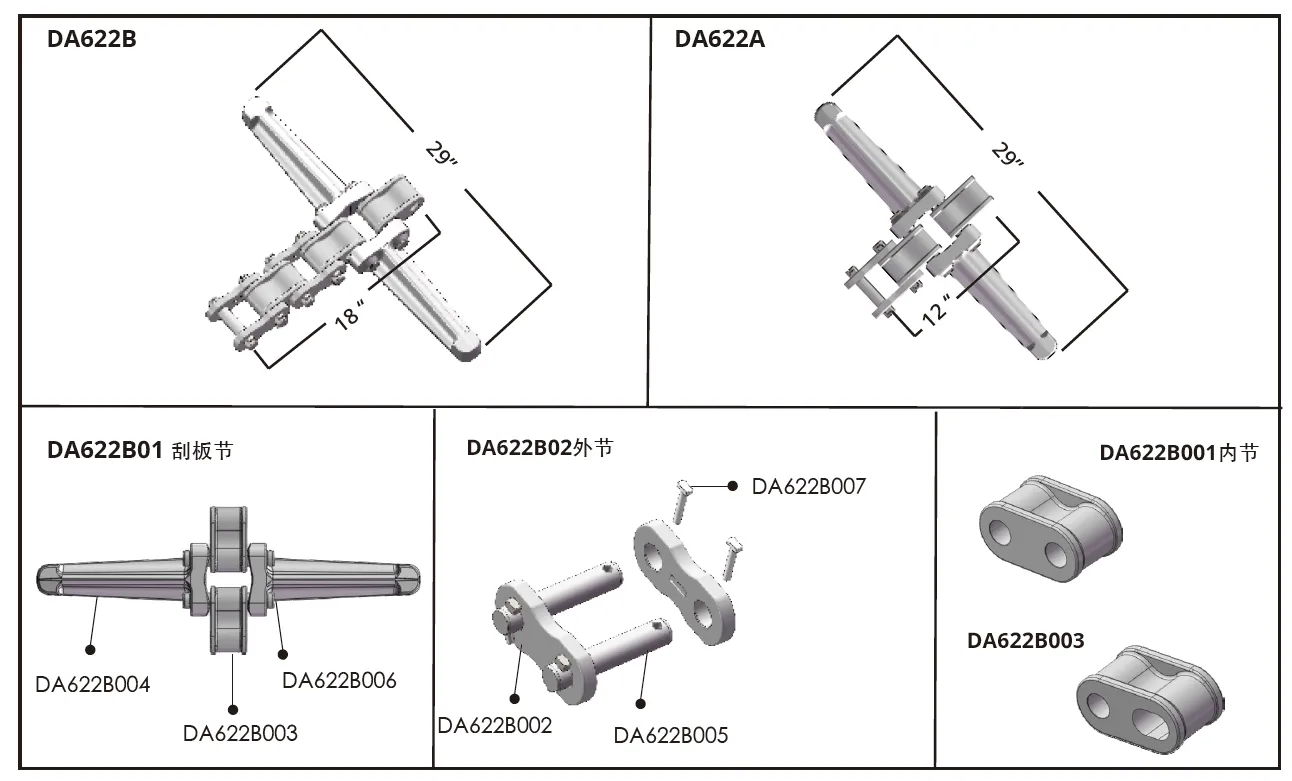

DA622 CONVEYOR CHAIN SELECTION CHART
DA622A		Chain Unit Length is 12 inches (304.78mm)(one Flight Section and one outer link)				刮板宽度： 29英寸（737mm）WIDTH: 29 INCH（737mm）
DA622B		Chain Unit Length is 18 inches （457mm）(one Flight Section, two Outer Links, and one Standard Inner Link)
Secondary Component
DA622B01Flight Section			DA622B02Outer Link
Tertiary Component
DA622B001Standard InnerLink	DA622B002Outer Plate	DA622B003Irregular HoleInner Link	DA622B004Scraper	DA622B005Pin	DA622B006Scraper Pin	DA622B007T-pin
Note: Raydafon’s DA chain products are suitable for continuous miners, borer miners, and road headers (mining/tunnelling). DA chains pitch range is from 2 5/8 inches to 3 1/4 inches. Product data sheets for other than those listed are available upon request.

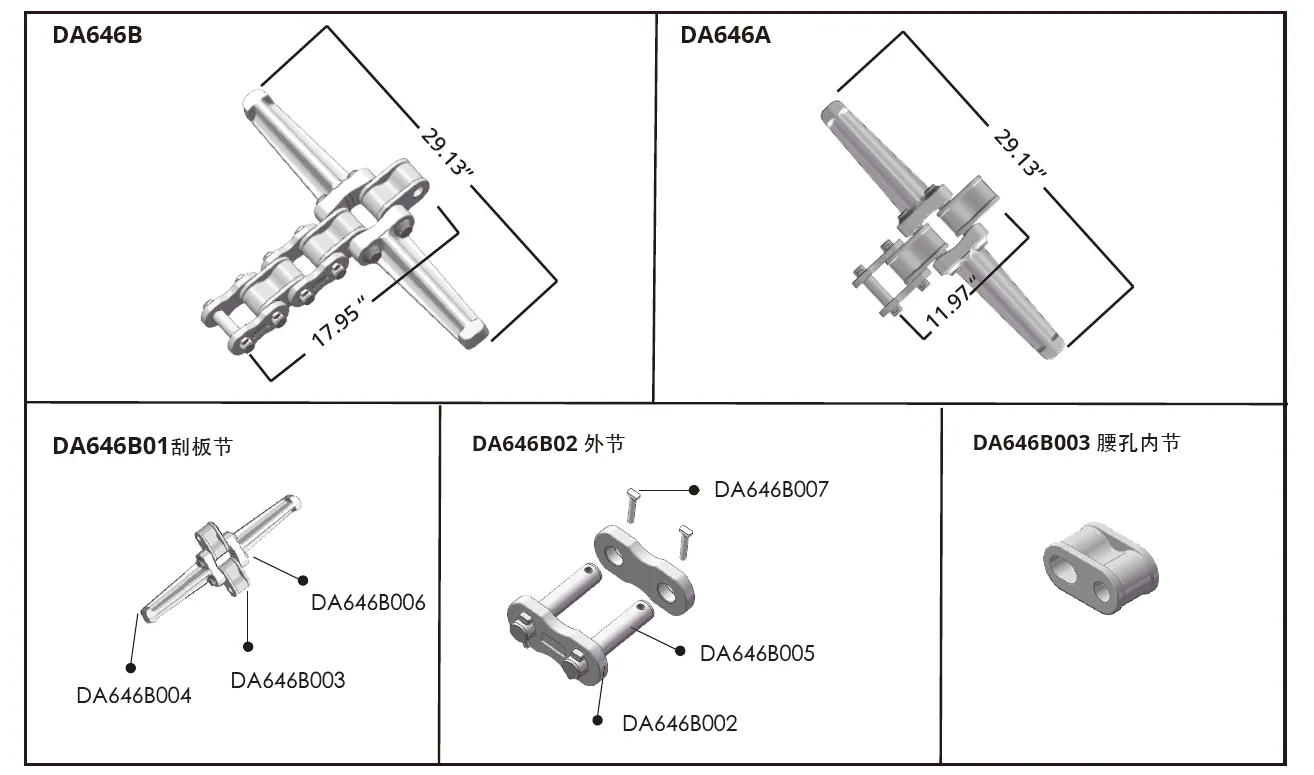

DA646 CONVEYOR CHAIN SELECTION CHART
DA646A		Chain Unit Length is 11.97 inches (304mm)(one Flight Section and one outer link)				WIDTH:29.13 INCH（740mm）
DA646B		Chain Unit Length is 17.95 inches (456mm)(one flight section, two outer Links, and one standard Inner Link)
Secondary Component
DA646B01Flight Section			DA646B02Outer Link
Tertiary Component
DA646B001Standard Inner Link	DA646B002Outer Plate	DA646B003Irregular HoleInner Link	DA646B004Scraper	DA646B005Pin	DA646B006Scraper Pin	DA622B007T-pin
Note: ANCHI’s DA chain products are suitable for continuous miners, borer miners, and road headers (mining/tunneling). DA chains pitch range is from 2 5/8 inches to 3 1/4inches. Product data sheets other than those listed are available upon request.

The Advantage of DA-550 Conveyor Chains for Mining:

Choosing our products is a strategic decision that benefits your entire operation. Our DA series chains are not merely imitations; they are engineered with key benefits that deliver superior performance and long-term cost savings.

1. Enhanced Durability and Service Life

• Consistent Chain Lifespan: The DA series is engineered for maximum durability, which translates to a longer service life and fewer replacements.
• Special Heat-Treated Pins: We use special heat-treated pins to improve wear resistance, a common point of failure for lesser chains. This feature alone significantly extends the life of the chain, reducing overall maintenance downtime.
• Selected Premium Steels: Our chains are manufactured from a selection of premium, high-quality steels, ensuring a robust and reliable product that can withstand the harshest mining conditions.

2. Operational Efficiency and Safety

• Seamless Chain Operation: Our DA series is designed for smooth, seamless operation, which is critical for maintaining a steady material flow and maximizing productivity.
• Low Operating Noise: Our chains operate with low noise, improving the work environment for your crew and contributing to a safer, more comfortable workplace.
• Easy Installation and Disassembly: We understand that every minute of downtime costs you money. Our chains are designed to be easy to install and disassemble, streamlining maintenance and reducing labor costs.

3. Cost-Effectiveness and Long-Term Value

While the initial focus is on a direct replacement, the long-term value of choosing our products is immense. The enhanced durability and reduced maintenance needs of our chains significantly lower your total cost of ownership. Fewer replacements, less downtime, and improved operational efficiency all contribute to a more profitable and sustainable mining operation. Our products are designed to deliver exceptional value over their entire lifespan.

Our DA Series Conveyor Chain Components:

To provide you with complete confidence in our product, we have provided a detailed breakdown of the components that comprise our DA Series chains. We believe that a superior product is the sum of its expertly crafted parts.

• Flight Section: This is the heart of the conveyor chain, responsible for moving material. Our flight sections are meticulously designed to withstand continuous loads and abrasion.
• Outer Link: The outer links provide the necessary structural integrity and are manufactured to tight tolerances, ensuring smooth, low-friction movement.
• Inner Link (内节): Our inner links, including the "Irregular Hole Inner Link" and "Standard Inner Link," are precision-engineered to provide a smooth and consistent pitch.
• Pins: Our pins are a key differentiator. They undergo a special heat treatment to enhance their resistance to wear and tear, a common point of failure for lesser chains.
• T-Pins: These are crucial for securing the components. Our T-pins are designed for durability, ensuring a secure connection even in high-stress applications.

This modular design not only ensures the exceptional strength of our chains but also facilitates easy maintenance. Should a component need to be replaced, our design allows for quick and efficient work, further reducing your operational downtime.

Our Promise: Quality, Customization, and Support

At our company, customers are our top priority. We are dedicated to building long-term relationships based on trust, integrity, and mutual success.

• Customization: We understand that every mining operation has unique requirements. While we offer a wide range of standard products, our team is equipped to provide customized solutions to meet your specific needs. This includes various chain configurations, sizes, and scraper bar heads to ensure that your equipment is always operating at peak performance.
• Global Reach and Support: With a strong global clientele, we have the experience and logistical capabilities to support your operations, no matter where you are located. Our knowledgeable team offers guidance on optimizing crawler chain performance and maximizing uptime.

About Us:

1. Experience and Expertise

Our extensive experience in the mining sector is the driving force behind our product innovation. For decades, we have focused on producing top-tier mining chains and sprockets, developing a profound expertise in heavy-duty chain conveyor solutions for a wide range of applications. This experience allows us to anticipate industry needs and design products that are robust, reliable, and perfectly suited for the harsh, abrasive, and high-stress conditions of underground and surface mining.Our DA series, in particular, is a testament to this expertise. It is the result of meticulous design, engineered to withstand the high stresses and constant abrasion that continuous mining operations present. Each chain link and component is the product of our refined manufacturing processes, ensuring exceptional performance where it matters most. Our special heat-treated pins, for example, are a direct result of our commitment to improving product durability and wear resistance, which is crucial for maximizing service life and minimizing maintenance downtime.

2. Authority and Trustworthiness

Our authority in the industry is proven by our status as a trusted supplier to world-class original mining machinery manufacturers. This relationship is built on a foundation of trust, integrity, and consistent product quality. The durability and reliability of our DA series chains are renowned in demanding underground mining environments, and they are specifically designed as direct replacements for original equipment manufacturer (OEM) parts.Trustworthiness isn't just a claim; it's a promise we fulfill every day. We ensure that every link of our DF drop forged series chains is meticulously made using professional manufacturing techniques and is subjected to rigorous quality control measures. This same standard of excellence is applied across our entire product line, including the DA series. By choosing our products, you are partnering with a company committed to building long-term relationships based on mutual success. Our dedicated team provides comprehensive technical support and expert consultation to assist you with everything from chain selection to installation and maintenance, ensuring your operation runs smoothly and efficiently.
