Replacement of Walterscheid PTO Shaft W2600 1010mm Profile pair S5H/S6

Part no.: 395800073
universal joint A profile (mm): 42 x 104
Universal joint B profile (mm): 42 x 104
Size: 2600
Tractor version: 1 3/86 splines
Implement version: 1 3/8?? 6 splines
(mm): 1010
Profile: With star profile
Locking system: Automatic push-pull lock/push-pull lock
Profile pair: S5H/S6
Guard version: SD 35
Max. speed (1/min.): 1000
Lock: QSG/ASG
Type: W
A (profile): 1 3/86 splines
B (profile): 1 3/86 teeth
Additional information: Bedienungsanleitung ist im Lieferumfang enthalten
PS/kW(1000 / 540 U/min.): 122 / 79
Weight: 33.00 kg
Service-Center form: Click here
To be found in category: Standard PTO shafts & drive technology
Search filters: Standard PTO shafts
Standard Standard PTO shafts

Introducing the PTO Shaft

The PTO (Power Take-Off) shaft is a critical component of any farm machinery or industrial equipment. It transfers the power from the tractor or other power source to the machinery that needs it. Here are some key features:

1. High torque transmission capacity
2. Easy installation and removal
3. Compatibility with various machinery
4. Durable construction for long-lasting performance
5. Availability in various sizes and profiles

Our PTO Shaft: The Perfect Replacement

Our PTO shaft is designed to perfectly match the size profile and installation method of the Replacement of Walterscheid PTO shaft. This makes it a seamless replacement ensuring smooth operation of your equipment with no need for modifications.

Choosing the Right PTO Shaft

When selecting a PTO shaft it's important to consider the following parameters:

Length:

The distance between the power source and the receiving equipment.

Rated Power:

The power that the PTO shaft can handle.

Shaft and Connection Method:

The of shaft and hoWit connects to the power source and the receiving equipment.

Torque Transmission Capacity:

The amount of torque the PTO shaft can transmit.

Environmental Requirements:

Considerations such as protective cover sealing performance and durability.

Safety Features:

Reliable anti-jamming devices and safety pins.

Adaptability:

The ability of the PTO shaft to adapt to different types of machinery and equipment.

Certification:

CE certification is a reliable indicator of the safety and quality of the PTO shaft.

PTO Shaft with CE Certification

A PTO shaft with CE certification complies with relevant laws and standards of the European Union ensuring its design manufacturing and use meet the requirements of the European market. This provides a basic safety guarantee. CE certification is a necessary condition for selling a PTO shaft in the European market. It provides a reliable guarantee of the safety performance of the PTO shaft. A PTO shaft with CE certification conveys confidence in product quality and safety.

Our Certifications

We are proud to say that our PTO shafts hold CE TS/16949 and ISO 9001 certifications.

Understanding the Structure of a PTO Shaft

A PTO shaft comprises several parts:

Housing:

The outer casing that protects the internal components.

Drive Shaft:

Transfers power from the tractor or other power source to the equipment.

Universal Joint:

Allows for angular movement while transmitting power.

Protective Cover:

Prevents foreign objects from interfering with the drive shaft and universal joint.

Connectors:

Links the PTO shaft to the power source and the receiving equipment.

We also sell individual parts for those who wish to replace specific components.

Applications of PTO Shafts

PTO shafts have a wide range of applications:

Agricultural Machinery:

Connects tractors to equipment like mowers harvesters straWcrushers sprayers mixers etc.

Industrial Equipment:

Drives rotating equipment like pumps generators centrifuges mixers etc.

Transportation Equipment:

Drives certain transportation equipment like trailers semi-trailers and towing vehicles.

Solar Systems:

Used to rotate and adjust photovoltaic panels on trackers.

Adjusting the Length of a PTO Shaft

Here's hoWto adjust the length of a PTO shaft:

1. Remove the plastic protective cover
2. Shorten the inner and outer tubes to the desired length ensuring they are shortened by the same amount
3. Use a file to remove burrs
4. Shorten the inner and outer plastic tubes to the desired length ensuring they are shortened by the same amount
5. Apply oil to the inner steel tube then reinstall the drive shaft plastic protective cover

About Raydafon Group

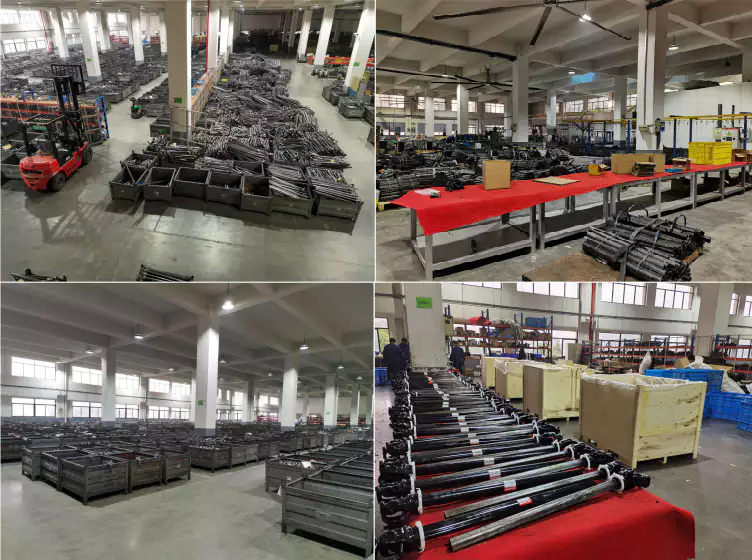

Raydafon Group is a leading player in the PTO Shaft market in China. We specialize in the development manufacturing and marketing of PTO shafts industrial universal joints and automotive drive shafts. Our products are well-received by clients in Europe the US Asia Australia and North America.

We offer custom manufacturing and OEM services including laser printing of logos. We are among the top three professional OEM suppliers for numerous agricultural machinery factories and hold CE TS/16949 and ISO 9001 certifications.

Aside from pto shafts we also supply other related products like agricultural gearboxes chains sprockets pulleys couplings and other transmission components and agricultural machinery parts. We warmly welcome custom orders based on drawings or samples.

Author: Miya
