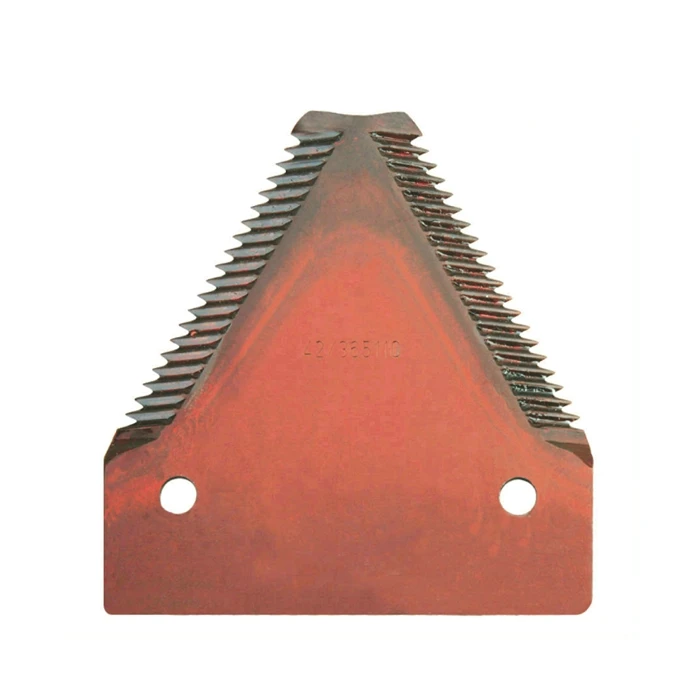

Sickle Section Knife Section Cutting Blade P49650 for harvester machine spare parts

PRODUCT SPECIFICATIONS

No	No.	Ref. No.	Description	Application
1	4A1006	191256A1	Teeth: top serrated Teeth Nos: 17 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.090	CA SE 820, 1010, 1020; N H 71C, 72C, 73C, 74C
2	4A1026	80365110	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8Surface: red varnishing WT(kg/pc): 0.095	N H 1530,1540,1545,1550,8030,8040,8050,8055,8060,8070,8080,TC52,TC54,TF42,TF44,TF46,TX30,TX32,TX34,TX36
3	4A1035	86616588122074A1	Teeth: top serrated Teeth Nos: 14 Thickness: 2.8 Surface: sand blasting WT(kg/pc): 0.090	N H 12HS,14HSSPL,18HS,2300H,16HS CA SE-IH 820,1010,1020,2010,2020
4	4A1054	87037972	Teeth: top serrated Teeth Nos: 16 Thickness: 2.8 Surface: black varnishing
5	4A1073	826722C11036362M1	Teeth: top serrated Teeth Nos: 26 Thickness: 2.8 Surface: red varnishing	N H TR89,TR98,TR99,880,460,461,467,469,474,477,478,479,489,490,44,45,450,455 ,46,47,725,M F 925
6	4A1075	86617759	Teeth: top serrated Teeth Nos: 27 Thickness: 2.8 Surface: clear varnishing
7	4A1076	86615988	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing	CA SE 1010,1020,820, Hesston 1100
8	4A1077	86615986	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing
9	4A1078	86615987	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing
10	4A1079	86617760	Teeth: top serrated Teeth Nos: 27 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	N H 72C,18HB,21HB,25HB,30HB, 36HB,12HS,14HS,16HS, 2300H,1465,1495,1496,1499,469,472,474,488,489,492,495,499
11	4A1084	700705300	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.087	CA SE 525,625,8820,8830, 8840,SC412,SC414,SC416,8320,8330,8340,8350,8360,8370,8380,NH72C,74C,12HS,14HS,16HS,18HS,2200H,2300H,1499,499
12	4A1085	457607R3	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.092	CASE 1290,CUB 22,L22,201 ,210,225,230,275,375,NH 1465,1495,469,472,474,477,478,479,488,489,492,505,507
13	4A1087	86616945	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	N H 1469,472,477,478,479,488,490
14	4A1088	67630	Teeth: top serrated Teeth Nos: 28 Thickness: 2 Surface: clear varnishing WT(kg/pc): 0.062	CA SE 1100,1200,1300,N H 1880,1116H,1116NH,919S,116,1100,1112,1114,1116,1118,114,903,907,909,910,912
15	4A1089	112074A1	Teeth: top serrated Teeth Nos: 17 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.086	CASE 1010,1020,820
16	4A1090	826720C3	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.088	CA SE 820,1010,1020,2010,2020,NH 71C,72C,73C,74C
17	4A1091	826724C2	Teeth: top serrated  Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.092	CASE 1010,1020,820
18	4A1092	826722C2	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	CASE 222,816,990,100,1000,105,110,1100,1110,115,120,1200,1300,200,22,230,3110
19	4A1093	823711C3	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.093	CNH 12HS,1499,2200H,14HS,18HS,1465,2300H,16HS,74C,72C
20	4A1094	823713C3	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.086
21	4A1095	596321R4	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.087	CA SE 2010,2020,SMX91,HDX121,HDX122,HDX141,HDX142,HDX161,HDX181,HDX182,N H 72C,74C,12HS,14HS,16HS,18HS,2200H,2300H,1465
22	4A1096	604810	Teeth: top serrated Thickness: 2 Surface: white zinc plating WT(kg/pc): 0.066	CA SE 907,1118,905,910,1116,1112,1114,909,912,903,900,1116,N H 1100,1116H,849,850,851,858,855,846,845
23	4A1097	604800	Teeth: top serrated Teeth Nos: 28 Thickness: 2 Surface: white zinc plating WT(kg/pc): 0.063	N H 116,1100,1112,1114,1116,1118
24	4A1104	87728905	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.080
25	4A1116	87470186	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.080
26	4A1117	87470187	Mounting holes:Ø 6.2 C-C spaced: 51.5 Thickness:76 WT(kg/pc):0.09	Ca se-IH 3020-20,3020-25,3020-30,3020-35,2142,2152,2162,3152,3162

Introduction

The Sickle Section Knife Section Cutting Blade P49650 is a vital component of a harvester machine. This cutting blade is responsible for cutting the crops during harvesting.

Function and Location

The Sickle Section Knife Section Cutting Blade P49650 is located in the header of the harvester machine. It works by oscillating back and forth to cut the crops.

Working Principle

The Sickle Section Knife Section Cutting Blade P49650 is made up of serrated teeth that move back and forth to cut the crops. As the blade moves, it creates a scissoring action that cuts the crops.

Our Product

We produce high-quality Sickle Section Knife Section Cutting Blade P49650 that can replace most of the commonly used models in the market. Our product is cost-effective, durable, and efficient. We also provide customized solutions to meet our customer's needs. Our advantages include:

• High-quality materials
• Cost-effective
• Customized solutions

Compatible Harvester Brands and Models

Our Sickle Section Knife Section Cutting Blade P49650 can be adapted to fit the following harvester brands and models:

Brand	Model
John Deere	S660, S670, S680, S690
Claas	Lexion 780, Lexion 760, Lexion 750, Lexion 740
New Holland	CR8.90, CR10.90, CR9.90, CR8.80

Other Harvester Spare Parts

We provide a wide range of harvester spare parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Commonly Worn Harvest Parts

Harvesters have several parts that wear out and need replacing over time. These parts include:

1. Knife blade sections - including main cutting knives, guards, and knife drive belts
2. Threshing drum and concave
3. Sieves and fan blades
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components - including hydraulic cylinders, hoses, and seals
7. Bearings
8. Filters - including air filters, fuel filters, and oil filters

When to Replace Harvest Parts?

There are several signs that it is time to replace the worn-out harvester parts. These signs include:

1. Poor harvesting performance - crop residue left, or poor grain separation, suggests that the threshing drum and concave are worn out and need replacing
2. Reduced power or overheating - engine power reduction and high operating temperatures may indicate a clogged air filter or cooling system failure, which should be fixed by replacing the air filter or repairing the cooling system.
3. Reduced harvesting efficiency - slow movement of the header or material, may indicate drive belts that are stretched, chains that are elongated, or gears that are worn out, which should be checked and replaced accordingly.
4. Difficulty in movement or increased noise - if a rubber track harvester, loose or cracked tracks need replacement, and if a tire harvester, worn-out tires need to be replaced. Additionally, if there is abnormal noise while moving, it may indicate worn or damaged bearings that need to be replaced.
5. Unstable hydraulic system - if lifting or steering is slow or powerless, it may indicate that hydraulic components, such as pumps, cylinders, valves, or seals, are faulty and need to be checked and replaced.
6. Leaking oil - oil leaks, including engine oil, hydraulic oil, or fuel, indicate that seals or other parts are damaged and need to be replaced.

Author: Miya
