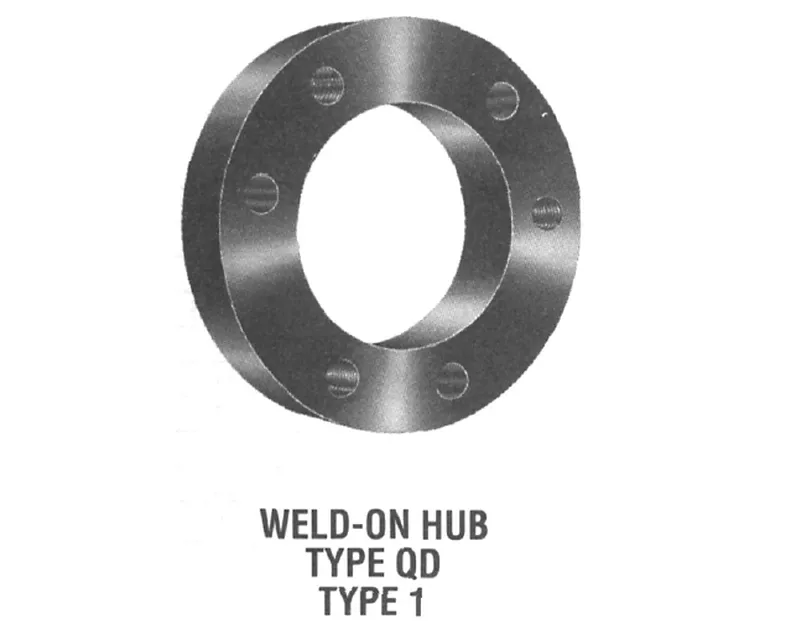

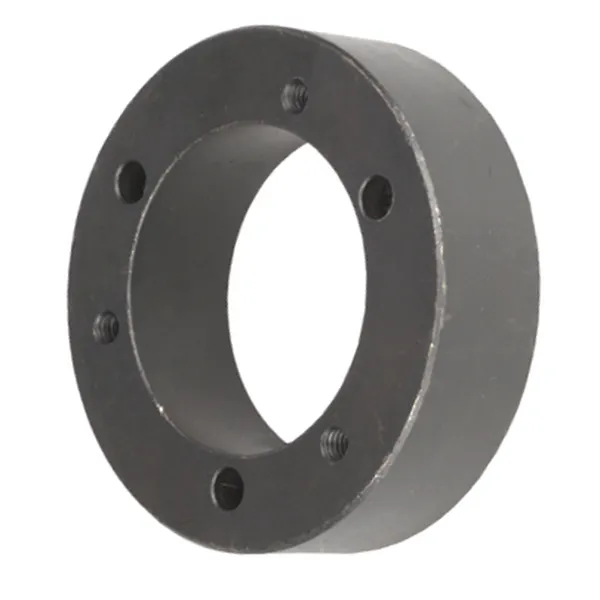

SK-A QD Weld-On Hubs

SK-A QD Weld-On Hubs

SK-A QD weld-on hubs are a type of hub designed to work with SK QD (Quick Disconnect) bushings. These hubs are commonly used in power transmission applications where it is necessary to connect a shaft or component to a driven machine or equipment.The SK-A QD weld-on hubs are typically made of high-quality steel and are precision machined to ensure a secure and accurate fit. They feature a flange with pre-drilled bolt holes, allowing for easy installation and alignment with the mating equipment.The "QD" in SK QD Bushings stands for Quick Disconnect, which refers to the bushing's ability to quickly and easily connect and disconnect from the hub. This feature is especially useful in applications where frequent assembly and disassembly are required or when there is a need for easy replacement of components.To install an SK-A QD weld-on hubs, the hub is welded onto the shaft or component, providing a strong and reliable connection. The SK QD Bushing can then be mounted onto the hub, allowing for easy and efficient power transmission between the shaft and the driven equipment.Overall, SK-A QD weld-on hubs for SK QD bushings offer a versatile and convenient solution for securely connecting shafts and components in power transmission systems. They provide strength, reliability, and ease of installation, making them suitable for a wide range of industrial applications.

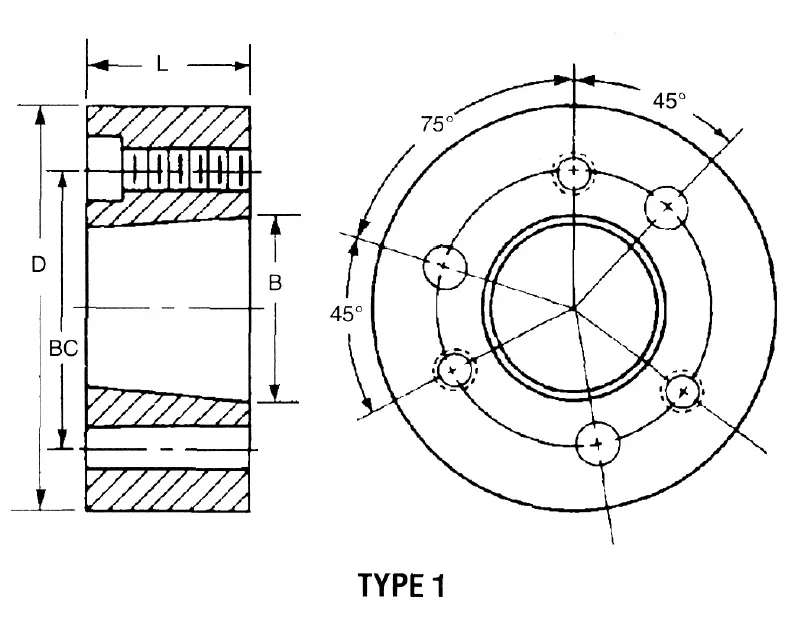

SK-A QD Weld-On Hubs Dimensions:

QD Hub Types		SK-A Weld-On Hubs
For Bushing		SK QD Bushings
Dimensions (Inches)	D	4.375"
	L	1 1/4"
	B	2.813"
	P	-
	L1	-
	BC	3 5/16"
Type Drilling		1"
Weight (lbs)		3 lbs

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

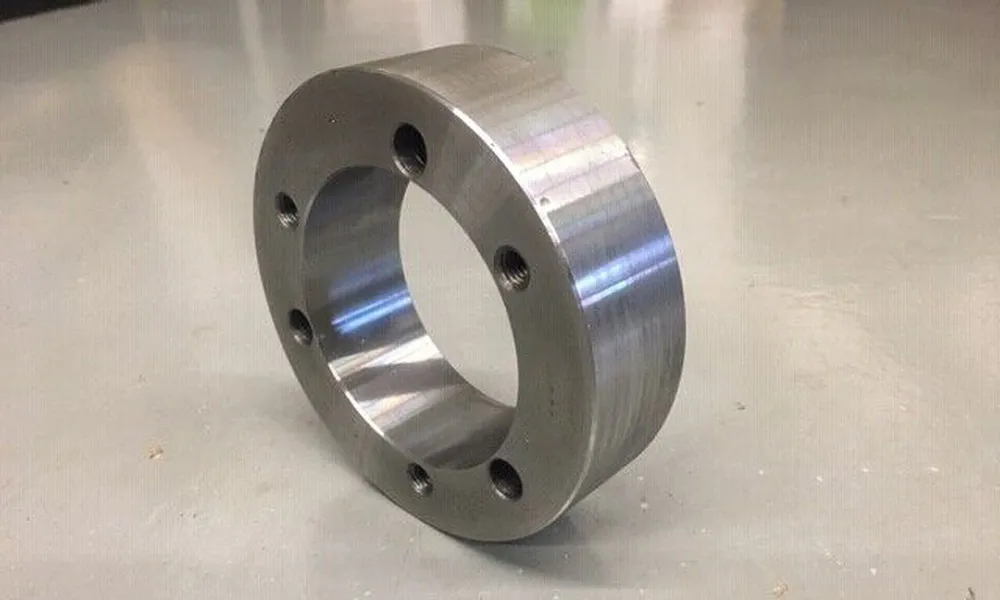

SK-A QD Weld-On Hubs Characteristics:

SK-A QD weld-on hubs for SK QD bushings possess several key characteristics that make them suitable for power transmission applications. Here are some of their notable features:1. Material: SK-A QD weld-on hubs are typically constructed from high-quality steel. This material provides excellent strength, durability, and resistance to wear and corrosion, ensuring long-term reliability in demanding operating conditions.2. Precision Machining: The SK-A QD weld-on hubs undergo precision machining processes to ensure accurate dimensions and tight tolerances. This precision machining allows for a proper fit with the corresponding SK QD bushings, ensuring optimal power transmission and minimizing vibration and misalignment.3. Weld-On Design: SK-A QD weld-on hubs are designed to be welded directly onto shafts or components. The weld-on configuration provides a secure and rigid connection, capable of withstanding high torque and axial loads. It eliminates the need for additional fasteners and simplifies the installation process.4. Flange Design: These SK-A QD weld-on hubs feature a flange with pre-drilled bolt holes. The flange allows for easy alignment and bolting to the mating equipment, ensuring a stable and accurate connection. The pre-drilled holes facilitate quick and straightforward installation without the need for additional drilling or modifications.5. Quick Disconnect (QD) Compatibility: SK-A QD weld-on hubs are specifically designed to work with SK QD bushings. The QD feature allows for fast and convenient assembly and disassembly of the bushings without requiring a significant amount of time or tools. This feature is particularly beneficial in applications that involve frequent component changes or maintenance.6. Versatility: SK-A QD weld-on hubs are available in various sizes and configurations to accommodate different shaft diameters and application requirements. This versatility ensures compatibility with a wide range of power transmission systems, providing flexibility in design and installation.

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
