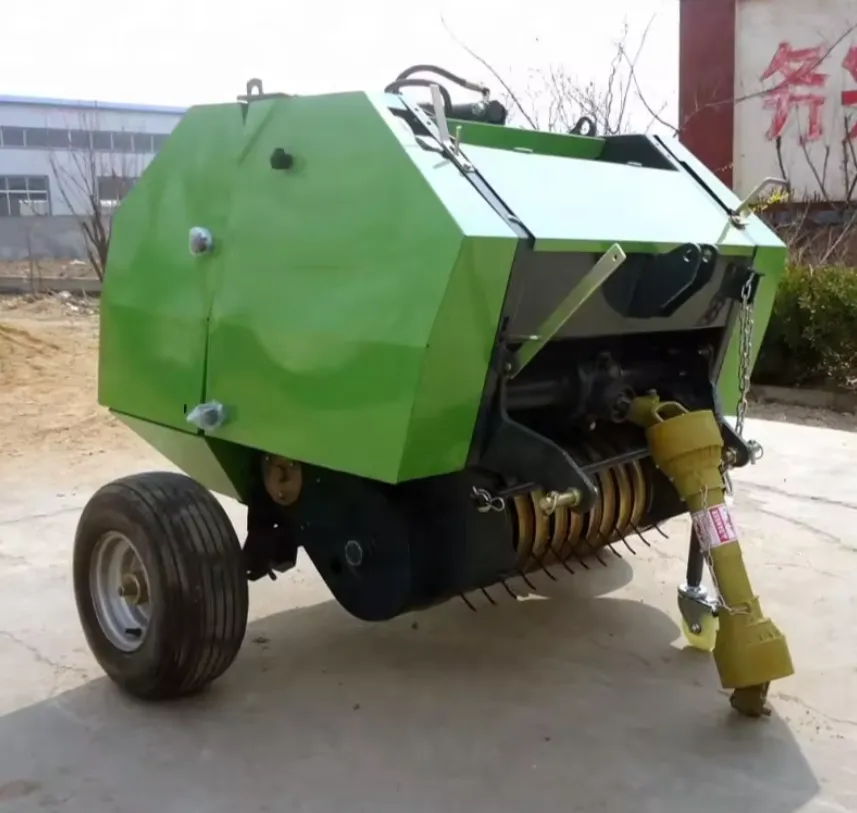

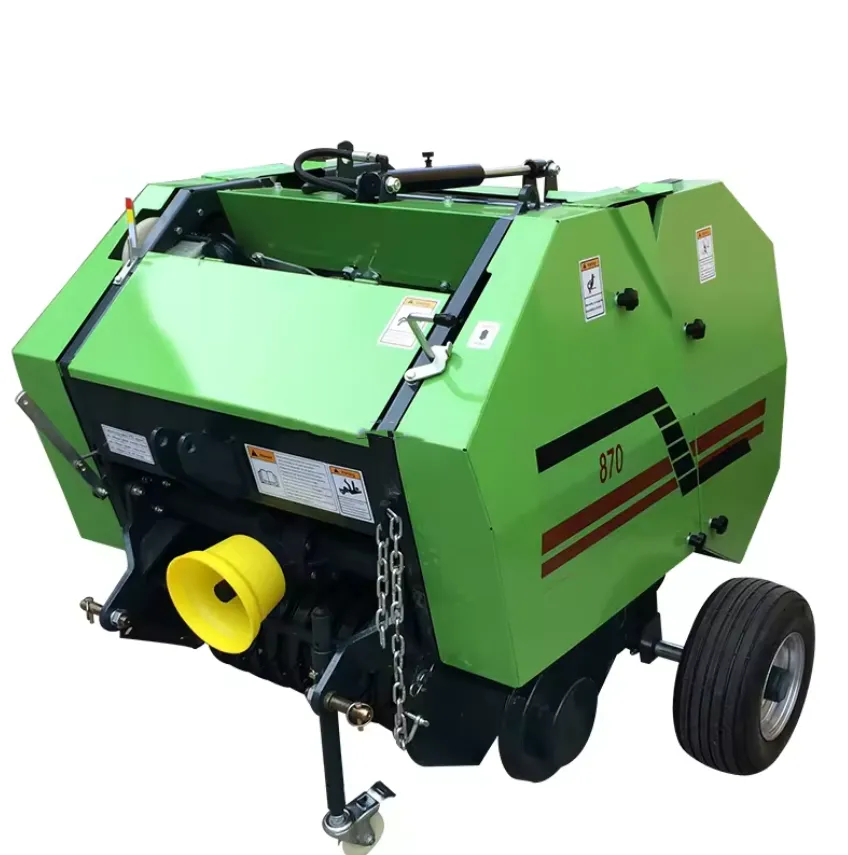

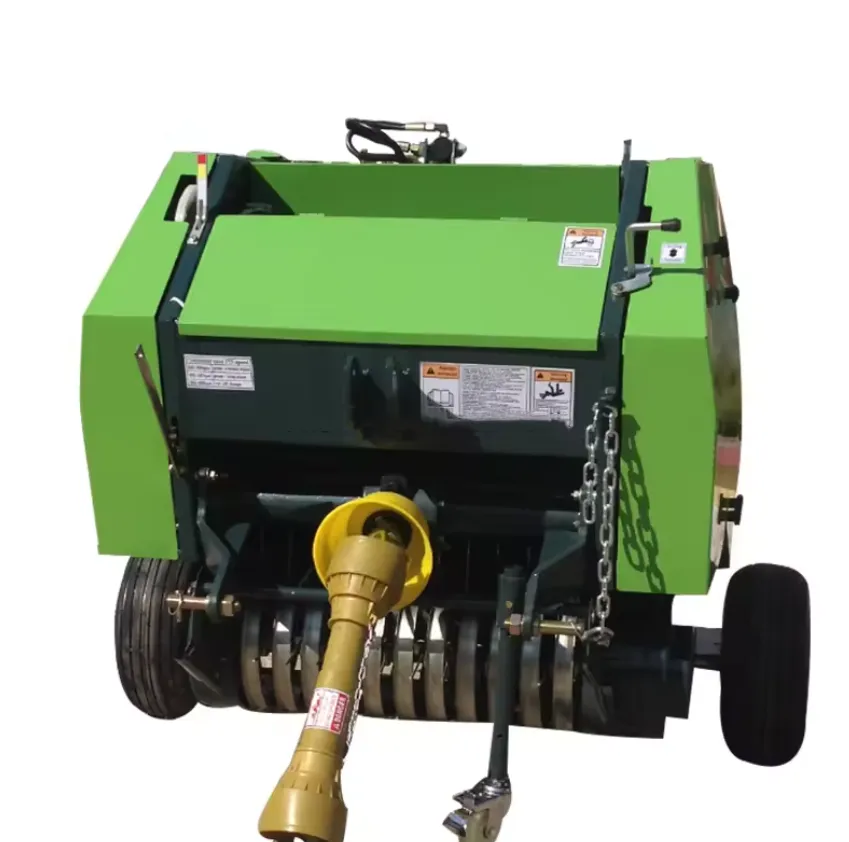

Small Hay Balers Used Round Baler RXYK0850 | RXYK0870

[embed]https://youtu.be/pihgFul5F-c[/embed] Discover a new level of efficiency and convenience with small hay balers used in your farming operations. These state-of-the-art round balers, with model numbers RXYK0850 and RXYK0870, are designed for optimum performance and reliability. They offer a wide operating speed range of 3-10km/h and are designed to handle a variety of applications, including the pickup and baling of grass, alfalfa, wheat, rice straw, and more. The balers are compact, with dimensions of 1300x1300x1350mm, and their lightweight design of 425 kg makes them easy to maneuver. Despite their compact size, these balers pack a punch with a matched power of 20-50HP. They come with a 2-year warranty and are certified by ISO and CE for quality assurance. The balers are equipped with twine for effective baling and have a pickup width of 80cm. These green machines are new and ready to revolutionize your farming operations.

Advantages of Small Hay Balers

• Efficiency: With an operating speed of 3-10km/h, these balers can handle a large volume of hay in a relatively short time.
• Versatility: These balers are designed to pick up and bale a variety of materials including grass, alfalfa, wheat, and rice straw.
• Compact Design: Their small size makes them easy to maneuver and ideal for small to medium-sized farms.
• Powerful Performance: Despite their compact size, these balers deliver a matched power of 20-50HP, ensuring efficient and effective baling.
• Quality Assurance: These balers come with a 2-year warranty and are ISO and CE certified, assuring you of their quality and reliability.
• Convenience: The balers are equipped with twine for effective baling, providing convenience and saving you time.

Applications of Small Hay Balers

The small hay balers are versatile machines that can be used in a variety of applications:

• Farm Management: They can be used for managing and maintaining farms of various sizes, from small to medium-sized farms.
• Harvesting: These balers are ideal for harvesting a variety of crops including grass, alfalfa, wheat, and rice straw.
• Landscaping: They can also be used in landscaping applications for the collection and baling of grass clippings and other yard debris.
• Animal Feed: The bales produced by these machines can be used as animal feed in livestock farming.
• Composting: The baled materials can be used for composting, contributing to a more sustainable farming practice.
• Waste Management: These balers can be used for the collection and management of agricultural waste, helping to maintain a clean and organized farm environment.

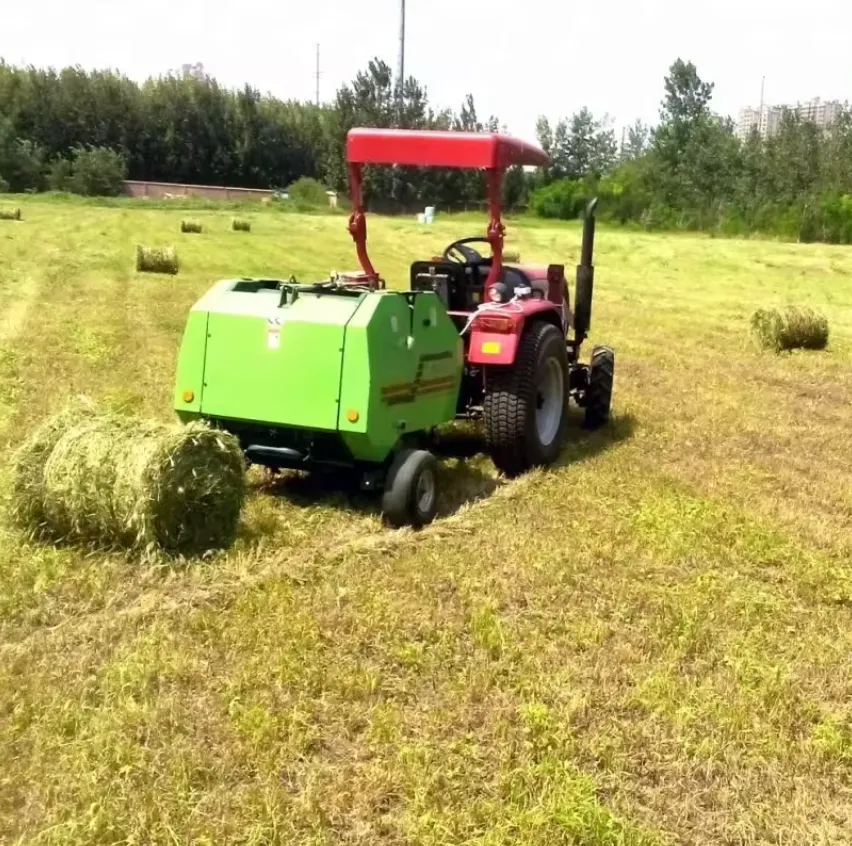

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Proper Maintenance of Small Hay Balers

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

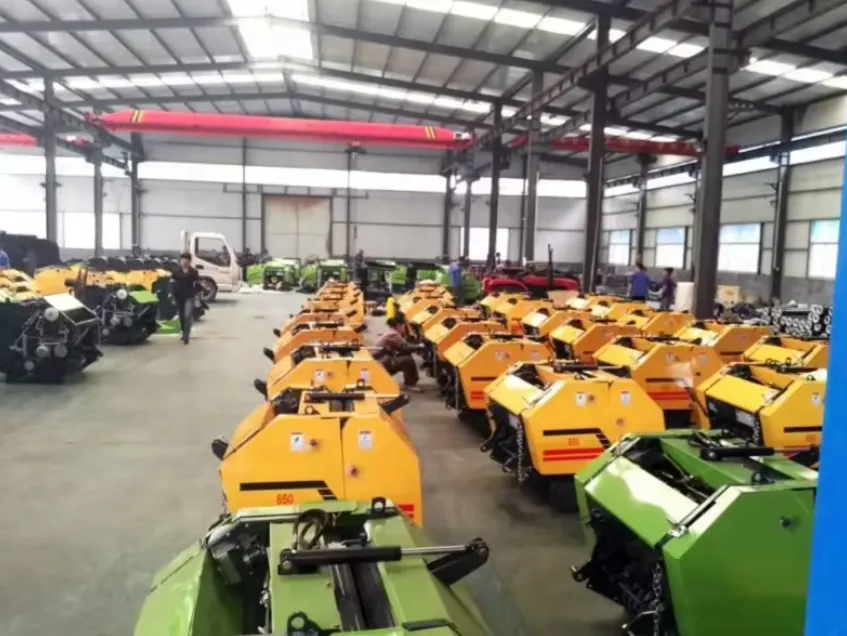

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?
