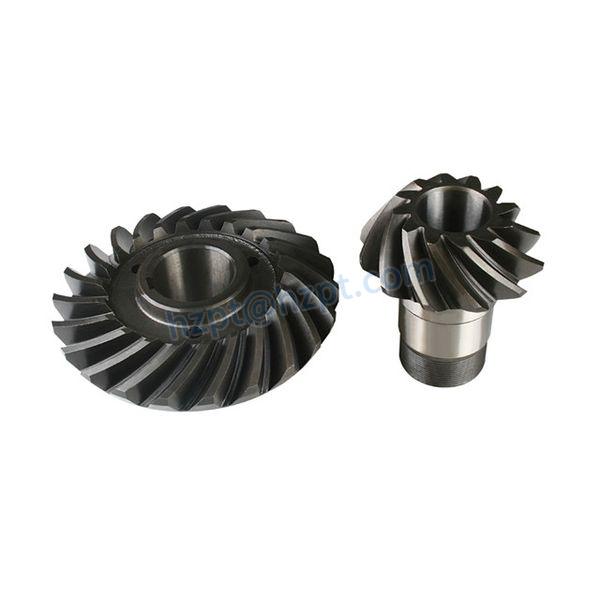

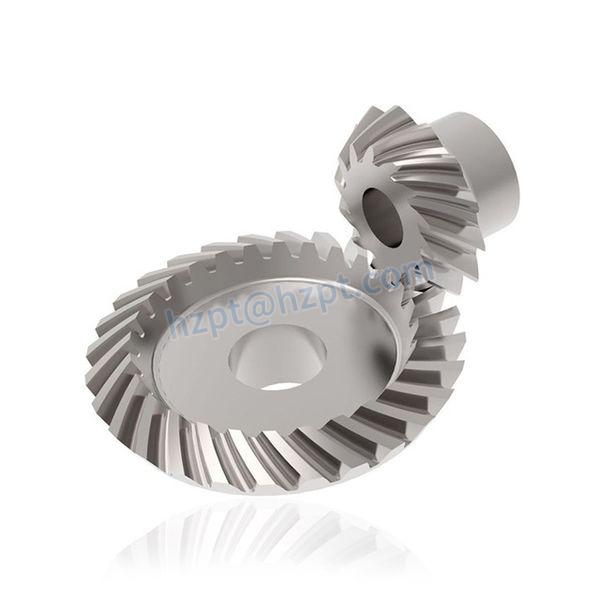

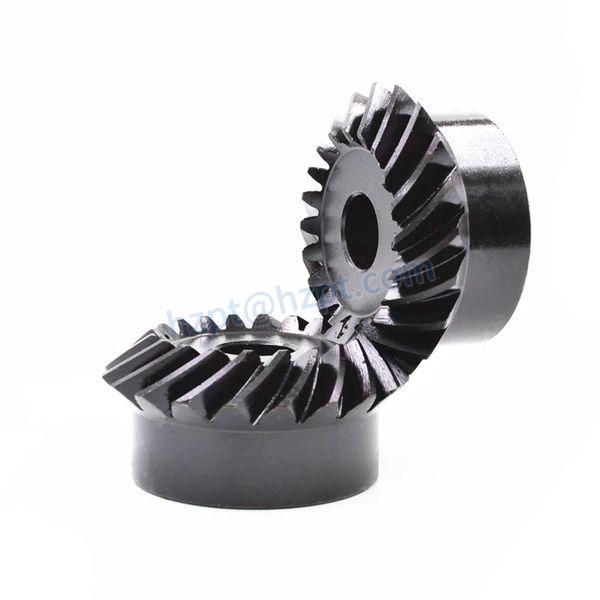

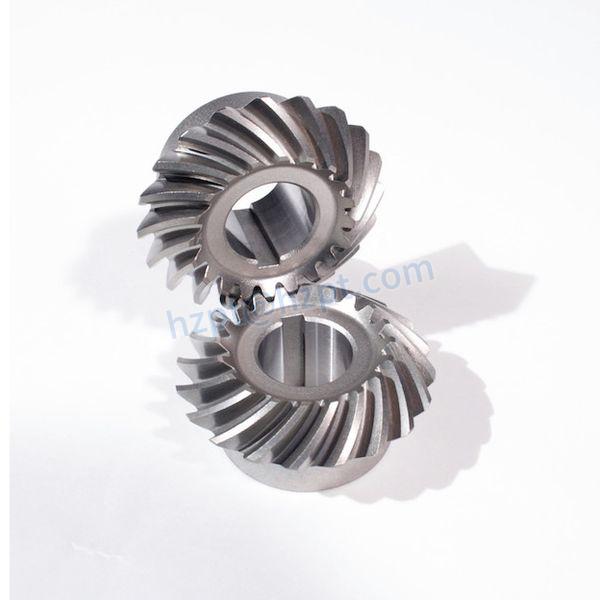

Spiral Bevel Gear

The spiral bevel gear has a curved pitch bevel teeth line. Similar to the meshing process of the straight bevel gear, its meshing is accompanied by the movement of the contact spots along the tooth height direction of the tooth surface. The contact area of the tooth surface starts from one end of the tooth and gradually moves to the other end. Due to the effects of overlapping tooth end faces (with several pairs of teeth entering into the mesh simultaneously), at least two teams of teeth are meshing simultaneously. Therefore, spiral bevel gears can transmit more load and work more smoothly than straight bevel gear and zero degrees spiral bevel gear of the same size (same module). Especially at high speeds, its noise and vibration are significantly less than those of the other two types of gears. The minimum number of teeth of spiral bevel gear can be reduced to six or even five, so the transmission ratio can be improved compared with the straight bevel gear.Controlling the local contact area of the tooth surface is one of the main characteristics of the spiral bevel gear. The localization of contact significantly improves the stability of the work of the spiral bevel gear, reduces the noise, and improves the gear life. During gear cutting, the position and size of the best contact area of the tooth surface under the given working condition can be obtained through a slight change in the radius of curvature of the tooth surface of the mating gear.

Description

Model Number	M3,M4,M5,M8,M12 and etc.
Material	Brass, C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on
Surface treatment	Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization,Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and Electrophoresis
Standard	ISO, DIN, ANSI, JIS, BS, and Non-standard.
Precision	DIN6,DIN7,DIN8,DIN9.
Teeth treatment	Hardened, Milled, or Ground
Tolerance	0.001mm-0.01mm-0.1mm
Finish	shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items packing	Plastic bag+Cartons Or Wooden Packing
Payment terms	T/T, L/C
Production lead time	20  business days for sample,25 days for the bulk
Samples	Sample price range from $2 to $100.sample express request paid by clients
Application	1. Automatic controlling machine2. Semi-conductor industry3. General industry machinery4. Medical equipment5. Solar energy equipment6. Machine tool7. Parking system8. High-speed rail and aviation transportation equipment, etc.

The spiral bevel gears are divided into two types; one is the spiral bevel gear whose large wheel axis intersects the small wheel axis; one is the hypoid spiral bevel gear whose large wheel axis and small wheel axis have a certain offset distance. The spiral bevel gears are widely used in automotive, aviation, mining, and other mechanical transmission fields due to their advantages, such as large overlap coefficient, strong bearing capacity, high transmission ratio, stable transmission, and low noise.

Here are five potential problems that can occur during the use of spiral bevel gears, along with their corresponding solutions:

1. Gear Noise and Vibration:Problem: Excessive gear noise and vibration can occur, leading to reduced performance and potential damage.Solution: Implement proper gear design and manufacturing techniques, such as optimizing tooth profile and contact patterns, using high-quality materials, and ensuring accurate gear meshing. Applying noise reduction measures like tooth crowning and profile modifications can also help minimize noise and vibration.2. Gear Wear and Failure:Problem: Wear and premature failure of spiral bevel gears can result from high loads, inadequate lubrication, or poor gear mesh alignment.Solution: Regularly inspect and maintain the gears to ensure proper lubrication and alignment. Use appropriate lubricants with adequate viscosity and additives for optimal gear performance. Address any misalignment issues promptly and consider implementing surface treatments or coatings to enhance wear resistance.3. Gear Misalignment:Problem: Misalignment between the shafts can lead to increased friction, uneven load distribution, and accelerated gear wear.Solution: Conduct precise alignment of the shafts using alignment tools and techniques. This includes checking axial, radial, and angular alignment to ensure proper gear meshing and load distribution. Regularly monitor and adjust alignment as needed.4. Insufficient Gear Lubrication:Problem: Inadequate lubrication can lead to increased friction, wear, and heat generation, potentially causing gear failure.Solution: Ensure proper lubrication by selecting the appropriate lubricant type, viscosity, and lubrication method. Follow manufacturer recommendations for lubrication intervals and quantities. Monitor lubricant levels and conditions regularly, and maintain a robust lubrication maintenance schedule.5. Gear Tooth Damage or Chipping:Problem: Tooth damage or chipping can occur due to excessive loads, shock loads, or foreign object debris entering the gear mesh.Solution: Perform regular inspections to detect any signs of tooth damage or chipping. Address the root cause of the problem, such as reducing excessive loads, implementing shock-absorbing mechanisms, or employing effective debris management systems. Consider gear design modifications, such as strengthening tooth profiles, using higher strength materials, or applying protective coatings to enhance tooth durability.

Working Principle:

The working principle of spiral bevel gears involves the meshing of two gears with curved, spiral-shaped teeth that are positioned at an angle to each other. When power is transmitted, the teeth of the driving gear engage with the teeth of the driven gear, causing rotational motion to be transferred from one shaft to the other. The spiral tooth profile allows for gradual contact and smooth tooth engagement, resulting in efficient power transmission and reduced noise and vibration.

Testing Process

- QA DOC: chemical composition report, mechanical performance report, UT report, heat treatment report, dimensional inspection report.- Chemical composition report and mechanical performance report.- UT test: 100% ultrasonic test according to EN10228-3, SA388, etc.- Heat treatment report: provide an original copy of the heat treatment curve/timetable.

Our Service

We will provide more accurate and efficient manufacturing and service according to customer drawings. We have a professional quality control team to ensure your products are better—inspection of raw materials before production, random inspection during processing, and 100% inspection before shipment.

Our Advantage

We have been engaged in CNC machine tools for more than ten years; CNC machining is very suitable for producing 1-10,000 parts; the wide range of available materials, low unit cost, and fast production speed make CNC the best choice for prototyping; as CNC machining service can be applied to any material and is therefore ideal for rapid processing; according to precise design specifications, choose from the variety of surface treatments on solid metal or plastic parts.Raydafon Machinery Manufacturing Co., Ltd. welcomes new and old customers at home and abroad!

FAQ

Q: Is there a rack and pinion on your website in stock?A: Everything we do is made to order. All parts on our website are pre-designed and will be manufactured when ordering, so you can request different sizes of end face widths, eyelets, wheels, etc.Q: What is the payment term of your company?A: Our payment terms are 30% down payment and 70% balance.Q: Can Raydafon Machinery manufacture Gears that are not on this site?A: Of course! We can provide custom gears with excellent delivery options as standard gears.Q: Can Raydafon Machinery manufacture metric gears?A: Of course! We have the tools to manufacture any metric size.Q: What should I do if I cannot identify the gear?A: Please send us your damaged gear!A: We are a factory. We specialize in reverse engineering.Q: Can you customize the product?A: Send us the table, and we will let you know the minimum requirements for the part.Q: How to get the lowest price?A: Increase the quantity. The more parts you order, the lower the price you get.Q: Can I use other materials besides steel to manufacture rack and pinion?A: The price of racks is not fixed. Generally, we need to quote according to the customer's required parameters such as material, tooth type, module, length, accuracy, style, spiral angle, and unique customization!Q: Can I pay after you deliver the goods?A: Sorry, we only accept payment before shipment.
