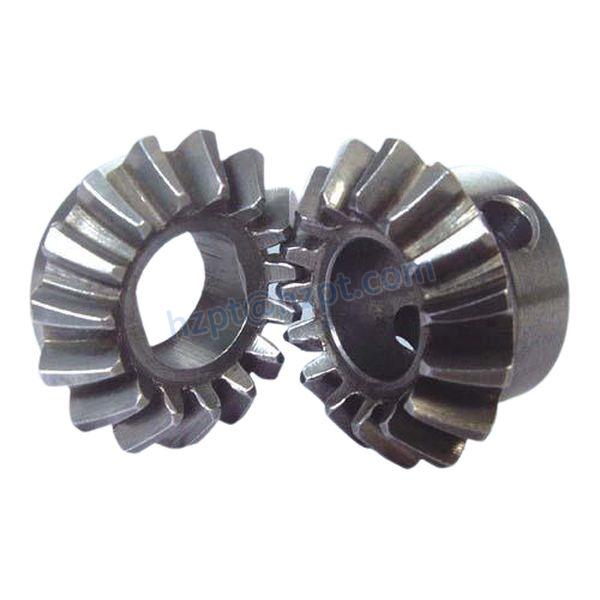

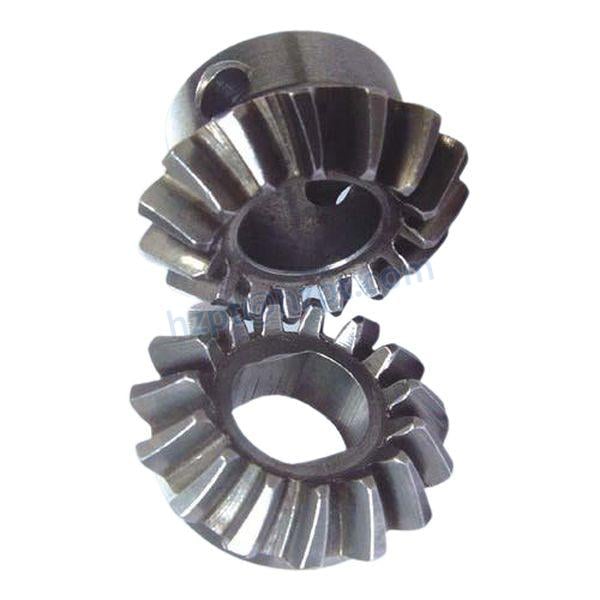

Zero-degree Spiral Bevel Gear

The zero-degree spiral bevel gear refers to the spiral bevel gear with the midpoint spiral angle of zero degrees. It has curved teeth that follow the same direction as the straight bevel gear. This gear is machined on the standard spiral bevel gear (circular-arc bevel gear), whose midpoint spiral angle is not zero degrees. Therefore, like ordinary spiral bevel gear, it can have local (point) contact teeth surface. This is where the zero-degree spiral bevel gear is superior to the general straight bevel gear. The zero-degree spiral bevel gear produces the same bearing load as the straight bevel gear. Therefore, when their supports are the same, these two types of gear transmission pairs are interchangeable.

Description

Model Number	M3,M4,M5,M8,M12 and etc.
Material	Brass, C45 steel, Stainless steel, Copper, POM, Aluminum, Alloy, and so on
Surface treatment	Zinc-plated, Nickel plated, Passivation, Oxidation, Anodization, Geomet, Dacromet, Black Oxide, Phosphatizing, Powder Coating, and Electrophoresis
Standard	ISO, DIN, ANSI, JIS, BS, and Non-standard.
Precision	DIN6,DIN7,DIN8,DIN9.
Teeth treatment	Hardened, Milled, or Ground
Tolerance	0.001mm-0.01mm-0.1mm
Finish	shot/sandblast, heat treatment, annealing, tempering, polishing, anodizing, zinc-plated
Items packing	Plastic bag+Cartons Or Wooden Packing
Payment terms	T/T, L/C
Production lead time	20  business days for sample,25 days for the bulk
Samples	Sample price range from $2 to $100. sample express request paid by clients
Application	1. Automatic controlling machine 2. Semi-conductor industry 3. General industry machinery 4. Medical equipment 5. Solar energy equipment 6. Machine tool 7. Parking system 8. High-speed rail and aviation transportation equipment, etc.

Products Show

Testing Process

- QA DOC: chemical composition report, mechanical performance report, UT report, heat treatment report, dimensional inspection report. - Chemical composition report and mechanical performance report. - UT test: 100% ultrasonic test according to EN10228-3, SA388, etc. - Heat treatment report: provide an original copy of the heat treatment curve/timetable.

Our Service

We will provide more accurate and efficient manufacturing and service according to customer drawings. We have a professional quality control team to ensure your products are better—inspection of raw materials before production, random inspection during processing, and 100% inspection before shipment.

Our Advantage

We have been engaged in CNC machine tools for more than ten years; CNC machining is very suitable for producing 1-10,000 parts; the wide range of available materials, low unit cost, and fast production speed make CNC the best choice for prototyping; as CNC machining service can be applied to any material and is therefore ideal for rapid processing; according to precise design specifications, choose from the variety of surface treatments on solid metal or plastic parts. Raydafon Machinery Manufacturing Co., Ltd. welcomes new and old customers at home and abroad!

FAQ

Q: Is there a rack and pinion on your website in stock? A: Everything we do is made to order. All parts on our website are pre-designed and will be manufactured when ordering, so you can request different sizes of end face widths, eyelets, wheels, etc. Q: What is the payment term of your company? A: Our payment terms are 30% down payment and 70% balance. Q: Can Raydafon Machinery manufacture Gears that are not on this site? A: Of course! We can provide custom gears with excellent delivery options as standard gears. Q: Can Raydafon Machinery manufacture metric gears? A: Of course! We have the tools to manufacture any metric size. Q: What should I do if I cannot identify the gear? A: Please send us your damaged gear! A: We are a factory. We specialize in reverse engineering. Q: Can you customize the product? A: Send us the table, and we will let you know the minimum requirements for the part. Q: How to get the lowest price? A: Increase the quantity. The more parts you order, the lower the price you get. Q: Can I use other materials besides steel to manufacture rack and pinion? A: The price of racks is not fixed. Generally, we need to quote according to the customer's required parameters such as material, tooth type, module, length, accuracy, style, spiral angle, and unique customization! Q: Can I pay after you deliver the goods? A: Sorry, we only accept payment before shipment.
