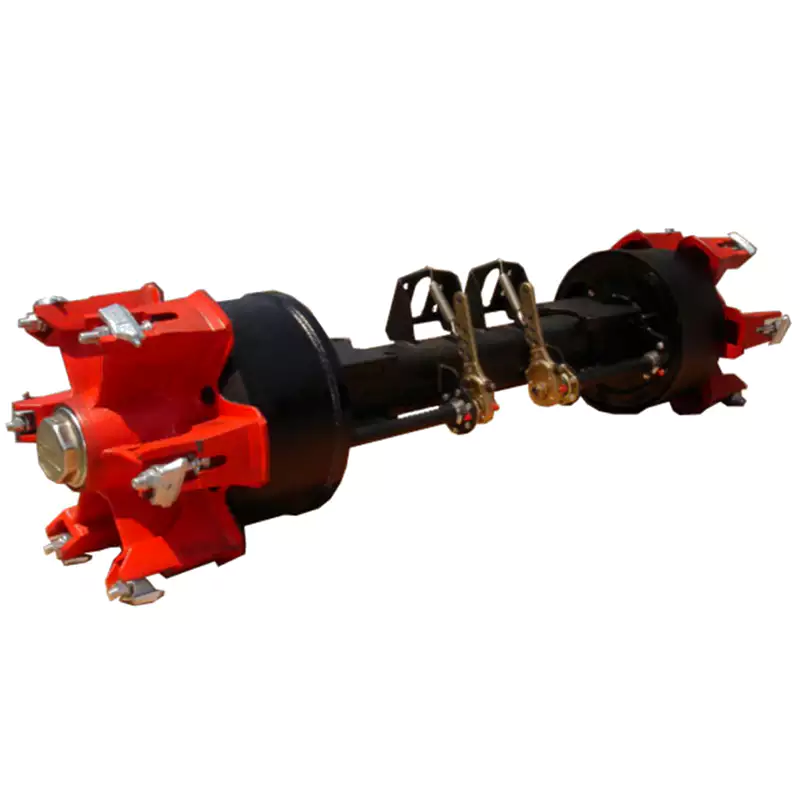

Spoke axle for Heavy Duty Trailer

Raydafon Group introduces the Spoke Axle for Heavy-Duty Trailers, engineered for superior durability and strength. Designed with high-grade materials and precision technology, it ensures reliable performance in demanding conditions like transport and construction. Perfect for fleet operators and heavy-duty enthusiasts, this axle enhances safety, reduces maintenance, and boosts efficiency, offering unmatched stability. Experience confidence on every journey – choose Raydafon Group's Spoke Axle for lasting quality and innovation.

Send Inquiry

Product Description

Spoke axle for Heavy Duty Trailer

What is a Trailer Axle?

A trailer axle is a crucial component used in trailers or semi-trailers. It is the important part that connects the wheels, supports and transfers vehicle load, and offers suspension and steering functions. Spoke axle for Heavy Duty Trailer

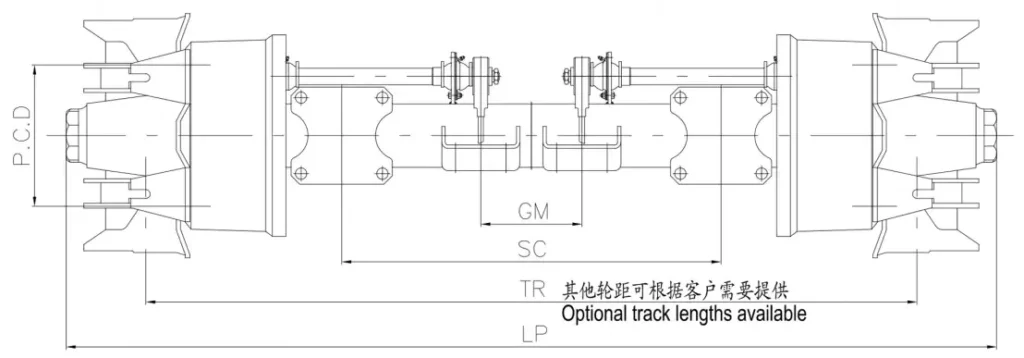

Axle specifications

		12F6	14F6	16F6
Max.Capacity	(kg)	12，000	14，000	16，000
"S"Cam Brake	Series φ x Width(mm)	S 420x200	S 420x200	S 420x200
Track TR	(mm)	1870	1870	1870
Spring Center	SC (mm)	980	900	900
Axle Beam	(mm)	150x150	150x150	150x150
Center DistanceOf Chamber	GM(mm)	336	320	300
Wheel Fixing	Studs ( mm)	10xM22x1.5	10xM22x1.5	10xM22x1.5
Wheel Fixing	P.C.D(mm)	335	335	335
Total Length	(mm)	2185	2196	2267

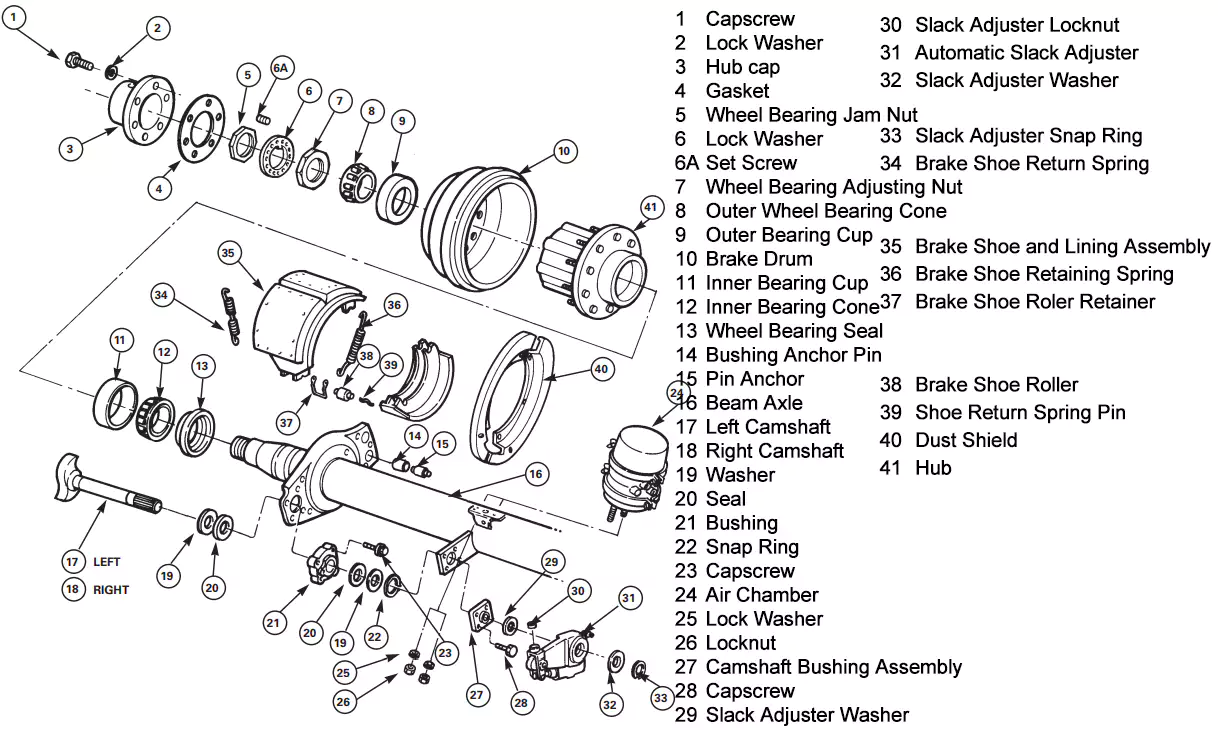

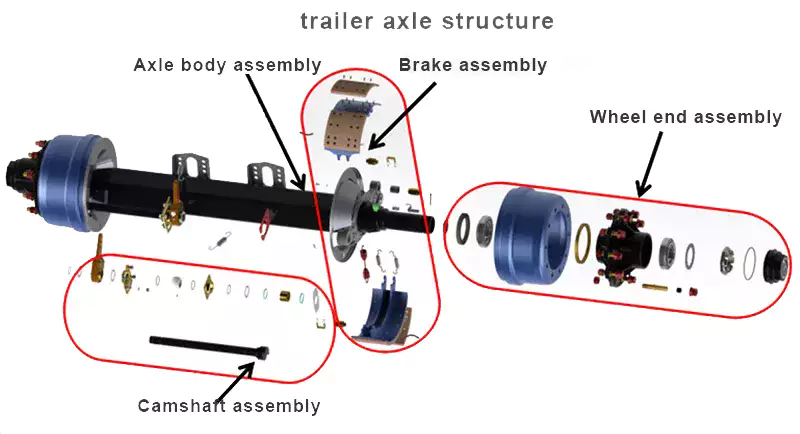

Structure of a Trailer Axle

The structure of a trailer axle is made up of several parts. Each part plays a significant role in ensuring the axle functions effectively. Spoke axle for Heavy Duty Trailer

Axle Tube

The axle tube is the main body of the trailer axle. It's typically a hollow metal tube with enough strength to withstand the vehicle's load. It connects and supports the wheels and reduces shocks through a suspension system.

Axle Ends

The two ends of the axle typically have axle ends for wheel connections. These ends usually have hubs and bearing components, supporting the rotation of the wheels and ensuring safe operation on the axle.

Suspension System

The trailer axle often works with a suspension system to provide suspension and shock-absorbing functions for the vehicle. This system can include springs, shock absorbers, and suspension arms, which help to disperse and absorb shocks and vibrations during vehicle operation.

Steering System

Some trailer axles also have a steering function to allow the vehicle to turn. The steering system usually includes components that connect the axle and steering device, such as steering arms, connecting rods, and steering mechanisms. Spoke axle for Heavy Duty Trailer

Choosing the Right Trailer Axle for Your Vehicle

Several parameters need to be determined when choosing the right trailer axle for your vehicle.

Load Capacity

To safely and effectively support the required load, you need to identify the maximum load weight your vehicle needs to carry and ensure the chosen axle can handle it. Spoke axle for Heavy Duty Trailer

Wheelbase and Hub Configuration

Ensure the axle length and hub configuration match your vehicle's tire size and wheelbase requirements for installation and operational compatibility. Spoke axle for Heavy Duty Trailer

Suspension Type

Common suspension types include independent suspension and rigid suspension. Independent suspension offers better shock absorption and suspension effects, suitable for applications that require smoother driving.

Steering Requirements

If your vehicle needs to have steering capabilities, choose an axle with a steering system. Ensure the chosen axle is compatible with your steering device and provides excellent steering performance and reliability.

Popular Applications of Axles

Axles have a variety of applications, depending on their design and functionality.

Camping and Leisure

Trailers, caravans, and other recreational vehicles use trailer axles to provide support and suspension functions.

Agriculture and Farming Machinery

Agricultural trailers and farming machinery use trailer axles to carry agricultural equipment, farm produce, and other weight required for agricultural purposes.

Marine and Boat Transport

Boat trailers use trailer axles to support and transport boat bodies, making boat transportation more convenient and efficient.

Automobile Transport

For transporting cars, trucks, and other types of automobiles, automotive trailer axles typically have high load capacity and appropriate wheelbase configurations to ensure safe and stable automobile transport.

About Our Trailer Axles Factory

Established in 1999, we are one of the most professional axle manufacturers in China. Our factory covers an area of 20,000 square meters, and we pass the ISO/TS16949 quality inspection certification every year. We offer professional design customization services, and our products are sold in over 30 countries and regions worldwide, earning high praise for their quality and service.

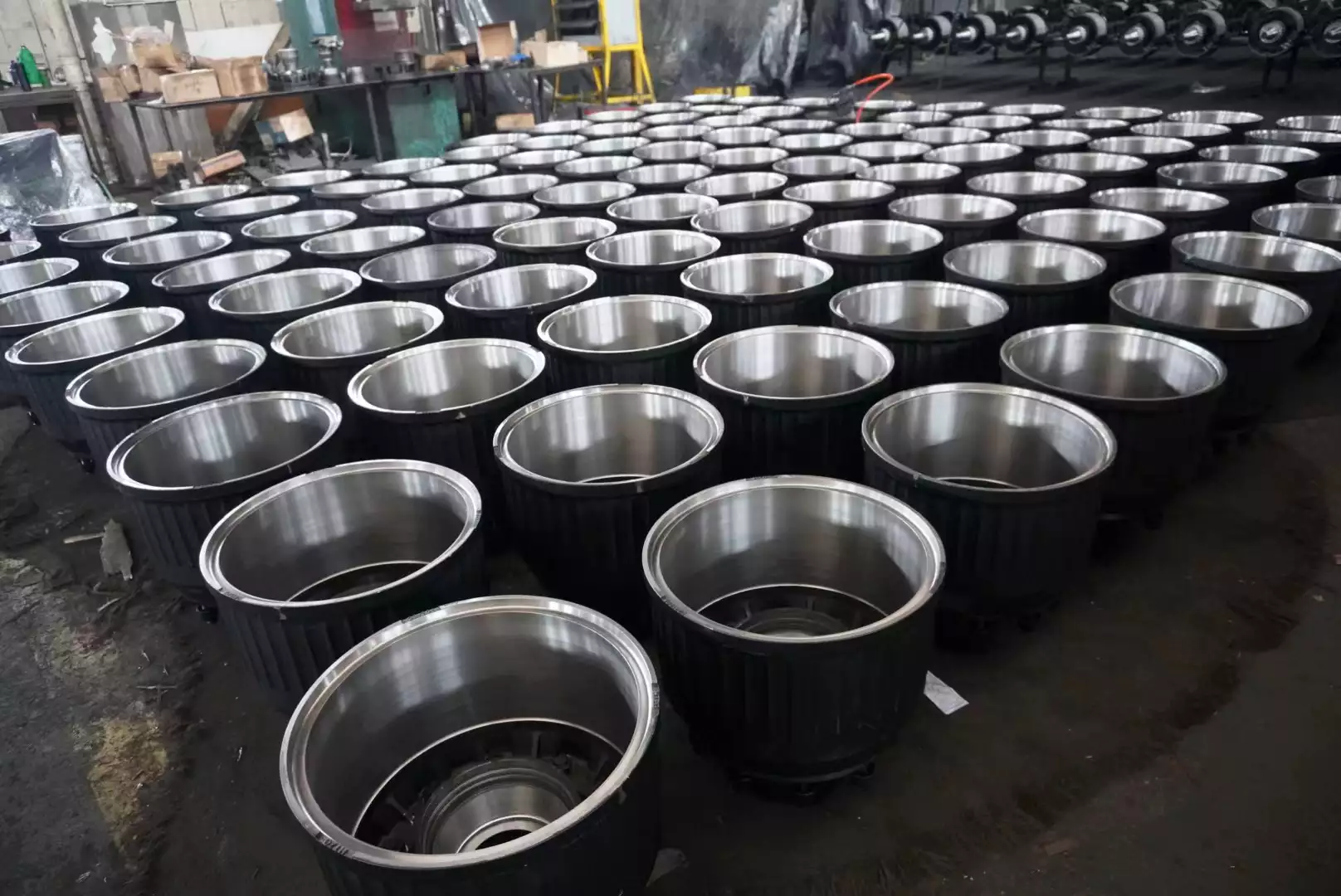

Our Production Equipment

Our company utilizes advanced equipment such as electron beam welders, arc welding robots, CNC machine tool processing centers, CNC plate welding gantry cutting centers, large hydraulic presses, and large cylindrical grinders. We also have automatic spray lines, ultrasonic detectors, coordinate measuring machines, and a series of the most advanced manufacturing and fatigue test inspection equipment.

Our Main Products

Our main products include German and American standard axle assemblies, auto parts, various light axles, mechanical suspensions, air suspensions, single-point suspensions, wheel and brake drum assemblies, and their supporting parts, European agricultural axle series, rigid series of inline double axles, torsion arm axle series, and trailer parts.Author: Miya```
