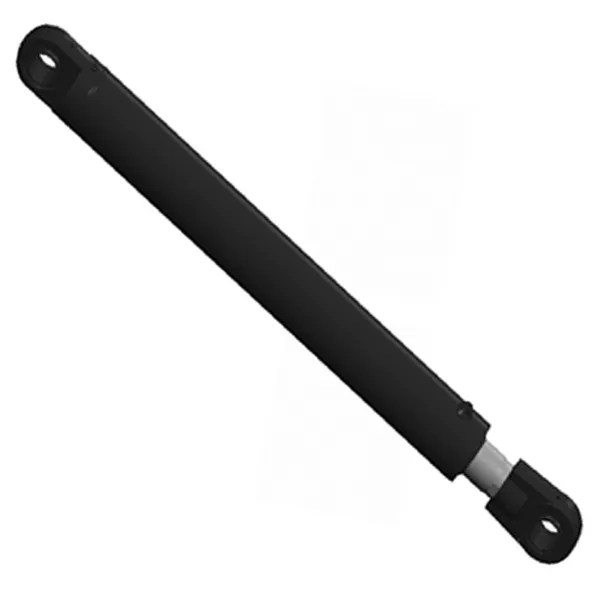

Stacker Reclaimer Belt Tensioning Cylinder

Stacker Reclaimer Belt Tensioning Cylinder

A stacker reclaimer belt tensioning cylinder is a hydraulic cylinder that is used to adjust the tension of the belt on a stacker reclaimer conveyor. Stacker reclaimers are used in a variety of industries, including mining, coal handling, and material handling, to move bulk materials from one location to another.

The belt tensioning cylinder works by pushing against a bearing block that supports the discharge pulley assembly on the stacker reclaimer. This causes the pulley assembly to move closer to the drive pulley, which increases the tension on the belt. The cylinder is controlled by a hydraulic pump and valve system, and the tension of the belt can be adjusted to a predetermined level.

Stacker reclaimer belt tensioning cylinders are typically made of high-strength steel and are designed to withstand heavy loads. They are also equipped with a variety of features to protect them from corrosion and wear, such as surface coatings and sealing systems.

Here are some of the key features of stacker reclaimer belt tensioning cylinders:

• Compact design: Belt tensioning cylinders are typically compact and lightweight, which makes them easy to install and maintain.
• High strength: Belt tensioning cylinders are made of high-strength steel to withstand heavy loads.
• Long service life: Belt tensioning cylinders are designed to have a long service life, even under demanding conditions.
• Wide range of temperature resistance: Belt tensioning cylinders can be designed to operate in a wide range of temperatures, from -40°C to +100°C.
• Customizable: Belt tensioning cylinders can be customized to meet the specific needs of each application.

Stacker Reclaimer Belt Tensioning Cylinder Specifications:

Product Name	Stacker Reclaimer Belt Tensioning Cylinder
Features:	Realize belt tension and slack
Bore diameter:	80mm～180m
Rod diameter:	45mm～120mmStroke500mm～1500mm
Pressure：	up to 35MPa
Applications:	Stacker Reclaimer

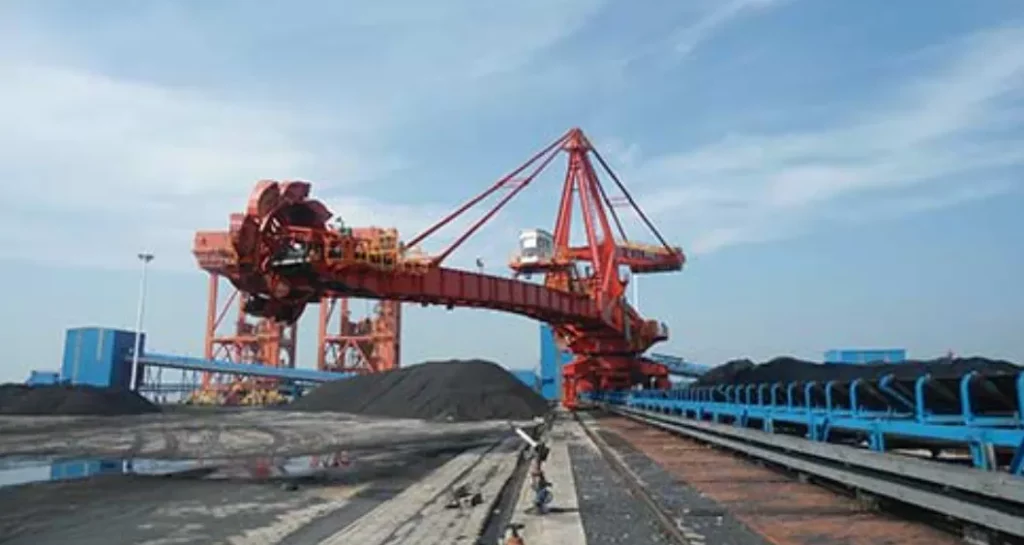

Benefits of Stacker Reclaimer Belt Tensioning Cylinder:

The belt tensioning cylinder in a stacker reclaimer system provides several advantages. Here are some of the key benefits:1. Precise Belt Tension Control: The belt tensioning cylinder allows for precise control over the tension of the conveyor belt. This is essential for maintaining proper belt alignment and preventing slippage or sagging, which can lead to operational issues and potential damage to the equipment.2. Improved Belt Performance: By maintaining optimal tension, the belt tensioning cylinder helps to enhance the overall performance of the conveyor system. It ensures consistent and efficient material handling, minimizing instances of belt misalignment or mistracking, which can cause spillage and material loss.3. Extended Belt Lifespan: Proper belt tensioning helps to extend the lifespan of the conveyor belt. By preventing excessive tension or slack, the belt tensioning cylinder reduces wear and tear on the belt, leading to longer service life and reduced maintenance costs.4. Enhanced Operational Safety: Maintaining the correct belt tension is crucial for safe operation. A properly tensioned belt reduces the risk of belt slippage, which can cause accidents or equipment damage. The belt tensioning cylinder ensures that the belt remains securely in place, minimizing potential hazards and improving overall workplace safety.5. Easy Adjustment and Maintenance: Belt tensioning cylinders are designed for easy adjustment and maintenance. They typically feature simple mechanisms for adjusting the tension, allowing operators to quickly and accurately set the desired tension level. Additionally, regular maintenance tasks, such as belt replacement or alignment, can be carried out more efficiently with the help of a tensioning cylinder.6. Compatibility with Varying Loads: Stacker reclaimers are often used in applications where the load on the conveyor belt can vary significantly. The belt tensioning cylinder accommodates these variations and ensures optimal tension levels regardless of the load, maintaining stable and reliable operation.

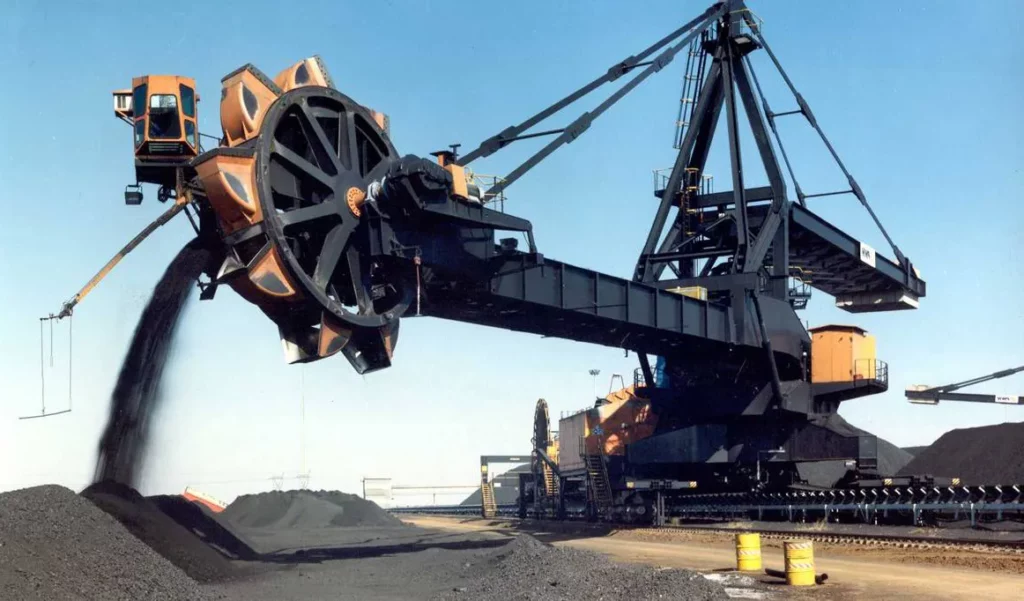

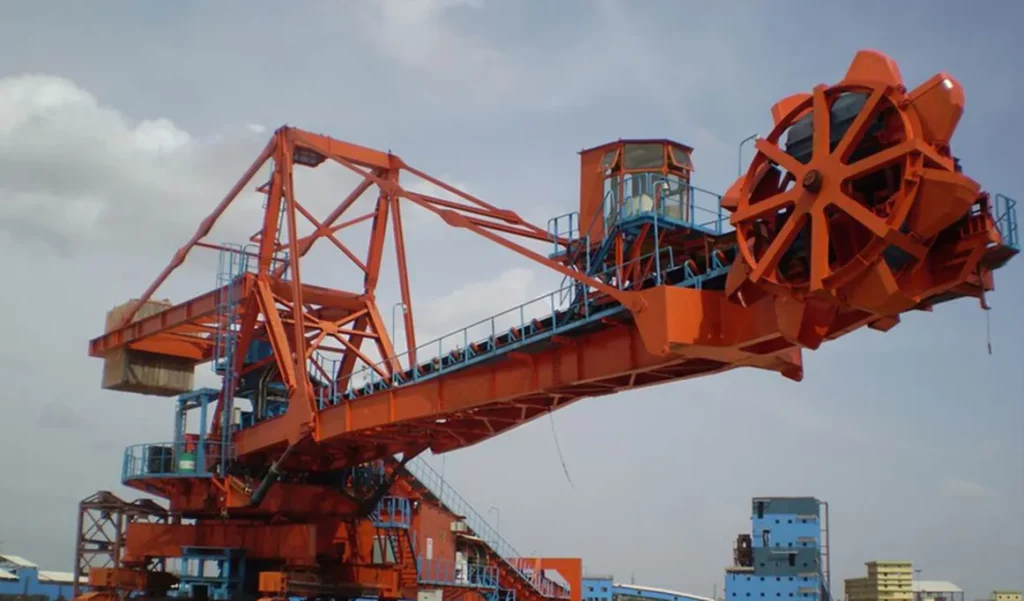

Applications of Stacker Reclaimer Belt Tensioning Cylinder:

Stacker reclaimer belt tensioning cylinders are used to maintain the optimal tension of the belts on stacker reclaimers. Stacker reclaimers are machines used to load and unload bulk materials, such as coal, ore, and grain. The belts on stacker reclaimers are subject to a lot of wear and tear, and it is important to keep them properly tensioned to ensure that they operate safely and efficiently.

Stacker reclaimer belt tensioning cylinders are typically mounted on a carriage that moves along the length of the stacker reclaimer. The cylinders are connected to the belts by cables or chains. When the hydraulic cylinders are extended, they pull the belts tight. When the cylinders are retracted, the belts loosen.

Stacker reclaimer belt tensioning cylinders are used in a variety of applications, including:

(1) Maintaining proper belt tension: Stacker reclaimer belts can stretch over time, and it is important to keep them properly tensioned to prevent them from slipping or breaking. Stacker reclaimer belt tensioning cylinders allow operators to adjust the tension of the belts as needed.(2) Compensating for belt wear: As stacker reclaimer belts wear, they become thinner and more prone to stretching. Stacker reclaimer belt tensioning cylinders can be used to compensate for belt wear by increasing the tension of the belts.(3) Preventing belt tracking problems: Stacker reclaimer belts can sometimes track off center, which can cause them to rub against the sides of the machine and wear prematurely. Stacker reclaimer belt tensioning cylinders can be used to prevent belt tracking problems by adjusting the tension of the belts evenly across their width.(4) Protecting equipment from damage: If a stacker reclaimer belt breaks, it can cause a lot of damage to the machine and the surrounding area. Stacker reclaimer belt tensioning cylinders can help prevent belt breaks by keeping the belts properly tensioned.

Stacker reclaimer belt tensioning cylinders are an important part of stacker reclaimer maintenance and operation. By ensuring that the belts are properly tensioned, stacker reclaimer belt tensioning cylinders can help extend the life of the belts, prevent equipment damage, and improve the safety and efficiency of stacker reclaimers.

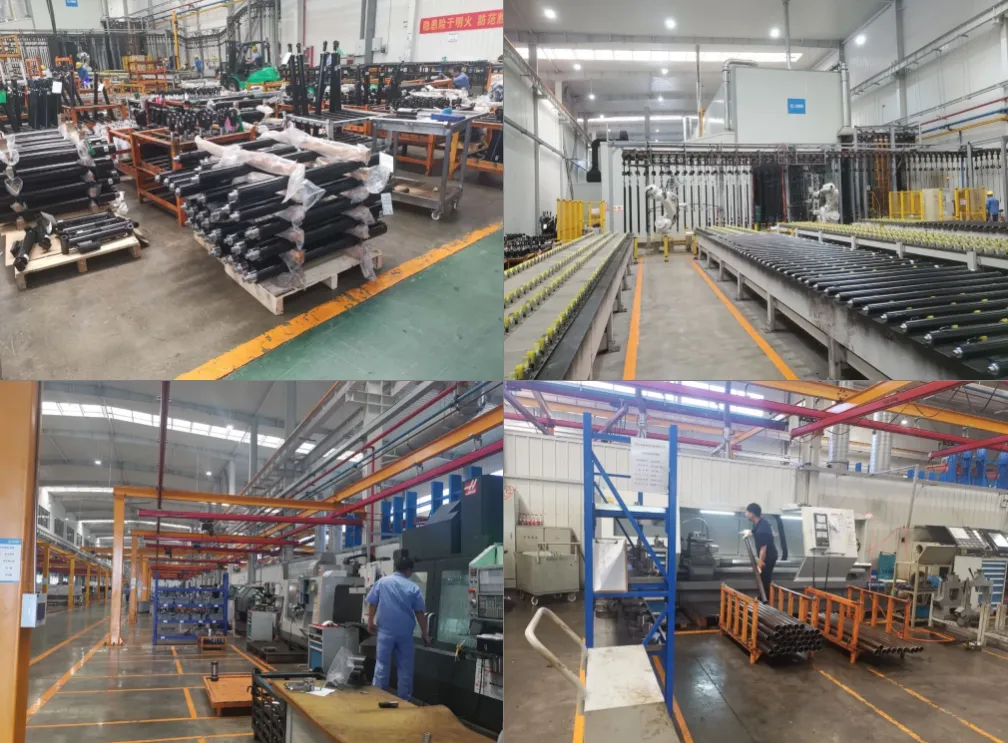

China Stacker Reclaimer Cylinder Manufacturers

Generally, you can see stackers and reclaimers in ports, wharves, steel plants, and other places. It is a rookie in the loading and unloading industry. Raydafon can tailor a complete set of hydraulic solutions for stackers and reclaimers according to requirements. The stacker reclaimer pitch cylinder designed with a special structure is matched with the V90N-DT130/180 main pump, HVME270B main valve, and HM5X130 motor. The components are perfectly matched to meet the high-frequency working requirements of the stacker and reclaimer. Also, they achieved their maximum flash point-high efficiency, easy to deal with the harsh working environment of the port, winning everyone's praise and recognition successfully.Moreover, we go beyond stacker reclaimer cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
