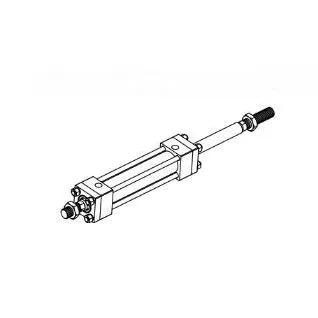

Standard Biaxial Type Heavy Rod Hydraulic Cylinder

Standard Biaxial Type Heavy Rod Hydraulic Cylinder

The Standard Biaxial Type Heavy Rod Hydraulic Cylinder is a versatile and robust hydraulic component designed to handle demanding industrial applications. With its durable construction, biaxial design, and heavy-duty capabilities, this hydraulic cylinder delivers exceptional power, precision, and reliability. Whether you need to lift, push, or pull heavy loads, the Standard Biaxial Type Heavy Rod Hydraulic Cylinder is engineered to excel under challenging conditions.Essential Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: This hydraulic cylinder is built to last, featuring a sturdy and durable construction using high-quality materials. Its rugged design ensures longevity and resistance to wear, allowing it to withstand heavy loads, high pressures, and harsh operating environments.Biaxial Design: The biaxial configuration of the cylinder provides enhanced stability and controlled movement. With its dual-axis construction, the cylinder offers precise positioning and smooth operation, minimizing the risk of misalignment or deflection during use.Heavy Rod: The heavy rod design of the Standard Biaxial Type Heavy Rod Hydraulic Cylinder enables it to generate substantial force output. This feature makes it suitable for applications requiring lifting, pushing, or pulling heavy loads effortlessly and precisely.

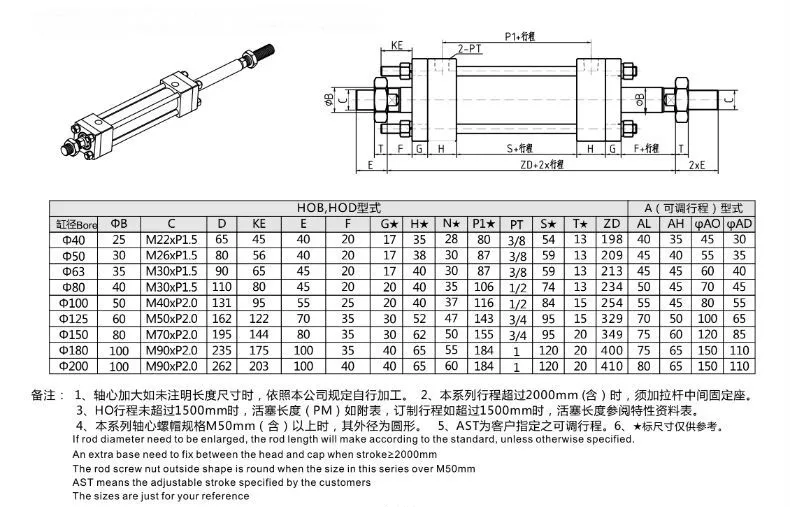

Standard Biaxial Type Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of Standard Biaxial Type Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the Standard Biaxial Type Heavy Rod Hydraulic Cylinder using appropriate brackets or fixtures. Ensure proper alignment and stability during installation to prevent misalignment or excessive stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings to achieve the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of Standard Biaxial Type Heavy Rod Hydraulic Cylinder:

Regular maintenance is essential to ensure optimal performance and longevity of the standard biaxial type heavy rod hydraulic cylinder. Follow these maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify signs of wear, damage, or leaks. Inspect the cylinder body, rod, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How Do You Size A Hydraulic Cylinder？

Sizing a hydraulic cylinder involves determining the appropriate specifications and dimensions of the cylinder to ensure it can effectively perform the desired task. Here are the general steps involved in sizing a hydraulic cylinder:

1. Determine the Required Force: Start by calculating the force required to move or perform the intended task. Consider factors such as the weight of the load, the required acceleration or speed, and any additional forces acting on the system. This force requirement will help determine the minimum force capacity of the hydraulic cylinder.
2. Evaluate the Working Pressure: Determine the maximum working pressure of the hydraulic system in which the cylinder will operate. The working pressure should be sufficient to generate the required force calculated in the previous step. Ensure the hydraulic system, including the pump, valves, and hoses, can handle the anticipated pressure.
3. Calculate the Cylinder Bore Size: The bore size of the cylinder is a critical factor in determining its force capacity. Use the formula: Force (F) = Pressure (P) x Area (A), where the force is in pounds or Newtons, the pressure is in pounds per square inch (psi) or Pascal (Pa), and the area is in square inches or square meters. Rearrange the formula to calculate the required cylinder bore size: Bore Size = √(Force / (Pressure x π)).
4. Consider Stroke Length: Determine the required stroke length the maximum distance the cylinder needs to extend or retract to fulfill its intended function. Ensure the selected cylinder has a stroke length that accommodates the desired movement.
5. Account for Safety Factors: Consider adding a safety factor to the calculated force requirement to ensure the cylinder can handle unexpected loads or variations in operating conditions. A standard safety factor is 1.5 to 2 times the estimated force.
6. Check Speed and Fluid Flow: Consider the desired speed of the cylinder's movement and ensure that the hydraulic system can provide the necessary fluid flow rate to achieve that speed. Avoid excessive speeds that may compromise safety or cause system instability.
7. Consult Manufacturer Data and Guidelines: Refer to manufacturer catalogs, technical data sheets, and guidelines for specific cylinder models. Manufacturers often provide sizing charts, performance data, and selection guidelines to assist in choosing the appropriate cylinder for your application.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
