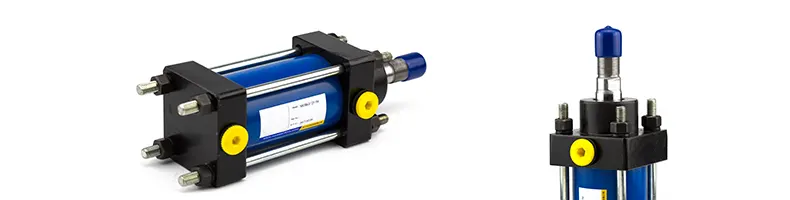

Standard MOB Light Rod Hydraulic Cylinder

Standard MOB Light Rod Hydraulic Cylinder

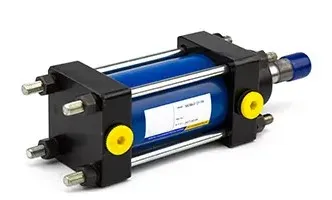

MOB light rod hydraulic cylinder is composed of front cylinder head, rear cylinder head, piston, cylinder, piston rod, 4 screw rods, 8 lock nuts and gaskets, 1 piston lock nut and gasket, one piston rod end matching lock nut, a full set of seals, rod end protective sleeve, oil plug. Because the cylinder of this series is only 7Mpa, the front and back covers are made of castings HT200, the piston rod is No. 45 chrome plated layer thickness 2-3 wires, the cylinder barrel is No. 20 rolled tube, and the rod material is A3.A "Light Rod Hydraulic Cylinder" typically refers to a specific type of hydraulic cylinder that is designed to be lightweight and compact. These cylinders are commonly used in applications where space is limited or weight restrictions are a concern.

StandardMOB Light Rod Hydraulic Cylinder Parameter:

Characteristics Of Light Rod Hydraulic Cylinder:

The key features and characteristics of a Light Rod Hydraulic Cylinder may include:

1. Compact Design: Light Rod Hydraulic Cylinders are designed to have a small footprint and a slim profile, allowing them to fit into tight spaces or applications with limited clearance.
2. Lightweight Construction: These cylinders are constructed using lightweight materials such as aluminum or composite materials to reduce overall weight. This makes them suitable for applications where weight is a critical factor, such as mobile equipment or aerospace applications.
3. High Strength-to-Weight Ratio: Despite their lightweight construction, Light Rod Hydraulic Cylinders are engineered to have high strength and durability. They are designed to withstand the forces and pressures associated with hydraulic operation while maintaining structural integrity.
4. Smooth Operation: These cylinders often incorporate advanced sealing technologies and precision machining to ensure smooth and reliable operation. This helps to minimize friction and maximize efficiency.
5. Customization Options: Light Rod Hydraulic Cylinders can often be customized to meet specific application requirements. This includes options for stroke length, mounting configurations, and hydraulic connections.

How To Bleed A Hydraulic Cylinder?

To bleed a hydraulic cylinder, you need to remove any trapped air or gas from the system to ensure optimal hydraulic performance. Here's a general guide on how to bleed a hydraulic cylinder:

1. Preparation:
   • Ensure you have the necessary tools and materials, including a wrench or pliers, a container to collect hydraulic fluid, and any specific bleed valves or fittings required for your system.
   • Familiarize yourself with the hydraulic system and locate the bleed valve or fitting on the cylinder or within the hydraulic lines.
2. System Preparation:
   • Check the hydraulic fluid level in the reservoir and ensure it is at the proper level.
   • If the hydraulic system has been recently serviced or repaired, ensure all connections are tight and secure.
3. Identify the Bleed Point:
   • Locate the bleed valve or fitting on the hydraulic cylinder or within the hydraulic lines.
   • Refer to the manufacturer's documentation or guidelines for your specific hydraulic system to determine the exact location and procedure for bleeding.
4. Opening the Bleed Valve:
   • Using a wrench or pliers, carefully loosen the bleed valve or fitting. Be cautious not to damage the valve or fitting during this process.
   • Prepare a container to collect any hydraulic fluid that may be released during the bleeding process.
5. Purging the Air:
   • With the bleed valve open, slowly activate the hydraulic system by operating the relevant controls or activating the hydraulic pump.
   • Allow the hydraulic fluid to flow through the system, and air bubbles should eventually start to escape through the bleed valve. It may take some time for all the air to be purged.
6. Closing the Bleed Valve:
   • Once you observe a steady flow of hydraulic fluid without any air bubbles, close the bleed valve securely.
   • Check the hydraulic fluid level in the reservoir and top up if necessary.
7. Testing and Inspection:
   • Test the hydraulic system to ensure proper operation and check for any signs of leakage or abnormalities.
   • Observe the cylinder's movement and performance to ensure it is functioning correctly.

China Hydraulic Cylinder Manufacturers:
