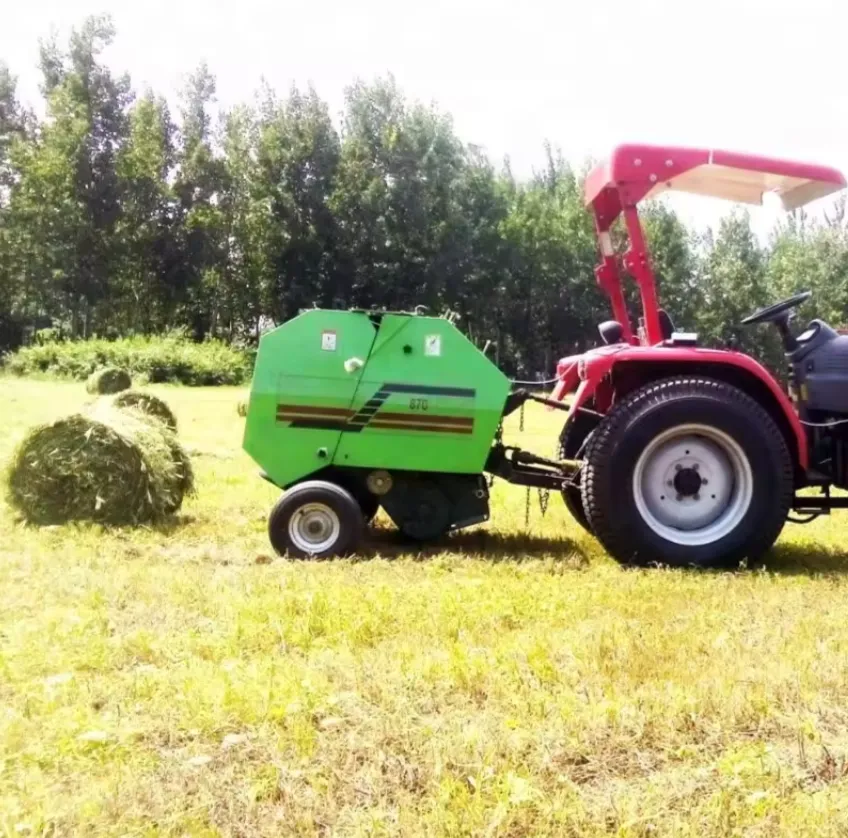

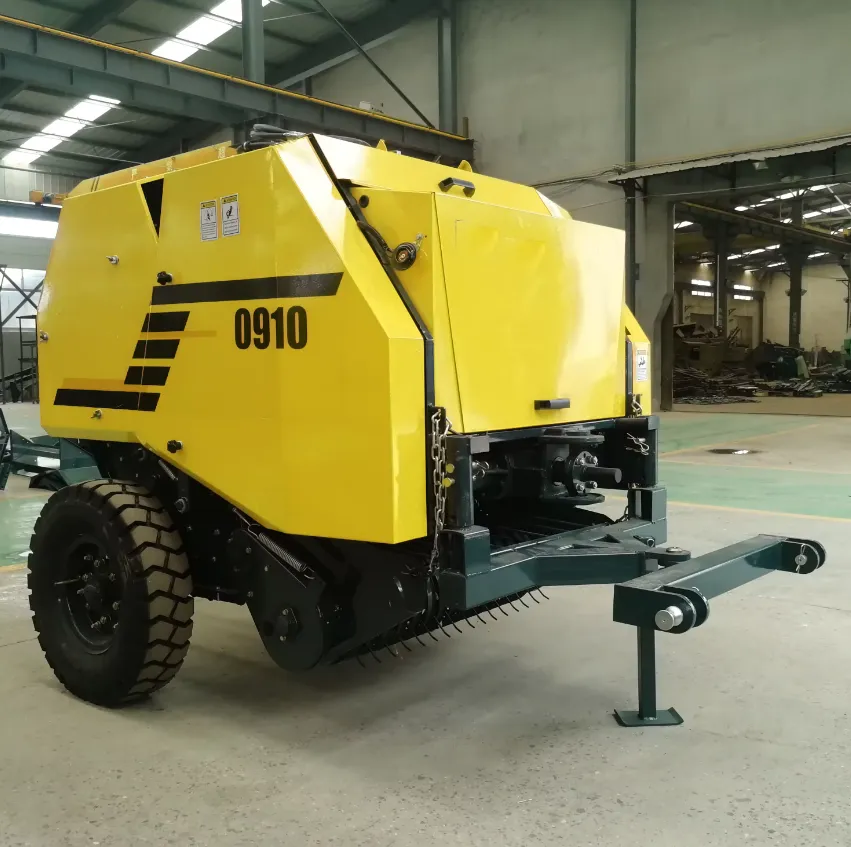

Stationary Hay Baler for Sale

When it comes to compact, efficient, and reliable round balers, the stationary hay baler stands out. This product, with model numbers RXYK0850 and RXYK0870, is designed for various applications, including picking up and baling grass, alfalfa, wheat, rice straw, and more. With an operating speed of 3-10km/h, it is capable of delivering high performance in different terrains. The baler operates with a matched power of 20-50HP and features a pickup width of 80cm. It is built with a dimension of 1300x1300x1350mm and weighs 425 kg. This brand-new green baler is certified by ISO, CE, and comes with a 2-year warranty. It does not provide overseas service after the sale.

Advantages of the Stationary Hay Baler

The stationary hay baler is not just another round baler. It packs a punch with a range of benefits that make it a top choice for farmers and agricultural businesses. Here are six key advantages:

1. Durability: With a weight of 425 kg, it is robust and built to withstand the rigors of baler operations.
2. Efficiency: Its operating speed of 3-10km/h ensures fast and efficient baling.
3. Versatility: It is suitable for picking up and baling a variety of materials, including grass, alfalfa, wheat, and rice straw.
4. Low Power Requirement: The baler operates with a matched power of 20-50HP, making it energy-efficient.
5. Compact Size: With a dimension of 1300x1300x1350mm, it doesn't take up much space, making it suitable for small to medium-sized farms.
6. Quality Assurance: It is certified by ISO, CE, and comes with a 2-year warranty, assuring you of its quality and reliability.

Applications of the Stationary Hay Baler

The stationary hay baler is designed to serve a wide range of applications. Whether you are a small scale farmer or a large agricultural business, this baler has got you covered. Here are six key applications:

1. Hay Baling: It is perfect for baling hay, making it easy to store and transport.
2. Alfalfa Baling: Alfalfa, known for its high nutrition content, can be efficiently baled using this machine.
3. Wheat Straw Baling: After wheat harvest, the left-over straw can be baled for various uses, including animal bedding.
4. Rice Straw Baling: Similarly, it is suitable for baling rice straw after harvest.
5. Grass Baling: If you operate a lawn care service, this baler is perfect for baling cut grass.
6. Forage Baling: For farmers who produce forage for livestock, this baler is an essential tool for efficient baling.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler employs a straightforward process to deliver efficient baling. It attaches to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here's a step-by-step overview of how this baler works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.

3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.

2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the Stationary Hay Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China.

Our main products are PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

In addition to our high-quality products, we also offer top-notch after-sales service. Our professional team is always ready to assist with installation, maintenance, and operation tips to ensure that you get the most out of your purchase. We also provide customized services to meet specific customer needs. Our company is certified by international standards, ensuring that you get only the best.

Choosing Raydafon's Mini Hay Round Baler means investing in a reliable, efficient, and durable solution for your baling needs. With our product, you can increase productivity, reduce labor costs, and make your farming operations more efficient and profitable.

Author: Yjx
