The TC Middle Trunnion Type Light Rod Hydraulic Cylinder is an advanced hydraulic component that provides precise and efficient linear motion control in various industrial applications. With its unique middle trunnion design, lightweight construction, and exceptional performance, this hydraulic cylinder offers versatility, durability, and reliability.Key Features Of Hydraulic Cylinder:Middle Trunnion Design: The TC cylinder features a middle trunnion design that provides stability and enhanced load-bearing capabilities. This design allows for efficient force transmission and ensures reliable performance in demanding applications.Lightweight Construction: Constructed with lightweight materials such as aluminum and advanced composites, this cylinder offers high strength while minimizing overall weight. The lightweight design not only facilitates easy handling but also contributes to improved system efficiency.Light Rod Technology: The cylinder incorporates light rod technology, which optimizes its performance by reducing weight without compromising strength and durability. This innovative design ensures smooth and precise linear motion control.Versatile Applications: The TC Middle Trunnion Type Cylinder is suitable for various industrial applications, including heavy machinery, construction equipment, and material handling systems. Its versatility makes it ideal for various industries and motion control requirements.

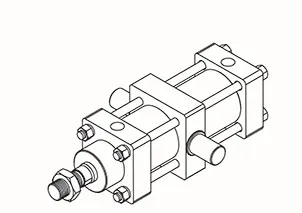

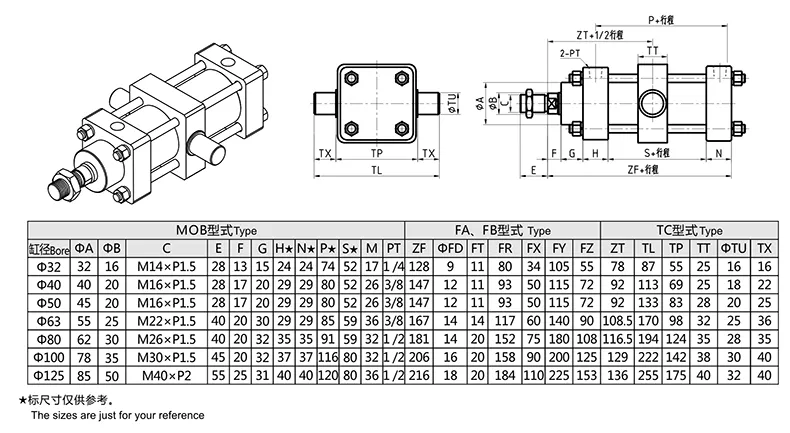

TC Middle Trunnion Type Light Rod Hydraulic Cylinder Parameter:

Usage Method Of TC Middle Trunnion Type Light Rod Hydraulic Cylinder:

1. Mounting: Select a suitable mounting location based on the specific application requirements. Ensure that the middle trunnion aligns with the load and the system's needs. Securely fasten the cylinder using the recommended bolts and ensure proper alignment for optimal performance.
2. Hydraulic Connections: Connect the hydraulic hoses to the cylinder, ensuring tight and leak-free connections. Follow the manufacturer's guidelines for torque specifications during installation to maintain the integrity of the hydraulic system.
3. System Integration: Integrate the cylinder into the hydraulic system, aligning it with other components as per system requirements. Refer to the manufacturer's guidelines and system schematics for proper installation.
4. Operation: Apply hydraulic pressure to the system while adhering to industry-standard safety protocols. The TC cylinder, with its middle trunnion design, efficiently translates hydraulic force into precise linear motion, providing reliable control for various applications.

Maintenance Of TC Middle Trunnion Type Light Rod Hydraulic Cylinder:

Regular maintenance is essential to ensure the longevity and optimal performance of the TC Middle trunnion-type cylinder. Consider the following maintenance guidelines:

• Visual Inspection: Regularly inspect the cylinder for leaks, damage, or signs of wear. Pay close attention to seals, bearings, and the overall condition of the cylinder. Replace any worn or damaged components promptly.
• Lubrication: Follow the manufacturer's recommendations for lubrication intervals and use appropriate lubricants. Proper lubrication minimizes friction, reduces wear, and ensures smooth operation.
• Cleaning: Clean the cylinder by removing dirt, debris, and contaminants. Use a non-abrasive cleaning agent and avoid excessive force during cleaning to prevent damage to critical components.
• Seal Inspection: Periodically inspect the seals for leakage or deterioration. Replace worn or damaged seals to maintain optimal performance and prevent potential system failures.
• System Calibration: Regularly check the cylinder's performance by verifying stroke length, speed, and accuracy. Calibrate the system as necessary to ensure precise and consistent operation.

How To Remove Hydraulic Cylinder From Front End Loader?

Removing a hydraulic cylinder from a front-end loader typically involves the following steps:

1. Preparation: Ensure the loader is safely parked on a level surface and the engine is turned off. Engage the parking brake and chock the wheels to prevent any unintended movement.
2. Identify the Cylinder: Locate the specific hydraulic cylinder you intend to remove. Front-end loaders usually have multiple hydraulic cylinders for various functions, such as lifting, tilting, or extending the loader arms.
3. Relieve Pressure: Hydraulic systems operate under high pressure, so relieving the stress before disconnecting any hydraulic components is essential. Start by using the loader controls to lower or retract the cylinder fully. Then, shut off the engine to prevent accidental activation of the hydraulic system.
4. Disconnect Hydraulic Lines: Locate the hydraulic lines connected to the cylinder. Depending on the specific setup, one or two hydraulic lines may be connected to the cylinder. Use tools like wrenches or socket sets to loosen and disconnect the hydraulic fittings from the cylinder. Be prepared for some hydraulic fluid to leak during this process, so have a drain pan or absorbent material ready.
5. Remove Mounting Hardware: Examine the mounting points of the hydraulic cylinder. Typically, cylinders are secured by bolts or pins. Use the appropriate tools to remove these fasteners and detach the cylinder from its mounting points. Keep track of any washers or spacers that may be present during removal.
6. Remove the Cylinder: Once the hydraulic lines and mounting hardware are disconnected, carefully slide or lift the cylinder out of its position. Hydraulic cylinders can be heavy, so exercise caution and use proper lifting techniques or equipment to prevent injury.
7. Inspection and Maintenance: With the cylinder removed, it's a good opportunity to inspect it for any signs of damage, wear, or leaks. If necessary, perform maintenance tasks such as replacing seals or repairing any issues before reinstalling the cylinder.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of light rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle light rod hydraulic cylinders, Aerial work vehicle light rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The light rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
