TD75 Belt Conveyor Parallel Idler for Mining Machinery

TD75 Belt Conveyor Parallel Idler for Mining Machinery

The TD75 Belt Conveyor Parallel Idler, also known as a flat idler or return idler, is a critical component in mining machinery, designed to support the return side of the conveyor belt, ensuring smooth operation and preventing belt sagging or misalignment.

As part of the TD75 conveyor system, standardized in 1975, these idlers are widely used in industries such as mining, metallurgy, ports, and construction for efficient bulk material handling. Engineered for durability and low maintenance, the TD75 Parallel Idler supports belts transporting materials like coal, ore, and aggregates in harsh environments. This product page provides a detailed overview of the parallel idler’s features, applications, installation guidelines, customer feedback, and answers to common questions, optimized to assist mining professionals in enhancing conveyor performance.

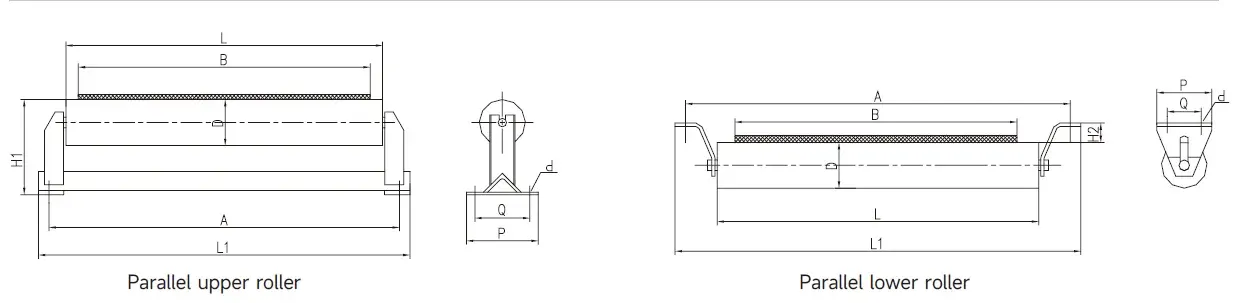

TD75 Belt Conveyor Parallel Idler for Mining Machinery Parameter:

Unit: mm

B	A	L	L1	H1	H2	D	P	Q	d	Rolling bearing model	Drawing No. of parallel upper roller	Drawing No. of parallel lower roller
500	720	600	760	210	55.5	89	170/100	130/60	M12	204	TD1C2	TD1C3
650	870	750	910	230							TD2C2	TD2C3
800	1070	950	1110	240							TD3C2	TD3C3
1000	1300	1150	1350	300	46	108	220/130	170/80	M16	305	TD4C2	TD4C3
1200	1550	1400	1610/1600	330			260/130	200/80			TD5C2	TD5C3
1400	1750	1600	1810/1800	350							TD6C2	TD6C3

TD75 Belt Conveyor Parallel Idler for Mining Machinery Feature:

The TD75 Parallel Idler is designed to ensure stable belt support and reliable conveyor operation. Below are its key features:

1. Flat Roller Design

   • Consists of a single steel roll or multiple rolls mounted horizontally to support the return side of the conveyor belt.

   • Prevents belt sagging and stretching, ensuring consistent tracking.

2. High-Strength Materials

   • Roller tube made from Q235 steel (equivalent to SS400/ASTM A36) for durability.

   • Shaft constructed from 45# steel (equivalent to DIN C45/ASTM A1045) for high strength and wear resistance.

3. Precision Bearings

   • Equipped with deep groove ball bearings (C3 clearance, 2RZ/2Z seals) for low friction and long life.

   • Triple labyrinth seals protect against dust and moisture ingress, ideal for harsh mining environments.

4. Low Vibration and Noise

   • Precision manufacturing and dynamic balance testing ensure smooth operation and minimal vibration.

   • Reduces wear on the belt and conveyor frame, extending system lifespan.

5. Corrosion Resistance

   • Available with baking paint, zinc plating, or epoxy coatings to withstand corrosive environments like coastal ports.

   • Optional stainless steel or composite materials for enhanced durability.

6. Customizable Configurations

   • Available in diameters from 50mm to 219mm and lengths from 190mm to 3400mm to suit belt widths (500mm to 2400mm).

   • Custom bracket designs and shaft configurations available.

7. Standards Compliance

   • Meets TD75, DTII, and CEMA standards (B, C, D, E) for quality and safety.

   • Undergoes rigorous testing for radial runout, axial movement, and bearing performance.

TD75 Belt Conveyor Parallel Idler for Mining Machinery Installation:

Proper installation ensures optimal performance and longevity of the TD75 Parallel Idler. Follow these steps:

1. Pre-Installation Checks

   • Verify idler specifications (diameter, length, shaft size) match conveyor requirements.

   • Inspect the conveyor frame for alignment and structural integrity.

2. Mounting

   • Install parallel idlers on the return side of the conveyor, typically on drop brackets or a flat frame.

   • Ensure the idler is horizontal and aligned with the belt path to prevent mistracking.

3. Bearing and Seal Installation

   • Confirm bearings are lubricated with lithium soap grease and triple labyrinth seals are intact.

   • Secure the shaft to the frame using appropriate brackets or bearing seats.

4. Alignment

   • Align idlers with the conveyor frame to ensure smooth belt movement.

   • For belts longer than 100 ft, install self-training idlers every 100-150 ft to maintain alignment.

5. Belt Tension Adjustment

   • Adjust tension to prevent sagging without overloading the idlers.

   • Use the formula for belt tension:[ T = \frac{P_p \cdot 1000}{v} ] where (T) is belt tension (N), (P_p) is power (kW), and (v) is belt speed (m/s).

6. Final Inspection

   • Check alignment, bracket stability, and bearing operation.

   • Run the conveyor at low speed to confirm smooth belt return before full load.

Installation Tips

• Use trained technicians to comply with safety standards.

• Document installation parameters for maintenance records.

• Contact us for expert installation support.

Maintenance Tips

Regular maintenance extends the lifespan of the TD75 Parallel Idler:

• Inspections: Check rollers, bearings, and brackets every 3-6 months for wear.

• Lubrication: Apply lithium soap grease to bearings to reduce friction.

• Belt Cleaning: Use belt scrapers to prevent material buildup on idlers.

• Alignment Monitoring: Verify idler alignment to avoid belt mistracking.

• Spare Parts: Use OEM parts compliant with TD75 and CEMA standards.

TD75 Belt Conveyor:

Purpose and scope of use:

The TD75 universal belt conveyor has the advantages of simple structure, large conveying capacity, convenient maintenance and use, low cost, and strong universality, suitable for working in an ambient temperature range of -15°C to 40°C.If corresponding protective measures are taken, it can also be applied to occasions with special requirements, such as explosion-proof, waterproof.

Product Feature:

◆ The capacity for conveying materials is below 2.5t/m3◆ Can be divided into 500, 650, 800, 1000, 1200, 1400◆ Can be divided into: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0

Technical Parameters:

Roller type	Speed (m/s)	Belt width（mm）	Roller type	Speed (m/s)	Belt width（mm）
		500	650	800	1000	1200	1400			500	650	800	1000	1200	1400
		Capacity Ｑ（t/h）			Capacity Ｑ（t/h）
Trough roller	0.8	78	131	―	―	―	―	Parallel roller	0.8	41	67	118	―	―	―
	1	97	164	278	435	655	891		1	52	88	147	230	345	469
	1.25	122	206	348	544	819	1115		1.25	66	110	184	288	432	588
	1.6	156	264	445	696	1048	1427		1.6	84	142	236	368	553	753
	2	191	323	546	853	1284	1748		2	103	174	289	451	677	922
	2.5	232	391	661	1033	1556	2118		2.5	125	211	350	546	821	1117
	3.15	―	―	824	1233	1858	2528		3.15	―	―	―	―	―	―
	4	―	―	―	―	2202	2996		4	―	―	―	―	―	―

Note: The conveying capacity in the table is calculated under the conditions of material bulk density r=1.0t/m3, conveyor inclination angle of 0°~7°, andmaterial dynamic stacking angle of 30°.

Customer Feedback:

The TD75 Parallel Idler has earned positive feedback from mining professionals for its reliability and efficiency:

1. Shanxi Coal Mining Co., China

   “The TD75 Parallel Idlers from [Your Company Name] stabilized our return belt, reducing maintenance by 20%. Their support team was exceptional.” – Li Ming, Operations Manager

2. Australian Gold Mine

   “These idlers eliminated belt sagging issues in our high-capacity conveyor. The durable design and low maintenance are outstanding.” – Emma Wilson, Site Engineer

3. South African Port Terminal

   “The corrosion-resistant parallel idlers perform flawlessly in our coastal environment. Maintenance costs are down significantly.” – Thabo Nkosi, Logistics Manager

4. Chilean Copper Mine

   “The TD75 Parallel Idlers improved our conveyor uptime by 15%. The customizable options were a perfect fit.” – Juan Morales, Maintenance Supervisor

These testimonials reflect [Your Company Name]’s commitment to quality and customer satisfaction.

Related Questions (FAQs):

Below are answers to common questions, incorporating long-tail keywords for SEO:

1. What is the TD75 Parallel Idler?

A flat idler on the return side of the TD75 conveyor system supports the belt to prevent sagging and ensure smooth operation in mining and other industries.

2. What materials are used in TD75 Parallel Idlers?

Q235 steel for tubes, 45# steel for shafts, with optional corrosion-resistant coatings.

3. How often should I maintain parallel idlers?

Inspect every 3-6 months, lubricate bearings, and clean to prevent buildup.

4. Can TD75 Parallel Idlers be customized?

Yes, we offer tailored diameters, lengths, and coatings. Contact us for custom solutions.

5. Which industries use TD75 Parallel Idlers?

Mining, metallurgy, ports, construction, and power plants for bulk material handling.
