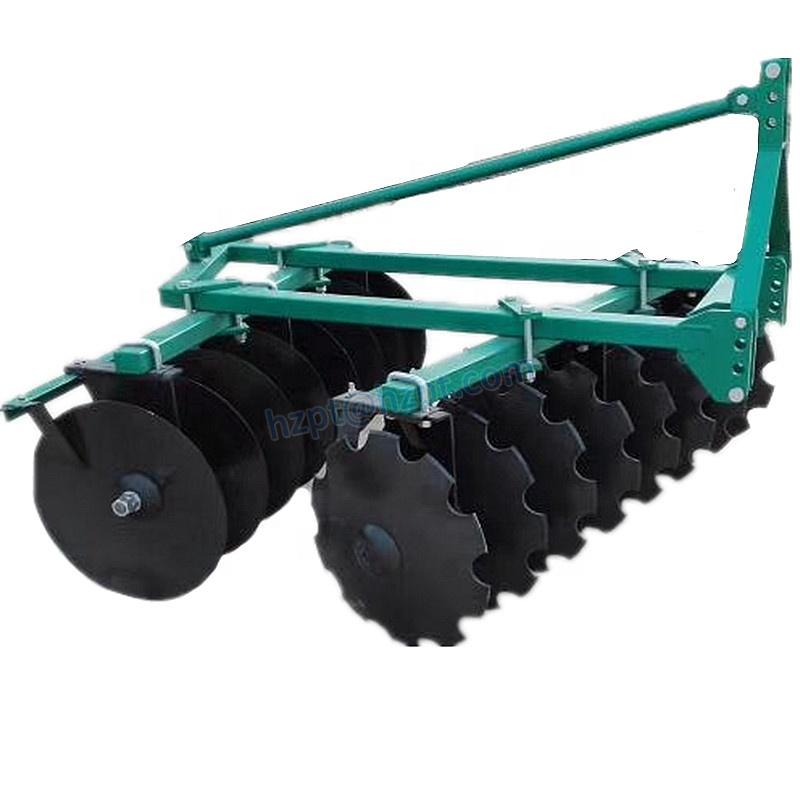

Introducing our new product for 2021 - a light-duty disc harrow ATV designed for farm cultivation. This diesel-powered, tractor-implemented machine weighs 120kg and boasts high productivity. This disc harrow ATV is ideal for breaking hardened surfaces and cutting up straws, facilitating efficient soil preparation. With a one-year warranty and after-sales video technical support, you can be assured of our commitment to quality and customer satisfaction. Core components include high-quality disc blades, bearings, and a tempered square shaft. Whether you're working on a farm or in other relevant industries, this machine is the ideal choice for optimal performance.

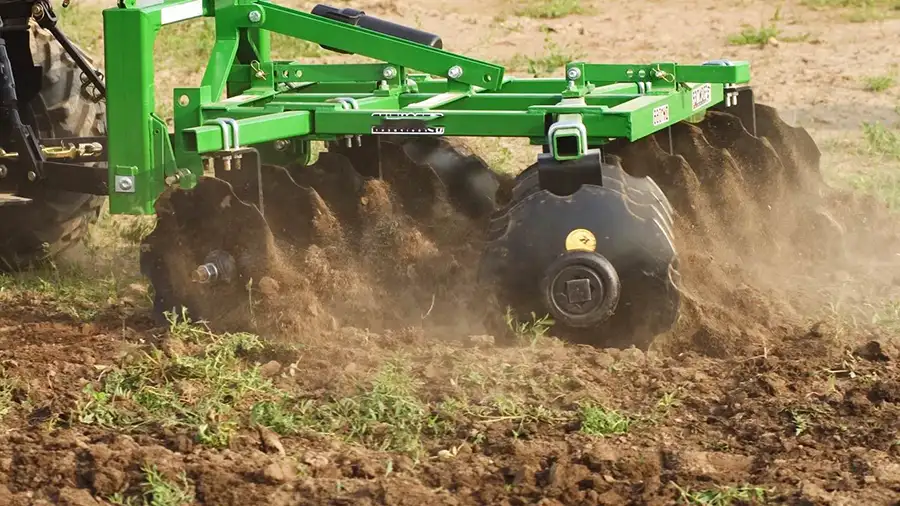

The disc harrow ATV operates by cutting, breaking, and turning the soil via its disc blades. Each blade, made from 65Mn spring steel, is 410mm in diameter and 3mm thick. This machine is designed to work at a depth of 140mm and a width of 900mm, making it efficient for a wide range of farm cultivation tasks. The tractor implements are linked at one point for easy attachment and detachment. It runs on a 12-14hp power source. The machine is packed in an iron case with dimensions of 1700mm*720mm*400mm or 1700mm*720mm*650mm, and can be shipped from ports in Shanghai, Ningbo, or Qingdao, China. Installation and uninstallation are simple processes, and maintenance guidelines will be provided to ensure the longevity and optimal performance of the machine.
At Raydafon, we pride ourselves on providing top-tier agricultural machinery. Our disc harrow ATV, manufactured by the respected Raydafon Group Co., Ltd., is no exception. It combines high-quality materials, innovative design, and user-friendly features to deliver a product that meets the needs of modern farming. Why wait? Enhance your farming operations with our disc harrow ATV today! Contact us for more information on our products, and let's discuss how we can contribute to your agricultural success.
The Quadivator ATV tandem disc is designed for heavy-duty tasks. Equipped with a 2'' hitch ball, it can be used with ATVs, UTVs, small tractors, or any other vehicles. It's especially effective in high stubble/trash areas or heavy weed-infested terrains. Thanks to its lightweight and easy maneuverability, it's also well-suited for wet or boggy ground and tighter spaces.
| Model | ATV-900 |
| Working width | 900mm |
| Working depth | 140mm |
| Diameter of disc | 410mm |
| Thickness of disc | 3mm |
| Weight | 120kg |
| Matched power | 12-15hp |
| No. of disc | 8pcs |
| Bearing | sealed bearing pedestal, with grease fitting ,can add oil after working |
| Linkage | ball head link |
We offer a two-year warranty for our products. In addition, we provide spare parts along with the product for free. These easy-damage parts can be replaced if they stop working due to quality issues during the warranty period. We accept T/T 30% in advance, and 70% T/T after shipping, or L/C at sight for payment. Contact us today for more information about our products and services.
