Tractor Mounted 3 Point Hitch Road Sweeper for Cleaning Road RSS120 RSS160 RSS180

Tractor Mounted 3 Point Hitch Road Sweeper for Cleaning Road RSS120 RSS160 RSS180

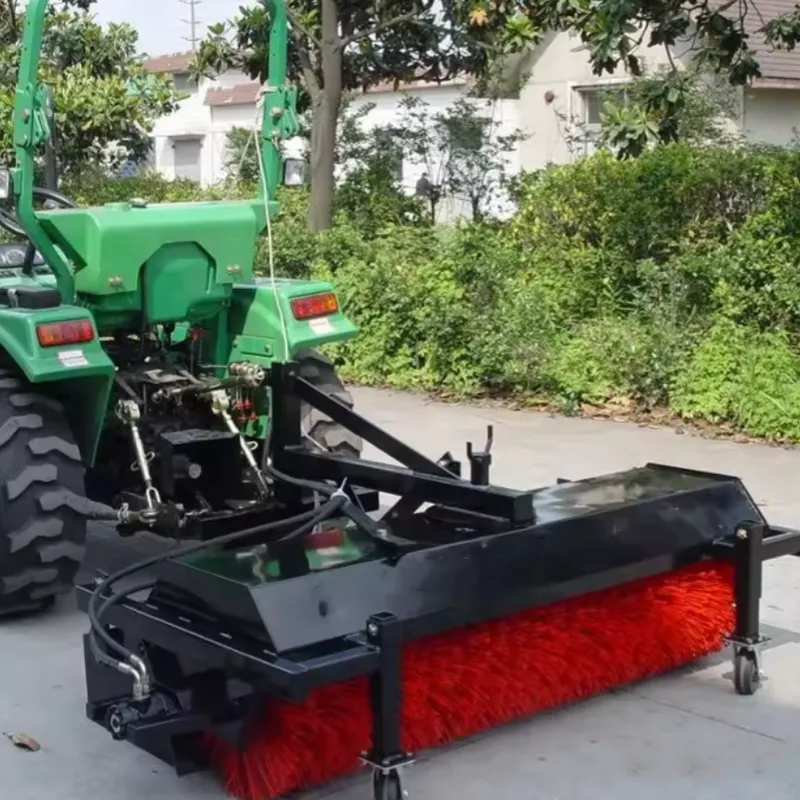

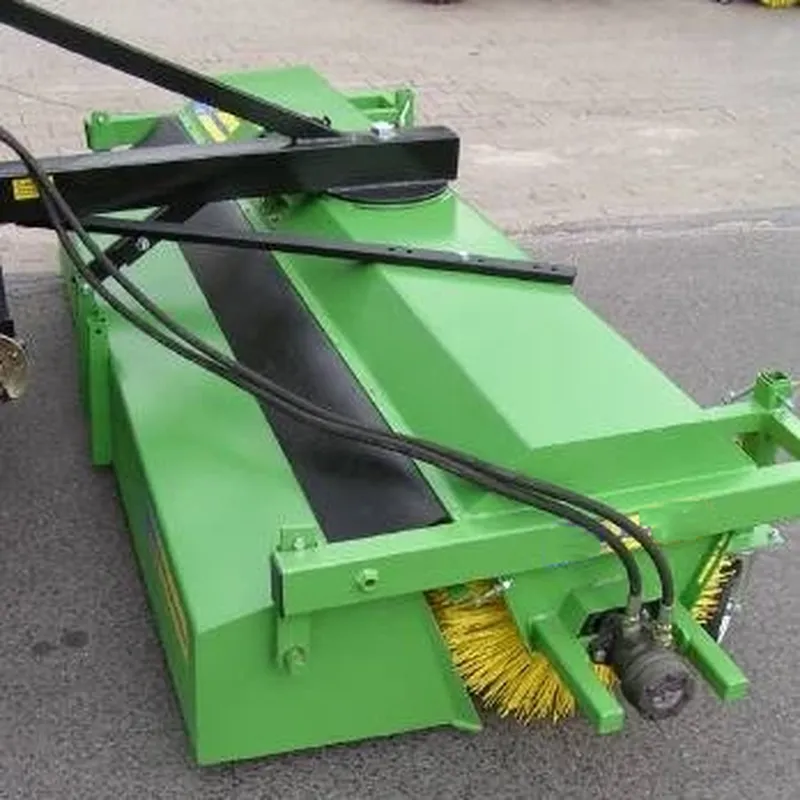

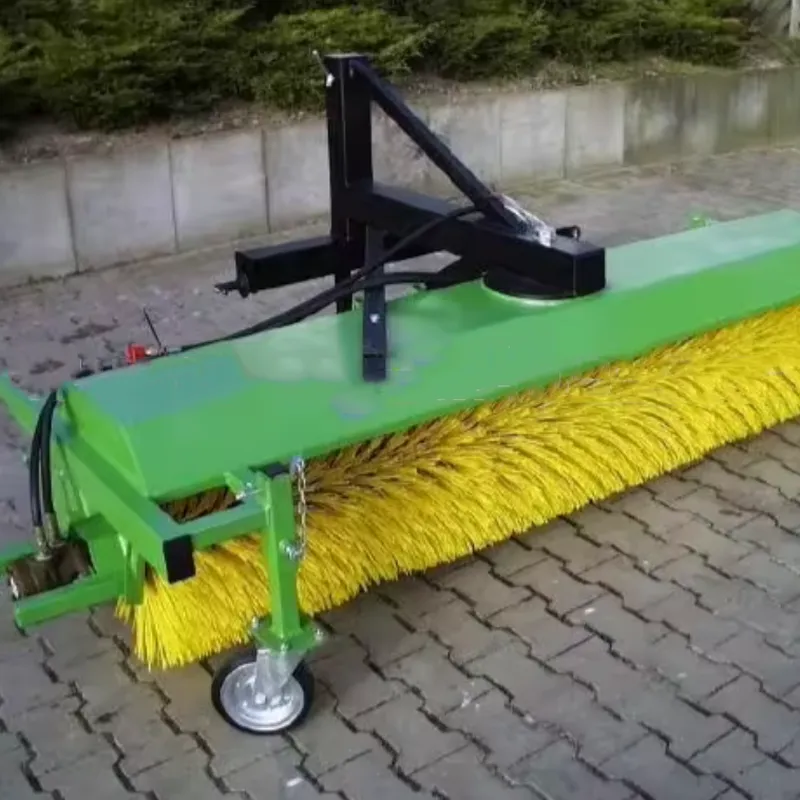

A tractor-mounted 3-point hitch road sweeper is a specialized attachment designed to be mounted on the rear of a tractor using a three-point hitch system. It is primarily used for cleaning and sweeping roads, parking lots, sidewalks, and other paved surfaces. The road sweeper attachment consists of a rotating brush or a set of brushes, a collection hopper, and a hydraulic system that powers the operation. The 3-point hitch system allows easy attachment and detachment of the road sweeper to the tractor, making it a versatile and convenient tool for road maintenance and cleaning tasks. The attachment connects to the tractor's hydraulic system, which provides the power needed to rotate the brush(es) and operate other functions. The rotating brush(es) on the road sweeper are typically made of durable bristles that effectively sweep and collect debris, dirt, leaves, and other loose materials from the surface. The brush(es) can be adjusted to different heights and angles to ensure efficient cleaning and accommodate varying road conditions. Some models may also include a water spray system to dampen the surface, facilitating better dust control during sweeping. The swept debris is collected in a hopper, which is usually equipped with a hydraulic dumping mechanism for easy disposal. The hopper has a generous capacity to hold a significant amount of debris, reducing the frequency of emptying and increasing productivity. Tractor-mounted 3-point hitch road sweepers are commonly used by municipalities, road maintenance crews, landscaping companies, and property owners who need to maintain clean and well-kept roadways and paved areas. They are particularly useful for removing dirt, leaves, and other loose materials that can accumulate and pose hazards to pedestrians, cyclists, and drivers.

Tractor Mounted 3 Point Hitch Road Sweeper Specifications

Model	RSS120	RSS160	RSS180
Structure weight:	180kg	220kg	240kg
Overall dimension(mm):	1380*800*800mm	1780*800*800mm	1980*800*800mm
Brush width(mm)	1180	1580	1780
work efficiency (m2 /hour)	16800	22100	24800
Required tractor power	20-45	50-75	80-100
Connecting method with tractor	3 point suspension
Driveline specification:	Motor drive
Brush material	PP
Brush axle material	Seamless steel
brush rotation speed	180 rpm
Brush diameter	560mm
Min order quantity	10 sets

Advantages of Using the Tractor Mounted 3 Point Hitch Road Sweeper

Using a tractor-mounted 3 point hitch road sweeper offers several advantages for maintaining roads, farm paths, parking lots, and other paved or unpaved surfaces. This versatile attachment leverages the power and mobility of a tractor to provide efficient, effective cleaning. Here are the key benefits: 1. Versatility: The 3-point hitch system allows for easy attachment and detachment of the road sweeper, making it compatible with a wide range of tractors. This versatility enables the road sweeper to be used in various applications and on different types of surfaces, including roads, parking lots, sidewalks, and other paved areas. 2. Efficient Cleaning: The rotating brush(es) on the road sweeper are designed to effectively sweep and collect debris, dirt, leaves, and other loose materials from the surface. The adjustable brush height and angle ensure optimal cleaning performance in different road conditions. This efficiency helps save time and effort compared to manual sweeping methods. 3. Increased Productivity: The road sweeper's large collection hopper enables it to hold a significant amount of debris before needing to be emptied. This reduces the frequency of stops for emptying, which in turn increases productivity and allows for more continuous cleaning operations. 4. Dust Control: Some road sweepers are equipped with a water spray system that dampens the surface during sweeping. This helps minimize dust and airborne particles, improving air quality and reducing health hazards for workers and nearby residents. The dust control feature is particularly important in dry and dusty environments. 5. Cost-effective: Using a tractor-mounted road sweeper can be cost-effective compared to dedicated street sweeping vehicles. Instead of investing in a separate vehicle, the road sweeper attachment can be mounted on an existing tractor, leveraging the tractor's power and minimizing additional expenses. 6. Easy Maintenance: Tractor-mounted road sweepers are generally designed for easy maintenance. They often have simple mechanical systems that are easy to maintain and repair. Regular maintenance ensures the longevity and consistent performance of the road sweeper attachment.

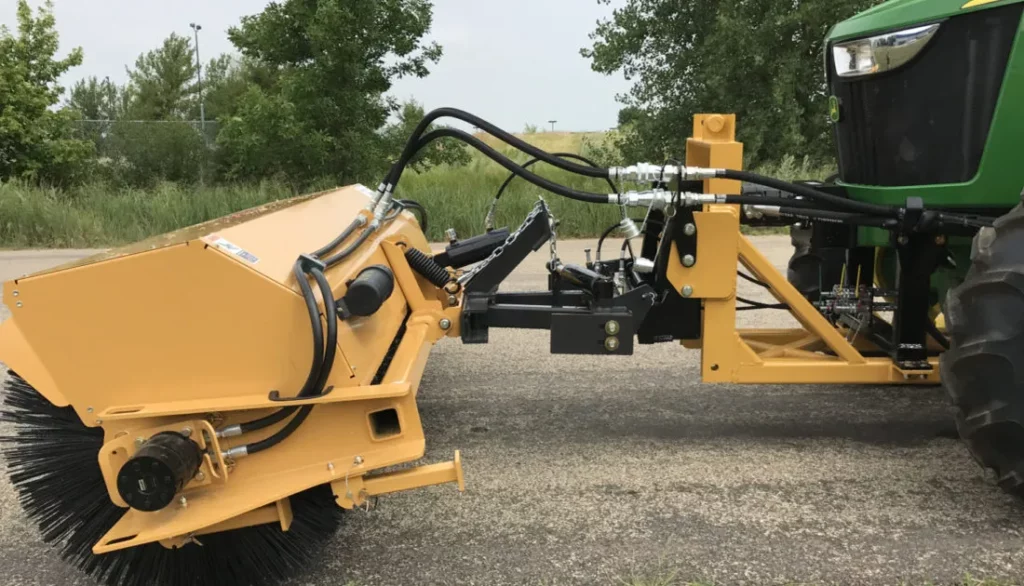

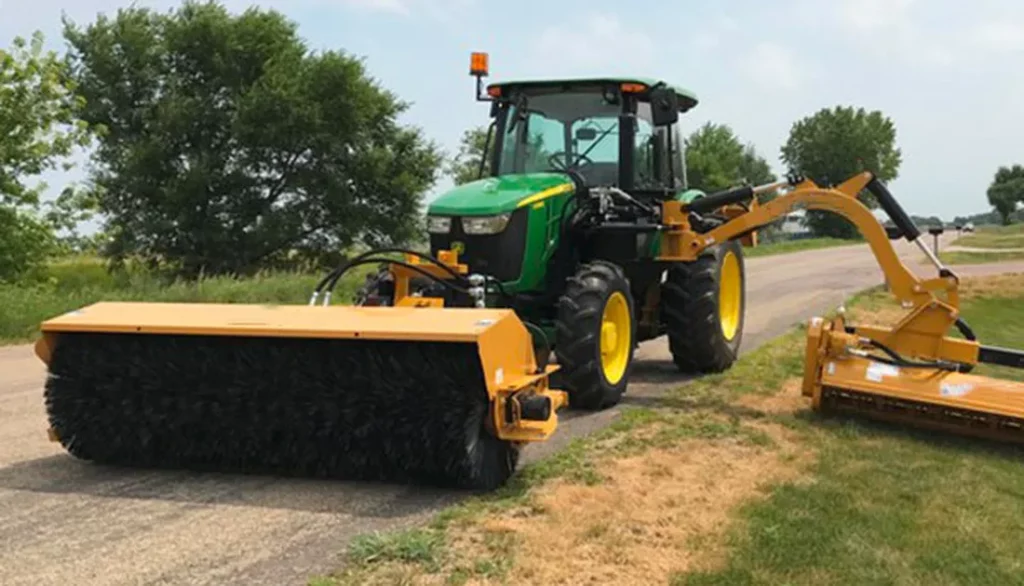

Working Principle of Tractor Mounted 3 Point Hitch Road Sweeper

The working principle of a tractor-mounted 3-point hitch road sweeper involves a combination of mechanical and hydraulic systems. Here's a step-by-step explanation of how it operates:

• Attachment to the Tractor: The road sweeper is connected to the tractor's three-point hitch system. This hitch provides stability and allows the road sweeper to be raised, lowered, and angled as needed.
• Power Source: The road sweeper attachment is powered by the hydraulic system of the tractor. Hydraulic hoses are connected from the tractor's hydraulic ports to the road sweeper, providing the necessary hydraulic power for various functions.
• Brush Rotation: The primary component of the road sweeper is the rotating brush or set of brushes. The hydraulic system supplies power to rotate the brush(es) at a high speed. The brush is attached to a central shaft, which is connected to a hydraulic motor. When the hydraulic motor is activated, it drives the brush to rotate, enabling it to sweep the surface.
• Brush Adjustment: The height and angle of the brush(es) can be adjusted to accommodate different road conditions and cleaning requirements. This adjustment is typically controlled by hydraulic cylinders connected to the brush assembly. By activating the hydraulic cylinders, the operator can raise or lower the brush height and change the angle to ensure optimal sweeping performance.
• Debris Collection: As the brush(es) rotate and sweep the surface, they collect debris, dirt, leaves, and other loose materials. The swept debris is gathered and directed into a collection hopper located behind the brush assembly.
• Hydraulic Dumping: The collection hopper is equipped with a hydraulic dumping mechanism. When the hopper reaches its capacity or needs to be emptied, the hydraulic system activates the dumping mechanism. This allows the hopper to tilt or lift, emptying its contents into a designated area such as a truck or a designated dumping site.
• Operator Control: The operator controls the various functions of the road sweeper from the tractor's cabin. Hydraulic control valves and switches are used to activate the brush rotation, adjust the brush height and angle, engage the dumping mechanism, and operate any optional features like the water spray system.

Applications of Tractor Mounted 3 Point Hitch Road Sweeper

A tractor-mounted 3-point hitch road sweeper is a versatile tool with various applications in road maintenance, cleaning, and other related tasks. Here are some common applications: (1) Road Cleaning: The primary application of a road sweeper is to clean roads and highways. It efficiently removes debris, dirt, leaves, and other loose materials from the surface, ensuring clean and safe road conditions. This is particularly important for maintaining good visibility and preventing slip and fall hazards. (2) Parking Lots and Driveways: Road sweepers are also used to clean parking lots and driveways. They effectively remove dirt, sand, gravel, and other debris that accumulate in these areas. Regular sweeping helps maintain cleanliness, prevent clogging of drains, and enhance the appearance of parking lots and driveways. (3) Sidewalks and Pathways: Tractor-mounted road sweepers are useful for cleaning sidewalks, pathways, and pedestrian areas. They remove leaves, litter, and other debris, ensuring safe and clean walkways for pedestrians. This is especially important in urban areas, parks, educational institutions, and commercial complexes. (4) Construction Sites: Road sweepers are employed in construction sites to clean up loose materials such as dust, sand, and debris that accumulate during various construction activities. They help maintain a clean and safe working environment while preventing materials from entering nearby roads or stormwater systems. (5) Airport Runways and Aprons: Road sweepers are employed in airports to clean runways, taxiways, and aprons. They remove rubber deposits from aircraft tires, debris, and foreign objects that may pose safety risks. Regular sweeping is essential to maintain proper friction levels and prevent foreign object damage to aircraft. (6) Landscaping and Grounds Maintenance: Road sweepers are useful for maintaining the cleanliness and appearance of landscaping and grounds. They remove leaves, grass clippings, and other organic materials, preventing them from accumulating and potentially damaging the landscape or obstructing drainage systems.

Why Choose Raydafon's 3 Point Hitch Road Sweeper?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer a range of professional, international certifications, customized services, state-of-the-art production facilities, and dependable after-sales services.
