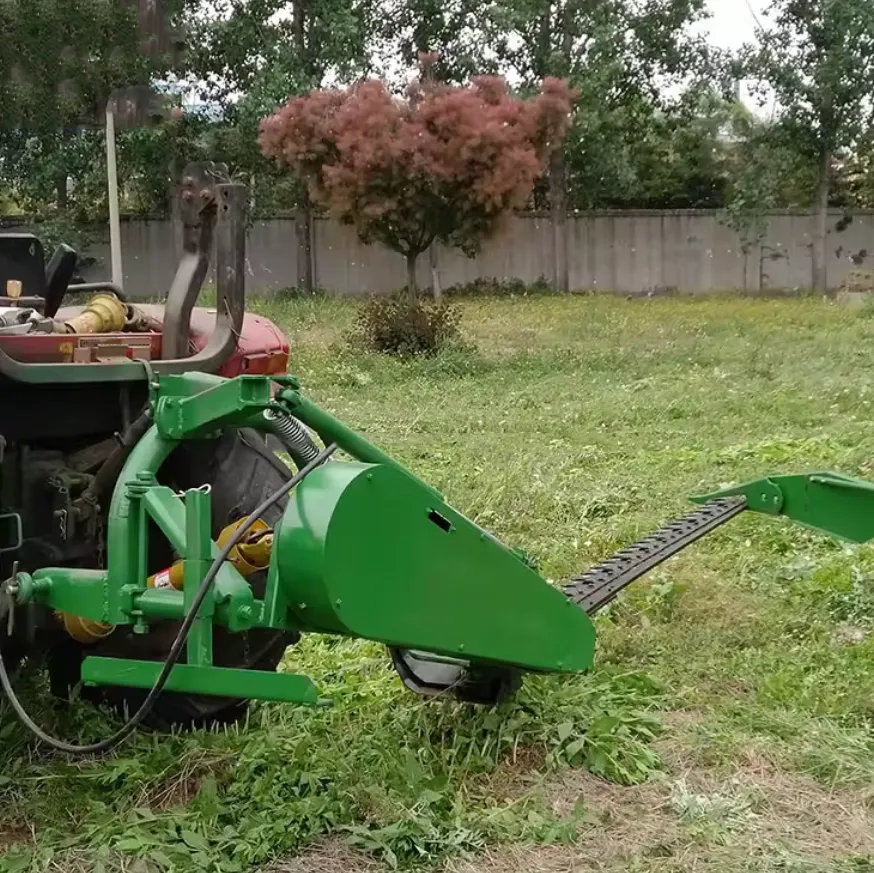

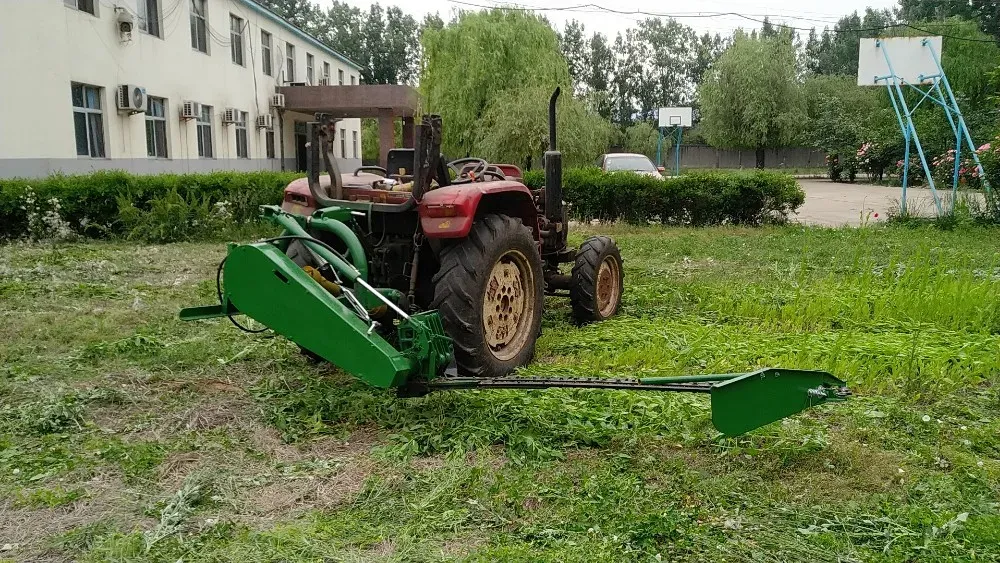

Tractor Mounted Walk Behind Sickle Bar Mower for Cutting Grass

[embed]https://youtu.be/FwR3csSOV-I[/embed]

Tractor Mounted Walk Behind Sickle Bar Mower for Cutting Grass

A tractor-mounted walk-behind sickle bar mower is a versatile agricultural implement designed to efficiently cut grass, hay, or other vegetation in large areas. It consists of a cutting bar or blade, which is attached to a tractor using a hitch or mounting system. The operator walks behind the mower while it is being pulled by the tractor, guiding it along the desired cutting path. The sickle bar mower derives its name from the sickle-shaped cutting blade that moves back and forth horizontally to cut the vegetation. This bar is typically made of high-quality steel and is driven by a power take-off (PTO) shaft connected to the tractor's engine. As the blade oscillates, it cleanly cuts through the vegetation, leaving a neat and even finish. One of the key advantages of a tractor-mounted walk-behind sickle bar mower is its versatility. It can handle a wide range of terrains and vegetation types, including grass, weeds, light brush, and even small saplings. It is particularly effective in areas where traditional rotary mowers may struggle, such as uneven terrain or areas with obstacles like rocks or roots. The mower's cutting height is adjustable, allowing the operator to adapt to different vegetation heights and achieve the desired cutting height. Some models may also offer adjustable cutting angles, enabling the operator to tackle slopes or ditches with ease.

Tractor Mounted Walk Behind Sickle Bar Mower Specifications

Specification
Model	GM-1.4		GM-1.6	GM-1.8	GM-2.1
Working Width	1.4m		1.6m	1.8m	2.1m
Stubble Height	3cm		3cm	3cm	3cm
Overall Weight	170kg		190kg	200kg	220kg
Matched Power	15-30HP		20-40HP	30-50HP	30-60HP
Linkage	3 point linkage		3 point linkage	3 point linkage	3 point linkage
PTO Speed	540rpm		540rpm	540rpm	540rpm

Tractor Mounted Walk Behind Sickle Bar Mower Design Features

1. This machine also works with a tractor with a horsepower of 15-35. 2. Using offset crank connecting rod mechanism, driving the cutter for working. 3. It is suitable for home use, agriculture, forestry, pastoral areas, and sloping flat pastures and hills to different conditions, such as pastures. 4. It is used to harvest natural grass and plant grass, alfalfa, reeds, investment, etc. 5. Drive the tractor motive power output shaft cutter cutting motion, three-point suspension mechanism control machine of the ups and downs, manipulation of the tractor power output mechanism (Manipulation of tractor clutch)Realize the movement of cutting or stopping. 6. The hoisting mechanism is divided into an oil cylinder and a hoisting frame. 7. The machine, according to the power output type, can be divided into two models: one on the left side of the power output and one on the back end of the power output. Respectively, with a four-wheel tractor on the left side of the power output, the back end of the power output. 8. The machine is operated by the tractor driver only . 9. The motor performance is good; if it comes to the barrier, it can improve the cutter operation of tractor hydraulic equipment. This machine has a simple structure, convenient operation, powerful cutter cutting, low stubble and orderliness, reliable use, etc. Having been granted by the National Patent Office, I approved utility models and designed two patents.

Tractor Mounted Sickle Bar Mower Working Principle

The working principle of a tractor-mounted sickle bar mower involves the rotation of the power take-off (PTO) shaft, which drives the cutting bar or blade. Here are the basic steps involved in the working of a sickle bar mower: 1. Mounting and Connection: The sickle bar mower is connected to the tractor using a hitch or mounting system, ensuring a secure attachment. The PTO shaft of the mower is connected to the PTO output of the tractor. 2. Power Transmission: When the tractor's engine is running, power is transferred to the PTO shaft, which transmits rotational energy to the sickle bar mower. 3. Blade Oscillation: The rotational energy from the PTO shaft is transferred to the sickle bar assembly, which consists of a series of reciprocating cutting blades. These blades are attached to a long bar that spans the width of the mower. 4. Cutting Action: As the sickle bar assembly rotates, the cutting blades move back and forth horizontally in a reciprocating motion. This motion is achieved through a combination of gears and linkages. The blades pass through a stationary guard or guard fingers, which help guide the vegetation into the cutting area. 5. Vegetation Cutting: As the sickle bar blade moves back and forth, it cuts through the vegetation that comes into contact with it. The sharp edge of the blade slices through the vegetation cleanly, leaving a neat and even cut. 6. Discharge or Mulching: Depending on the design of the mower, the cut vegetation is either discharged out of the mower or mulched into smaller pieces. Some sickle bar mowers have a discharge chute that throws the cut material to the side, while others may have a mulching plate that chops the vegetation into finer pieces and allows it to fall back onto the ground. 7. Operator Guidance: The operator walks behind the tractor-mounted sickle bar mower, guiding it along the desired cutting path. The operator may need to make adjustments to the cutting height or angle to achieve the desired results.

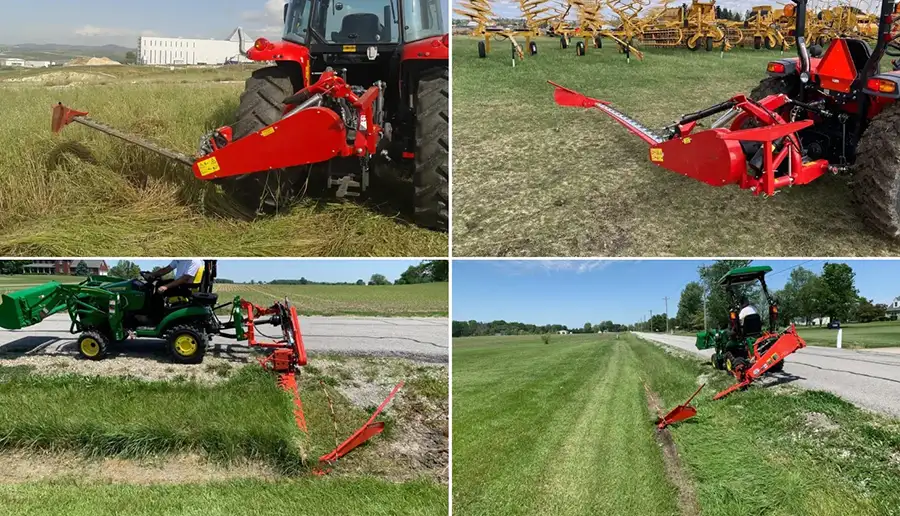

Tractor Mounted Sickle Bar Mower Common Applications

Tractor-mounted sickle bar mowers have a wide range of agricultural applications and are commonly used in various farming operations. Here are some of the key agricultural applications of a tractor-mounted sickle bar mower:

• Hay and Forage Harvesting: Sickle bar mowers are widely used for cutting and harvesting hay and forage crops. They can efficiently cut tall grasses, legumes, and other forage crops, allowing farmers to harvest high-quality feed for livestock. The adjustable cutting height of the mower enables farmers to achieve the desired stubble height for optimal regrowth.
• Pasture Management: Sickle bar mowers are effective tools for maintaining and managing pastures. They can be used to control the height of grass and weeds, preventing them from becoming overgrown and ensuring better utilization of grazing areas. By mowing pastures, farmers can promote the growth of desirable forage species, reduce weed competition, and improve overall pasture quality.
• Weed Control: Tractor-mounted sickle bar mowers are useful for controlling weeds in agricultural fields. They can efficiently cut down and manage weeds, reducing their competition with crops for nutrients, water, and sunlight. Mowing weeds before they go to seed can help prevent their spread and minimize future weed infestations.
• Cover Crop Management: Sickle bar mowers are often employed in cover crop management. Cover crops are grown to protect and improve the soil between cash crop seasons. When it's time to terminate the cover crop, a sickle bar mower can be used to cut it down, facilitating its incorporation into the soil as green manure or organic matter.
• Roadside Maintenance: Tractor-mounted sickle bar mowers are commonly used for roadside maintenance and vegetation control. They can effectively mow grass and brush along roadsides, ditches, and embankments, improving visibility, reducing fire hazards, and maintaining clean and well-maintained road edges.
• Landscaping and Grounds Maintenance: Sickle bar mowers are also valuable tools for landscaping and grounds maintenance. They can be used to mow large areas of grass, trim vegetation around fences, paths, and buildings, and maintain parks, sports fields, golf courses, and other recreational areas.

Why Choose Raydafon's Sickle Bar Mower?

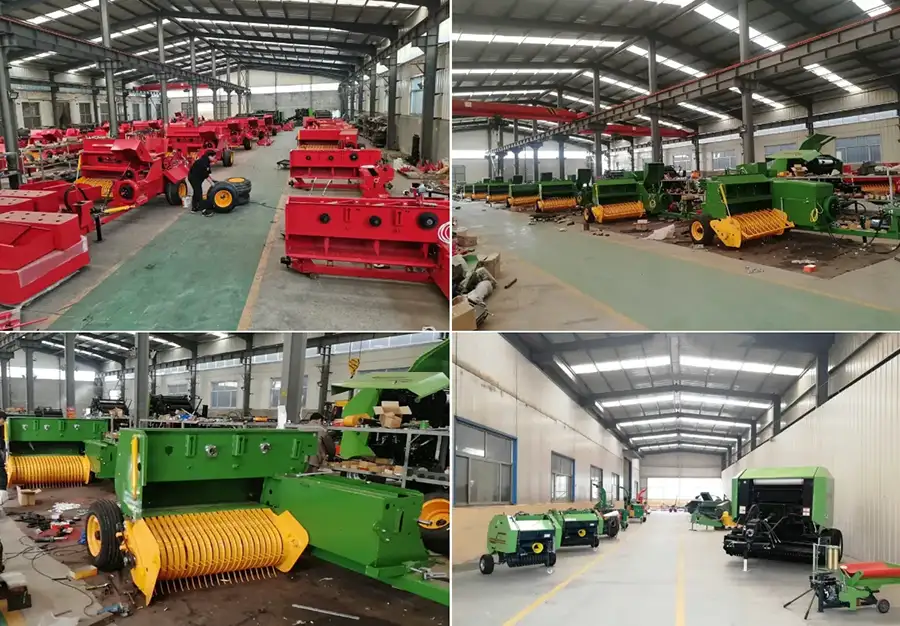

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, corn seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
