Tractor PTO Driven Flail Mower with Hydraulic Side Shift for Cutting Grass EFGCH Series

[embed]https://youtu.be/uV9sIx16M9o[/embed]

Tractor PTO Driven EFGCH Series Flail Mower with Hydraulic Side Shift

The EFGCH Series Flail Mower is powered by the power take-off (PTO) of a tractor, which transfers the rotational power from the tractor's engine to the mower. This allows for efficient and consistent cutting performance, as the mower's blades rotate at high speeds to effectively shred and mulch the vegetation. One of the key features of the EFGCH Series Flail Mower is its hydraulic side shift mechanism. This feature allows the operator to adjust the lateral position of the mower while it is in operation. By utilizing hydraulic cylinders, the mower can be shifted to the left or right, enabling cutting along fence lines, around obstacles, or in tight spaces. This flexibility ensures that the mower can reach areas that would otherwise be difficult or impossible to access, enhancing the overall efficiency and effectiveness of the mowing process. The flail mower's cutting system consists of a series of vertically rotating knives or "flails" that are attached torotating shafts. These flails are designed to cut and mulch the vegetation, providing a fine and even distribution of the cut material. The high-speed rotation of the flails ensures that even dense and tough vegetation can be effectively processed. The EFGCH Series Flail Mower is typically equipped with a heavy-duty steel housing that protects the internal components and ensures durability in demanding operating conditions. The mower's design also incorporates safety features such as protective covers and guards to prevent debris from being thrown out during operation, ensuring the safety of both the operator and the surrounding environment.

Specifications of EFGCH Series Flail Mower with Hydraulic Side Shift

Models	Working Width	PTO Input Seed	Hammer Blades	"Y" Grass Blades	Rotor Seed	Required HP	Shipped Weight	Overall Dimensions
	mm	rpm	N.	N.	rpm	hp	Kg	mm
EFGCH140	1350	540	22	44	2160	40-70	312	1550*800*750
EFGCH160	1550	540	24	48	2160	45-80	330	1750*800*750
EFGCH180	1750	540	28	56	2160	60-90	351	1950*800*750
EFGCH200	1950	540	34	68	2160	75-100	369	2150*800*750
EFGCH220	2150	540	38	76	2160	85-100	390	2350*800*750

Features of PTO Driven EFGCH Series Flail Mower with Hydraulic Side Shift

1. Easy to operate. Some products use the standard tractor hydraulic system to avoid modifying the tractor. 2. Low overall operation cost. The structure of the machines is simple and easy to maintain. Products are discharged directly into the field, which naturally ferments shredded grass into organic fertilizer and reduces labor expenses. Higher operating efficiency. 3. Streamline design on bodies and shells. To prevent scraping off fruits when contacting branches. Fashion and in-style appearance. 4. All products are equipped with safety guard designs, including pulley guard cover, overrunning clutch, drive shaft shear pin and blade stopper to prevent the blade from being thrown out. 5. Originally imported high-quality V-belt. It is designed with special textile canvas for better bendability, serrated heat resistance, better impact resistance, and high transmission efficiency. Stable performance in harsh conditions. 6. Low noise gearbox. QT450 box material, 20CrMnTi gear shaft. With higher strength, high toughness, and high fatigue resistance characteristics. 7. Segmented drive shaft adopts a wide-angle fork head with smooth transportation, low noise, easy installation, disassembly, and maintenance, and large angular compensation capacity. The drive shaft knuckle forks are forged with 45# steel, with compact and reasonable structure, and 98-99.8% transmission efficiency, a remarkable energy-saving effect. 8. High-quality baking paint on whole bodies. No fading in the open-air storage. Level 8. 8 or up for all screws.

Benefits of the Tractor PTO Driven Flail Mower with Hydraulic Side Shift

The Tractor PTO Driven Flail Mower with Hydraulic Side Shift brings a new level of efficiency, precision, and versatility to land management and maintenance tasks. This advanced piece of equipment offers numerous benefits that make it an invaluable tool for farmers, landscapers, and anyone responsible for maintaining large areas of land. Here are some of the key benefits: 1. Versatility: The flail mower is designed to handle a wide range of vegetation types, including grass, weeds, and small branches. This versatility allows for efficient maintenance of various areas such as fields, pastures, road verges, orchards, and more. 2. Efficient Cutting Performance: The high-speed rotation of the flail mower's blades ensures effective cutting and mulching of vegetation. The flails are designed to shred the material into fine pieces, promoting better decomposition and reducing the need for additional cleanup. 3. Hydraulic Side Shift: The hydraulic side shift mechanism enables the operator to adjust the lateral position of the mower while it is in operation. This feature is particularly useful when cutting along fence lines, around obstacles, or in tight spaces. It enhances maneuverability, reduces the need for manual trimming, and ensures thorough coverage of the mowing area. 4. Increased Productivity: The combination of the tractor's power take-off (PTO) and the flail mower's cutting efficiency allows for high productivity. The mower can cover large areas quickly and effectively, reducing the time and effort required for mowing tasks. 5. Durability and Reliability: The flail mower is typically built with heavy-duty materials, such as a sturdy steel housing, which ensures durability and longevity even under demanding operating conditions. This reliability reduces maintenance and repair costs, making it a cost-effective choice in the long run. 6. Safety Features: The flail mower is equipped with safety features such as protective covers and guards to prevent debris from being thrown out during operation. This enhances operator safety and minimizes the risk of damage to nearby objects or individuals. 7. Adjustable Cutting Height: Some models of the flail mower may offer adjustable cutting height settings. This allows the operator to customize the cutting height according to specific requirements, ensuring a precise and desired finish.

How Does the Tractor PTO Driven Flail Mower with Hydraulic Side Shift Work?

The Tractor PTO (Power Take-Off) Driven Flail Mower with Hydraulic Side Shift combines mechanical and hydraulic systems to offer enhanced mowing capabilities. This specialized equipment is designed for efficient vegetation management, allowing for precise control and flexibility. Here’s a breakdown of how it operates: 1. Connection and Power Source

• PTO Connection: The flail mower is connected to the tractor’s PTO shaft. The tractor's engine powers the PTO, which in turn provides mechanical power to the mower.
• Three-Point Hitch: The mower is mounted to the tractor using a three-point hitch system, providing a stable and adjustable connection that allows for raising and lowering the mower as needed.

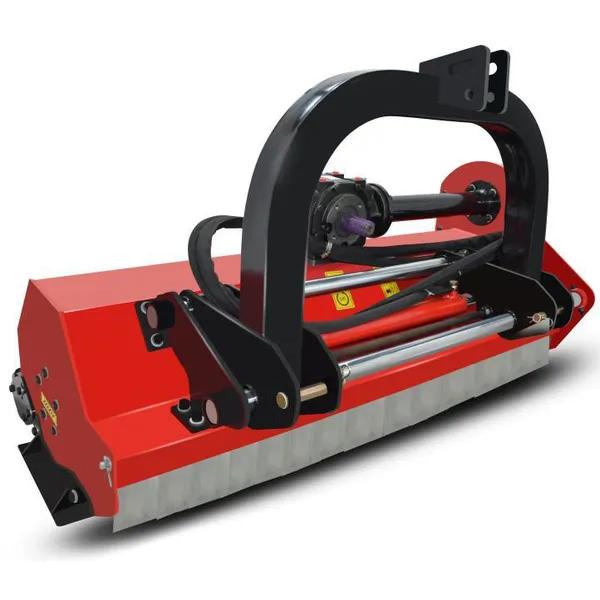

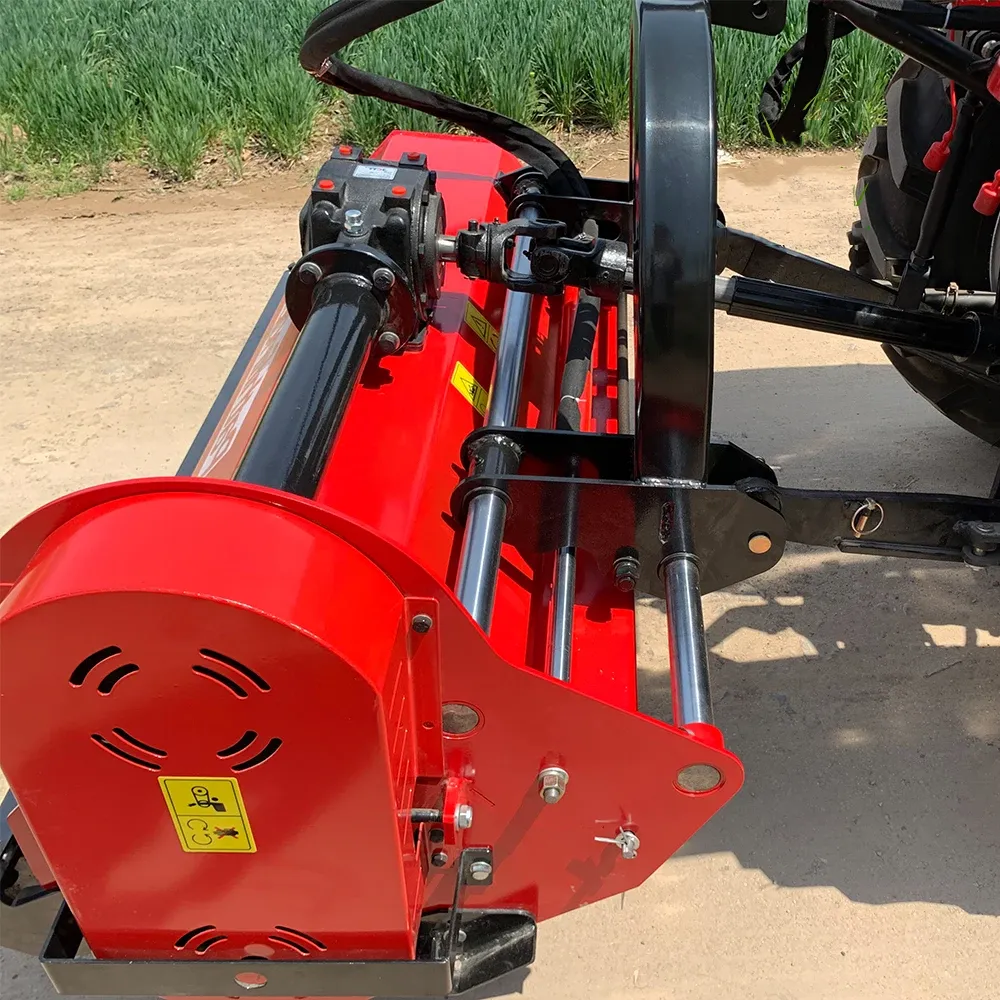

2. Hydraulic Side Shift Mechanism

• Hydraulic Operation: The side shift feature is powered by the tractor’s hydraulic system. Operators can control the mower’s lateral position (left or right) by adjusting the hydraulic flow, which moves the mower independently of the tractor’s position.
• Precise Positioning: This capability allows the operator to move the mower closer to or further from obstacles such as trees, fences, and edges without having to maneuver the entire tractor. It’s particularly useful for trimming along ditches, roads, and field boundaries.

3. Flail Mowing Action

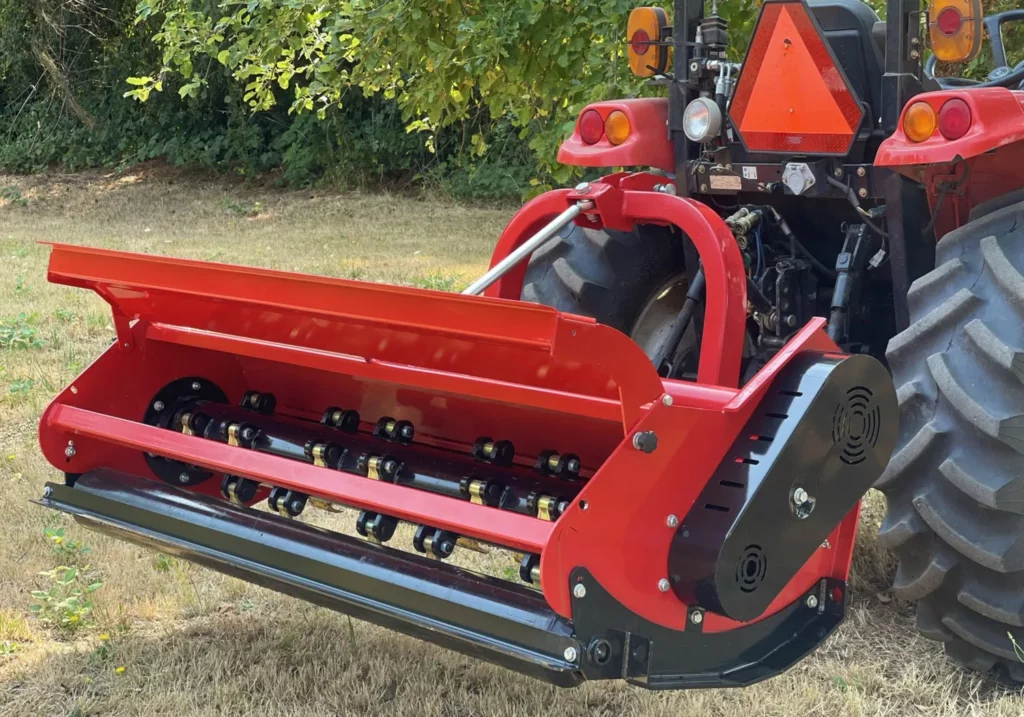

• Rotor and Flails: The core of the mower features a rotating shaft or rotor, to which numerous flails (metal blades or chains) are attached. As the rotor spins, centrifugal force extends the flails outward.
• Cutting Action: When the spinning flails make contact with vegetation, they cut and shred the material into small pieces. Unlike fixed blades, flails provide a hammering effect, reducing the risk of damage from hitting rocks or hard objects and providing a safer operation.

4. Mulching and Distribution

• Mulching Effect: The shredded vegetation is effectively mulched by the flails, which not only cuts but also breaks down the plant material into smaller pieces. This mulch is then evenly distributed over the mowed area, returning nutrients to the soil and promoting healthier regrowth.

5. Adjustable Cutting Parameters

• Height Adjustment: The cutting height can be adjusted through the three-point hitch, allowing for variability based on the specific needs of the terrain or the type of vegetation being managed.
• Roller or Skids: Many models are equipped with a rear roller or skids that help to stabilize the mower at a consistent height, enhancing the quality of the cut and protecting the soil surface.
