Trailer Spare Parts Trailer Coupler Hitch HS-3

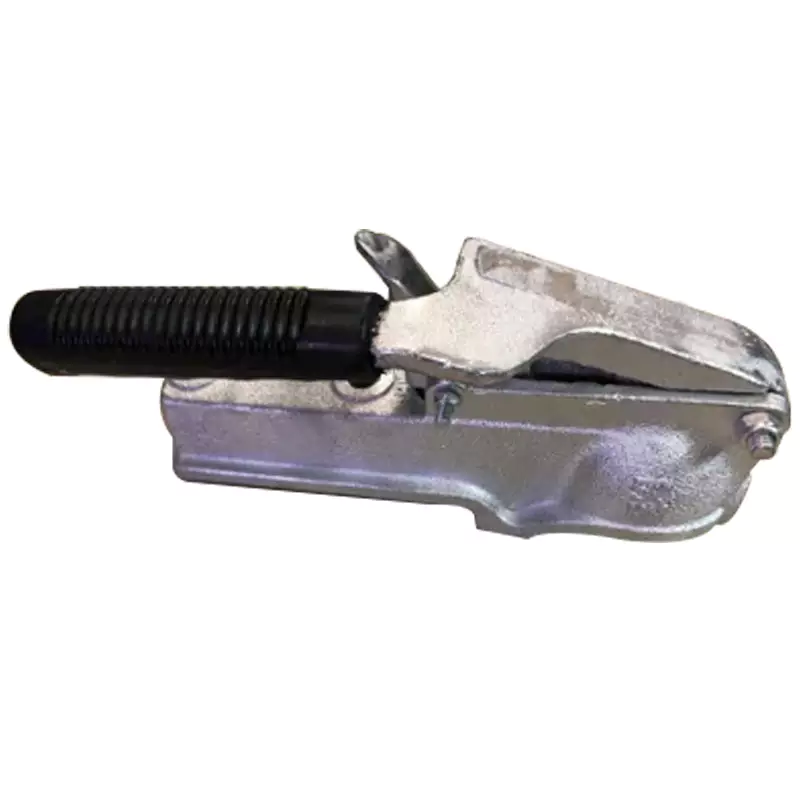

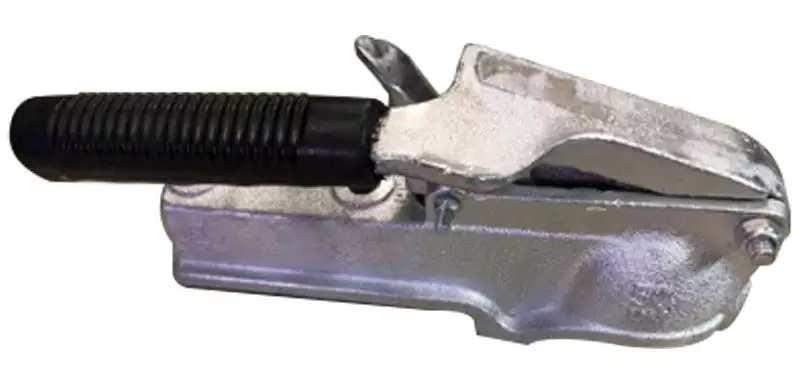

Trailer Coupler Hitch HS-3

Capacity	2000kg
Eye/ball size	50mm



What Are Trailer Couplers For？

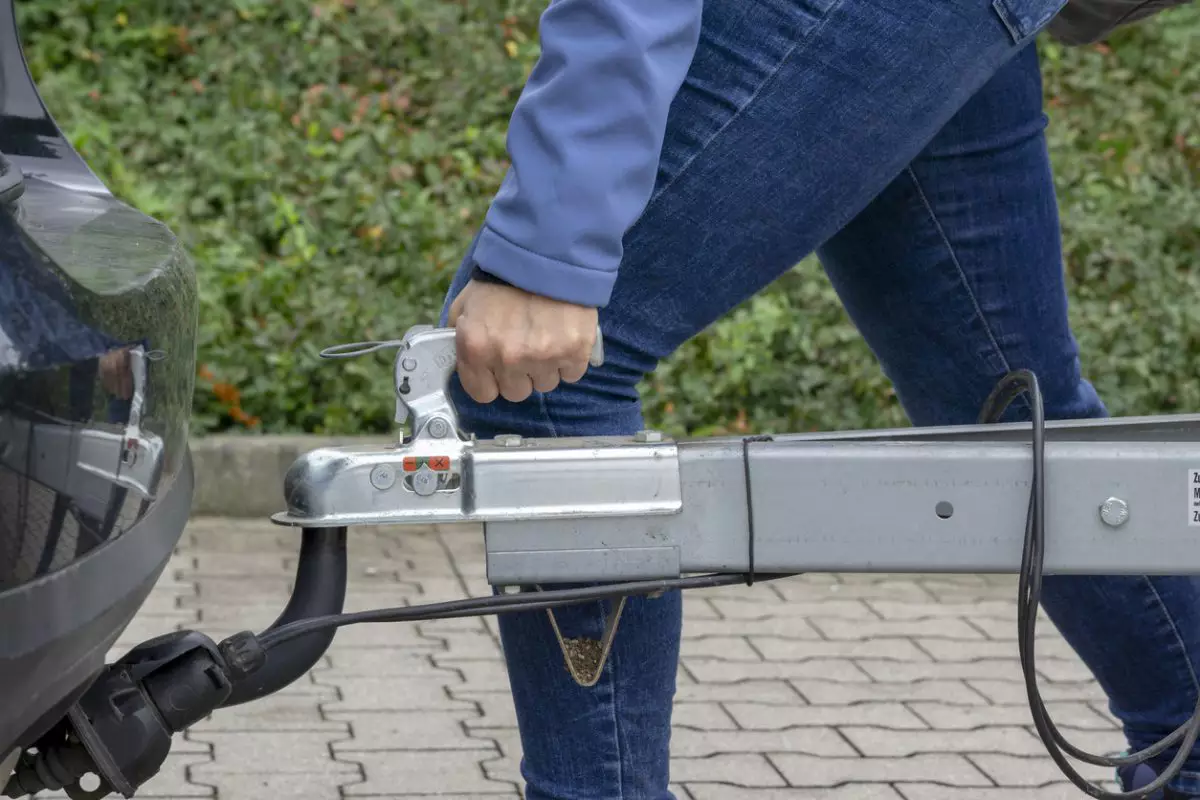

A trailer coupler is the connection point mounted on the trailer which connects and secures the trailer to the vehicle. There are many variations, but all couplers work by clamping around the hitch ball, there are different ways to attach them, some have a hand wheel to tighten the clamp to the ball, others use a lever or a toggle to lock the coupler.When the lever is flipped to the locked position, the clamp is pulled up against the underside of the hitch ball. The fit should be snug but not too tight (binding) and if left too loose there is a danger of the coupler detaching from the hitch ball.

Types of Trailer Couplers

Straight Tongue/Channel Style	The coupler has a square tubular installation sleeve or tongue that can be bolted or installed on a trailer. Designed specifically for trailers with straight channel tongue or rod.
Round Tongue	The coupler slides into the circular tongue and is welded, and they have a spring loaded collar to ensure a tight fit.
A-frame	attaches to A-shaped trailer tongues, they are solid stamped steel couplers that are used for heavier loads.
Flat Mount Couplers	The installation surface is flat and can be connected or welded with bolts instead of channels. These are used as substitutes for towing rings or pivot hooks, which are installed at the end of the trailer tongue and are used for heavy-duty trailers.
Gooseneck	long tubular shaft coupler that is used with a gooseneck hitch, which is commonly used on heavy trailers such as a horse trailer.
Adjustable Couplers	Adjustable trailer couplers provide users with the flexibility to use couplers of different sizes or categories; The ability to adjust up or down to match the height of the tractor; Alternatively, swap them with other options such as clevis or pin ring. The channels (4 holes, 6 holes, 8 holes, etc.) are directly welded to the frame, and you can choose to weld the coupling bolts into the channels.

How to Select a Trailer Hitch Connector？

When selecting a trailer hitch connector, the following factors need to be considered:Type of connector: The type of connector depends on the type of trailer and hitch. For example, standard connectors are suitable for general trailers and container trailers, while special connectors are suitable for specialized trailers.Connector specifications: The specifications of the connector depend on the size and load capacity of the trailer and hitch. Choose the correct connector specifications to ensure reliable connections and avoid excessive stretching or compression.Connector material: The material of the connector depends on the usage environment and conditions of the trailer and hitch. For example, corrosive environments require the use of connectors with better corrosion resistance.Reliability and durability of connectors: Choose connectors with high reliability and durability to ensure that the connection is not affected for prolonged use.The price of connectors: The price of connectors is also one of the factors to consider when selecting. Choose a reasonably priced connector to ensure that the cost of connecting your trailer hitch is reasonable.In summary, selecting a trailer hitch connector requires considering multiple factors. It is recommended that you consult a professional or refer to relevant guidelines before purchasing to ensure the correct connector is selected.
