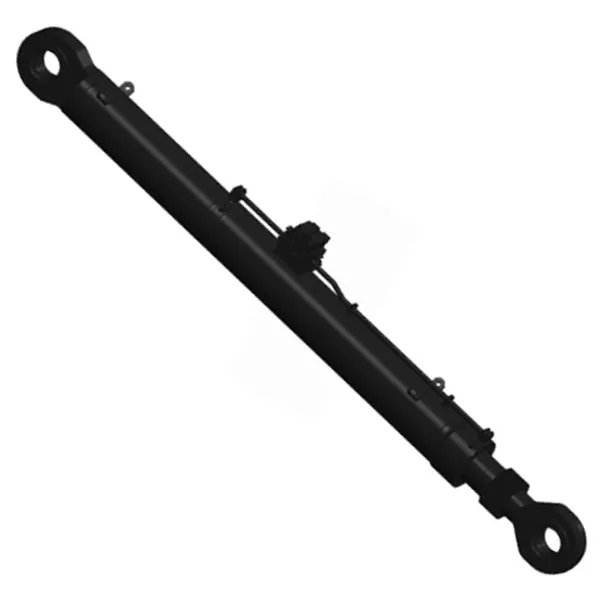

Trailing Suction Dredger Hanger Cylinder

Trailing Suction Dredger Hanger Cylinder

A trailing suction dredger hanger cylinder is a cylindrical device that is used to suspend the dredger's suction pipe from the dredger's hull. The cylinder is typically made of steel and is fitted with a number of lifting lugs. The lugs are attached to the dredger's hull using shackles or other lifting devices.

The hanger cylinder is an important safety feature on a trailing suction dredger. It helps to prevent the suction pipe from collapsing or kinking, which could damage the pipe or the dredger itself. The hanger cylinder also helps to keep the suction pipe in a vertical position, which is important for efficient dredging.

There are a number of different types of trailing suction dredger hanger cylinders available. The type of cylinder that is used will depend on the size and capacity of the dredger, as well as the type of dredging operation that is being performed.

Here are some of the common types of trailing suction dredger hanger cylinders:

• Single-acting cylinders: These cylinders are operated by a single hydraulic ram. They are typically used on smaller dredgers.
• Double-acting cylinders: These cylinders are operated by two hydraulic rams. They are typically used on larger dredgers.
• Telescopic cylinders: These cylinders can extend and retract, which allows them to be used in a variety of dredging applications.
• Pneumatic cylinders: These cylinders are operated by compressed air. They are typically used on dredgers that are operating in remote areas where there is no electricity.

The trailing suction dredger hanger cylinder is an important safety feature on these vessels. It helps to prevent damage to the dredger and the suction pipe, and it also helps to keep the suction pipe in a vertical position for efficient dredging.

Trailing Suction Dredger Hanger Cylinder Specifications:

Product Name	Trailing Suction Dredger Hanger Cylinder
Features:	Provide pulling force for the retracting and unfolding of the hanger
Bore diameter:	450mm
Rod diameter:	220mmStroke: 3630mm
Pressure:	up to 32MPa
Pulling force:	Maximum 3000KN
Applications:	Trailing Suction Dredger

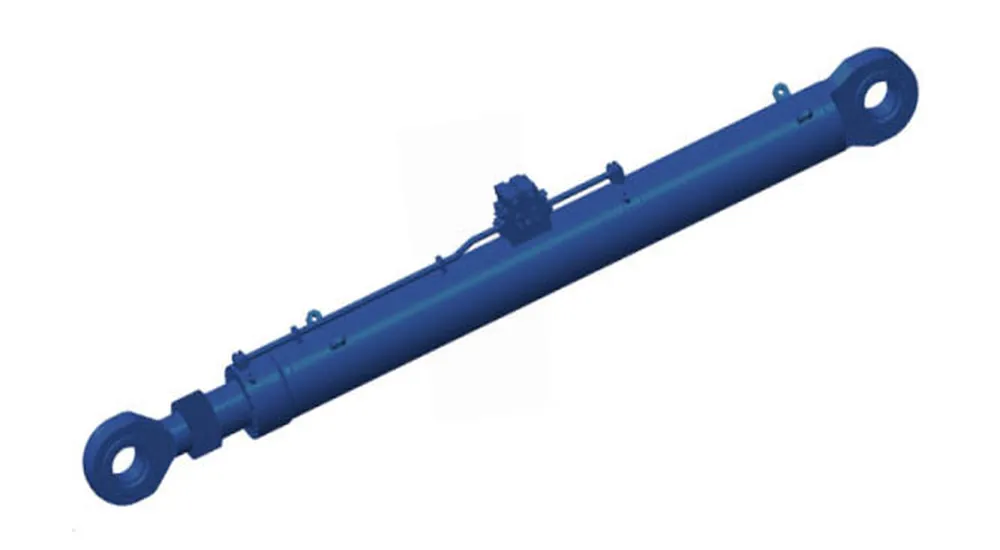

Advantages of Trailing Suction Dredger Hanger Cylinder:

A trailing suction dredger hanger cylinder is a hydraulic cylinder that is used to raise and lower the dredger's suction pipe. It is a critical component of the dredger, and its performance can have a significant impact on the efficiency and safety of the operation.

Here are some of the advantages of using a trailing suction dredger hanger cylinder:

1. Increased efficiency: A well-designed and maintained hanger cylinder can help to improve the efficiency of the dredger by reducing the amount of time it takes to raise and lower the suction pipe. This can lead to significant savings in terms of fuel and operating costs.2. Improved safety: A hanger cylinder that is properly lubricated and maintained can help to prevent accidents, such as the suction pipe collapsing or the dredger tipping over.3. Reduced maintenance costs: A hanger cylinder that is made from high-quality materials and is properly designed can last for many years with minimal maintenance. This can save money in the long run.4. Increased flexibility: A hanger cylinder that can be adjusted to accommodate different types of dredger suction pipes can provide greater flexibility and allow the dredger to be used in a wider variety of applications.

Overall, a trailing suction dredger hanger cylinder is a valuable asset that can help to improve the efficiency, safety, and flexibility of a dredger operation.

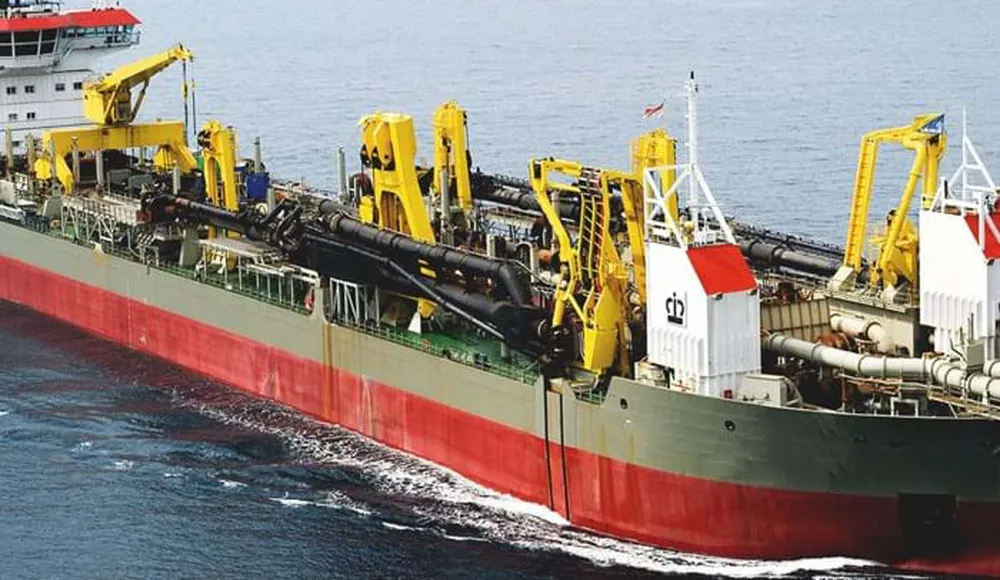

Applications of Trailing Suction Dredger Hanger Cylinder:

The trailing suction dredger hanger cylinder has various applications in dredging operations. It is a critical component that enables the dredger to perform specific tasks and achieve desired results. Here are some common applications of the trailing suction dredger hanger cylinder:(1) Dredging of Navigational Channels: One of the primary applications of the hanger cylinder is in the dredging of navigational channels. It allows the dredger to maintain a specific depth and angle while suctioning sediment and debris from the channel bed, ensuring safe and efficient navigation for vessels.(2) Harbor and Port Maintenance: Hanger cylinders are extensively used in the maintenance of harbors and ports. They enable the dredger to remove accumulated sediments, silt, and debris from berths, access channels, turning basins, and other areas crucial for the smooth operation of maritime traffic.(3) Land Reclamation: The hanger cylinder plays a vital role in land reclamation projects. It allows the dredger to excavate and transport sediments from offshore areas to create new land or expand existing coastlines. The precise control offered by the hanger hydraulic cylinder ensures accurate and controlled placement of the dredged material.(4) Beach Nourishment: Hanger cylinders are employed in beach nourishment projects, where sand is dredged from offshore areas and placed on eroded or depleted beaches. The cylinder helps maintain the desired dredging depth, angle, and distribution of the nourished material, restoring and enhancing beach ecosystems.(5) Environmental Remediation: In environmental remediation projects, hanger cylinders are used to remove contaminated sediments from water bodies. The cylinder allows for precise dredging, ensuring the targeted removal of pollutants and restoration of water quality.(6) Civil Engineering Projects: The hanger cylinder finds application in various civil engineering projects that involve dredging, such as the construction of bridges, tunnels, and offshore structures. It enables the dredger to excavate and remove sediments to create stable foundations for these structures.
