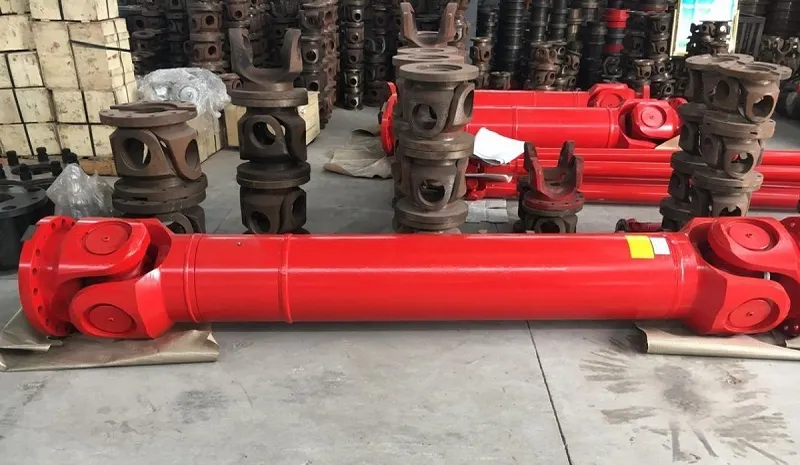

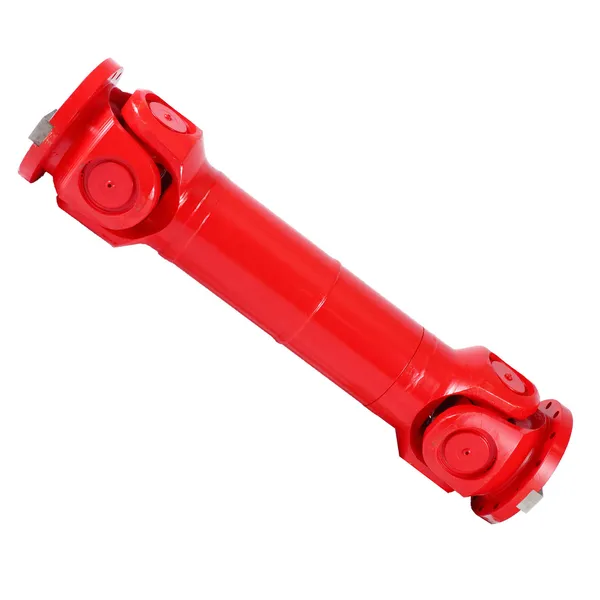

The SWC180BH Cardan drive shaft is specifically designed for vibrating screens in mining and industrial applications. It is a type of Cardan drive shaft that is well-suited for transmitting torque and rotational motion in vibrating screen machinery, allowing for efficient operation and reliable performance.Vibrating screens are widely used in the mining industry to separate and classify materials based on their size and composition. They consist of a screen deck that vibrates in a circular motion, causing the materials to separate and move along the screen surface. The SWC180BH Cardan drive shaft is employed in these machines to transmit power from the motor or drive unit to the vibrating screen assembly.

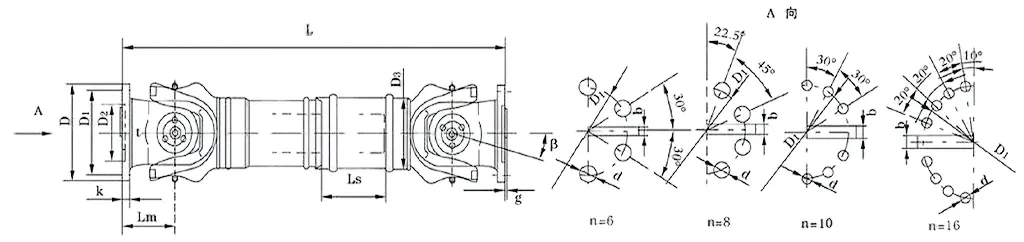

Vibrating Screen Cardan Drive Shaft SWC180BH Dimensions

Vibrating Screen Cardan Drive Shaft SWC180BH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC180BH	180	20	10	≤25	100	810	155	105	114	130	8-17	17	5	24	14	0.175	0.007	70	2.8

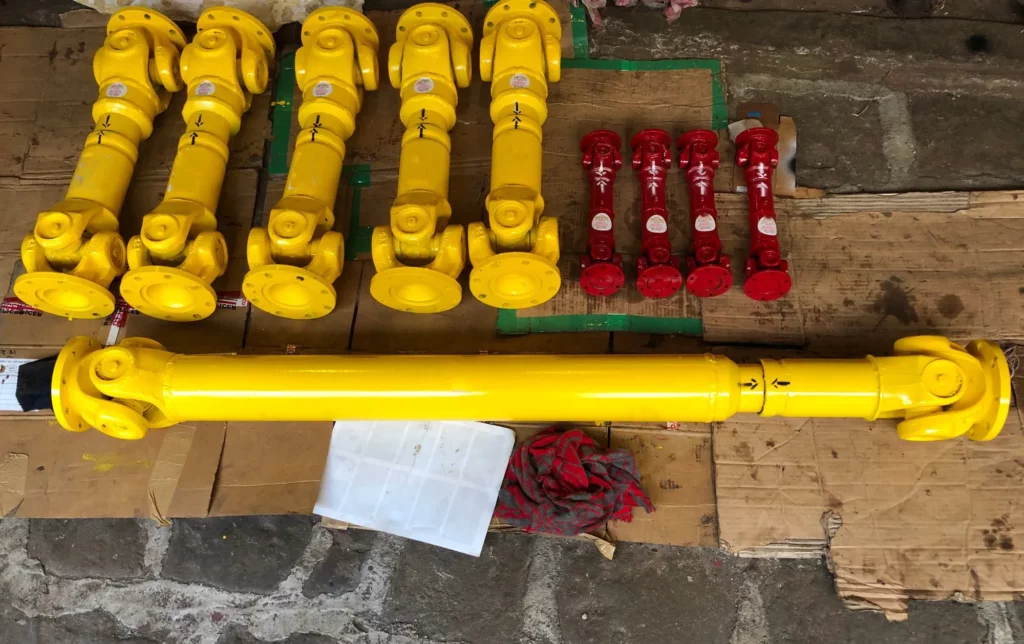

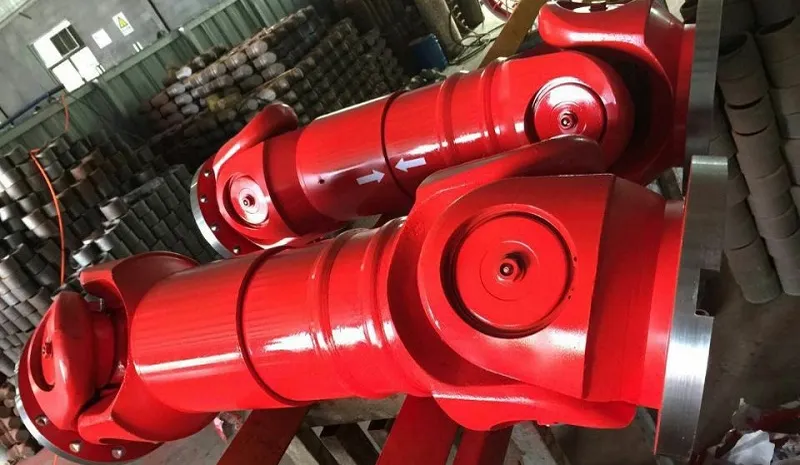

Features of the Cardan Drive Shaft SWC180BH for Vibrating Screen

The Cardan drive shaft SWC180BH, specifically designed for vibrating screens, possesses several key features and characteristics that make it suitable for this application. Here are the main features of the SWC180BH Cardan drive shaft:1. High Torque Capacity: The SWC180BH Cardan drive shaft is engineered to handle high torque loads commonly encountered in vibrating screens. It ensures efficient power transmission from the motor or drive unit to the vibrating screen assembly, enabling the equipment to handle the required material separation and movement.2. Angular Misalignment Compensation: Vibrating screens often experience angular misalignment due to uneven loading or machine movement. The SWC180BH Cardan drive shaft is designed to accommodate these misalignments, allowing for smooth operation and reducing stress on the equipment. It helps maintain proper alignment between the motor and the vibrating screen assembly, ensuring optimal performance.3. Robust Construction: The SWC180BH Cardan drive shaft is built with durability in mind. It is constructed using high-quality materials, such as alloy steel, which provide strength and resistance to heavy loads, shocks, and vibrations commonly encountered in vibrating screen applications. The robust construction enhances the reliability and longevity of the drive shaft.4. Maintenance-Friendly Design: The SWC180BH Cardan drive shaft is designed to be maintenance-friendly. It typically features easily accessible lubrication points, allowing for regular lubrication of the universal joints. Proper lubrication ensures smooth operation, reduces wear and tear, and extends the service life of the drive shaft.5. Customizability: The SWC180BH Cardan drive shaft can be customized to suit specific requirements of different vibrating screen designs and sizes. Factors such as shaft length, diameter, and universal joint sizes can be tailored to fit the specific application, ensuring optimal performance and compatibility with the vibrating screen machinery.6. Easy Installation: The SWC180BH Cardan drive shaft is designed for easy installation in vibrating screen applications. It can be easily integrated into the existing machinery without significant modifications, thereby reducing installation time and costs.

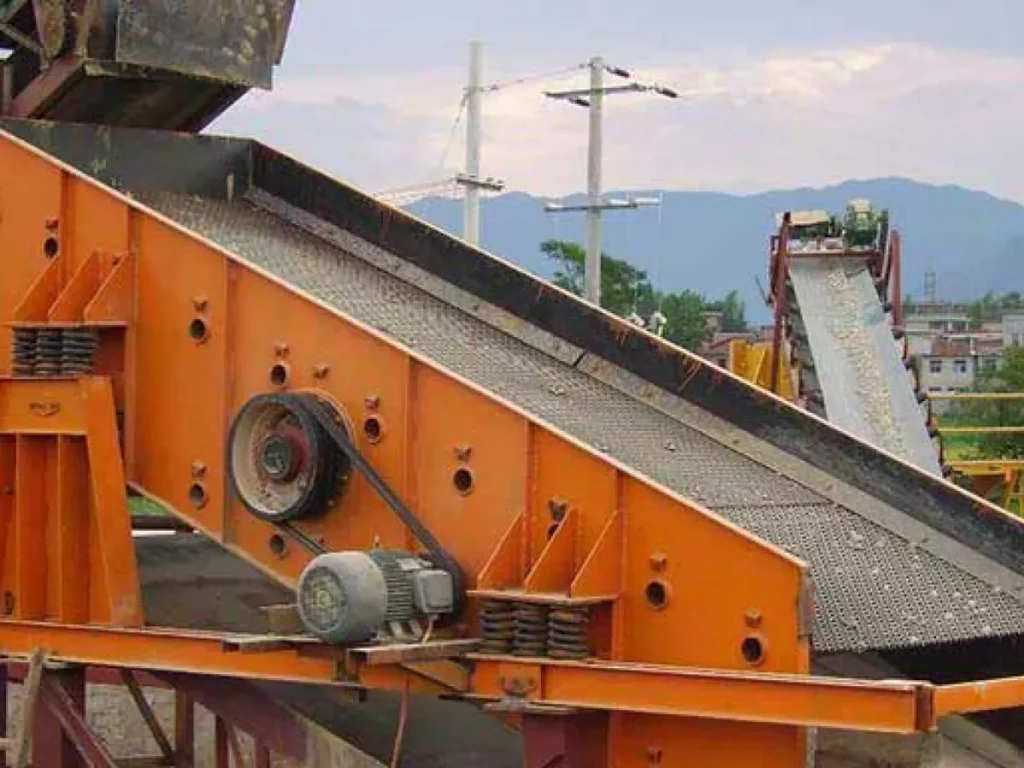

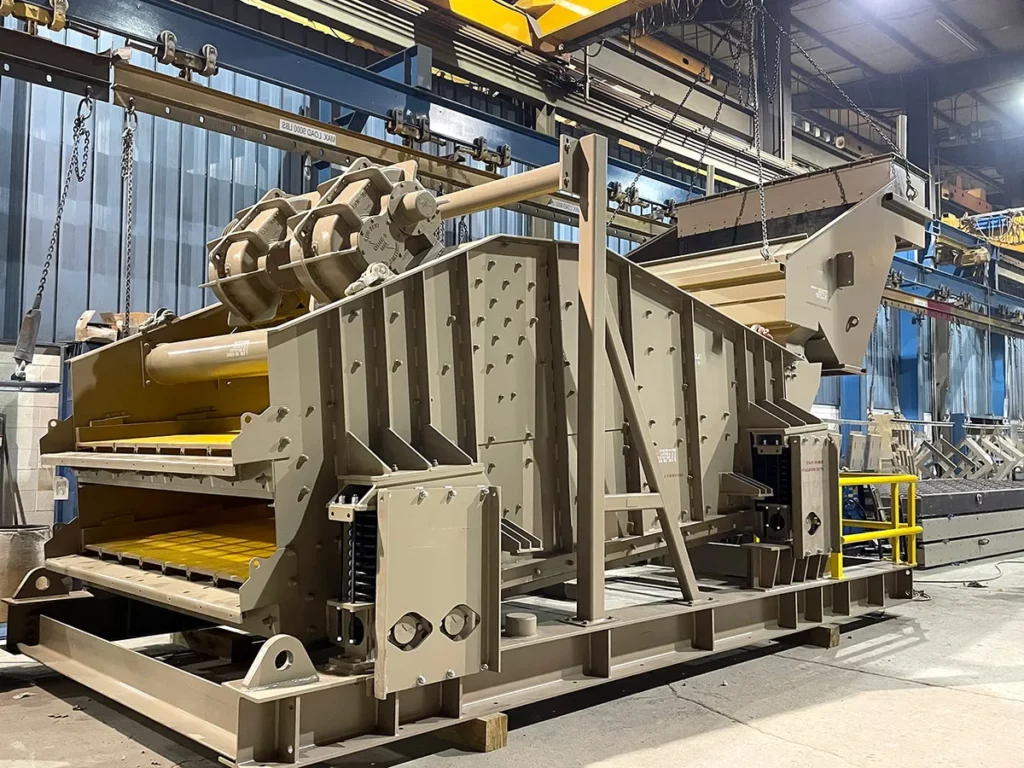

Applications of the Cardan Drive Shaft SWC180BH for Vibrating Screen

The Cardan drive shaft SWC180BH is specifically designed for vibrating screens and finds applications in various industries where efficient material separation and movement are required. Here are some common applications of the SWC180BH Cardan drive shaft for vibrating screens:(1) Mining Industry: Vibrating screens are extensively used in the mining industry for grading and separating different types of minerals and ores based on their size and composition. The SWC180BH Cardan drive shaft ensures smooth power transmission from the motor to the vibrating screen assembly, enabling efficient material separation and processing.(2) Quarrying and Aggregates: In quarries and aggregate production facilities, vibrating screens are employed to separate different sizes of rocks, stones, and sand. The SWC180BH Cardan drive shaft enables reliable and high-torque power transmission, facilitating the efficient operation of vibrating screens in these applications.(3) Construction Industry: Vibrating screens are utilized in the construction industry for sieving and separating various construction materials, such as gravel, sand, and concrete aggregates. The SWC180BH Cardan drive shaft plays a crucial role in transmitting power to the vibrating screen assembly, ensuring optimal performance and productivity in construction material processing.(4) Recycling Facilities: Vibrating screens are commonly used in recycling facilities to separate and classify different types of recyclable materials, such as plastics, paper, and metals. The SWC180BH Cardan drive shaft enables efficient power transmission, allowing the vibrating screens to effectively separate and sort the recyclable materials for further processing.(5) Industrial Applications: The SWC180BH Cardan drive shaft can also be found in various industrial applications where vibrating screens are utilized. These include industries such as food processing, chemical processing, pharmaceuticals, and ceramics, where precise material separation and particle sizing are required.
