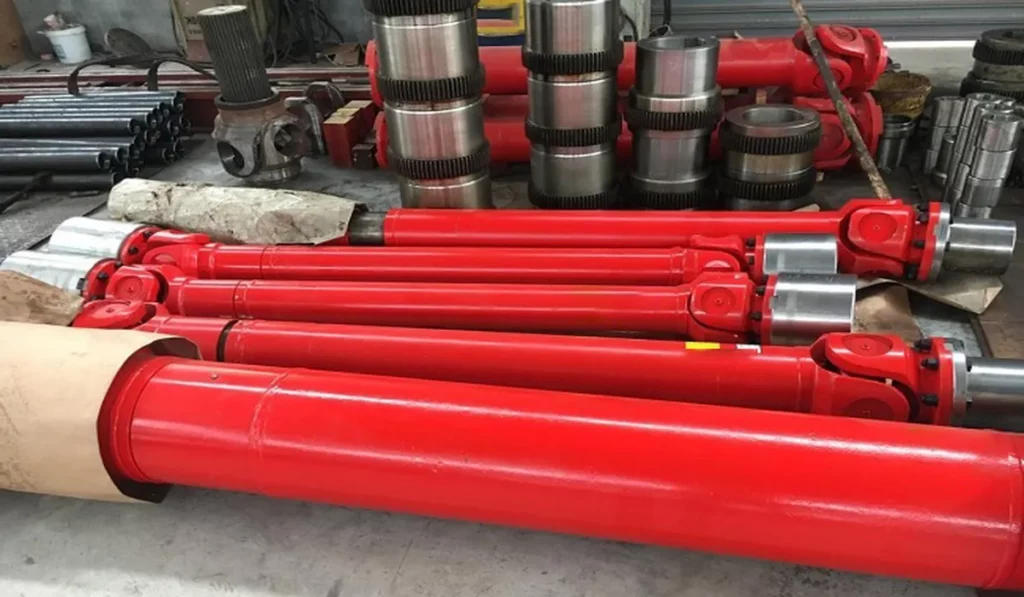

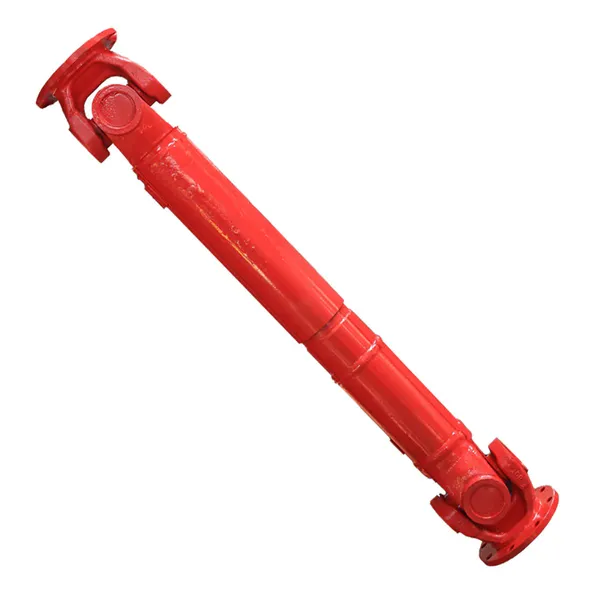

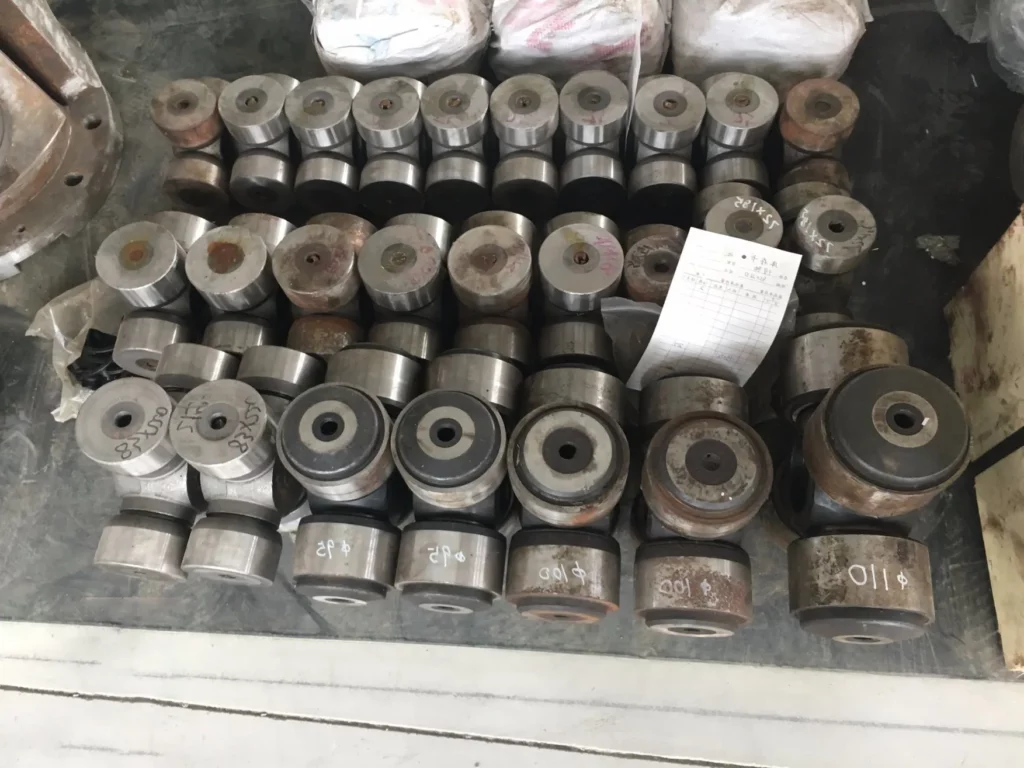

The Cardan drive shaft SWC225CH is a crucial component used in flying shear machines, which are commonly employed in various industries such as steel, paper, and metal processing. It plays a vital role in transmitting torque and rotational motion between the prime mover, typically an electric motor, and the cutting mechanism of the shear machine.The Cardan drive shaft SWC225CH is a type of universal joint shaft, also known as a Cardan shaft or propeller shaft. It consists of two yokes connected by a cross-shaped center section, which contains needle bearings or roller bearings. The yokes and center section are typically made of high-quality alloy steel for durability and strength.The primary function of the Cardan drive shaft is to transmit torque from the driving end to the driven end while allowing for angular misalignment between the two ends. It can accommodate both parallel misalignment and angular misalignment, making it suitable for flying shear machines that require flexibility in their power transmission system.The SWC225CH Cardan drive shaft is designed to handle high rotational speeds while maintaining precision and stability. It is often used in flying shear machines that require rapid and accurate cutting operations, ensuring smooth power transmission and precise synchronization between the motor and the shear blades.

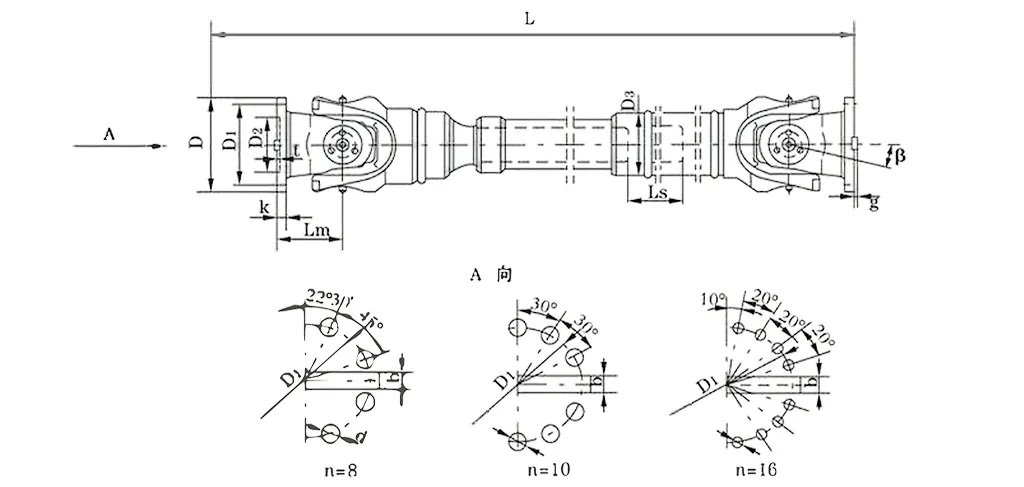

Flying Shear Machine Cardan Drive Shaft SWC225CH Dimensions

Flying Shear Machine Cardan Drive Shaft SWC225CH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angle  β(°)	Weary torque TfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC225CH1	225	40	≤15	20	220	1020	196	135	152	120	8-17	20	5	32	9	0.561	0.0234	132	4.9
SWC225CH2					700	1500										0.674		182

* 1. Tf-under the alternation load the torque which permits according to the fatigue strength.* 2. Lmin-the least length after the cut.* 3. L-install length, which is according to the requirement.

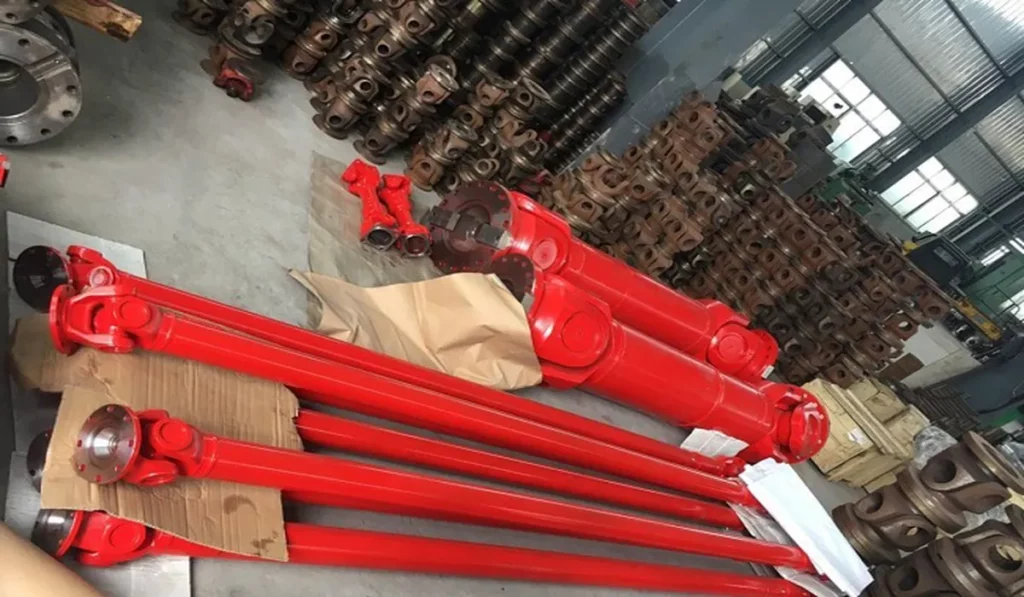

Benefits of Cardan Drive Shaft SWC225CH for Flying Shear Machine

The Cardan drive shaft SWC225CH is specifically designed to cater to the rigorous demands of industrial applications, such as in flying shear machines used in metalworking and steel manufacturing processes. The utilization of this particular model of Cardan drive shaft offers several benefits, enhancing the operation and efficiency of flying shear machines. Here are the key advantages:(1) High Torque Transmission: The SWC225CH Cardan drive shaft is designed to handle high torque loads, making it suitable for heavy-duty applications. It ensures efficient power transmission from the prime mover to the cutting mechanism, enabling the shear machine to effectively cut through various materials.(2) Flexibility and Misalignment Compensation: The Cardan drive shaft allows for angular misalignment between the driving and driven ends. This flexibility is crucial in flying shear machines where the cutting mechanism needs to maintain synchronization with the moving material. The SWC225CH can accommodate both parallel misalignment and angular misalignment, ensuring smooth and reliable operation even in challenging conditions.(3) High-Speed Capability: Flying shear machines often require high-speed cutting operations to maintain productivity. The SWC225CH Cardan drive shaft is designed to handle high rotational speeds without compromising performance. It enables the shear machine to achieve rapid and precise cutting, contributing to increased production efficiency.(4) Reduced Vibration and Noise: The SWC225CH Cardan shaft incorporates precision-engineered components, including high-quality bearings. These components help minimize vibration and noise during operation, resulting in a smoother and quieter cutting process. Reduced vibration also contributes to the longevity of the machine and its components.(5) Easy Installation and Maintenance: The SWC225CH universal shaft is designed for easy installation and maintenance. Its compact and lightweight design allows for convenient integration into the flying shear machine's power transmission system. Regular inspection and lubrication of the universal joint bearings are simple tasks that help ensure optimal performance and extend the lifespan of the drive shaft.(6) Enhanced Safety: Flying shear machines can be hazardous due to the high-speed rotating components involved in the cutting process. The SWC225CH Cardan drive shaft often incorporates safety features such as protective casings or guards to prevent accidental contact with moving parts. These safety measures help protect machine operators and minimize the risk of injuries.

Applications of Cardan Drive Shaft SWC225CH for Flying Shear Machine

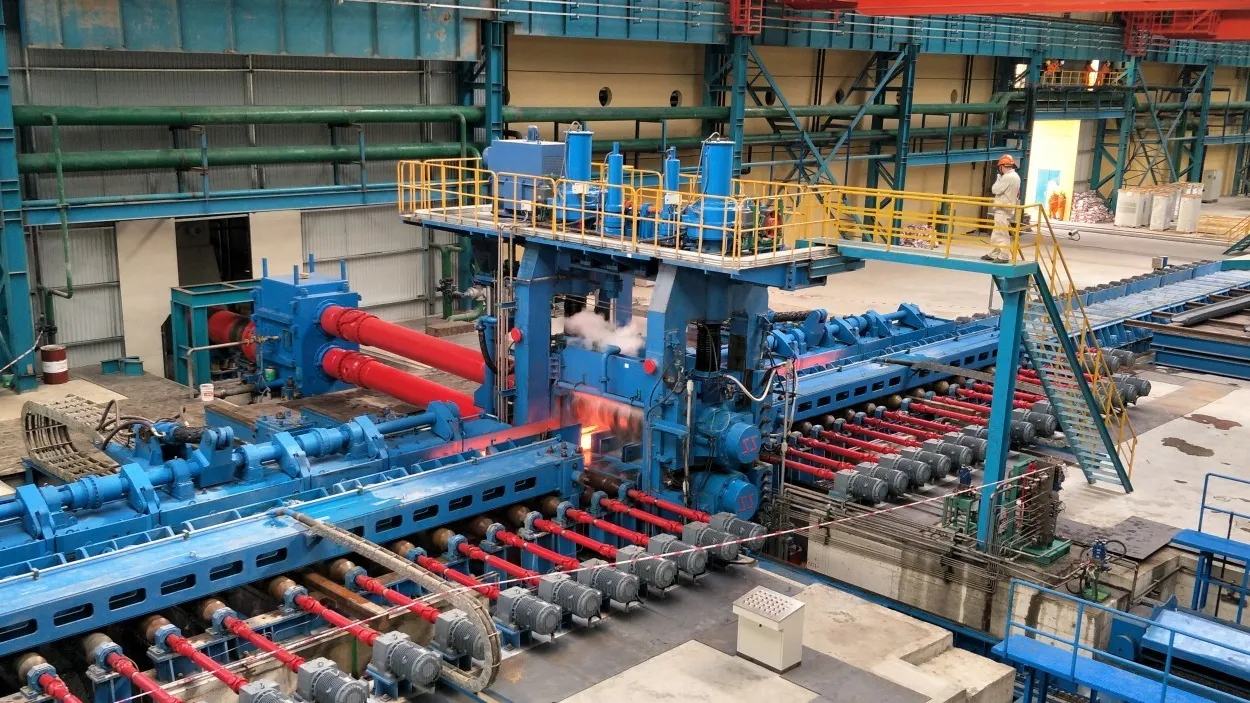

The Cardan drive shaft SWC225CH finds applications in various industries that utilize flying shear machines for cutting or shearing operations. Some common applications include:(1) Steel Industry: In the steel industry, the SWC225CH Cardan drive shaft is used in flying shear machines to cut steel coils, bars, or plates into desired lengths. It enables precise and rapid cutting operations, facilitating efficient production processes in steel mills and metal processing facilities.(2) Paper Industry: Flying shear machines equipped with the SWC225CH drive shaft are employed in the paper industry for cutting paper rolls or sheets. The drive shaft ensures smooth power transmission and synchronization, allowing for accurate and high-speed cutting of paper materials in paper mills and printing facilities.(3) Metal Processing: The SWC225CH Cardan drive shaft is utilized in flying shear machines for metal processing applications, such as cutting aluminum, copper, or brass sheets. It enables precise and clean cuts, ensuring the desired dimensions and quality of the metal products in industries like automotive, aerospace, and construction.(4) Tube and Pipe Manufacturing: Flying shear machines equipped with the SWC225CH drive shaft are employed in tube and pipe manufacturing processes. They are used to cut continuous tubes or pipes into specific lengths, ensuring accuracy and consistency in the final products. This application is commonly found in industries like plumbing, HVAC (heating, ventilation, and air conditioning), and structural engineering.(5) Coil Processing: The SWC225CH Cardan drive shaft is utilized in flying shear machines for coil processing applications. It enables the cutting of continuous coils of materials such as steel, aluminum, or copper into sheets or strips of desired lengths. This application is widely used in industries such as automotive, appliance manufacturing, and metal fabrication.

Choose the Right Cardan Drive Shaft SWC225CH for Flying Shear Machine

Choosing the right Cardan drive shaft SWC225CH for a flying shear machine requires considering several factors. Here are some key considerations to guide you in selecting the appropriate drive shaft:1. Torque Requirements: Determine the torque requirements of your flying shear machine. Consider the maximum torque that needs to be transmitted through the drive shaft during cutting operations. Ensure that the SWC225CH Cardan drive shaft you choose has a torque rating that meets or exceeds the machine's requirements to ensure reliable and efficient power transmission.2. Speed Capability: Assess the rotational speed requirements of your flying shear machine. Consider the maximum speed at which the drive shaft will be operating. The SWC225CH Cardan drive shaft should be capable of handling the desired speed without compromising performance or causing excessive vibration.3. Misalignment Compensation: Evaluate the level of misalignment that may occur between the driving and driven ends of the drive shaft. Consider the angular misalignment and parallel misalignment that the SWC225CH can accommodate. Ensure that the drive shaft can handle the misalignment requirements of your specific flying shear machine to maintain smooth operation and prevent undue stress on the components.4. Durability and Material: Consider the durability requirements of your application. The SWC225CH Cardan drive shaft should be constructed from high-quality materials, such as alloy steel, to withstand the demands of the cutting process and provide long-term reliability. Ensure that the drive shaft is designed to handle the specific materials and operating conditions of your flying shear machine.5. Installation and Maintenance: Consider the ease of installation and maintenance of the SWC225CH Cardan drive shaft. Look for features such as a compact design, accessibility for lubrication and inspection, and compatibility with your machine's mounting system. Easy installation and maintenance will help minimize downtime and ensure optimal performance.6. Safety Features: Prioritize safety features in the design of the Cardan drive shaft. Look for options that include protective casings or guards to prevent accidental contact with moving parts, reducing the risk of injury to operators and ensuring compliance with safety regulations.
