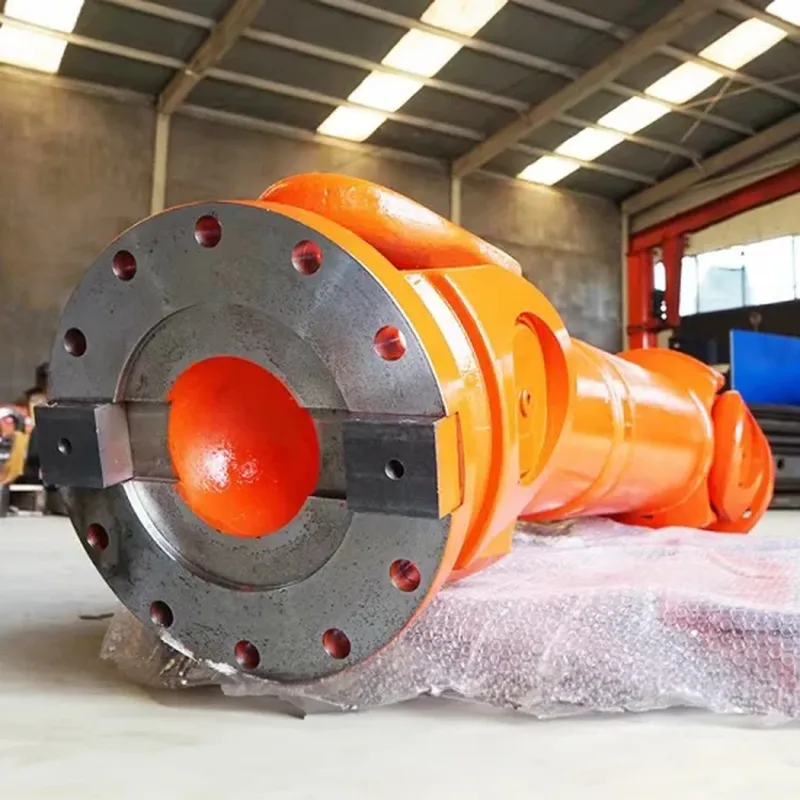

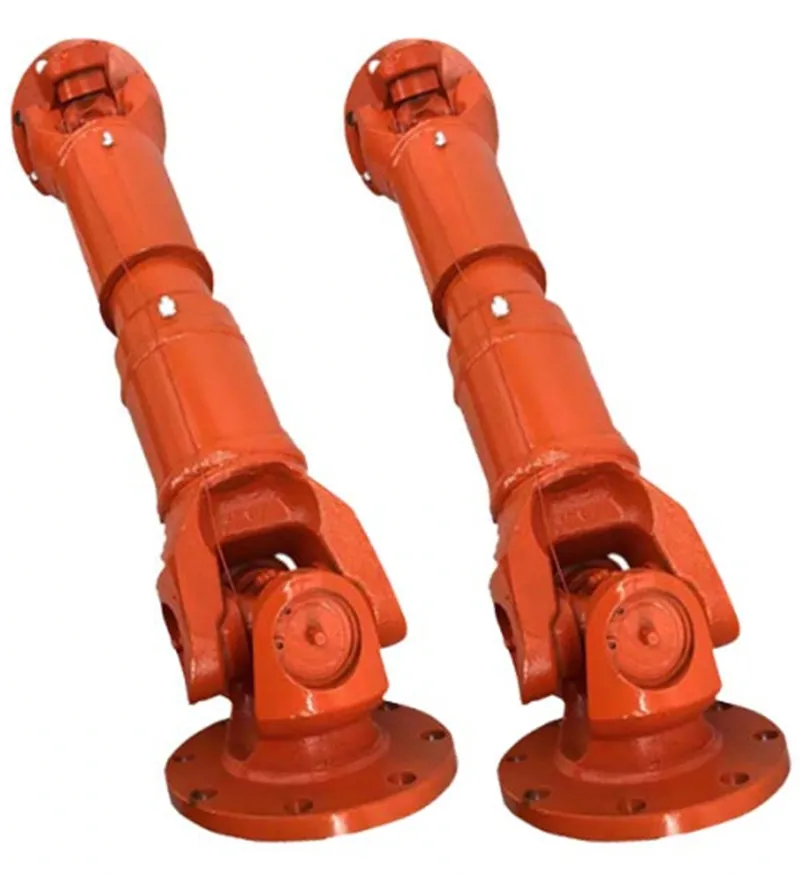

Universal Cardan Drive Shaft SWC350BH-1200 for Cold Rolling Mill

Universal Cardan Drive Shaft SWC350BH-1200 for Cold Rolling Mill

The Cardan drive shaft SWC350BH-1200 is a crucial component used in cold rolling mills, which are industrial machines used for reducing the thickness of metal sheets or strips through a series of rolling processes at ambient temperature. The drive shaft plays a vital role in transmitting torque and rotational motion from the motor to the rolling mill, ensuring the efficient operation of the entire system.The Cardan drive shaft SWC350BH-1200 serves as a critical component in cold rolling mills, providing reliable torque transmission and compensating for misalignments. Its design, durability, and ability to handle high loads make it suitable for the demanding requirements of cold rolling processes. Proper maintenance and adherence to safety protocols are essential for ensuring optimal performance and safety in the mill.

Cold Rolling Mill Cardan Drive Shaft SWC350BH-1200 Dimensions

Cold Rolling Mill Cardan Drive Shaft SWC350BH-1200 Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC350BH	350	180	90	≤15	150	1410	310	210	267	194	10-23	35	8	50	16	7.053	0.2219	582	15

Features of Cardan Drive Shaft SWC350BH-1200 for Cold Rolling Mill

The Cardan drive shaft SWC350BH-1200 is a specialized component designed for high-demand applications such as cold rolling mills in the steel manufacturing industry. Cold rolling mills require precise and reliable power transmission equipment to ensure smooth, efficient operations and the SWC350BH-1200 model is engineered to meet these requirements. Here are some of the key features and benefits of this specific Cardan drive shaft model:1. Design and Construction: The SWC350BH-1200 drive shaft is designed as a Cardan shaft, also known as a universal joint shaft. It consists of two yokes, a center cross, and a tube. The yokes are connected to the motor and the mill, while the center cross provides flexibility and compensates for misalignments between the driving and driven shafts.2. Torque Transmission: The primary function of the drive shaft is to transmit torque from the motor to the mill. As the motor rotates, the drive shaft transfers this rotational motion to drive the rolls and perform the cold rolling process. The SWC350BH-1200 is specifically designed to handle high torque requirements encountered in cold rolling mills.3. Misalignment Compensation: Cold rolling mills operate under high loads and may experience misalignment between the motor and mill due to various factors such as thermal expansion, vibrations, and mechanical tolerances. The Cardan drive shaft allows for angular misalignment, axial displacement, and parallel offset between the driving and driven shafts. This flexibility helps maintain smooth operation and reduces stress on the system.4. High Strength and Durability: The SWC350BH-1200 drive shaft is constructed from high-quality materials, such as alloy steel, to ensure strength and durability. It undergoes rigorous manufacturing processes and quality control measures to meet industry standards and withstand the demanding conditions of cold rolling mills.5. Maintenance and Lubrication: Like any mechanical component, the drive shaft requires regular maintenance to ensure optimal performance and longevity. Proper lubrication of the universal joints and inspection for wear or damage are essential maintenance tasks. Adequate lubrication reduces friction, minimizes wear, and prevents premature failure of the drive shaft.6. Safety Considerations: Cold rolling mills are complex and potentially hazardous environments. Safety features such as protective covers, guards, and emergency stop systems should be in place to prevent accidents. It is important to follow safety guidelines and adhere to proper operating procedures when working with the drive shaft or any other machinery in the mill.

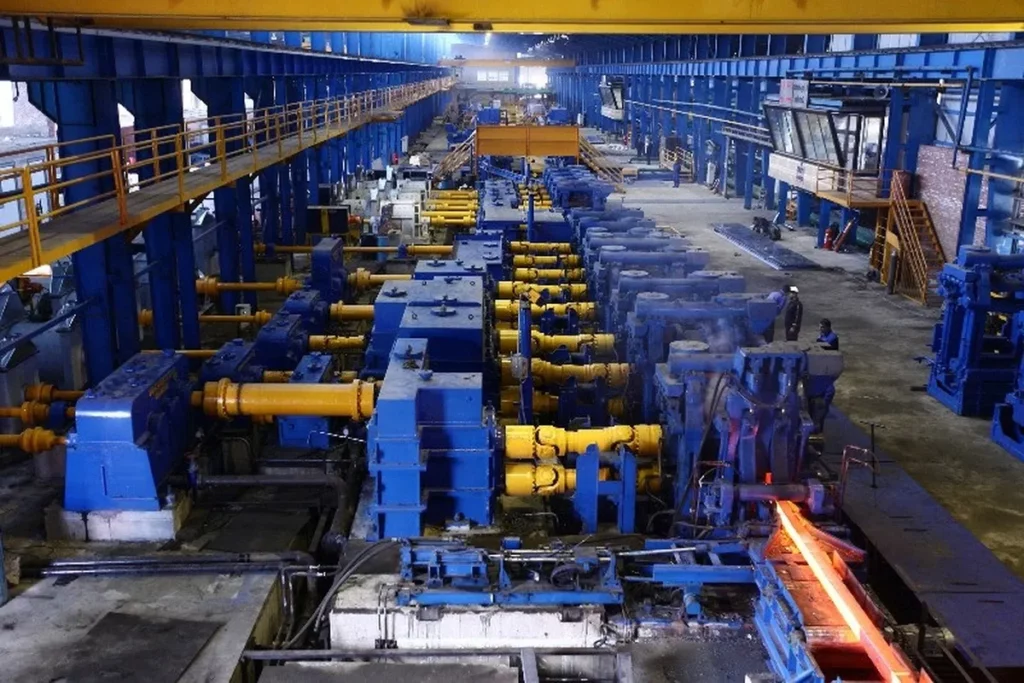

Cold Rolling Mill Cardan Drive Shaft SWC350BH-1200 Applications

The Cardan drive shaft SWC350BH-1200 serves various important applications in a cold rolling mill. Here are some specific areas where it is commonly used:

• Torque Transmission: The primary function of the Cardan drive shaft is to transmit torque from the motor to the rolls in the cold rolling mill. It efficiently transfers the rotational motion and torque from the motor to drive the rolls, enabling the reduction of metal sheet or strip thickness through the rolling process.
• Misalignment Compensation: Cold rolling mills often experience misalignment between the motor and the rolls due to factors such as thermal expansion, vibration, or mechanical tolerances. The Cardan drive shaft is designed to compensate for these misalignments. It can accommodate angular misalignment, axial displacement, and parallel offset between the driving and driven shafts, ensuring smooth operation and reducing stress on the system.
• Load Handling: Cold rolling mills operate under high loads and forces, particularly during the rolling process. The SWC350BH-1200 drive shaft is specifically designed to handle these heavy loads. It is constructed from durable materials, such as alloy steel, to withstand the demanding conditions and provide reliable performance.
• Speed Control: The drive shaft allows for speed control in the cold rolling mill. By adjusting the rotational speed of the drive shaft, the rolling speed of the rolls can be controlled, influencing the thickness reduction rate and overall process performance. The drive shaft enables precise control over the speed and force applied to the metal sheet or strip during rolling, ensuring consistent and accurate results.
• Reverse Operation: In certain cases, cold rolling mills may require reverse operation, where the rolls rotate in the opposite direction. The Cardan drive shaft facilitates bidirectional rotation, allowing for reverse operation when needed. This capability enhances the versatility and flexibility of the cold rolling mill.

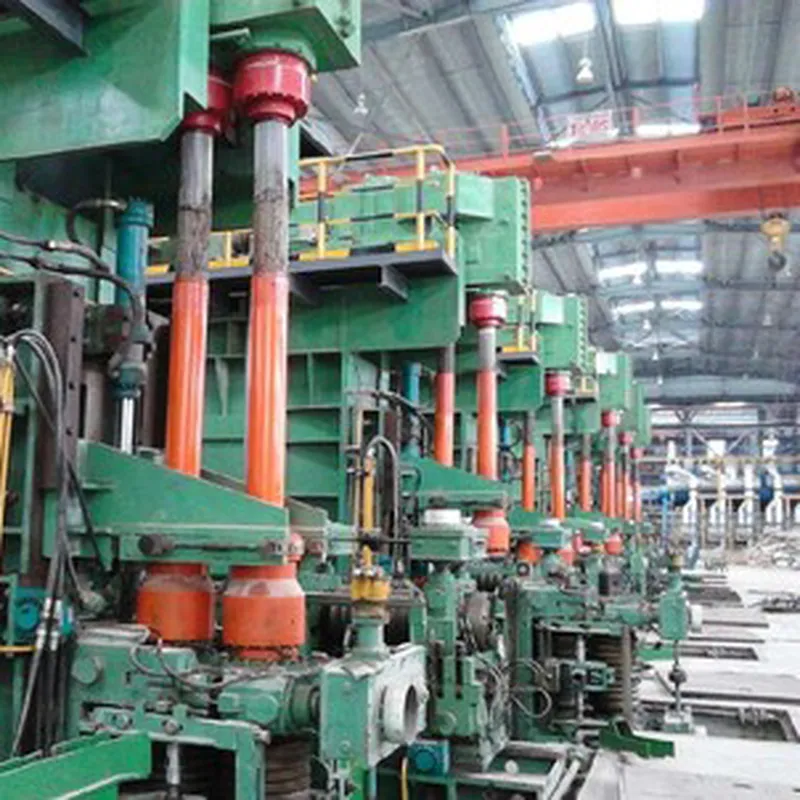

Cardan Drive Shaft SWC350BH-1200 for Cold Rolling Mill Lubrication Maintenance

Lubrication maintenance is crucial for the proper functioning and longevity of the Cardan drive shaft SWC350BH-1200 in a cold rolling mill. Here are some guidelines for lubricating and maintaining the drive shaft:(1) Lubricant Selection: Choose a high-quality lubricant specifically designed for universal joints or drive shaft applications. Consult the manufacturer's recommendations or seek guidance from lubrication specialists to select the appropriate lubricant for your specific operating conditions.(2) Lubrication Points: Identify the lubrication points on the Cardan drive shaft. These typically include the universal joints and bearing surfaces. Ensure that lubricant reaches all the necessary areas for optimal lubrication and protection against friction and wear.(3) Cleanliness: Before lubrication, clean the lubrication points to remove any dirt, debris, or old lubricant residue. Use a suitable cleaning agent and ensure that the surfaces are dry before applying fresh lubricant. Cleanliness is essential to prevent contamination and maintain the effectiveness of the lubricant.(4) Lubrication Method: There are various methods to lubricate the drive shaft, including manual greasing, centralized lubrication systems, or automatic lubrication systems. Choose a lubrication method that suits your mill's requirements and ensures proper lubricant coverage in all the necessary areas.(5) Lubricant Application: Apply the lubricant to the designated lubrication points according to the manufacturer's recommendations. Use the appropriate amount of lubricant to ensure proper coverage without over-lubrication, which can lead to excess heat and increased wear. Follow the recommended lubricant quantity for each lubrication point.(6) Visual Inspection: During lubrication, visually inspect the drive shaft for any signs of wear, damage, or misalignment. Look for loose bolts, cracks, or abnormal vibrations. If any issues are detected, address them promptly to prevent further damage to the drive shaft or other components.(7) Regular Maintenance: In addition to lubrication, perform regular maintenance tasks such as checking for proper alignment, inspecting seals and protective covers, and tightening bolts and fasteners. Address any maintenance needs promptly to prevent unexpected failures or downtime.
