Universal Cardan Drive Shaft SWC490BH for High Speed Wire Rod Rolling Mill

Universal Cardan Drive Shaft SWC490BH for High Speed Wire Rod Rolling Mill

The Cardan drive shaft SWC490BH is a specialized component used in high-speed wire rod rolling mills. It plays a crucial role in transmitting power from the motor to the rolling mill stands, enabling efficient and continuous operation of the mill.The Cardan drive shaft, also known as a universal joint shaft, is designed to transmit torque while allowing for angular misalignment between the driving and driven shafts. This flexibility is essential in wire rod rolling mills because the rolling process involves high-speed rotation and significant loads, which can cause misalignment due to various factors such as thermal expansion, mechanical vibrations, or material deformations.The Cardan drive shaft SWC490BH is typically made of high-quality alloy steel to withstand the demanding operating conditions of the rolling mill. It is designed to provide high torque transmission capacity, excellent torsional stiffness, and durability to withstand continuous and heavy-duty operations.The Cardan drive shaft is composed of two yokes or flanges connected by a universal joint. The yokes are attached to the driving and driven shafts, respectively, while the universal joint allows for angular misalignment and compensates for any axial or radial movement. This design ensures smooth power transmission and reduces wear on the components.In a high-speed wire rod rolling mill, the Cardan drive shaft SWC490BH is usually installed between the main motor and the gearbox of the mill. It efficiently transfers the rotary motion and torque generated by the motor to the rolling mill stands, which then shape the wire rod according to the desired specifications.

High Speed Wire Rod Rolling Mill Cardan Drive Shaft SWC490BH Dimensions

High Speed Wire Rod Rolling Mill Cardan Drive Shaft SWC490BH Specifications

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC490BH	490	500	250	≤15	190	1985	435	275	325	270	16-31	47	12	90	22.5	32.86	0.4744	1452	21.7

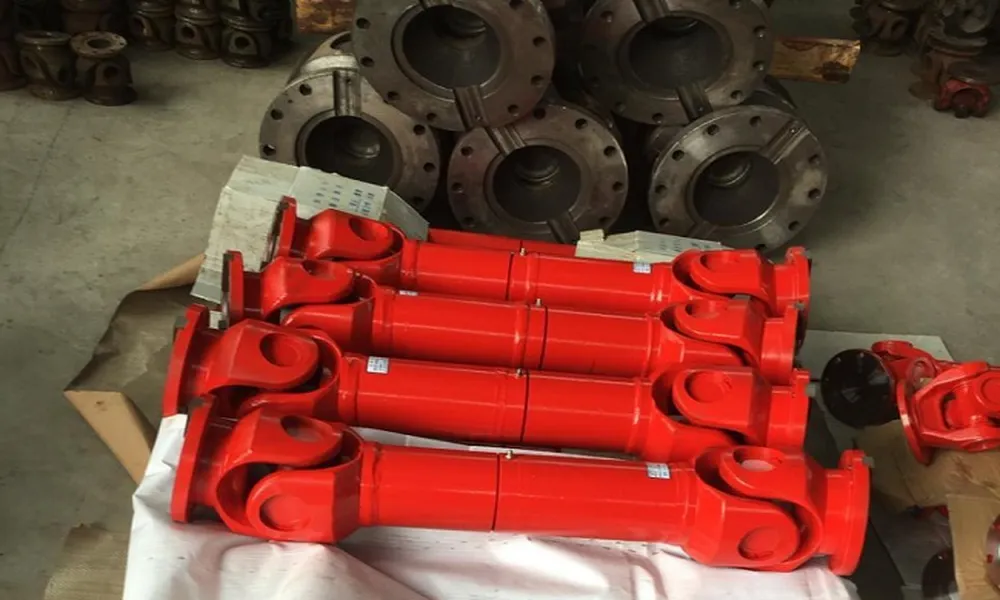

Advantages of Cardan Drive Shaft SWC490BH for High Speed Wire Rod Rolling Mill

The Cardan drive shaft SWC490BH is specifically designed for high-speed, heavy-duty applications, making it an ideal choice for high-speed wire rod rolling mills. These mills require reliable and efficient transmission systems to maintain continuous operation and high productivity. The SWC490BH model offers several advantages that enhance the performance and reliability of wire rod rolling mills:1. Power Transmission Efficiency: The Cardan drive shaft SWC490BH enables efficient power transmission from the motor to the rolling mill stands. Its design ensures minimal power loss, allowing the maximum amount of torque generated by the motor to be effectively transferred to the rolling process. This efficiency helps optimize the overall productivity and energy utilization of the rolling mill.2. Angular Misalignment Compensation: Wire rod rolling mills often experience angular misalignment between the driving and driven shafts due to factors like thermal expansion or mechanical vibrations. The Cardan drive shaft SWC490BH is specifically designed to accommodate such misalignments. It allows for a certain degree of angular movement and compensates for any axial or radial displacements, ensuring smooth and uninterrupted power transmission.3. High Torque Capacity: The SWC490BH model of the Cardan drive shaft is designed to handle high torque requirements, which are common in wire rod rolling mills. It is constructed from high-quality alloy steel or other suitable materials, ensuring it can withstand the heavy loads and stresses associated with the rolling process. The high torque capacity of the drive shaft allows for reliable and consistent operation of the rolling mill even under demanding conditions.4. Durability and Longevity: The Cardan drive shaft SWC490BH is built to be highly durable and long-lasting. Its robust construction and use of quality materials make it resistant to wear, fatigue, and other forms of mechanical stress. This durability ensures a longer service life for the drive shaft, reducing maintenance costs and minimizing downtime for replacement or repairs.5. Smooth Operation and Reduced Vibrations: The universal joint design of the Cardan drive shaft helps to absorb and dampen vibrations that may arise during the wire rod rolling process. This feature contributes to smoother operation and reduces the risk of damage to other components within the rolling mill system. It also improves the quality of the wire rod produced by minimizing surface imperfections caused by excessive vibrations.

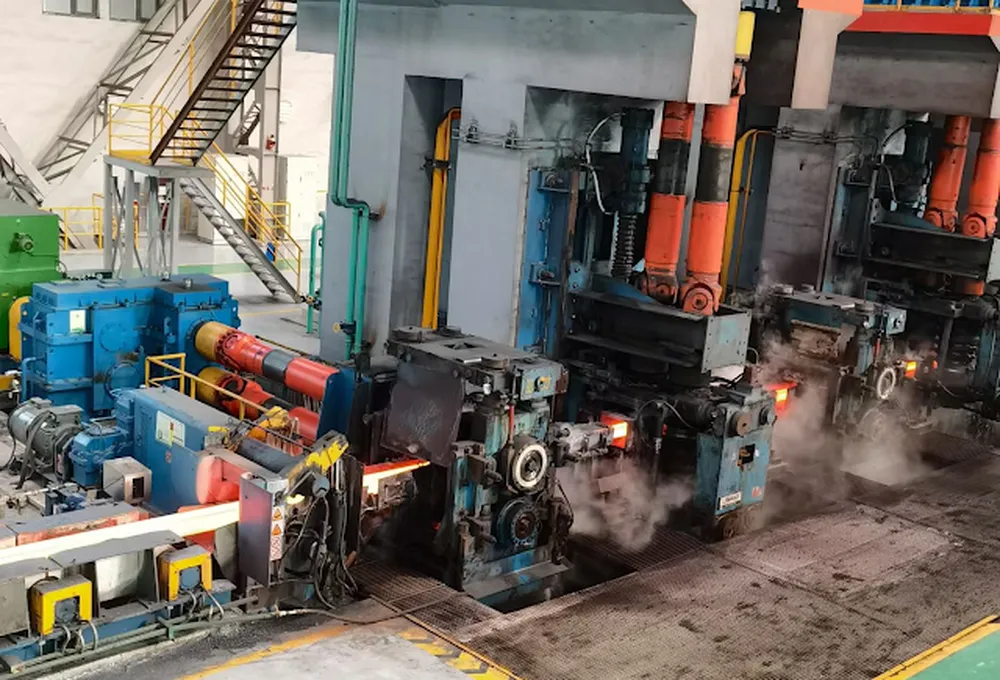

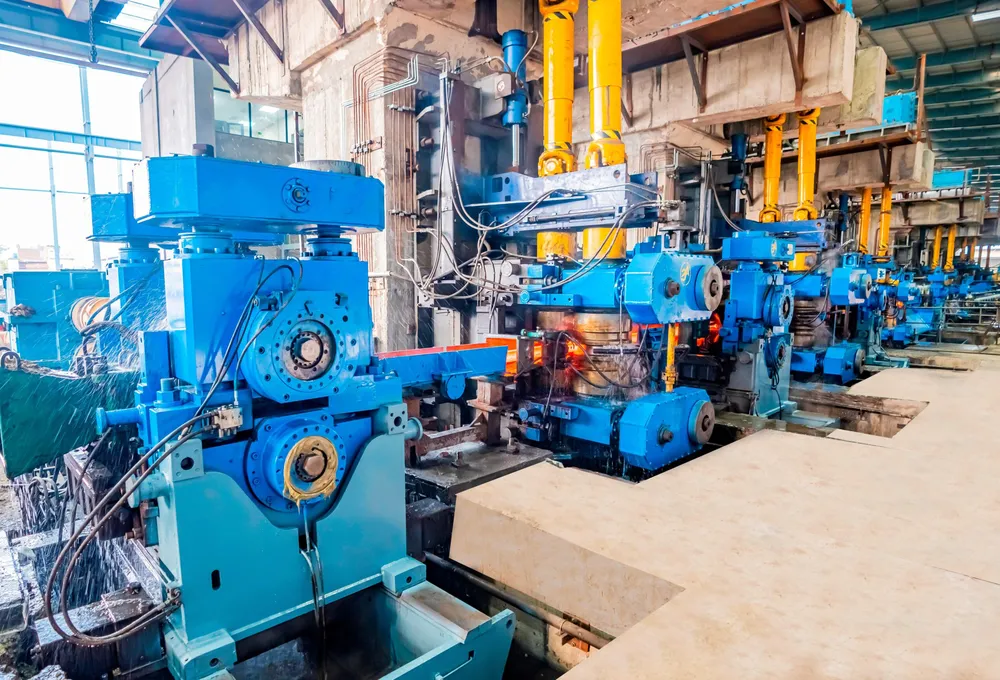

Working Principle of Cardan Drive Shaft SWC490BH for High Speed Wire Rod Rolling Mill

The Cardan drive shaft SWC490BH, designed for high-speed applications like wire rod rolling mills, operates on the principle of transferring rotational power from the motor or gearbox to the mill's rolling mechanisms in an efficient and flexible manner. Here's an overview of its working principle and why it's particularly suited for high-speed wire rod rolling mills:

Basic Components and Design

• Universal Joints (U-Joints): At the heart of the Cardan drive shaft are the universal joints, which allow the shaft to transmit power at varied angles. These U-joints accommodate the shaft's bending and flexing without interrupting power transmission, crucial for dealing with misalignments between the power source and the rolling mill.
• Shaft Body: The shaft body of the SWC490BH is designed to withstand the torsional and bending stresses associated with high-speed rotation and torque transmission. It's constructed from high-strength materials to endure the demanding environment of wire rod rolling mills.
• Slip Joints: These components allow the drive shaft to adjust its length under operational loads, accommodating axial movements and preventing stress buildup in the system.

Working Principle

1. Power Source: The drive shaft receives rotational power from the motor or gearbox, which is typically mounted on a stationary base.
2. Transmission of Power: Through its U-joints, the drive shaft transmits this power to the rolling mill's mechanisms. Despite misalignments or angle changes between the motor and the mill, the U-joints ensure a continuous transfer of power.
3. Flexibility and Adaptation: As the rolling mill operates, changes in load and operational conditions may cause slight movements or alignments shifts. The Cardan drive shaft, with its flexible joints and slip sections, adapts to these changes without compromising power transmission efficiency or causing stress to the system.
4. High-Speed Operation: The SWC490BH is specifically engineered to handle high-speed operations. Its design minimizes vibration and maximizes efficiency, ensuring that the wire rod rolling mill operates smoothly, even at high speeds. This is crucial for maintaining the mill's productivity and the quality of the wire rods produced.

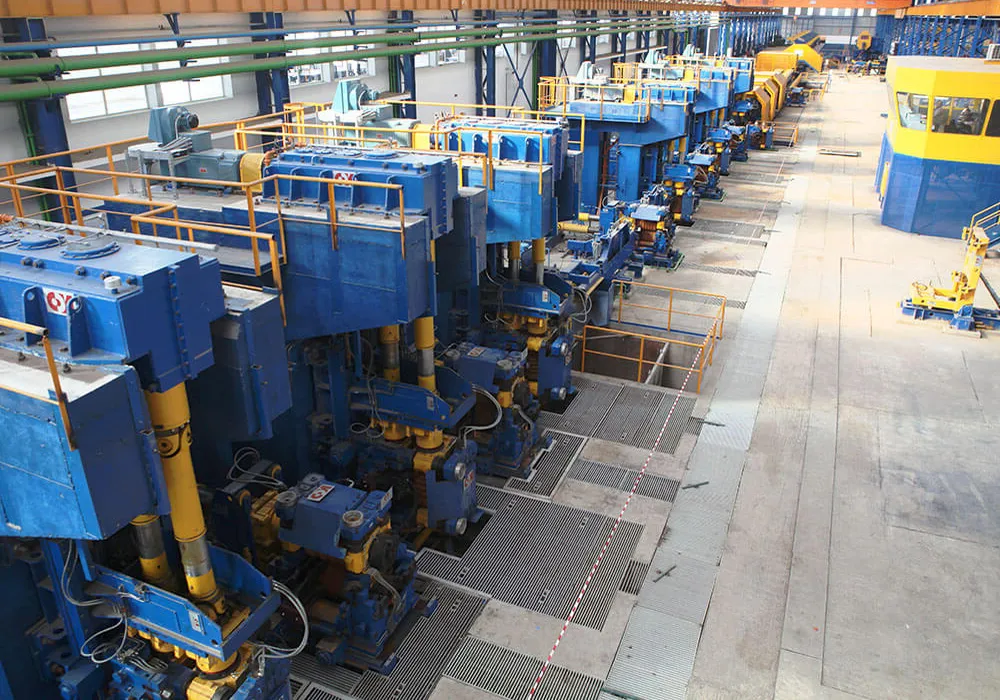

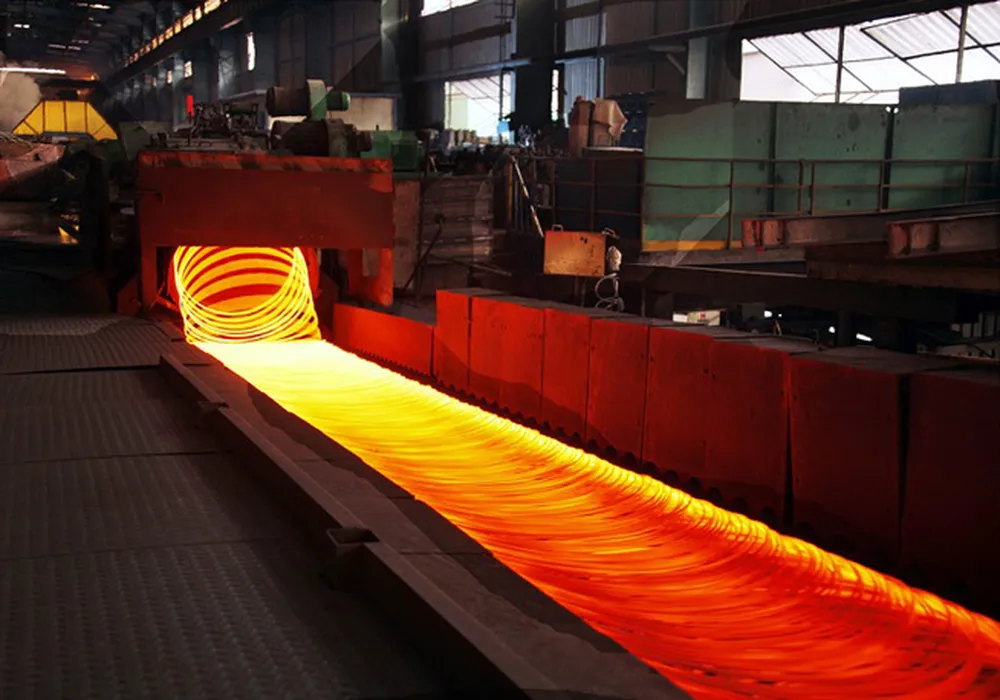

Applications of Cardan Drive Shaft SWC490BH for High Speed Wire Rod Rolling Mill

The Cardan drive shaft SWC490BH for high-speed wire rod rolling mills is primarily used in the steel industry. The steel industry encompasses various sectors involved in the production, processing, and fabrication of steel products. The application of the Cardan drive shaft SWC490BH specifically caters to the wire rod production segment within the steel industry.Wire rod rolling mills are crucial components in the steel industry as they produce wire rods, which are essential materials for a wide range of applications. Wire rods are long, cylindrical metal products with a round cross-section. They are commonly used in the manufacturing of fasteners, automotive components, construction materials, electrical wires, and various industrial products.The Cardan drive shaft SWC490BH plays a vital role in the wire rod rolling process, ensuring efficient power transmission and compensating for misalignments between the driving and driven shafts. By facilitating continuous operation and high-speed rolling, the drive shaft contributes to the productivity, quality, and performance of wire rod production in the steel industry.The steel industry relies on wire rod rolling mills to meet the demand for wire rods in different sectors. The Cardan drive shaft SWC490BH, with its specific design and features, addresses the requirements of high-speed wire rod rolling mills, enabling smooth power transmission and reliable operation. Therefore, the application of the Cardan drive shaft SWC490BH is closely tied to the wire rod production industry within the broader context of the steel industry.

Industrial Cardan Drive Shaft Manufacturers

Raydafon Transmission Machinery Co., Ltd. is a professional company dedicated to the research, development, design, and manufacture of transmission shafts for metallurgical machinery, papermaking machinery, woodworking machinery, plastics machinery, mining machinery, textile machinery, petroleum machinery, water conservancy machinery, road construction machinery, excavating machinery, etc. The company adopts advanced computerized design technology, excellent numerical-control machining equipment, all-around screen test methods, and complete Microsoft system management, creating a reliable product strength. The factory specializes in the production of SWC, SWP, SWL cross shaft universal shaft, flexible jaw couplings, spacer couplings, rigid couplings, HRC couplings, fluid couplings, chain couplings, flange flexible couplings, gear couplings, and so on. Its various performance indicators by the user feedback have reached or exceeded the advanced level of the industry; the products are sold to major domestic OEMs and exported abroad with the host. After years of efforts, we have provided support services for a number of companies across the country; in the future, we will continue to do better for the majority of customers by providing quality products and quality service. And welcome friends from all walks of life to visit and negotiate.

FAQ

Q 1: Are you a trading company or a manufacturer?A: We are a professional manufacturer specializing in manufacturing various series of cardan drive shafts.Q 2: Can you do OEM?Yes, we can. We can do OEM & ODM for all customers with customized PDF or AI format artwork.Q 3: How long is your delivery time?Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.Q 4: Do you provide samples? Is it free or extra?Yes, we could offer the sample but not for free. Actually, we have an excellent price principle, when you make the bulk order the cost of the sample will be deducted.Q 5: How long is your warranty?A: Our Warranty is 12 months under normal circumstances.Q 6: What is the MOQ?A: Usually, our MOQ is 1 pcs.Q 7: Do you have inspection procedures for the cardan drive shaft?A: 100% self-inspection before packing.Q 8: Can I have a visit to your factory before the order?A: Sure, welcome to visit our factory.Q 9: What's your payment?A:1) T/T.
