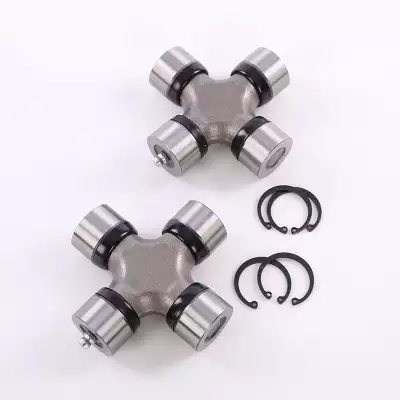

Universal joint for Blueline F25 36 x 89

Blueline Universal Joint for F25 36 x 89

Part no.: 377377061

A (mm): 36

B (mm): 89

Size: F25

Cross size (mm): 36 x 89

Maintenance: Every 20 hours

Type: pto shaft drive

Series: F25

Weight: 938 g

What is a Universal Joint?

A universal joint, also known as a cross kit, Cardan Joint, or U-Joint, is a mechanical component that allows two shafts not aligned with each other to rotate at a constant angular velocity, transmitting torque and power.

Key Features of Universal Joint

• Shaft Misalignment Tolerance: Universal joints tolerate misalignment between the shafts they connect, meaning the shafts do not need to align perfectly.
• Angle Change Tolerance: Universal joints can handle changes in the angle between the shafts without breaking or causing undue stress.
• Torque Transmission: Universal joints transmit rotational power and torque from one shaft to another.
• Efficient Transmission: Universal joints transmit torque with almost no energy loss, making them highly efficient.

Our Universal Joint Production

We produce a wide variety of universal joints, each designed to meet specific requirements.

Benefits of Our Universal Joints

• High-quality materials for durability and longevity
• Precision engineering for smooth operation
• Customizable to meet specific requirements
• Comprehensive range of sizes and styles
• Competitive pricing

Choosing the Right Universal Joint for Your PTO Shaft

Selecting the right universal joint involves considering several parameters, including:

• Power and Torque Requirements: The universal joint must be able to handle the power and torque generated by the PTO shaft.
• Shaft Size and Interface Type: The universal joint must fit the size and type of the PTO shaft's interface.
• Angle Change Range: The universal joint must be able to tolerate the range of angle changes between the PTO shaft and the equipment it powers.
• Working Environment and Conditions: The universal joint must be able to withstand the environmental conditions in which it will operate.
• Standards and Certification Requirements: The universal joint must meet any standards or certification requirements for the equipment it will be installed on.

Structure of a Universal Joint

The structure of a universal joint includes several key components:

• Outer Yoke: The part that connects the universal joint to the shaft.
• Inner Yoke: The part that connects the universal joint to the other shaft.
• Pin: The part that connects the inner yoke to the cross.
• Cross: The part that transmits torque from one yoke to another.
• Bearing Cups: The parts that hold the bearings in place.
• Seal: The part that protects the bearing from contaminants.

About Raydafon Group

Raydafon Group is a leading innovator in the PTO Shaft market. We specialize in the development, manufacture, and marketing of PTO shafts, industrial universal joints, and automotive drive shafts. Our products are highly regarded by customers in Europe, the US, Asia, Australia, and North America. We support custom and contract manufacturing, including laser-printed logos. We are among the top three OEM suppliers to numerous agricultural equipment manufacturers and have received CE, TS/16949, ISO 9001 certification. Our systematic production equipment and team ensure the quality and timely delivery of our products. We also supply related products such as agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission components, as well as agricultural machinery parts. We welcome customer designs and samples for custom orders.
