Wave/ Tide Power Generation Equipment Hydraulic Cylinder

Wave/ Tide Power Generation Equipment Hydraulic Cylinder

A wave/tide power generation equipment hydraulic cylinder is a type of hydraulic cylinder that is specifically designed for use in wave and tide power generation systems. These cylinders are typically large and powerful, and they are designed to withstand the harsh marine environment.

Wave/tide power generation equipment hydraulic cylinders are used to convert the kinetic energy of waves and tides into hydraulic energy. This hydraulic energy is then used to drive a hydraulic motor, which in turn drives an electric generator to produce electricity.

There are two main types of wave/tide power generation equipment hydraulic cylinders:

• Piston cylinders: These cylinders have a piston that moves up and down inside the cylinder barrel. The piston rod is connected to a power take-off (PTO) device, such as a hydraulic motor. As the piston moves up and down, it displaces hydraulic fluid, which drives the PTO device.
• Ram cylinders: These cylinders have a single ram that extends and retracts from the cylinder barrel. The ram is connected to a PTO device, such as a hydraulic motor. As the ram extends and retracts, it displaces hydraulic fluid, which drives the PTO device.

Wave/tide power generation equipment hydraulic cylinders are typically made of high-strength materials, such as stainless steel or titanium. This is because they need to be able to withstand the high pressures and corrosive environment of the ocean.

Wave/tide power generation equipment hydraulic cylinders are an essential component of wave and tide power generation systems. They play a vital role in converting the kinetic energy of waves and tides into electricity.

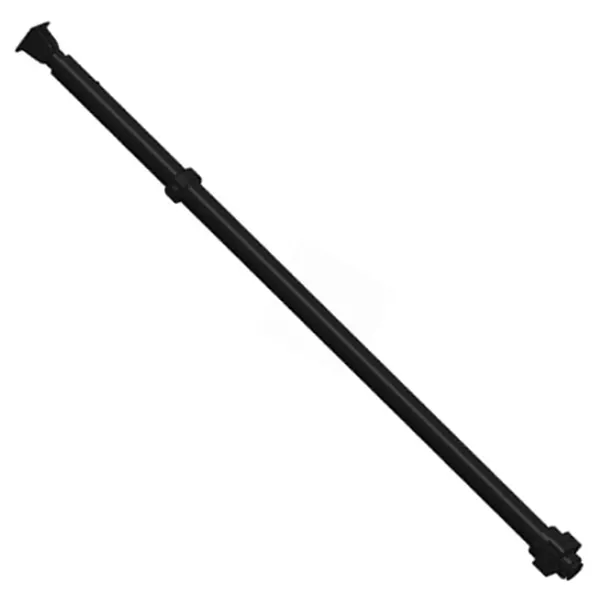

Wave/ Tide Power Generation Equipment Hydraulic Cylinder Specifications:

Product Name	Wave/ Tide Power Generation Equipment Cylinder
Features:	Convert wave energy into hydraulic energy to push the hydraulic cylinders to move. The high-pressure oil then drives the electric motor to generate electricity, which is finally converted into electrical energy.
Bore diameter:	Up to 250mm
Rod diameter:	Up to 190mmStroke up to 4800mm
Pressure：	up to 31.5MPa
Applications:	Wave/ Tide Power Generation

Wave/ Tide Power Generation Equipment Hydraulic Cylinder Advantages:

Wave and tide power generation equipment typically use hydraulic cylinders as a key component in their operation. Here are some advantages of using hydraulic cylinders in wave/tide power generation equipment:1. High Power Density: Hydraulic cylinders offer a high power-to-weight ratio, allowing for compact and efficient equipment design. This is particularly important in wave and tide power generation, where space is often limited, and the equipment needs to be submerged in water.2. Robust and Reliable: Hydraulic cylinders are known for their durability and ability to withstand harsh environments, including saltwater and extreme weather conditions. They are designed to operate reliably over long periods without significant maintenance, making them suitable for wave and tide power generation equipment that is constantly exposed to the elements.3. Precise Control: Hydraulic cylinders provide precise control over the movement of various components in wave and tide power generation systems. This is crucial for optimizing the capture of wave or tidal energy and adjusting the equipment to changing conditions.4. Scalability: Hydraulic systems are easily scalable, allowing for the adaptation of equipment to different power generation capacities. By adjusting the size and number of hydraulic cylinders, wave, and tide power generation equipment can be customized to meet specific energy requirements.5. Energy Conversion Efficiency: Hydraulic cylinders can efficiently convert wave or tidal motion into mechanical power. They can efficiently capture the energy of ocean waves or tides and convert it into rotational motion to drive generators or other power generation devices.6. Minimal Environmental Impact: Hydraulic cylinders have a relatively low environmental impact when compared to other power generation methods. They produce no direct emissions, and their operation does not generate significant noise pollution or harm marine life.7. Flexibility in Design: Hydraulic cylinders offer design flexibility, allowing engineers to tailor their size, stroke length, and force output to meet the specific requirements of wave and tide power generation equipment. This flexibility enables the optimization of the system's efficiency and performance.

Choose Wave/ Tide Power Generation Hydraulic Cylinders at Raydafon:

Raydafon is a leading manufacturer of hydraulic cylinders for wave/tide power generation. Their cylinders are known for their high quality, durability, and reliability, making them ideal for use in the harsh marine environment.

Here are some of the benefits of choosing Raydafon hydraulic cylinders for wave/tide power generation:

• High efficiency: Raydafon hydraulic cylinders are designed to achieve maximum efficiency, converting the energy of the waves and tides into hydraulic power with minimal losses.
• Long service life: Raydafon hydraulic cylinders are built to last, with durable components and construction that can withstand the demanding conditions of marine use.
• Low maintenance: Raydafon hydraulic cylinders are designed to be low-maintenance, requiring minimal upkeep to ensure reliable operation.
• Customizable design: Raydafon offers a wide range of hydraulic cylinder designs to meet the specific needs of each wave/tide power generation project.

Raydafon hydraulic cylinders have been used in a number of successful wave/tide power generation projects around the world, including the Oyster wave power plant in Orkney, Scotland, and the Penghu Tidal Lagoon in Taiwan.

To choose the right Raydafon hydraulic cylinders for your wave/tide power generation project, you will need to consider the following factors:

• Type of wave/tide power generation device: The type of wave/tide power generation device you are using will determine the specific requirements for your hydraulic cylinders. For example, wave energy converters (WECs) typically require cylinders with a high power density and stroke length, while tidal barrages require cylinders with a high force capacity.
• Operating environment: The operating environment of your wave/tide power generation device will also need to be considered when choosing hydraulic cylinders. Factors such as water depth, salinity, and temperature can all affect the performance and durability of your cylinders.
• Budget: Raydafon offers a range of hydraulic cylinders at different price points. It is important to choose cylinders that meet your budget without compromising on quality or performance.

If you are unsure which Raydafon hydraulic cylinders are right for your wave/tide power generation project, you can contact Raydafon directly for assistance. Their experienced engineers will be able to help you select the best cylinders for your specific needs.

Hydraulic Cylinders for Wave/ Tide Power Generation:

Ocean energy is rich, clean, and pollution-free. At present, tidal and wave power generation technologies have been put into practical use. Raydafon combines the severe deep-sea working environment of ocean energy power generation equipment to provide hydraulic cylinder products and complete hydraulic systems that meet their needs. The special design with laser cladding coating technology and the ceramic spraying process not only gives the cylinder products the advantages of small deformation, high cladding layer density, and good strengthening effect but also, the design has excellent corrosion resistance and wear resistance, even in the splash zone where corrosion and impact are more severe, the protective effect of the cylinder surface is also obvious.In the 500-kilowatt wave energy power plant project, the maximum operating frequency of our hydraulic cylinder products can reach 20,000 times a day, which provides powerful auxiliary power for the device to fully collect the large amount of wave energy contained in the deep sea. Meanwhile, we also provide a complete hydraulic system. The input of the system is a continuous unstable two-way force (wave energy); the generated energy drives the hydraulic cylinders to move and converts the mechanical energy into hydraulic energy and stored it in the accumulator. When the accumulator reaches a certain amount of energy, it releases the energy to push the hydraulic motors and generator to generate electricity in this cycle to provide energy for the power generation device safely and efficiently.Moreover, we go beyond wave/ tide power generation equipment hydraulic cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
