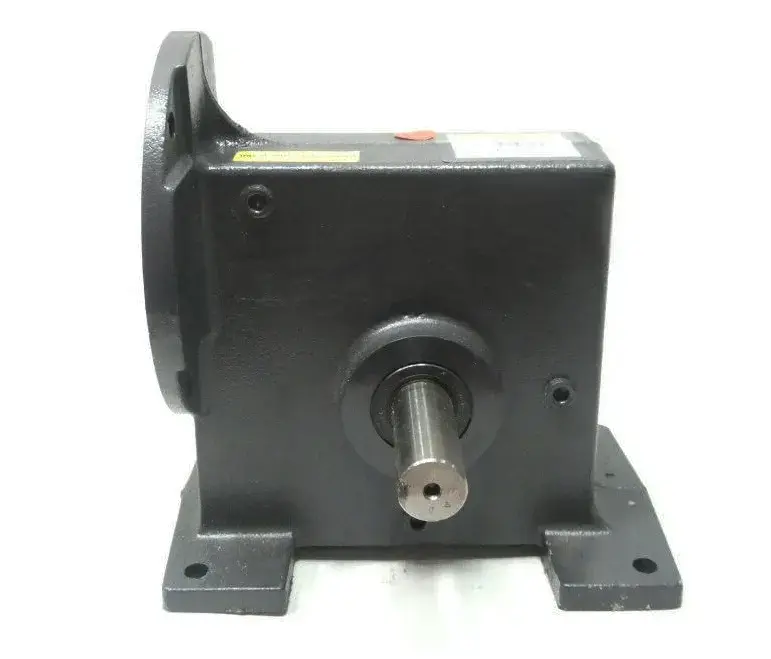

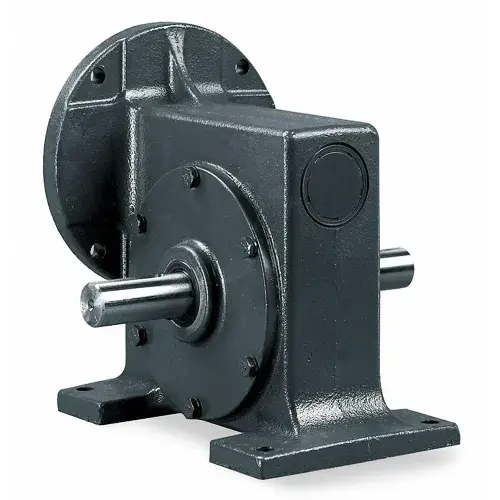

Worm Reducer-Replacement of Dayton 2Z151 C-Face Right Angle Worm Speed Reducer

Introduction

This model is a worm reducer designed to replace the Dayton 2Z151 C-Face right angle worm speed reducer. Our product is a replacement part and not an original equipment manufacturer (OEM) part. We provide high-quality replacement parts for original equipment. If you require original equipment parts, please contact the original supplier for purchasing.

Composition and Function of Right Angle Worm Gearbox

The right angle worm gear reducer consists of the following components:

1. Worm: The worm transmits motion to the worm gear.
2. Worm Gear: The worm gear receives motion from the worm and transfers it to the output shaft.
3. Output Shaft: The output shaft delivers the rotational power to the application.
4. Housing: The housing provides structural support and protects the internal components.

Specific Features of the Product

• Surface Hardening: The worm is surface hardened for enhanced durability.
• Ball Bearing Supported Worm: The worm is supported by ball bearings for smooth operation.
• High-Strength Bronze Tapered Roller Bearings: The output gear is supported by high-strength bronze tapered roller bearings.
• Cast Iron Housing: The gearbox features a sturdy cast iron housing for increased strength and reliability.
• Horizontal or Ceiling Mounting: The gearbox can be mounted horizontally on the ground or on the ceiling.
• Continuous Output Speed Range: The gearbox provides a continuous output speed range of 29 to 173 RPM.
• Dual Output Shafts: The gearbox is equipped with two output shafts.
• 2.63" Worm Center Distance: The worm center distance is 2.63 inches.

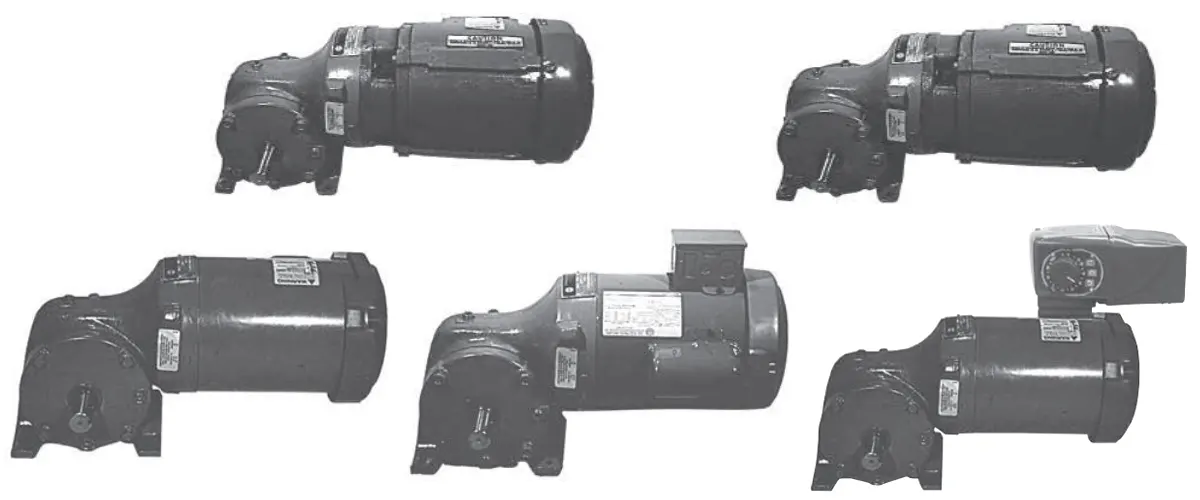

Working Principle of Worm Gearmotor

The worm gearmotor utilizes the principle of the worm and worm gear to achieve speed reduction and torque multiplication. The worm, driven by the motor, rotates and engages with the worm gear, causing it to rotate as well. This rotation is then transferred to the output shaft, resulting in the desired speed reduction and increased torque output.

Applications of the Product

The worm reducer is widely used in various applications, including:

• Equipment Industry: Used in various types of machinery and equipment for power transmission.
• Food Industry: Utilized in food processing and packaging machinery.
• Car Washing Industry: Integrated into car wash systems for efficient operation.
• Packaging Industry: Used in packaging machines to achieve precise motion control.
• Transmission Industry: Applied in transmission systems for speed reduction and torque multiplication.
• Automation Industry: Incorporated into automated systems for reliable and precise movement.
• Solar Energy Industry: Utilized in solar tracking systems for efficient solar panel positioning.

Choosing the Right Angle Worm Gear Reducer

When selecting a suitable right angle worm gear reducer, consider the following:

1. Required Torque: Determine the torque requirements of your application.
2. Speed Range: Identify the desired output speed range.
3. Mounting Options: Consider the available mounting options for easy integration.
4. Environmental Factors: Evaluate the operating environment for factors like temperature, humidity, and dust.
5. Application Specifics: Take into account any additional requirements specific to your application.

Motors for Worm Gear Reducers

Worm gear reducers and electric motors are complementary components in power transmission systems. The worm gear reducer provides speed reduction and torque multiplication, while the electric motor supplies the driving force. The proper selection and pairing of a suitable motor with the worm gear reducer is crucial to achieve optimal performance.

Dayton Worm Gear Reducer Replacement

We offer high-quality replacements for Dayton worm gear reducers. Our replacements are of excellent quality and available at competitive prices. Please note that our products are replacement parts and not original equipment manufacturer (OEM) parts. We provide replacement parts for original equipment. If you require original equipment parts, please contact the original supplier for purchasing. Additionally, we welcome customization based on your specific requirements.

About Raydafon

We are a comprehensive transmission equipment manufacturer specializing in the research, development, manufacturing, and sales of speed reducers. With over 15 years of experience, we serve customers globally, including Europe, America, Africa, and Asia. Our commitment to quality and service has earned us a reputable position in the market. We boast advanced production and testing equipment, a team of industry professionals and technicians, and a focus on innovative research and development. Our standardized production management ensures the production of high-quality, energy-efficient, and stable reducers. Our gearboxes find wide applications in various industries, such as equipment, food, car washing, packaging, transmission, automation, and solar energy. We welcome customers to explore our products and contact us for purchasing.

Q&A

Q: Can I use this worm reducer in high-temperature environments?

A: Yes, our worm reducer is designed to operate effectively in high-temperature environments. It is constructed with heat-resistant materials and features efficient heat dissipation mechanisms.

Q: What maintenance is required for the worm gearmotor?

A: Regular inspection and lubrication of the worm gearmotor are recommended to ensure optimal performance and longevity. Detailed maintenance instructions are provided in the product manual.

Q: Can I replace the worm gear in the reducer?

A: Yes, our worm reducers are designed for easy replacement of individual components, including the worm gear. Spare parts are available for purchase to facilitate maintenance and repairs.
