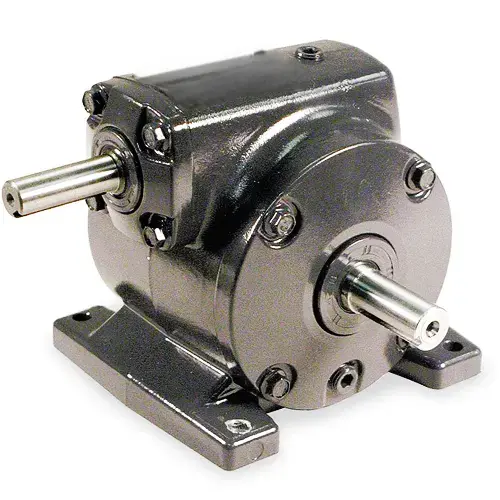

Worm Reducer-Replacement of Dayton 2Z309 Indirect Drive Right Angle Speed Reducers

Introduction to Worm Gear Reducer

Our company provides high-quality worm gear reducers, including the model Dayton 2Z309, which is a replacement part and not an original part. Our product is a reliable and compact structure, suitable for continuous operation, high torque, and low-speed applications. It features a single output shaft, and the output shaft's tapered roller bearing can withstand a suspended load of 600 pounds. The worm gear reducer has a hardened steel worm, a forged bronze worm wheel, and a 2-inch worm center distance. The input and output shafts have double-lip oil seals, with the inner lip spring-loaded to retain lubricating oil and the outer lip preventing dust and debris from entering. The worm gear reducer can be installed in any position.

Structure of Worm Gear Reducer

• Hardened steel worm
• Forged bronze worm wheel
• 2-inch worm center distance
• Single output shaft
• Double-lip oil seals on input and output shafts

Features of Worm Gear Reducer

• Compact and reliable structure
• Suitable for continuous operation, high torque, and low-speed applications
• Single output shaft
• Output shaft's tapered roller bearing can withstand a suspended load of 600 pounds
• Hardened steel worm
• Forged bronze worm wheel
• 2-inch worm center distance
• Double-lip oil seals on input and output shafts
• Can be installed in any position

Applications of Worm Gear Reducer

• Conveyors
• Agitators
• Mixers
• Food processing equipment
• Material handling equipment
• Printing presses
• Packaging equipment

Working Principle of Worm Gearmotor

The worm gearmotor consists of a worm and a worm wheel. The worm rotates and drives the worm wheel to rotate. The gear ratio of the worm gearmotor determines the output speed and torque. The worm gearmotor's input shaft connects to the motor, and the output shaft connects to the load.

How to Choose the Right Worm Drive

When selecting a worm drive, you should consider the following:

• Speed ratio
• Efficiency
• Torque capacity
• Backlash
• Input power
• Service life
• Mounting position

Motors for Worm Gear Speed Reducers

Motors and worm gear speed reducers are complementary products. They are often used together in industrial equipment. Our company provides electric motors suitable for use with worm gear speed reducers. The combination of our motors and worm gear speed reducers ensures the efficient and reliable operation of industrial equipment.

Dayton Worm Speed Reducer Replacement

Our company provides high-quality Dayton worm speed reducer replacements that are reliable and reasonably priced. However, please note that our products are replacement parts and not original parts. If you need to purchase original parts, please contact the original supplier. We welcome customers to provide samples and drawings for customization.

About Raydafon

We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. We have more than 15 years of experience in the design, production, manufacture, and sales of gearboxes, serving customers in Europe, America, Africa, Asia, and other regions. Our company has introduced advanced production equipment and testing equipment at home and abroad, employed industry professionals and technicians to carry out innovative research and development and manufacturing, and used standardized production management methods to strictly control every aspect of the production of reducers. Over the years, we have provided customers with high-quality, energy-efficient, and stable production. Our gearboxes are widely used in the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and other industries. We are committed to providing customers with the highest quality products, the most competitive prices, and the best service.

Q&A

Q: What is the gear ratio of the Dayton 2Z309 worm gear reducer?

A: The gear ratio of the Dayton 2Z309 worm gear reducer is dependent on the number of teeth on the worm wheel and worm.

Q: What is the maximum torque capacity of the Dayton 2Z309 worm gear reducer?

A: The maximum torque capacity of the Dayton 2Z309 worm gear reducer depends on the model and size of the reducer.

Q: Can the worm gear reducer be used in any position?

A: Yes, the worm gear reducer can be installed in any position.
