The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 6 SNU-O Worm Gear Unit is a series of gearboxes that offer a wide range of features and applications. With its robust design and large cooling fins, this gearbox has increased heat dissipation and improved temperature control. The streamlined oil sump allows for increased oil capacity, while the larger fan enhances the gearbox's thermal rating. This means higher continuous load capacity without significant temperature rise. The gearbox can be easily replaced by simply swapping the fan and fan cover from one end of the worm shaft to the other. We offer Elecon brand replacement worm gearboxes that are of high quality and competitively priced. It's important to note that our products are replacement parts and not original equipment manufacturer (OEM) parts. For original equipment, please contact the OEM supplier.
The gearbox features a sturdy housing made of fine-grain cast iron with a streamlined design. It is completely oil and dust-proof, eliminating the need for separate covers during outdoor installation. The surface and bores are precision-drilled and machined using the latest machinery to ensure perfect alignment and interchangeability. The worm is made of carburized alloy steel, while the worm wheel is made of centrifugally cast phosphor bronze. Both undergo precise machining and heat treatment processes to ensure high quality and interchangeability. The worm wheel is toothed using a high-precision gear hobbing machine. Each worm wheel is carefully inspected and matched with the main worm to ensure complete interchangeability. The worm and worm wheel are supported by ball or roller anti-friction bearings, providing ample safety margin to withstand axial and thrust loads. The axle is made of high-strength carbon steel, capable of bearing torsional and bending loads caused by cantilever drives.
For more detailed information, please refer to the following image:

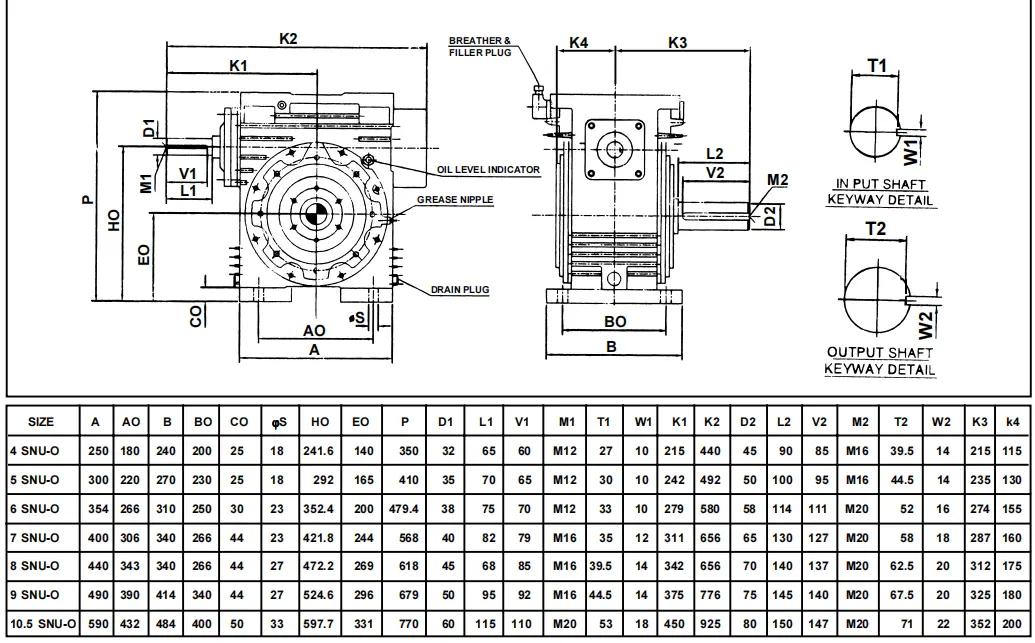

Please refer to the following image for the dimensions of the Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 6 SNU-O Worm Gear Unit:
The Worm Reducer-Replacement of Elecon SNU Modular Universal Mounting 6 SNU-O Worm Gear Unit comes with a universal housing that includes top and bottom flanges, as well as support flanges. This allows for versatile installation positions, such as low speed, high speed, and vertical orientations. The internal components are interchangeable for all installation positions. Simply invert the device and reposition the drain plug, vent plug, and oil level indicator to quickly change the installation position from low speed to high speed, and vice versa. The gearbox's sturdy and compact design ensures ample heat capacity. Please refer to the following image for more details:
| Issue | Cause | Solution |
|---|---|---|
| Excessive vibration | Imbalanced load or misalignment | Check load distribution and alignment, make necessary adjustments |
| Abnormal noise | Worn or damaged gears | Inspect and replace worn or damaged gears |
| Overheating | Insufficient lubrication or excessive loading | Ensure proper lubrication and adjust loading if necessary |
| Leakage | Seal failure or damaged gaskets | Replace seals and gaskets as required |
| Reduced efficiency | Incorrect gear meshing or worn components | Realign gears and replace worn components |
We offer a number of advantages when it comes to replacing Elecon brand worm gear units:
For more information, please refer to the following image:
Electric motors play a crucial role in the operation of worm reducers. They provide the necessary power to drive the gearbox and ensure optimal performance. At our company, we also offer a wide range of electric motors for sale. These motors are designed to work seamlessly with our worm reducers, providing a reliable and efficient solution for various applications. For more information, please refer to the following image:
We are a comprehensive transmission equipment manufacturer known as Raydafon. With over 20 years of experience in the design, production, and sales of speed reducers, we have served customers worldwide and earned a reputable position in the market. Our company is committed to providing the highest quality products, competitive pricing, and exceptional customer service. We have introduced advanced production and testing equipment, employed industry professionals and technicians, and implemented standardized production management methods to ensure the production of high-quality and energy-efficient gearboxes. Our gearboxes are widely used in various industries, including equipment, food, car washing, packaging, transmission, automation, and solar energy. We welcome customers to explore our products and contact us for purchasing.
For more information about our company, please refer to the following image:
A: Yes, the gearbox's universal housing design allows for vertical installations without any issues. Simply ensure proper lubrication and alignment for optimal performance.
A: Yes, our replacement gearbox is designed to be compatible with
