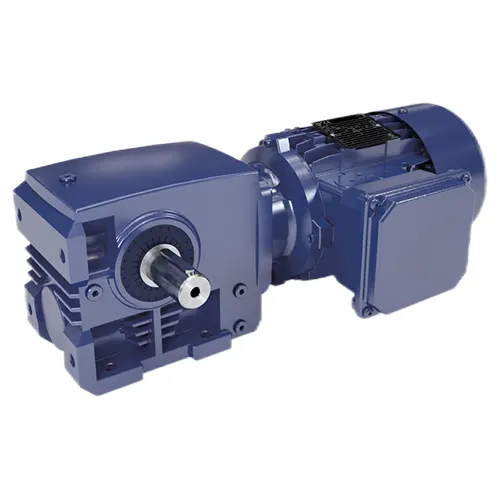

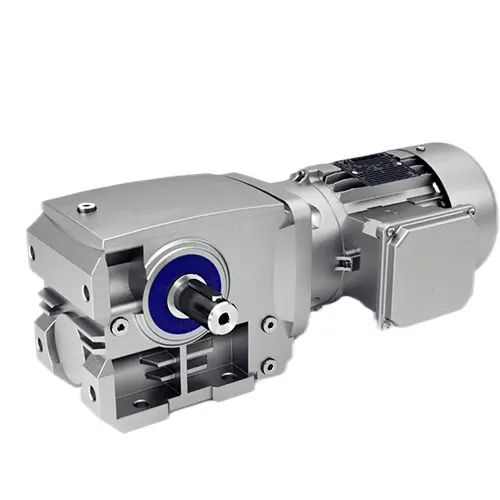

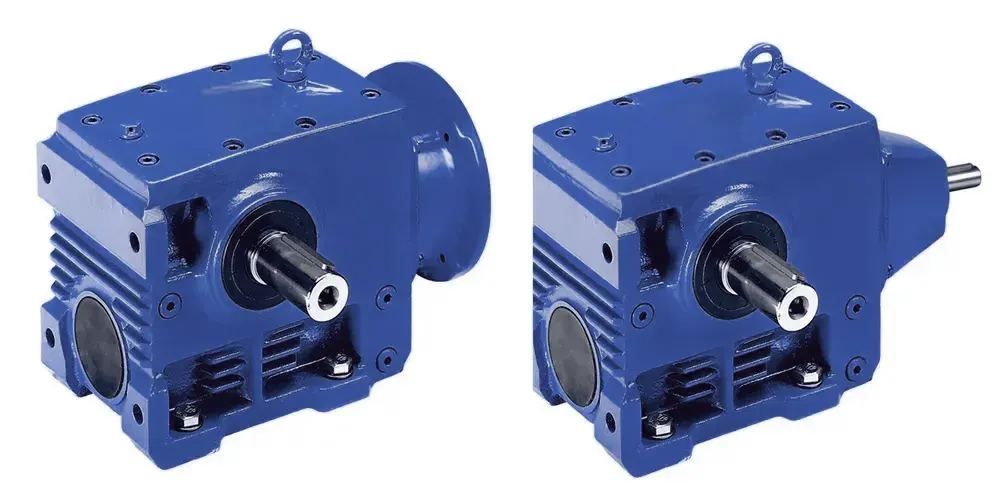

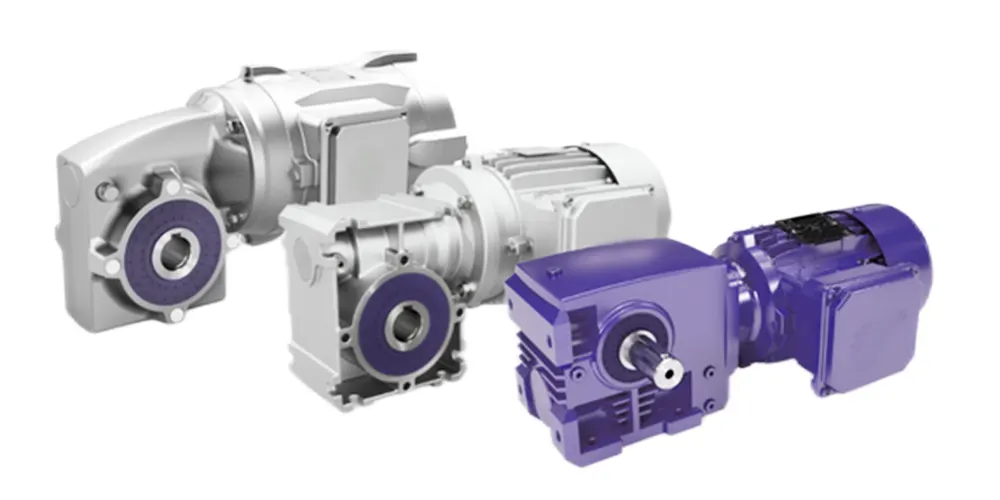

Worm Speed Reducer SK02050 is a multi-stage helical gear unit where the motor shaft and the output shaft form a 90-degree angle. This allows for flexible installation in tight spaces. These gearboxes are made of high-strength aluminum or die-cast aluminum, which ensures maximum strength and rigidity while being lightweight. They can be further protected by surface treatment. The power range of this series is wide, ranging from 0.16 horsepower to 20 horsepower, with an output torque of up to 27,350 pound-inches. The wide range of speed ratios (from 5.37:1 to 330:1) can best meet the customer's requirements. The motors can be directly installed without couplings or adapters (NEMA or IEC). Our company provides Nord brand replacement helical worm gear reducers that are of good quality and affordable. It should be noted that these products are not original spare parts, but replacement parts for original factory spare parts. If you need to purchase original factory spare parts, please contact the original factory supplier for purchase.

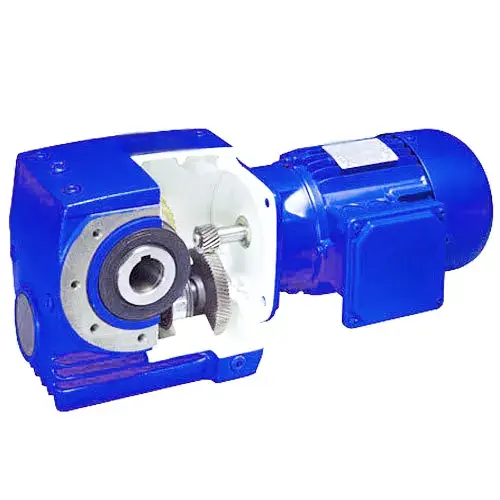

The helical worm gear unit is composed of the following parts:
Each part plays a specific role in the functioning of the gearbox. The input shaft transfers power to the gearbox, while the output shaft transmits power to the machine. The worm gear and worm shaft are responsible for reducing the speed and increasing the torque. Bearings and oil seals ensure smooth operation and prevent oil leakage. The output flange and output cover provide protection for the output shaft and bearings.
| Problem | Solution |
|---|---|
| Overheating | Check whether the ambient temperature is too high. If so, reduce the load or improve ventilation. Check whether the oil level is too low or the viscosity is too high. If so, add or replace the oil. Check whether there is any damage to the gear or bearing. |
| Noise | Check whether the gear or bearing is damaged or worn. If so, replace it. Check whether the gear is properly meshed. If not, adjust the gear position. Check whether the input shaft and the output shaft are aligned properly. If not, adjust the shaft position. |
| Oil Leakage | Check whether the oil seal is damaged or worn. If so, replace it. Check whether the oil level is too high. If so, reduce the oil level. |
| Abnormal Vibration | Check whether the gear or bearing is damaged or worn. If so, replace it. Check whether the input shaft and the output shaft are aligned properly. If not, adjust the shaft position. Check whether the gearbox is installed properly. If not, reinstall it. |
| Insufficient Output Torque | Check whether the load is within the rated range. If not, reduce the load. Check whether the gear or bearing is damaged or worn. If so, replace it. Check whether the gear is properly meshed. If not, adjust the gear position. |
| Excessive Load Shock | Check whether the load is within the rated range. If not, reduce the load. Check whether the gear or bearing is damaged or worn. If so, replace it. Check whether the gear is properly meshed. If not, adjust the gear position. |
| Abnormal Gear Wear | Check whether the gear is properly lubricated. If the lubrication is insufficient, add lubricant. Check whether the gear meshing is normal. If not, adjust the gear position. Check whether the load is within the rated range. If not, reduce the load. |
| Input Shaft Damage | Check whether the load is within the rated range. If not, reduce the load. Check whether the gearbox is installed properly. If not, reinstall it. Check whether the input and output shafts are aligned properly. If not, adjust the shaft position. |
| Output Shaft Damage | Check whether the load is within the rated range. If not, reduce the load. Check whether the gearbox is installed properly. If not, reinstall it. Check whether the input and output shafts are aligned properly. If not, adjust the shaft position. |
| Failure to Start | Check whether the power supply is normal. Check whether the input shaft is connected properly. Check whether the gear or bearing is damaged or worn. If so, replace it. Check whether the motor is overloaded. If so, reduce the load. |
Our company offers Nord brand replacement helical worm gear reducers that are of good quality and affordable. The advantages of using our replacement products are as follows:
It should be noted that these products are not original spare parts, but replacement parts for original factory spare parts. If you need to purchase original factory spare parts, please contact the original factory supplier for purchase. We also welcome customers to provide samples or drawings for customization.
Worm gear reducers and electric motors are closely related. Worm gear reducers reduce the speed and increase the torque of the motor. Electric motors provide power to the worm gear reducers. Our company also offers various electric motors for sale. The combination of high-quality worm gear reducers and electric motors can provide stable and efficient power transmission for various applications.
We are a comprehensive transmission equipment manufacturer integrating research and development, manufacturing, and sales of speed reducers. With more than 20 years of experience in the design, production, manufacture, and sales of gearboxes, we serve customers in Europe, America, Africa, Asia, and other regions, and enjoy a good reputation in the market. Our consistent mission and vision over the years have led us to introduce advanced production and testing equipment at home and abroad, to employ industry professionals and technicians to carry out innovative research and development and manufacturing, and to use standardized production management methods to strictly control every aspect of gearbox production. We have always provided customers with high-quality, high-energy-efficient, and high-stability gearbox products. Our gearboxes are widely used in the equipment industry, food industry, car washing industry, packaging industry, transmission industry, automation industry, solar energy industry, and other fields. We welcome and appreciate customers exploring our products and contacting us for purchasing.
A: You should consider the following factors when choosing a speed reducer:
A: Worm gear reducers are not suitable for high-speed applications. Their speed reduction ratio is usually low and their efficiency is relatively low.
A: The oil should be replaced every 6-12 months or after 2000-4000 hours of operation. However, if the gearbox is operating in harsh conditions or the oil is contaminated, it should be replaced more frequently.
