WT-170 CNC Rotary Table

Introduction to CNC Rotary Tables

The CNC Rotary Table is a pivotal component in CNC machining, playing a significant role in determining the efficiency and accuracy of machining processes. Its application spans across various industries where precision and control are of utmost importance. This state-of-the-art equipment allows for the rotation and positioning of workpieces to be machined with high precision.

Key Features of the WT-170 CNC Rotary Table

Our WT-170 CNC Rotary Table boasts a large aperture design, high segmentation accuracy, high rigidity, high performance, and a high efficiency and strong braking structure system. These features combine to ensure optimal performance in all applications.

Specifications of the WT-170 CNC Rotary Table

The WT-170 CNC Rotary Table is designed to meet the most stringent requirements in the industry. Its specifications include:

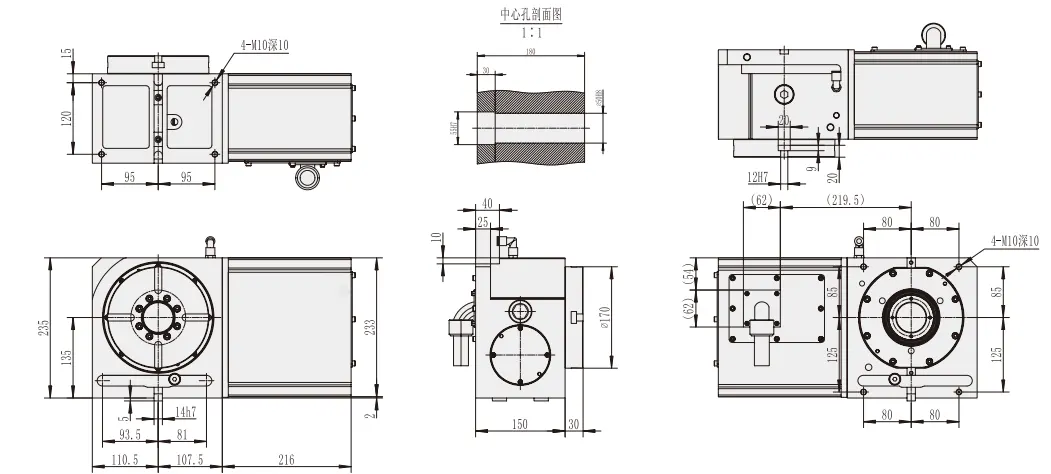

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-170	??170mm	??55H7mm	??50mm	135mm	12H7mm	14H7mm	0.001??



Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed Reduction\Ratio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight??Without Motor??
20 ??	4 ??	31kg.m	??8is;HF-104	1:90	44.4r.p.m	5.4kg.cm.sec2	18Kg.m	60Kg

Max.load:

Vertical: 80KGHorizontal: 160KGTailstock applied: 160KG

Benefits of the WT-170 CNC Rotary Table

The WT-170 CNC Rotary Table offers several benefits including high precision, double lead, high rigidity, wear resistance, special high rigidity materials, high torque transmission efficiency, and use of large bore worm gears.

Understanding the Structure of a CNC Rotary Table

The CNC Rotary Table comprises of two main types; the horizontal and vertical rotary tables, each with their specific applications. The choice between these types depends on the specific requirements of your machining process.

Worm Gear and Worm Group in WT Series CNC Rotary Table

The CNC Rotary Table adopts an imported worm gear set; the material has high hardness and low friction coefficient. The worm gear is made of Japanese special high tensile brass, which has a life span of 10 years. The increased tooth depth ensures meshing while the special design allows for automatic adjustment of backlash accuracy.

Safety Precautions and Maintenance Tips

It is imperative to adhere to safety protocols while using the CNC Rotary Table. Regular maintenance is also crucial to ensure the equipment's longevity and optimal performance.

Why Choose Raydafon's WT-170 CNC Rotary Table?

Raydafon, a leading supplier of CNC turntables, is dedicated to providing high-quality, innovative, and reliable products to meet the ever-changing needs of our customers. Our strong commitment to R&D and service has enabled us to develop a range of products including the 4-axis, 5-axis CNC turntables, and the horizontal 4-axis turntables for tool machine tools. Our products are widely utilized in various processing equipment across different fields such as 3C, automotive, energy, military, aerospace and more.We strongly encourage you to explore the WT-170 CNC Rotary Table and witness its exceptional features and benefits firsthand. Contact us now to make your purchase!
