WT-250 CNC Rotary Table

Introduction to CNC Rotary Table

The CNC Rotary Table is a precision machine tool that plays an indispensable role in CNC machining centers. It is an essential part of various processes such as milling, drilling, reaming, and boring. The WT-250 CNC Rotary Table enables precise positioning and machining, making it an ideal choice in the demanding field of CNC machining.

Application Areas of the WT-250 CNC Rotary Table

The WT-250 CNC Rotary Table is widely used in the automotive, aerospace, energy, military, and 3C industries. Its efficiency and precision make it a standout in the realm of non-standard automatic special machines and metal cutting machines.

Product Features and Specifications of the WT-250 CNC Rotary Table

Among the various features of the WT-250 CNC Rotary Table are its large aperture design, high segmentation accuracy, high rigidity and high performance, and a high efficiency and strong braking structure system. The following table presents the detailed specifications of this product:

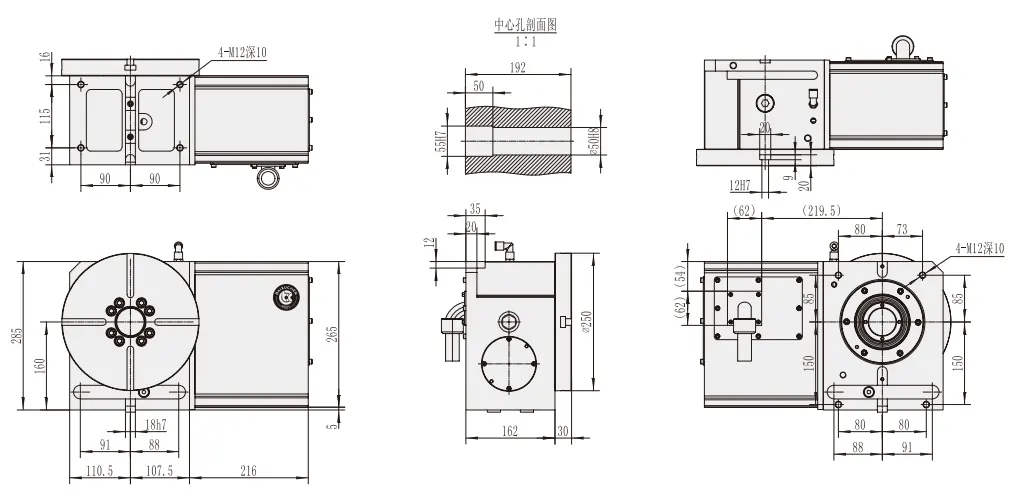

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-250	??250mm	??55mm	??50mm	160mm	12H7mm	18H7mm	0.001??
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed Reduction\Ratio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight??Without Motor??
20 ??	4 ??	45kg.m	??8is;HF-104	1:72	55.5r.p.m	8.3kg.cm.sec2	18Kg.m	75Kg

In terms of maximum load, the WT-250 CNC Rotary Table can handle up to 80KG vertically, 160KG horizontally, and 160KG when a tailstock is applied.

Key Features of the WT-250 CNC Rotary Table

The WT-250 CNC Rotary Table boasts numerous features that set it apart in the market:

Common Structures and Components of CNC Rotary Tables

The CNC Rotary Table is typically available in horizontal and vertical configurations, each with their unique applications. Horizontal rotary tables are often used for machining asymmetric parts, while vertical rotary tables are ideal for parts requiring multiple sides machining.

worm gear and Worm Group in WT Series CNC Rotary Table

The WT Series CNC Rotary Table incorporates an imported worm gear set known for its high hardness and low friction coefficient. The worm gear is crafted from special high tensile brass from Japan, promising a lifespan of 10 years.

About Raydafon

Raydafon is one of the leading suppliers of CNC Rotary Table. With a commitment to R&D innovation and production technology, Raydafon designs customer-centric CNC rotary tables. The company prides itself on its ability to keep pace with the rapidly changing needs of its customers. Raydafon's main products are 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for tool machine tools. The company also offers solutions for CNC precision rotary tables or swing mechanisms.

Explore the WT-250 CNC Rotary Table Today!

Experience the precision and efficiency of the WT-250 CNC Rotary Table. Contact us today to learn more about this product and make your purchase!Edited by Zqq.
