WT-500 CNC Rotary Table

Introduction to WT-500 CNC Rotary Table

Meet the WT-500 CNC Rotary Table, the pinnacle of precision engineering for heavy-duty applications. Designed to elevate performance, its robust construction ensures unparalleled durability and accuracy, catering to the most demanding industrial tasks. Engineered with cutting-edge technology, it delivers exceptional reliability and efficiency, meeting stringent quality standards with ease. The WT-500 excels in handling substantial workloads, guaranteeing seamless operations and precise outcomes every time. Elevate your machining prowess with this powerhouse, engineered to conquer the most challenging tasks, setting a new benchmark in CNC rotary tables for heavy-duty applications.

WT-500 CNC Rotary Table Features

• Large aperture design
• Suitable for heavy load machining
• High segmentation accuracy
• High rigidity
• High performance
• High efficiency
• Strong braking structure system

WT-500 CNC Rotary Table Technical Specifications

The following table presents the detailed specifications of this product:

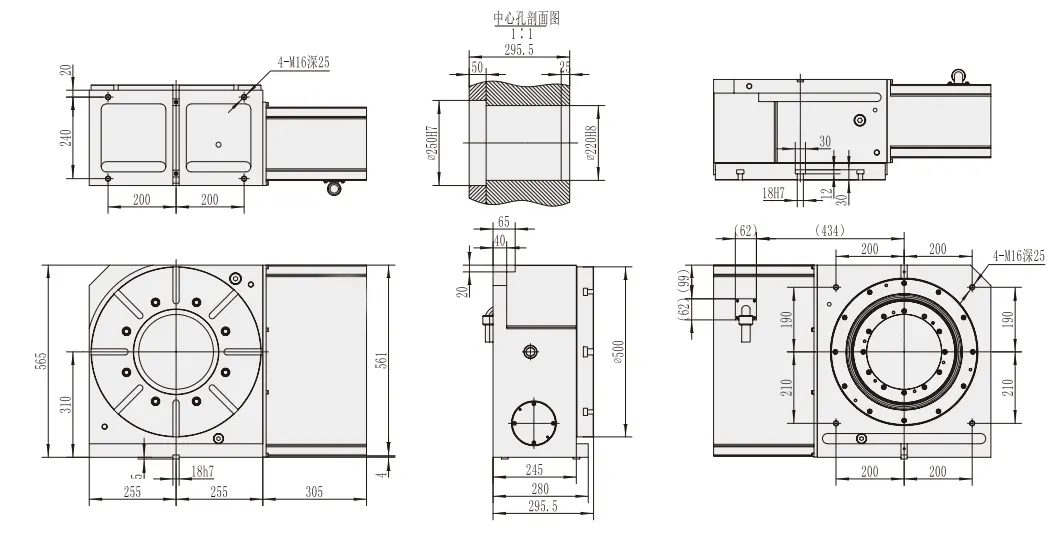

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-500	500mm	250H7mm	220mm	310mm	18H7mm	18H7mm	0.001??
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximun Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight??Without Motor??
15 ??	4 ??	300kg.m	??22is;HF-204S	1:180	11.1r.p.m	200kg.cm.sec2	270Kg.m	400Kg

Max.load

Vertical: 400KGHorizontal: 650KGTailstock applied: 650KG

WT-500 CNC Rotary Table Applications and Use Cases

• • Machining:?Showcase complex 5-axis machining tasks where the WT-500's precision and rigidity are crucial.
  • Welding:?Demonstrate how the WT-500 facilitates precise weld positioning and reduces distortion in large workpieces.
  • Inspection:?Highlight the WT-500's role in ensuring accurate measurements and quality control in various industries.

WT-500 CNC Rotary Table Advantages and Benefits

• • Enhanced productivity and efficiency:?Reduced setup times, faster cycle times, and improved overall workflow.
  • Superior accuracy and quality:?Consistent and precise positioning for reliable results in demanding applications.
  • Versatility and adaptability:?Ability to handle diverse tasks and integrate seamlessly into different manufacturing setups.
  • Durability and reliability:?Robust construction and high-quality components for long-lasting performance.

About Raydafon

Raydafon manufactures CNC turntables, emphasizing active R&D and production techniques that align with evolving customer needs. This dedication is evident in their designs, which are tailored to meet customer demands and showcase the company's prowess in innovation and in-house production capabilities. Guided by a business philosophy centered on integrity, harmony, technology, and industry competitiveness, Raydafon has long partnered with both domestic and international machine tool manufacturers. Their collaboration has led to the development of high-precision four-axis and five-axis rotary tables, catering to diverse processing fields. With widespread support, the company aims to persist in advancing its R&D and service provision, aspiring to be a trusted professional service provider and a prominent brand in China's machine tool industry. Their key offerings include 4-axis and 5-axis CNC turntables as well as horizontal 4-axis turntables for machine tools. Additionally, they offer solutions for CNC precision turntables and swing mechanisms, catering to various processing equipment in industries like 3C, automotive, energy, military, aerospace, and more.

Explore the WT-500 CNC Rotary Table Today!

Experience the precision and efficiency of the WT-500 CNC Rotary Table. Contact us today to learn more about this product and make your purchase!Edited by Zqq.
