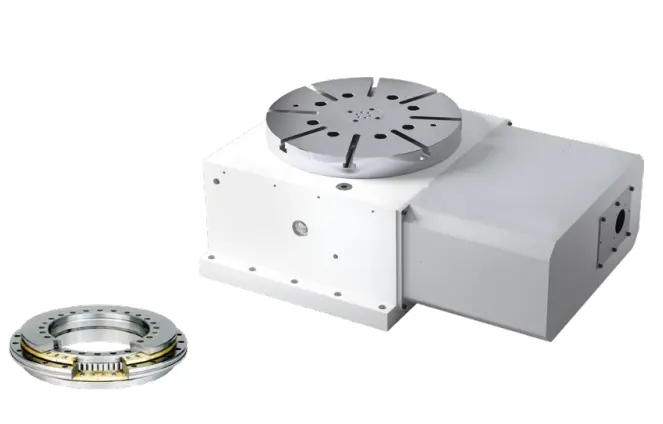

WT-H400 High Value 5th Axis CNC Rotary Table for Milling Machine Index Table

Introducing the Raydafon Group's WT-H400 High Value 5th Axis CNC Rotary Table for Milling Machine Index Table—a precision-engineered solution that empowers machinists and engineering professionals to achieve unparalleled accuracy in complex multi-axis machining. Crafted from durable materials and featuring advanced technology, this table enhances milling capabilities, delivering seamless rotary indexing for intricate parts. Its standout design offers superior stability and repeatability, making it ideal for aerospace, automotive, and custom fabrication workshops. Experience elevated efficiency and reduced setup time, solving the challenge of limited axis movement. Unlike competitors, it provides exceptional value without compromising performance. Elevate your machining precision with Raydafor Group today!

Send Inquiry

Product Description

Introduction to the CNC Rotary Table

The CNC Rotary Table is a critical part of a CNC machine that allows for precision work to be carried out on a piece of work. The WT-H400 model from Raydafon (Ningbo Raydafon) is a high-value 5th axis CNC Rotary Table designed for heavy-duty milling machines. It is a precision rotary table, allowing for a high degree of accuracy and precision during your milling operations. WT-H400 High Value 5th Axis CNC Rotary Table for Milling Machine Index Table

What is a CNC Rotary Table?

A CNC Rotary Table is a precision work positioning device used in metalworking. It enables the operator to rotate the piece being worked on, around a vertical axis.

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	300 Kg

Product Features

Suitable for horizontal machining: The design of the WT-H400 makes it ideal for horizontal machining, allowing for maximum precision and accuracy.
Four axis linkage processing: The four-axis linkage allows for complex machining tasks, making it versatile for various applications.
High segmentation accuracy: The high segmentation accuracy ensures the precision of the machining tasks, providing top-quality results.
High performance, high efficiency: The high performance and efficiency of the WT-H400 reduces machining time, increasing productivity.
Strong braking system: The strong braking system ensures stability during operation, ensuring safety and precision.

Working Principle of CNC Rotary Table

The CNC Rotary table consists of three main components: the spindle, the driving device, and the control system. The spindle is the axis that rotates the workpiece or tool. The driving device provides the power for the spindle. The control system controls the speed and direction of the spindle. WT-H400 High Value 5th Axis CNC Rotary Table for Milling Machine Index Table

Advantages of Using a CNC Rotary Table

Improved production efficiency: The automatic rotation of the workpiece or tool by the CNC Rotary table improves production efficiency.
Improved product quality: The precise positioning of the workpiece or tool during rotation improves the quality of the end product.
Reduced labor costs: The automation of the CNC Rotary table reduces the need for manual labor, thereby reducing labor costs.

Worm Gear System in CNC Rotary Tables

The worm gear, a spiral structure similar to a propeller, pairs with a gear, usually having more teeth than the worm. This design provides a high transmission ratio, allowing for a larger torque output in a smaller space. In CNC machines, rotary tables often use worm and worm gear drive systems as they provide precise positioning and stable rotary motion, ideal for machining tasks that require precise control and stability. WT-H400 High Value 5th Axis CNC Rotary Table for Milling Machine Index Table

Why Choose Raydafon's CNC Rotary Tables

Raydafon is a leading supplier of CNC Rotary Tables. We actively develop R&D innovation and production technology to fully meet the rapidly changing needs of customers. We design CNC Rotary Tables that meet customer needs, demonstrating our R&D innovation and self-made capabilities. Our main products include 4-axis and 5-axis CNC Rotary Tables and horizontal 4-axis Rotary Tables for machine tools. We also provide users with solutions for CNC precision Rotary Tables or swing mechanisms. Our products are widely used in various processing equipment, such as non-standard automatic special machines and metal cutting machines, in fields such as 3C, automotive, energy, military, and aerospace. WT-H400 High Value 5th Axis CNC Rotary Table for Milling Machine Index Table
